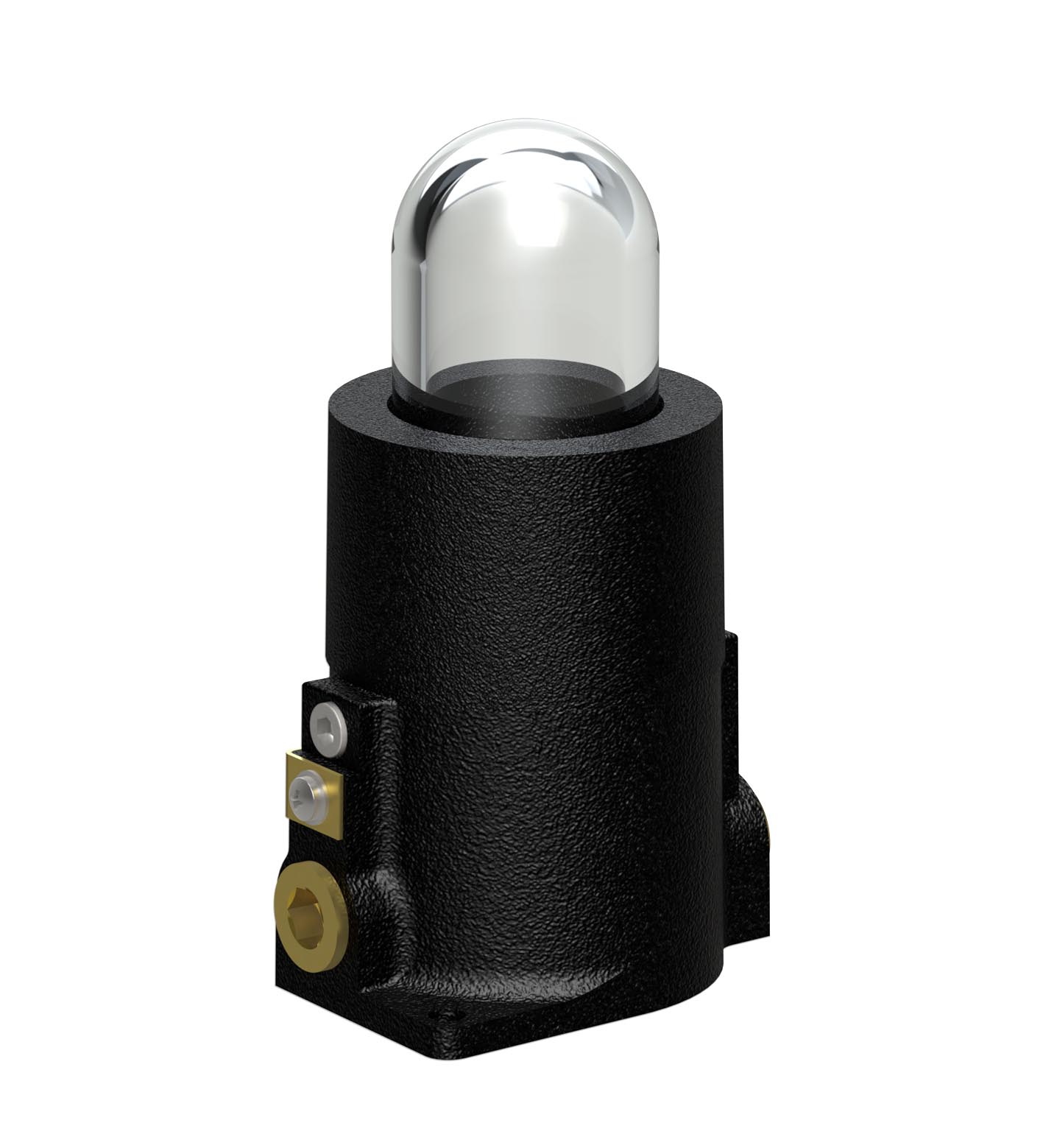

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 220 ... 254 V 50/60 Hz |
|---|---|
| Operating current | 0.15 A max. |
| Terminal capacity | 2.5 mm2 |
| Lamps | incandescent |
| Power15 WLampholderBC type | Power15 WLampholderBC type |
| Function | Signal beacon |
| Power | 15 W |
| Lampholder | BC type |
| Cover fixing | threaded joint |
| Degree of protection | IP65 |
| Cable entry face A | Cable entry face A |
| M20 quantity1M20 typemetric ISO pitch 1.5 mmM20 infoStopping Plug | M20 quantity1M20 typemetric ISO pitch 1.5 mmM20 infoStopping Plug |
| Cable entry face B | Cable entry face B |
| M20 quantity1M20 typemetric ISO pitch 1.5 mm | M20 quantity1M20 typemetric ISO pitch 1.5 mm |
| Material | Material |
| Enclosurecast ironGlasstoughened glassGlass colorwhiteFinishcast iron: painted blackSealnitrile O-ring | Enclosurecast ironGlasstoughened glassGlass colorwhiteFinishcast iron: painted blackSealnitrile O-ring |
| Mass | approx. 2 kg |
| Dimensions | Dimensions |

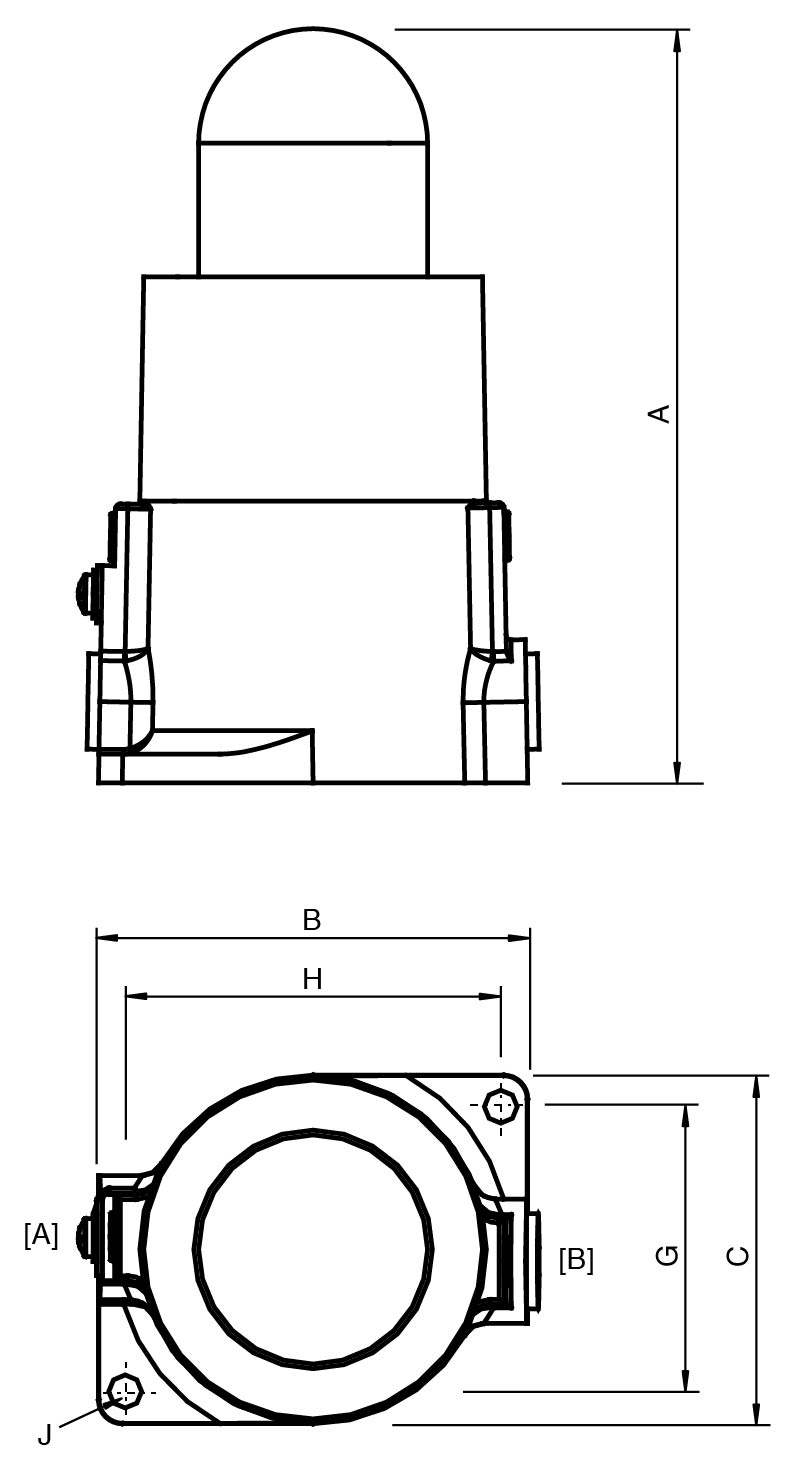

| External dimension (A)159 mmExternal dimension (B)89.8 mmExternal dimension (C)78.2 mmMounting holes distance (G)64 mmMounting holes distance (H)78 mmMounting holes diameter (J)6.9 mm | External dimension (A)159 mmExternal dimension (B)89.8 mmExternal dimension (C)78.2 mmMounting holes distance (G)64 mmMounting holes distance (H)78 mmMounting holes diameter (J)6.9 mm |
| Grounding | internal & external brass grounding terminals on base |
| M20 quantity | 1 |
| M20 type | metric ISO pitch 1.5 mm |
| M20 info | Stopping Plug |
| M20 quantity | 1 |
| M20 type | metric ISO pitch 1.5 mm |
| Enclosure | cast iron |
| Glass | toughened glass |
| Glass color | white |
| Finish | cast iron: painted black |
| Seal | nitrile O-ring |
| External dimension (A) | 159 mm |
| External dimension (B) | 89.8 mm |
| External dimension (C) | 78.2 mm |
| Mounting holes distance (G) | 64 mm |
| Mounting holes distance (H) | 78 mm |
| Mounting holes diameter (J) | 6.9 mm |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| EU-type examination certificate | CML 21 ATEX 1699 |
| Marking II 2 GD Ex db IIB T5 Gb, Ex tb IIIC T100°C Db ( ta ... +40°C ) Ex db IIB T4 Gb, Ex tb IIIC T120°C Db ( ta ... +55°C ) | Marking II 2 GD Ex db IIB T5 Gb, Ex tb IIIC T100°C Db ( ta ... +40°C ) Ex db IIB T4 Gb, Ex tb IIIC T120°C Db ( ta ... +55°C ) |
| Marking | II 2 GD Ex db IIB T5 Gb, Ex tb IIIC T100°C Db ( ta ... +40°C ) Ex db IIB T4 Gb, Ex tb IIIC T120°C Db ( ta ... +55°C ) |
| IECEx approval | IECEx CML 21.0081 |
| UKCA approval | CML 21 UKEX 1819 |
| Degree of protection | EN 60529 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
