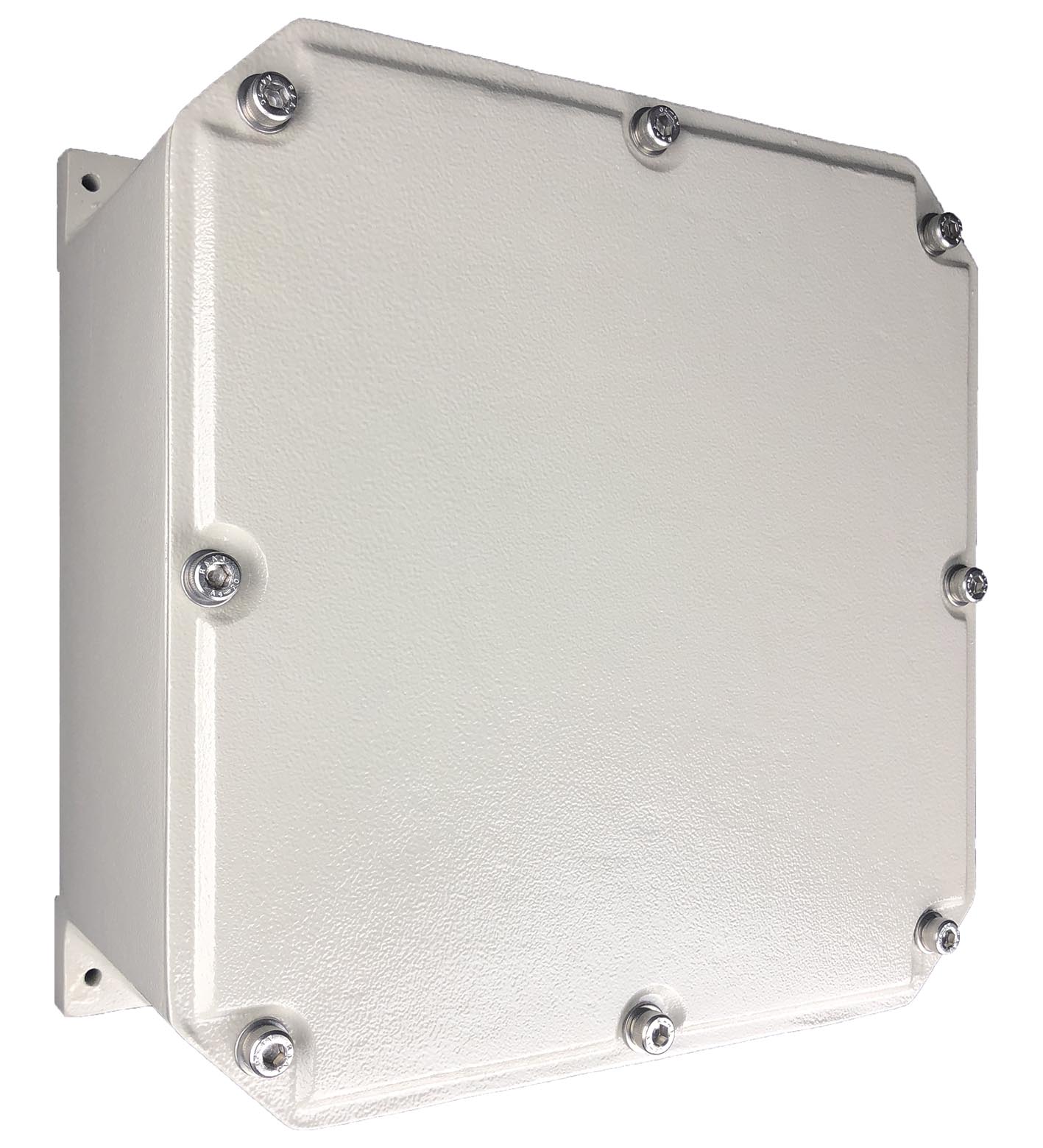

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 690 V max. |
|---|---|
| Operating current | application-specific |
| Enclosure cover | fully detachable |
| Cover fixing | stainless steel socket cap head screws |
| Screwssee data tableMaterial of screwsstainless steelYield stressmin. 1100 N/mm2 | Screwssee data tableMaterial of screwsstainless steelYield stressmin. 1100 N/mm2 |
| Cover seal | chloroprene |
| Degree of protection | IP66 |
| Cable entry | see data table cable glands as per specification |
| Terminal assembly | Terminal assembly |
| Number of railssee data tableNumber of terminals per railsee data table | Number of railssee data tableNumber of terminals per railsee data table |
| Material | Material |
| Enclosurealuminum alloyFinishEA: epoxy coated RAL 7032 DA: epoxy coated X15 Orange | Enclosurealuminum alloyFinishEA: epoxy coated RAL 7032 DA: epoxy coated X15 Orange |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |

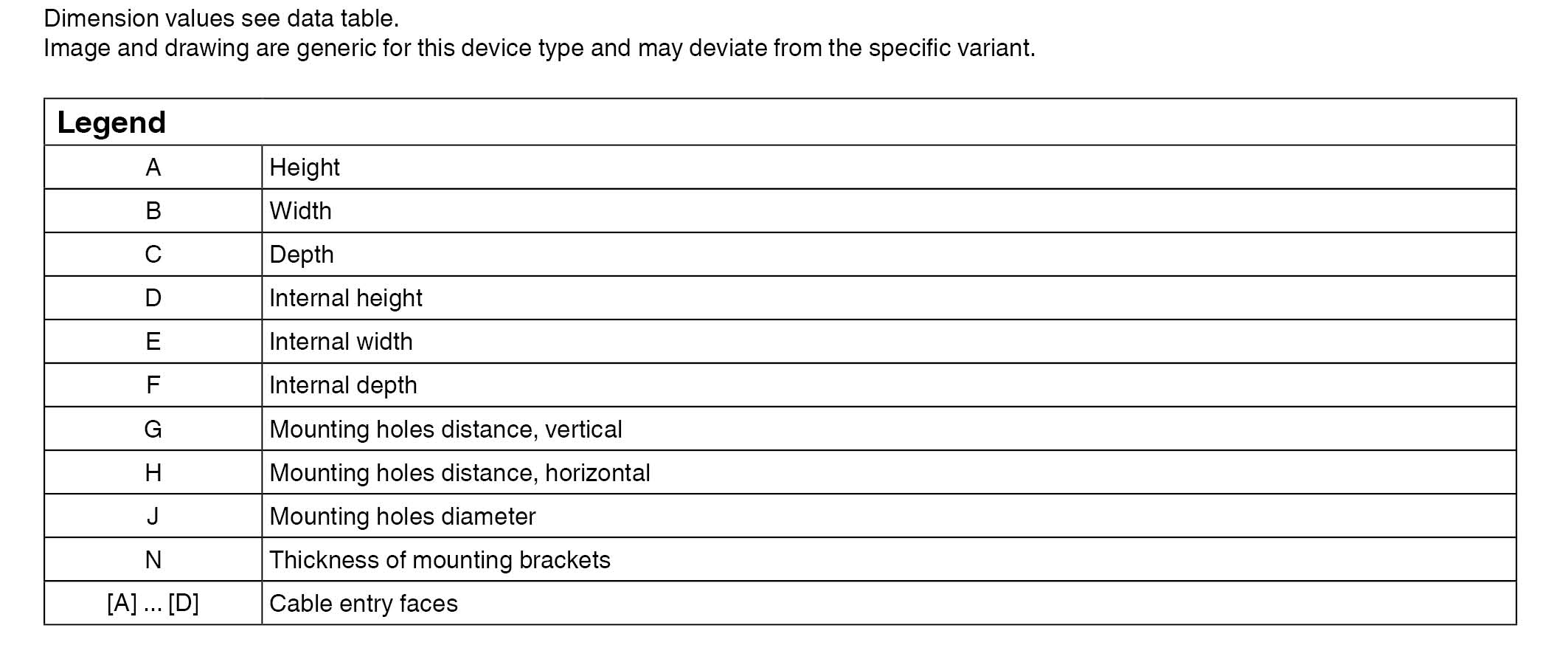

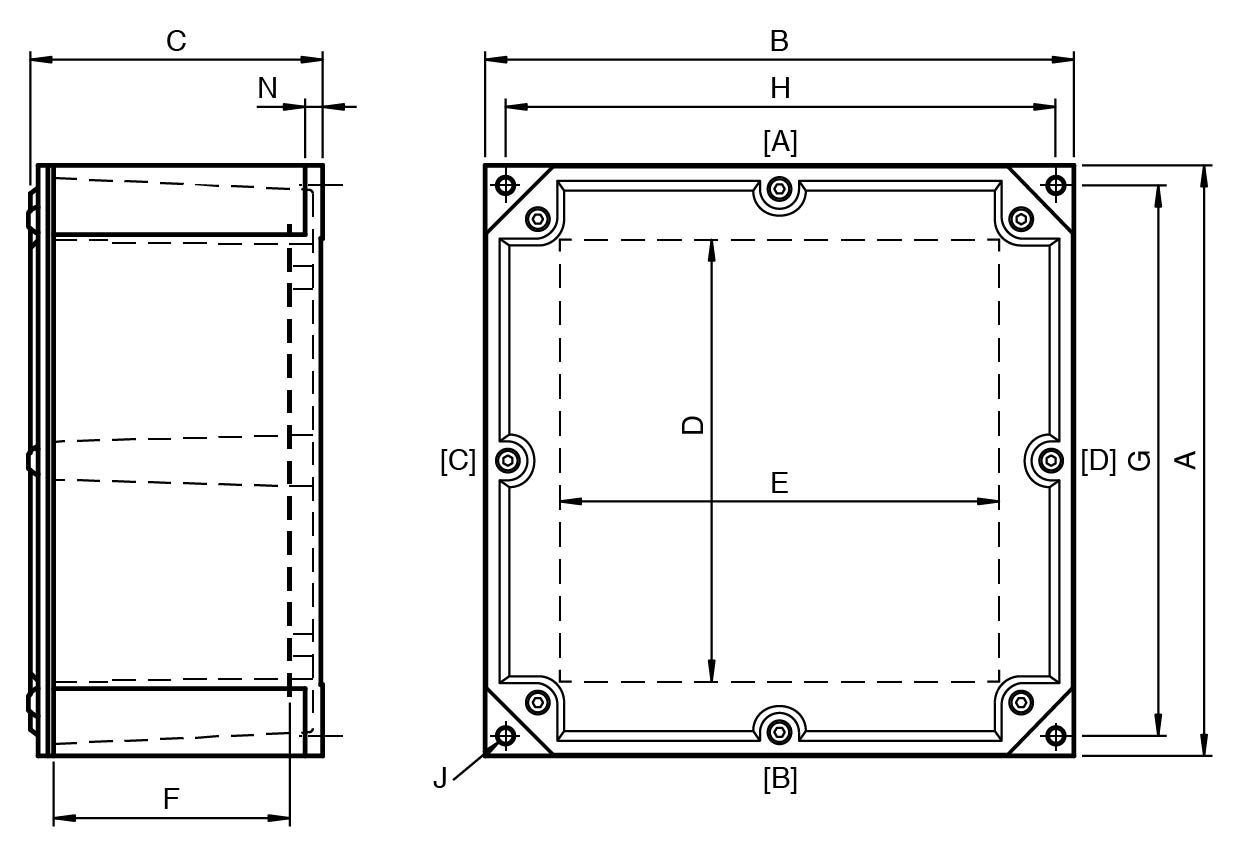

| Dimensions | see data table |
| Mounting | see data table |
| Grounding | see data table |
| Screws | see data table |
| Material of screws | stainless steel |
| Yield stress | min. 1100 N/mm2 |
| Number of rails | see data table |
| Number of terminals per rail | see data table |
| Enclosure | aluminum alloy |
| Finish | EA: epoxy coated RAL 7032 DA: epoxy coated X15 Orange |
| Ambient temperature | -20 ... 55 °C (-4 ... 131 °F) depending on integrated components |
| EU-type examination certificate | SIRA 09 ATEX 3178X |
| Marking II 2 GD Ex e IIC T* Gb Ex tD A21 T6/T80 °C @ Ta +55 °C T5/T95 °C @ Ta +55 °CMaximum power dissipationsee data table | Marking II 2 GD Ex e IIC T* Gb Ex tD A21 T6/T80 °C @ Ta +55 °C T5/T95 °C @ Ta +55 °CMaximum power dissipationsee data table |
| Marking | II 2 GD Ex e IIC T* Gb Ex tD A21 T6/T80 °C @ Ta +55 °C T5/T95 °C @ Ta +55 °C |
| Maximum power dissipation | see data table |
| IECEx approval | IECEx SIM 08.0017X |
| Degree of protection | EN60529 |
| CE marking | 0102 |
| Order information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
