TECHNICAL DATA
规格参数
General specifications

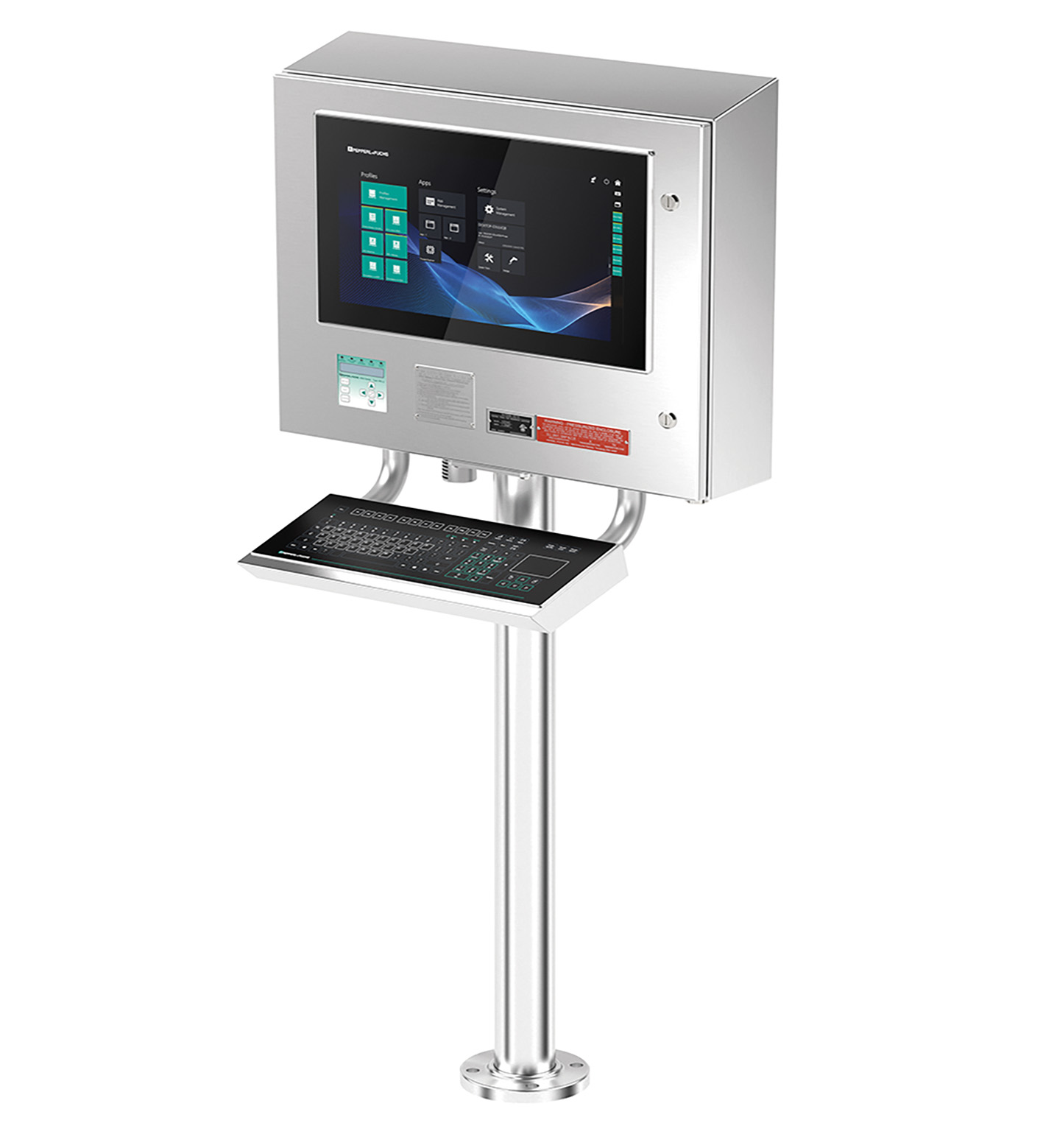

| Type | Personal Computer and Remote Monitor |
|---|---|
| Processor | Intel® Core™ i5-7300UIntel® Celeron™ 3965U |
| RAM | 1x8 GB DDR4 (Thin Client or PC)1x16 GB DDR4 (PC) |
| Mass storage | 64 GB M.2 SATA III (Thin Client)256 GB M.2 NVMe (PC)512 GB M.2 NVMe (PC) |
| Connection | Terminals |
| Power consumption | 100 ... 240 VAC, 50 ... 60 Hz20 ... 30 VDC |
| Display | Display |
| TypeLiquid Crystal Display (LCD) with LED backlightScreen size22FC: 54.61 cm (21.5")19SC: 48.26 cm (19")Resolution22FC: 1920 x 1080 pixels (Full HD) Aspect Ratio (16:9)19SC: 1820 x 1024 pixels (SXGA) Aspect Ratio (5:4)Color depth24 bit (16.7 M) colorContrast ratioTypically22FC: 5000:119SC: 1000:1BrightnessConfigurable display options: 22FC: 300 cd/m219SC: 450 cd/m2Viewing angle22FC, 19SC: horizontal: 170°; vertical: 160°Life spanBack lamp life (22FC, 19SC): 50,000 hrs typical half life, at 25 °C (77 °F) | TypeLiquid Crystal Display (LCD) with LED backlightScreen size22FC: 54.61 cm (21.5")19SC: 48.26 cm (19")Resolution22FC: 1920 x 1080 pixels (Full HD) Aspect Ratio (16:9)19SC: 1820 x 1024 pixels (SXGA) Aspect Ratio (5:4)Color depth24 bit (16.7 M) colorContrast ratioTypically22FC: 5000:119SC: 1000:1BrightnessConfigurable display options: 22FC: 300 cd/m219SC: 450 cd/m2Viewing angle22FC, 19SC: horizontal: 170°; vertical: 160°Life spanBack lamp life (22FC, 19SC): 50,000 hrs typical half life, at 25 °C (77 °F) |
| Input devices | Input devices |
| Touch screenDisplay Options:10-finger multi-touch, glove friendly22FC, 19SC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (See EXTA4 datasheet.) | Touch screenDisplay Options:10-finger multi-touch, glove friendly22FC, 19SC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (See EXTA4 datasheet.) |
| Type | Liquid Crystal Display (LCD) with LED backlight |
| Screen size | 22FC: 54.61 cm (21.5")19SC: 48.26 cm (19") |
| Resolution | 22FC: 1920 x 1080 pixels (Full HD) Aspect Ratio (16:9)19SC: 1820 x 1024 pixels (SXGA) Aspect Ratio (5:4) |
| Color depth | 24 bit (16.7 M) color |
| Contrast ratio | Typically22FC: 5000:119SC: 1000:1 |
| Brightness | Configurable display options: 22FC: 300 cd/m219SC: 450 cd/m2 |
| Viewing angle | 22FC, 19SC: horizontal: 170°; vertical: 160° |
| Life span | Back lamp life (22FC, 19SC): 50,000 hrs typical half life, at 25 °C (77 °F) |
| Touch screen | Display Options:10-finger multi-touch, glove friendly22FC, 19SC: Capacitive touch, optical bonding |
| Keyboard | Optional: Foil keyboard with different pointing device options available (See EXTA4 datasheet.) |
| Interface type | 1 x DisplayPort 1.2 (DP++)1 x mini DisplayPort 1.2 (DP++ w/ mono locking screw)1 x Audio Line-out2 x USB Ex i ports prepared for Pepperl+Fuchs intrinsically safe keyboard2 x USB 3.1 Gen1 (5 Gbps) ports1 x USB 2.0 port2 x LAN ports (RJ45, 10/100/1000 Mbps)2 x RS232/422/485 (BIOS configurable) with 5V/12V to power peripherals (1 x DB9 male + 1 x RJ45) |
| Operating system | PC: Microsoft® Windows® 10 IoT Enterprise 2021 LTSC (x64)Thin Client: Pepperl+Fuchs RM Shell 6 (based on Microsoft® Windows® 10 IoT) Enterprise 2021 LTSC (x64), ThinManager Ready or IGEL OS |
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -20 ... 65 °C (-4 ... 149 °F) |
| Relative humidity | max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78 |
| Degree of protection | Type 4X |
| Material | Material |
| Housing304 (UNS S30400) stainless steelSurfaceRa (max) = 64 μin | Housing304 (UNS S30400) stainless steelSurfaceRa (max) = 64 μin |
| Mass | approx. 52.16 kg (115 lbs) Empty housing ; Varies with configuration |

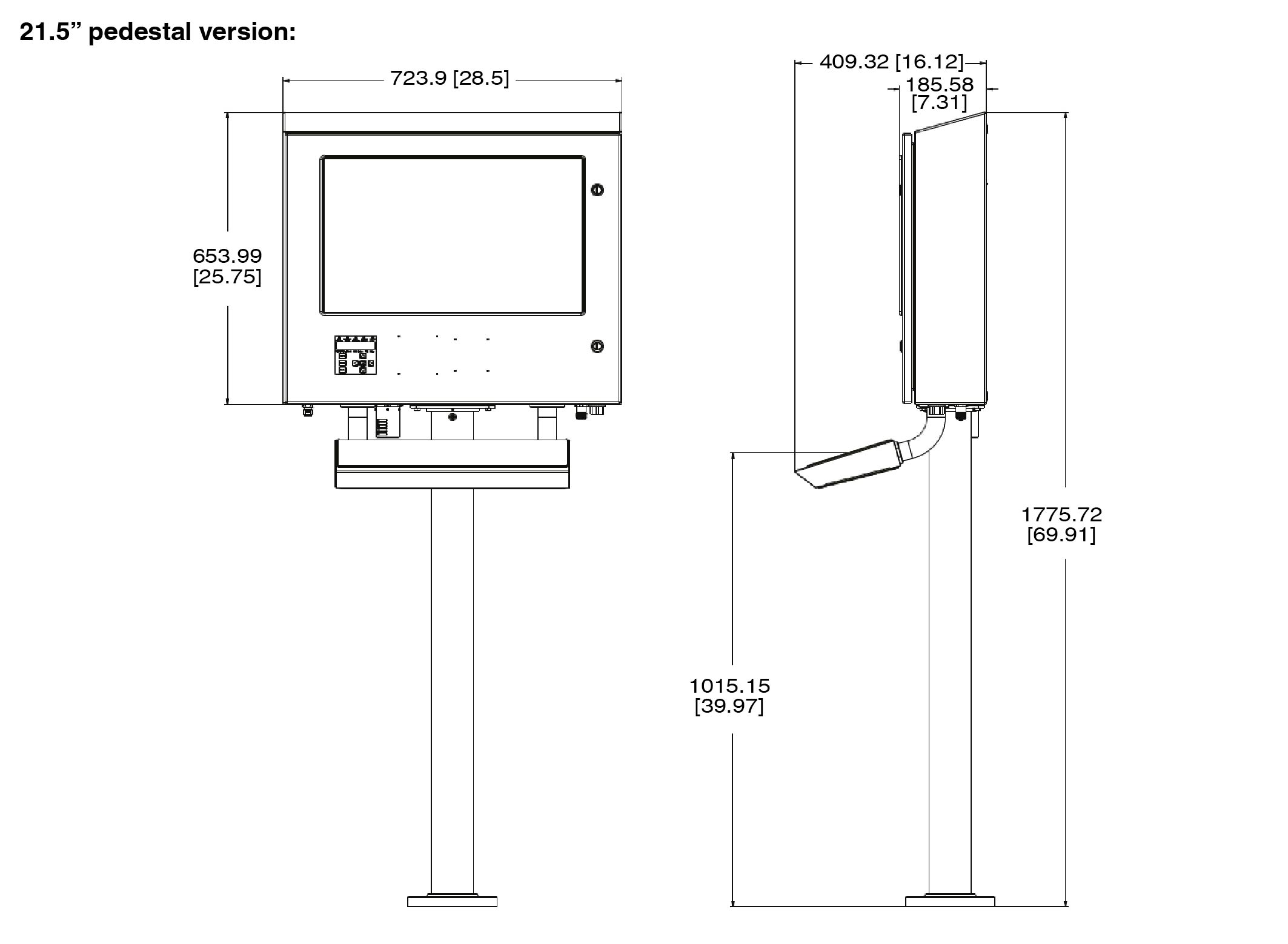

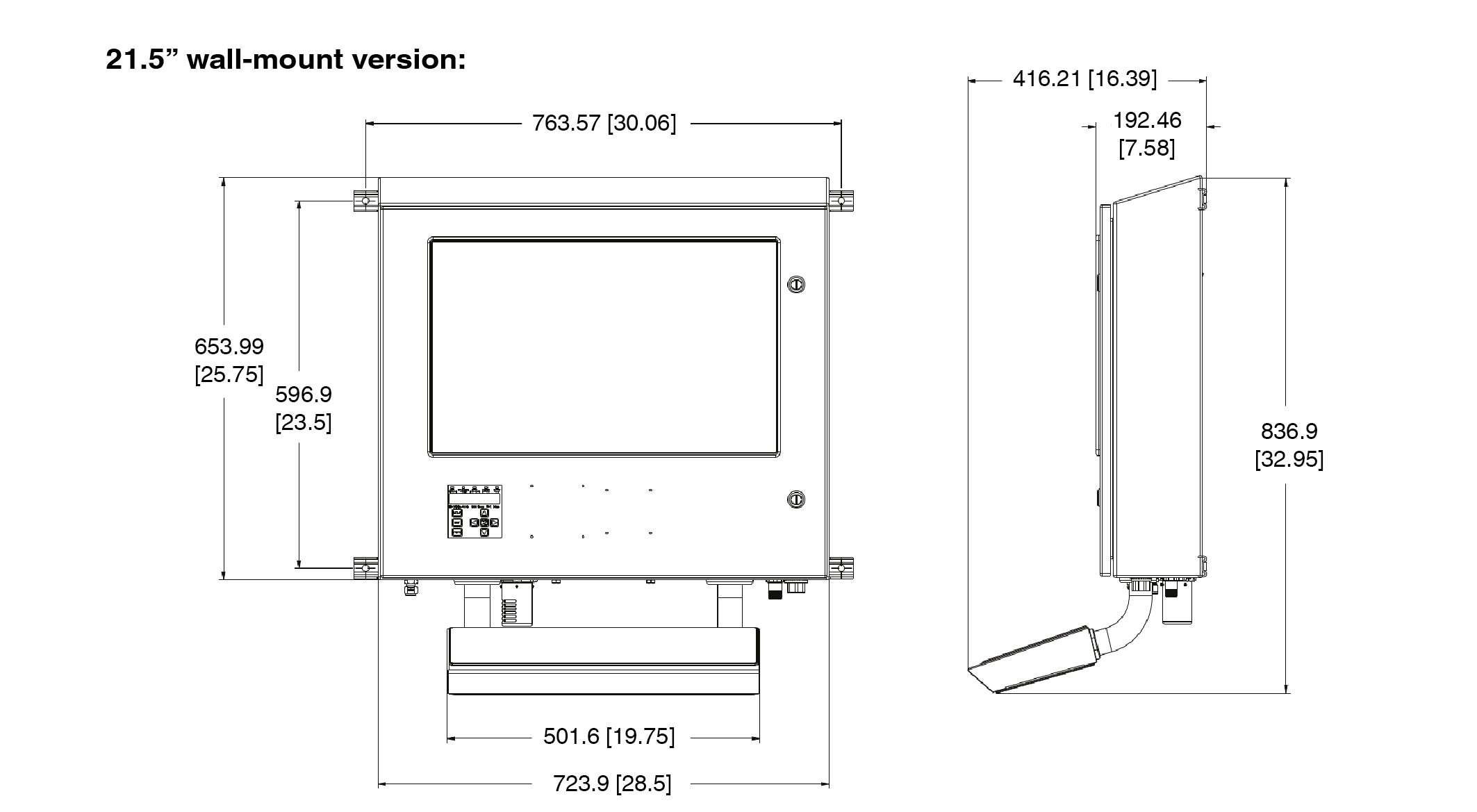

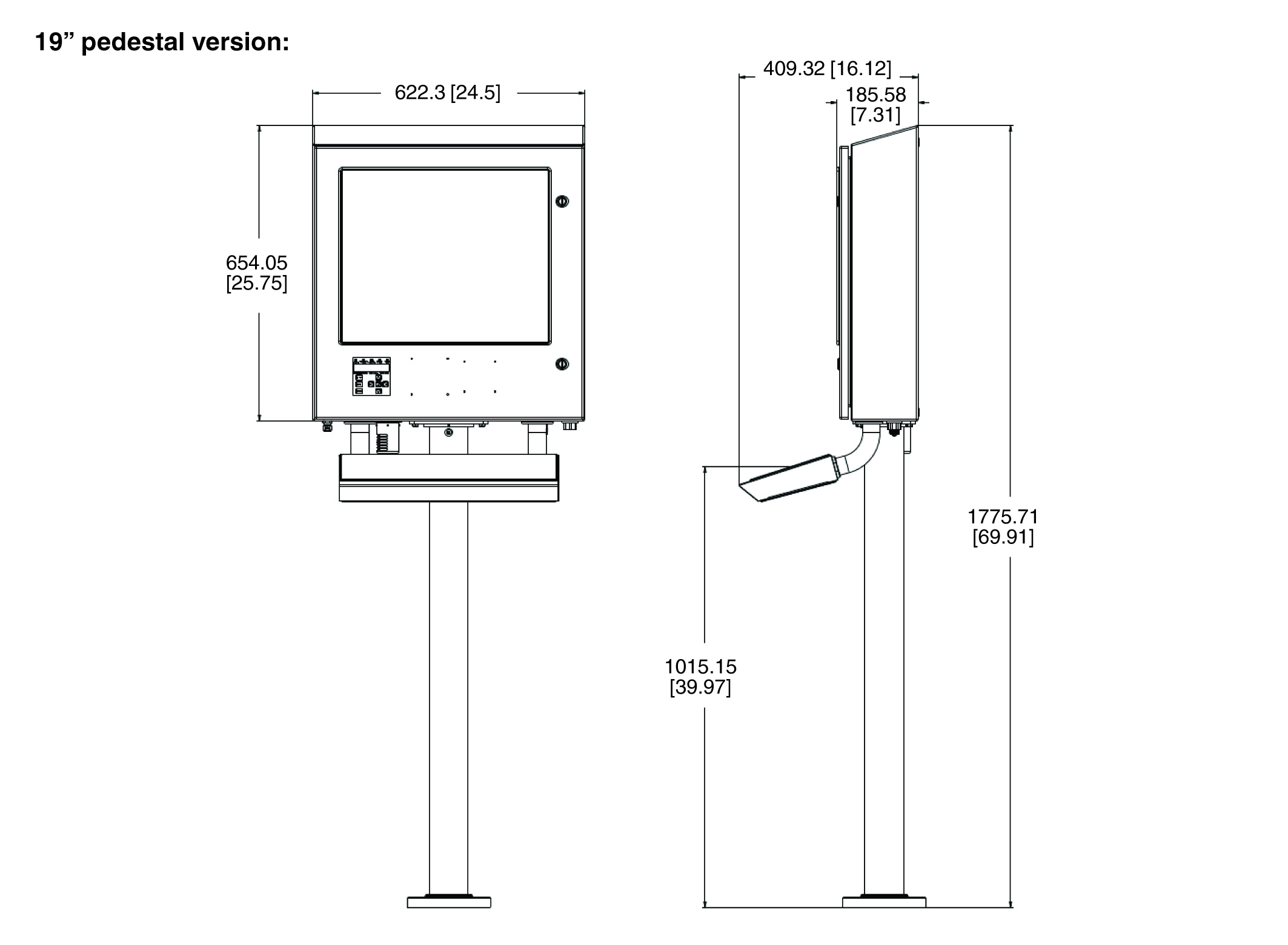

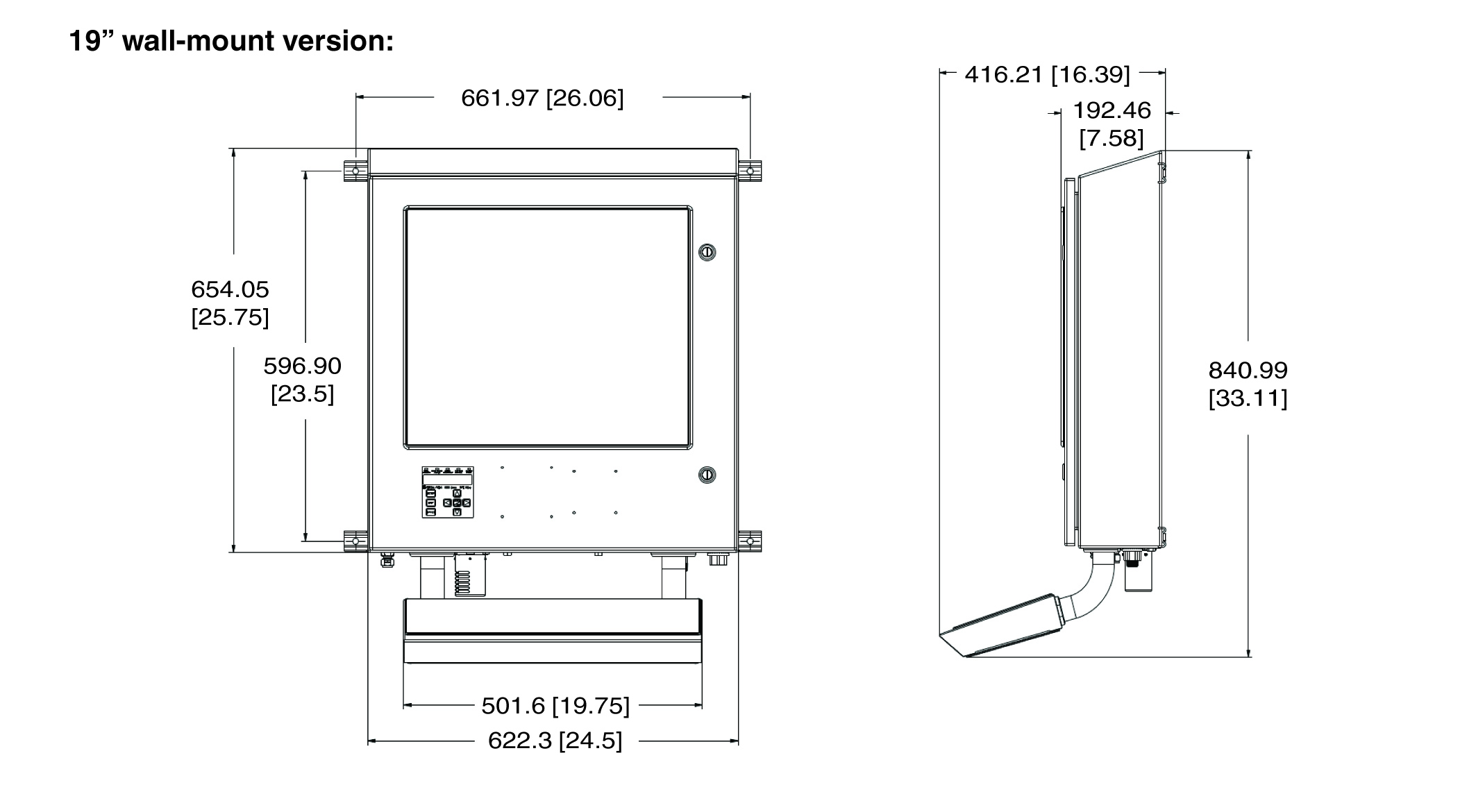

| Dimensions | 19" pedestal: 24.5" W. x 16.5" D x 70.0" H 19" wall-mount 24.5" W x 16.5" D x 33.5" H22" pedestal: 28.5" W x 15.25" D x 70.5" H22" wall-mount: 28.5" W x 15.25" D x 35" H |
| Mounting | Wall or pedestal mount |
| Housing | 304 (UNS S30400) stainless steel |
| Surface | Ra (max) = 64 μin |
| ETL approval | cETLus: 5003368 |
| Approved forClass I, Division 1, Groups A, B, C, D with 6000 Series Type X PurgeClass I, II, Division 2, Groups A, B, C, D, F, and G without 6000 Series Type X Purge | Approved forClass I, Division 1, Groups A, B, C, D with 6000 Series Type X PurgeClass I, II, Division 2, Groups A, B, C, D, F, and G without 6000 Series Type X Purge |
| Approved for | Class I, Division 1, Groups A, B, C, D with 6000 Series Type X PurgeClass I, II, Division 2, Groups A, B, C, D, F, and G without 6000 Series Type X Purge |
