TECHNICAL DATA
规格参数
General specifications
| Installation in hazardous area | Zone 2 |
|---|---|
| Rated voltage | 19.2 ... 35 V DC |
| Rated current | 150 ... 100 mA |
| Power dissipation | 3 W |

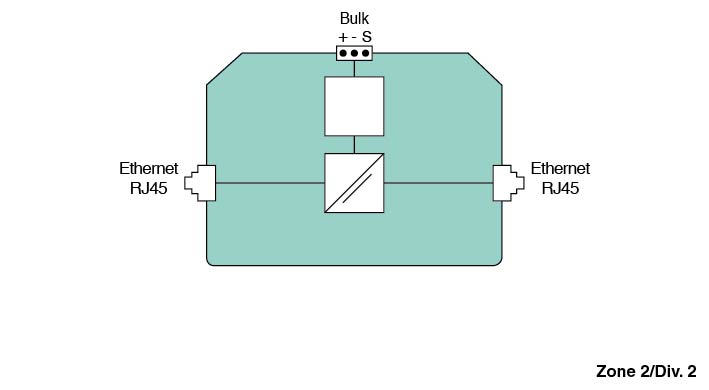

| Intrinsically safe port | 10 BASE-T/100 BASE-TX |
| Non-intrinsically safe port | 10 BASE-T/100 BASE-TX |
| Connection type | 2 x RJ-45 , IEC 60603-7 |
| Connector pinout | socket ; EIA/TIA 568 B |
| Transfer rate | 10/100 Mbit/s , Auto-Negotiation |
| Operating mode | half/full duplex |
| Cable type | CAT5e S/FTP AWG 24, Installation cable, L/R ratio max. 10 µH/Ω of all strand combinations |
| I.S. cable length | typ. 100 m/20 °C |
| Total cable length | typ. 200 m/20 °C |
| Number of isolators | max. 2 in series connection |

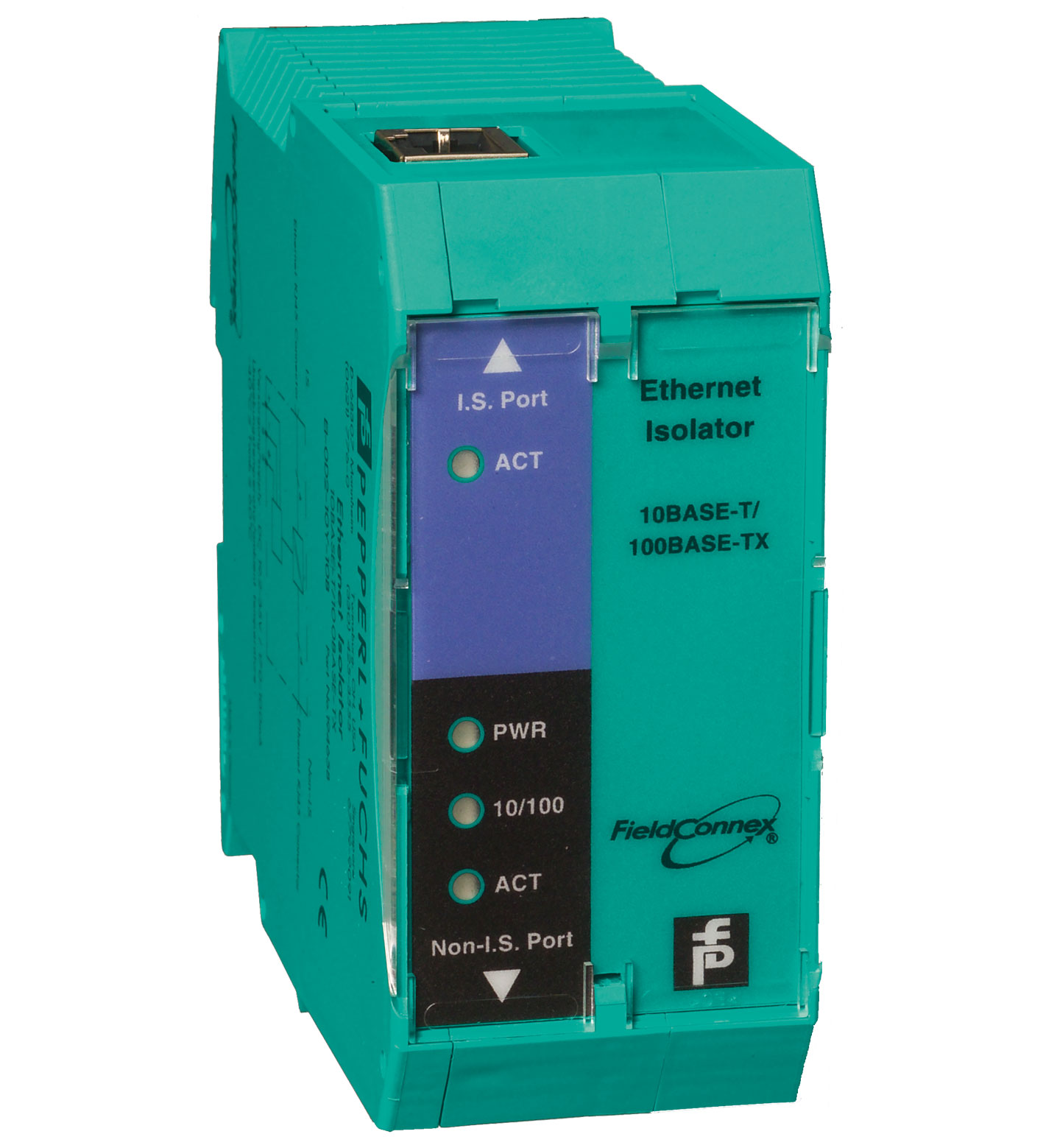

| LED PWR | green: Power on |
| LED ACT | yellow: communication active |
| LED 10/100 | yellow ON: Transfer rate 100 MBit/s , OFF: 10 MBit/s |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Galvanic isolation | EN 50020 |
| Degree of protection | IEC 60529 |
| Climatic conditions | DIN IEC 721 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Ethernet | IEEE 802.3 , IEEE 802.3u |
| Ambient temperature | -20 ... 55 °C (-4 ... 131 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | ≤ 95 % non-condensing |
| Shock resistance | 15 g 11 ms |
| Vibration resistance | 1 g 10 ... 150 Hz |
| Pollution degree | max. 2, according to IEC 60664 |
| Connection type | RJ45 |
| Core cross section | up to 2.5 mm2 |
| Housing material | Polyamide PA 66 |
| Degree of protection | IP20 |
| Mass | 195 g |
| Mounting | DIN rail mounting |
| EU-type examination certificate | PTB 07 ATEX 2025 X |
| Marking II (1) G [Ex ia Ga] IIB ,[exsign] II (1) D [Ex ia Da] IIIC ,[exsign] II 3(1)G Ex nA [ia Ga] IIB T4 Gc [exsign] II 3 (1D) G Ex nA [ia IIIC Da] IIB T4 Gc [exsign] I (M1) [Ex ia Ma] I | Marking II (1) G [Ex ia Ga] IIB ,[exsign] II (1) D [Ex ia Da] IIIC ,[exsign] II 3(1)G Ex nA [ia Ga] IIB T4 Gc [exsign] II 3 (1D) G Ex nA [ia IIIC Da] IIB T4 Gc [exsign] I (M1) [Ex ia Ma] I |
| Supply | Supply |
| Maximum safe voltageUm253 V AC | Maximum safe voltageUm253 V AC |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010 | Directive 2014/34/EUEN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010 |
| Marking | II (1) G [Ex ia Ga] IIB ,[exsign] II (1) D [Ex ia Da] IIIC ,[exsign] II 3(1)G Ex nA [ia Ga] IIB T4 Gc [exsign] II 3 (1D) G Ex nA [ia IIIC Da] IIB T4 Gc [exsign] I (M1) [Ex ia Ma] I |
| Maximum safe voltage | 253 V AC |
| Directive 2014/34/EU | EN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010 |
| CSA approval | CSA 15.70016295 |
| Control drawing116-B032Approved forClass I, Zone 2, AEx/Ex nA [ia Ga] IIB T4 Gc Class I, Zone 2, AEx/Ex nA [ia Da IIIC] IIB T4 Gc | Control drawing116-B032Approved forClass I, Zone 2, AEx/Ex nA [ia Ga] IIB T4 Gc Class I, Zone 2, AEx/Ex nA [ia Da IIIC] IIB T4 Gc |
| IECEx approval | IECEx PTB 09.0053X |
| Approved for[Ex ia Ga] IIB [Ex ia Da] IIIC Ex nA [ia Ga] IIB T4 Gc Ex nA [ia IIIC Da] IIB T4 Gc [Ex ia Ma] I | Approved for[Ex ia Ga] IIB [Ex ia Da] IIIC Ex nA [ia Ga] IIB T4 Gc Ex nA [ia IIIC Da] IIB T4 Gc [Ex ia Ma] I |
| Control drawing | 116-B032 |
| Approved for | Class I, Zone 2, AEx/Ex nA [ia Ga] IIB T4 Gc Class I, Zone 2, AEx/Ex nA [ia Da IIIC] IIB T4 Gc |
| Approved for | [Ex ia Ga] IIB [Ex ia Da] IIIC Ex nA [ia Ga] IIB T4 Gc Ex nA [ia IIIC Da] IIB T4 Gc [Ex ia Ma] I |
| Patents | This product may be covered by the following patent: US7,687,791 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
