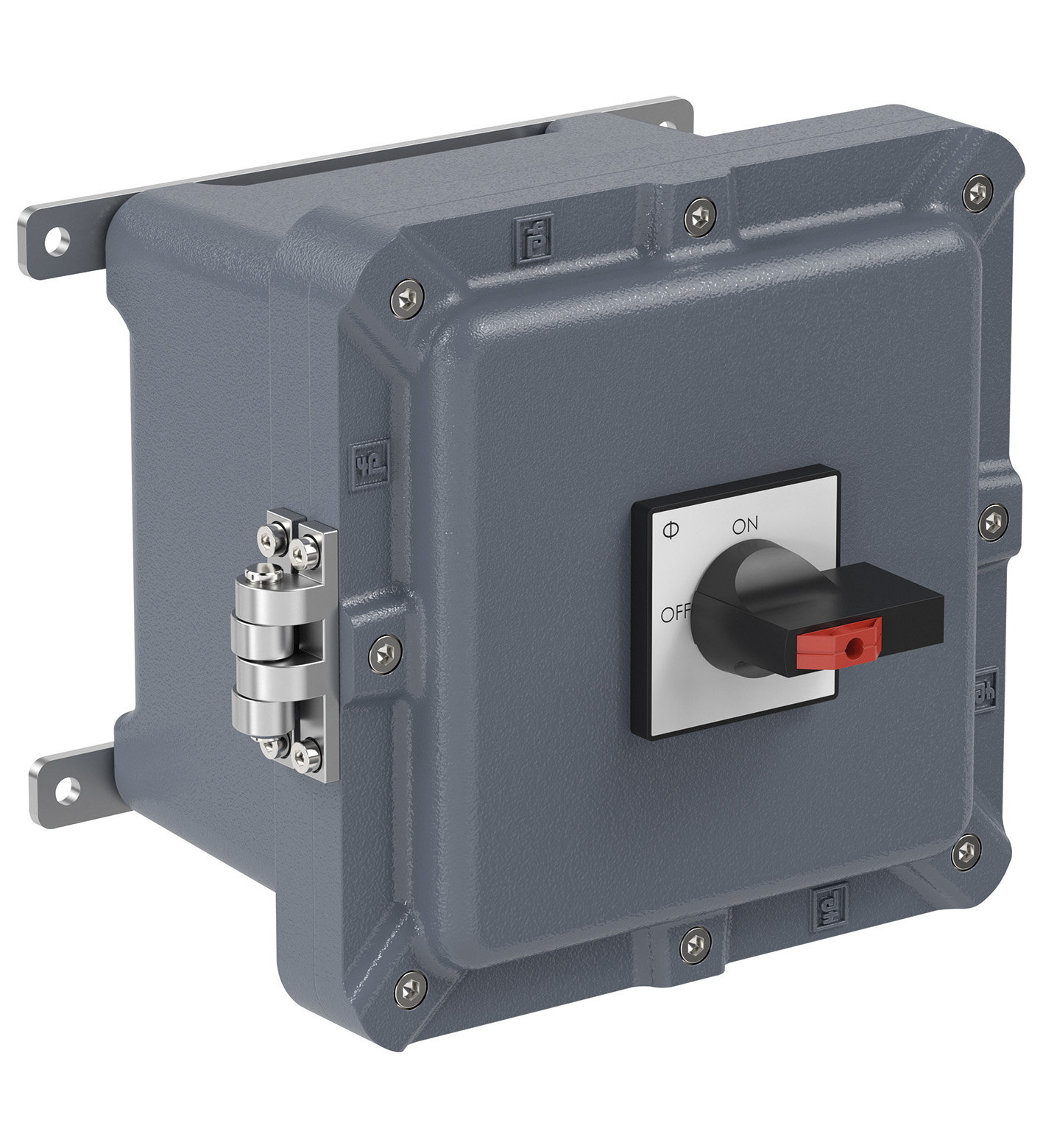

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | see data table |
|---|---|
| Rated impulse withstand voltage | 6 kV |
| Rated frequency | 50Hz |
| Short circuit current limitation | see data table |
| Operating current | see data table |
| Terminal capacity | see data table |
| Rated insulation voltage | 690 V |
| Function | switch disconnector |
| ColorblackContact configurationsee data tableSwitching configuration2 position with left OFFUsage categorysee data tableNumber of polessee data tableAuxiliary contactssee data tableAuxiliary contacts usage categorysee data tableOperator actionengage - engageLockablein 'OFF' positionLabeling0 - I | ColorblackContact configurationsee data tableSwitching configuration2 position with left OFFUsage categorysee data tableNumber of polessee data tableAuxiliary contactssee data tableAuxiliary contacts usage categorysee data tableOperator actionengage - engageLockablein 'OFF' positionLabeling0 - I |
| Color | black |

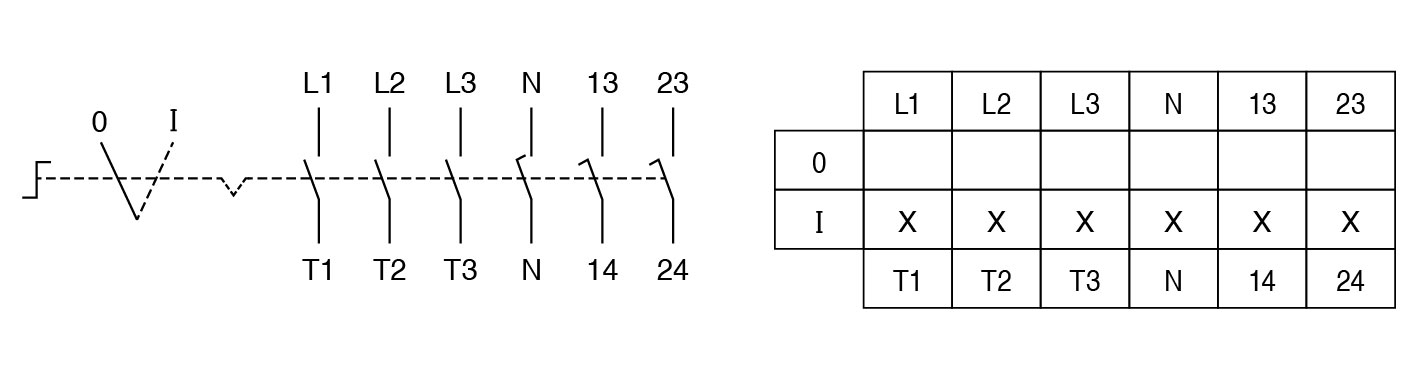

| Contact configuration | see data table |
| Switching configuration | 2 position with left OFF |
| Usage category | see data table |
| Number of poles | see data table |
| Auxiliary contacts | see data table |
| Auxiliary contacts usage category | see data table |
| Operator action | engage - engage |
| Lockable | in 'OFF' position |
| Labeling | 0 - I |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Enclosure range | EJB |
| Enclosure cover | fully detachable |
| Cover fixing | stainless steel socket cap head screws |
| Screwssee data tableYield stressmin. 450 N/mm2 | Screwssee data tableYield stressmin. 450 N/mm2 |
| Cover seal | none |
| Flamepath grease | Greasil MS4 or NEVER SEEZ Marine Grade |
| Degree of protection | IP66 |
| Cable entry | see data table |
| Defined entry area | face B |
| Material | Material |
| Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey) | Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey) |
| Mass | see data table |

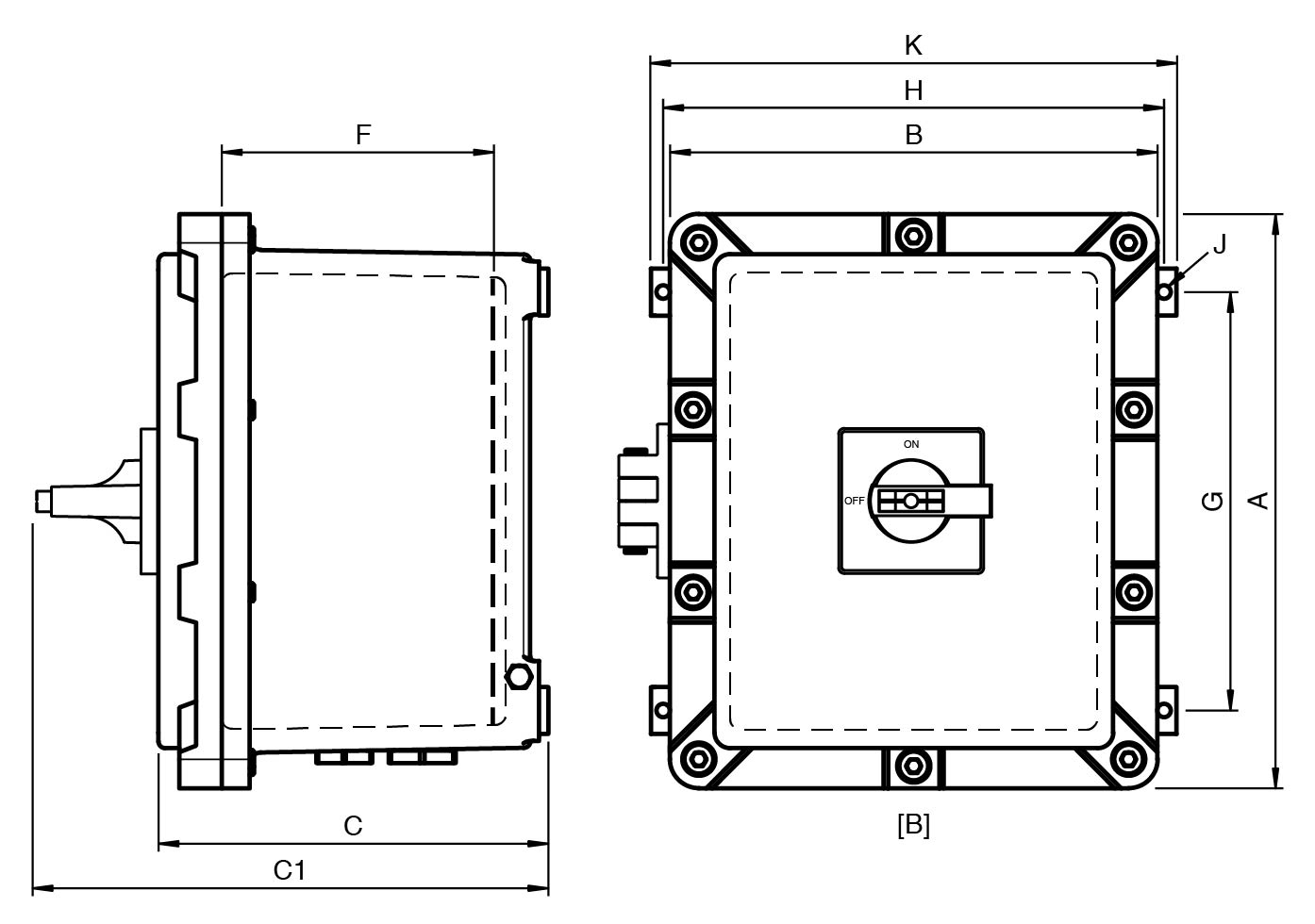

| Dimensions | see data table values might differ slightly due to casting and manufacturing tolerances |
| Tightening torque | Tightening torque |
| Nut torque at enclosure (SW1)see datasheets of stopping plugs | Nut torque at enclosure (SW1)see datasheets of stopping plugs |
| Mounting | see data table |
| Grounding | M6 external grounding points |
| Screws | see data table |
| Yield stress | min. 450 N/mm2 |
| Enclosure | aluminum alloy |
| Finish | epoxy coated RAL 7005 (grey) |
| Nut torque at enclosure (SW1) | see datasheets of stopping plugs |
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) @ T6 |
| EU-type examination certificate | INERIS 14 ATEX 0022X |
| Marking II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db | Marking II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db |
| Marking | II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db |
| IECEx approval | IECEx INE 14.0029X |
| UKCA approval | CML 21 UKEX 1425U |
| ECAS approval | 23-10-87483/E23-09-089610 |
| Degree of protection | EN60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
