TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 1500 V DC / 1000 V AC max. for ATEX / IECEx 600 V AC / DC max. for North American approvals |
|---|---|
| Operating current | 1600 A max. |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Enclosure cover | detachable , optional hinges |
| Cover fixing | stainless steel socket cap head screws |
| Screwssee datasheets of relevant enclosuresMaterial of screwsstainless steelYield stressmin. 450 N/mm2 for ATEX / IECEx , 100,000 PSI for North American approvals | Screwssee datasheets of relevant enclosuresMaterial of screwsstainless steelYield stressmin. 450 N/mm2 for ATEX / IECEx , 100,000 PSI for North American approvals |
| Cover seal | none, O-ring for IP66/67 |
| Flamepath grease | Greasil MS4 or NEVER SEEZ Marine Grade |
| Degree of protection | IP66 (IP66/IP67 with O-ring) , NEMA Type 4, 4X, 7, 9 |
| Material | Material |
| Enclosurealuminum alloyGlassthermo-resistant tempered glassFinishepoxy coated RAL 7005 (grey)O-Ringsilicone | Enclosurealuminum alloyGlassthermo-resistant tempered glassFinishepoxy coated RAL 7005 (grey)O-Ringsilicone |
| Mass | 25.1 kg |

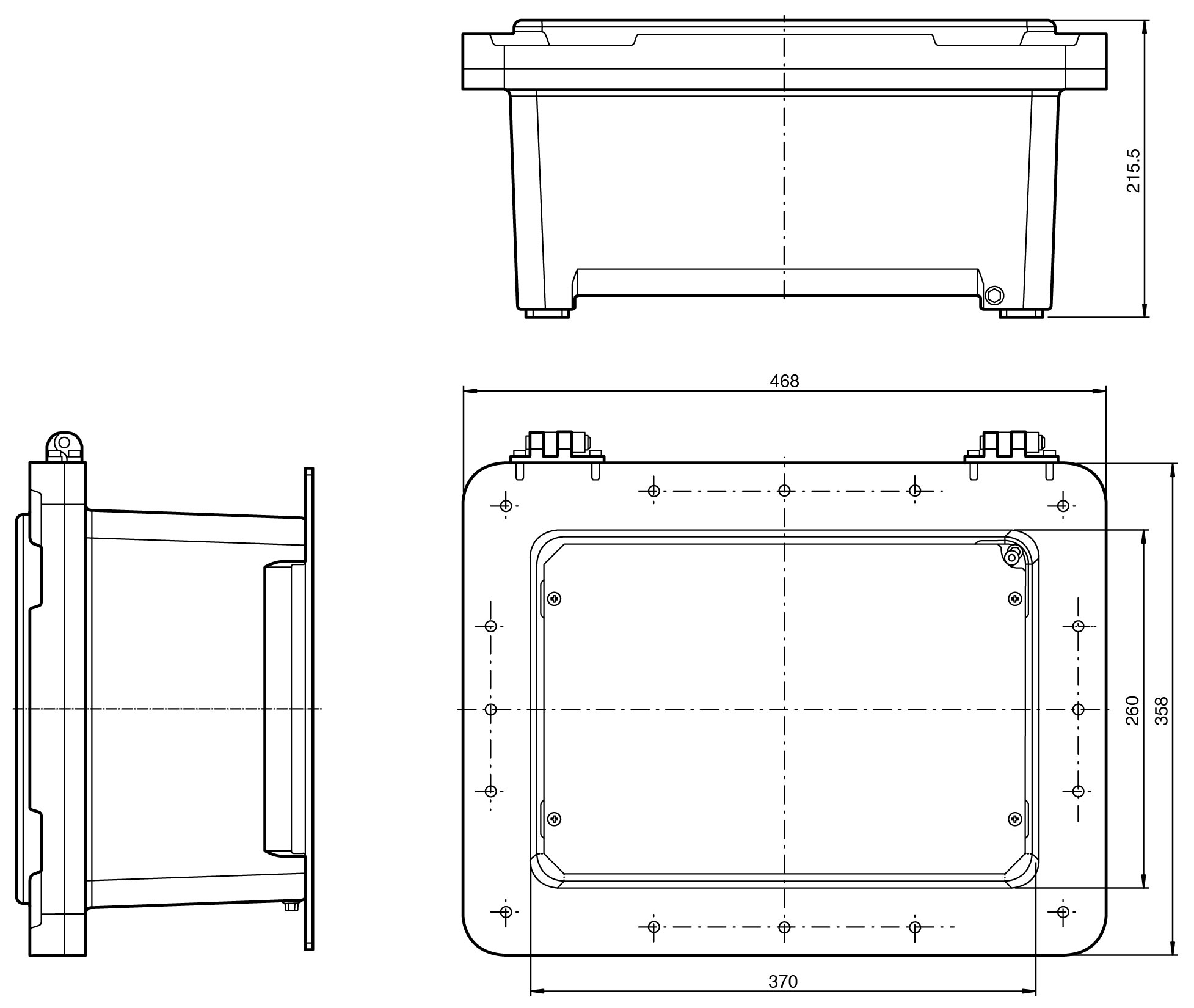

| Dimensions | 468 mm x 358 mm x 215 mm values might differ slightly due to casting and manufacturing tolerances |
| Mounting | see datasheets of relevant enclosures |
| Grounding | M6 external grounding points |
| Screws | see datasheets of relevant enclosures |
| Material of screws | stainless steel |
| Yield stress | min. 450 N/mm2 for ATEX / IECEx , 100,000 PSI for North American approvals |
| Enclosure | aluminum alloy |
| Glass | thermo-resistant tempered glass |
| Finish | epoxy coated RAL 7005 (grey) |
| O-Ring | silicone |
| Ambient temperature | -40 ... 50 °C (-40 ... 122 °F) depending on integrated components |
| EU-type examination certificate | INERIS 14 ATEX 0022X |
| Marking II 2 GD Ex db IIB+H2 T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power lossMaximum power dissipationsee datasheets of relevant enclosures maximum power dissipation at T4/+40 °C enclosure without window | Marking II 2 GD Ex db IIB+H2 T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power lossMaximum power dissipationsee datasheets of relevant enclosures maximum power dissipation at T4/+40 °C enclosure without window |
| Marking | II 2 GD Ex db IIB+H2 T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power loss |
| Maximum power dissipation | see datasheets of relevant enclosures maximum power dissipation at T4/+40 °C enclosure without window |
| UL approval | UL approval |
| Approved forClass I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Type 4, 4X, 7, 9cULusEmpty enclosure E482035 , UL 50E , UL 1203 , CSA C22.2, No. 25, 30cETLusControl panels E5003368Ambient temperature-25 ... 60 °C (-13 ... 140 °F) | Approved forClass I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Type 4, 4X, 7, 9cULusEmpty enclosure E482035 , UL 50E , UL 1203 , CSA C22.2, No. 25, 30cETLusControl panels E5003368Ambient temperature-25 ... 60 °C (-13 ... 140 °F) |
| IECEx approval | IECEx INE 14.0029X |
| Further approvals | available on request |
| Approved for | Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Type 4, 4X, 7, 9 |
| cULus | Empty enclosure E482035 , UL 50E , UL 1203 , CSA C22.2, No. 25, 30 |
| cETLus | Control panels E5003368 |
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) |
| Degree of protection | EN60529 and UL 50 / UL 50E |
| CE marking | 0080 or 0102, see type label |

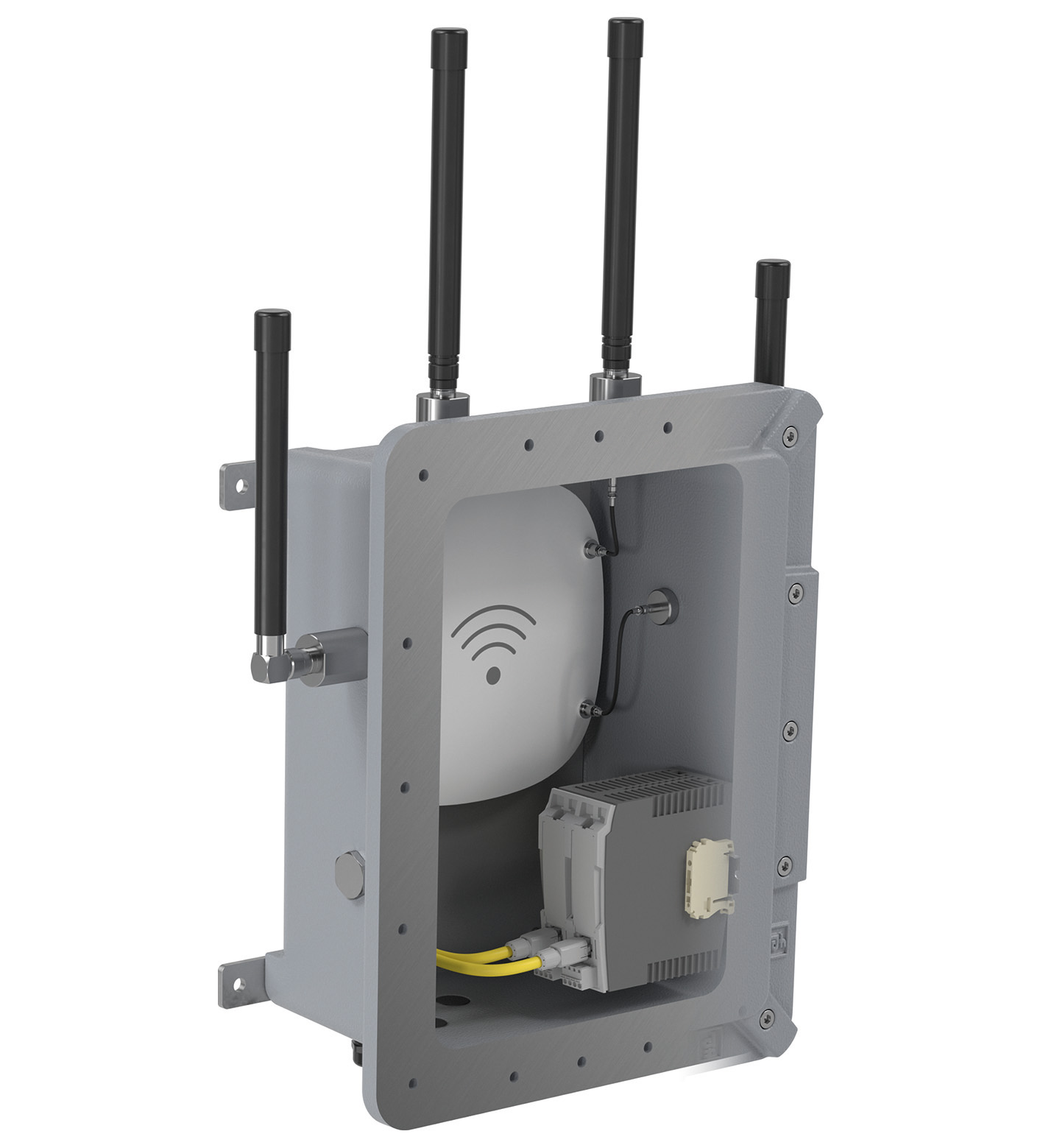

| Order information | This Wireless Access Point solution will be delivered completely configured and assembled ready for use. For configuration details please contact customer service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Installed components | All major WI-FI Access Point vendors such as Aruba, Cisco, ect. |
