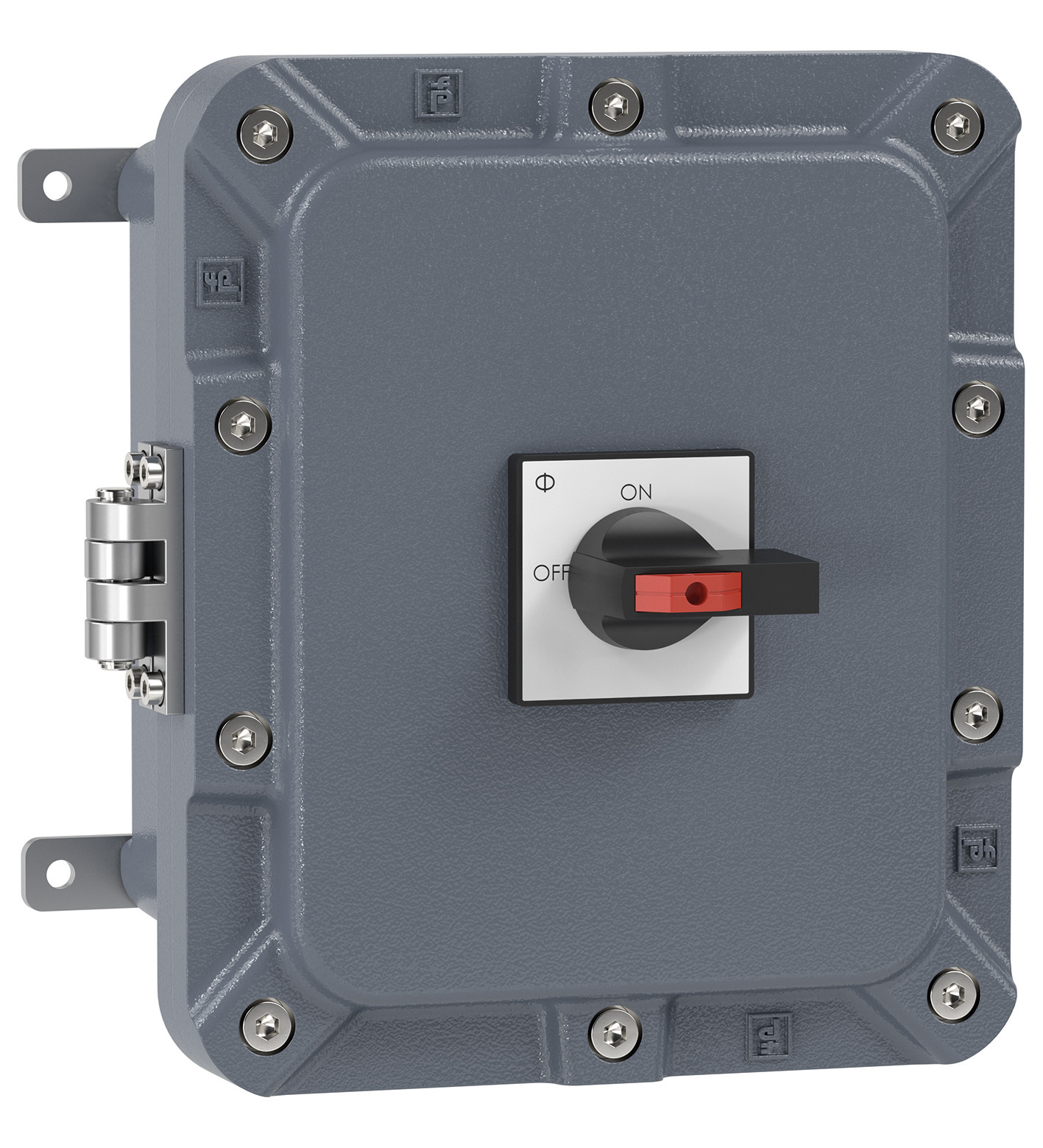

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 690 V max. |
|---|---|
| Rated impulse withstand voltage | 6 kV |
| Rated frequency | 50Hz |
| Short circuit current limitation | recommended: 63 A, gG |
| Operating current | 63 A max. |
| Terminal capacity | Terminal capacity |
| Main terminals capacity2x 1 mm2 ... 16 mm2Main terminals torque1.8 NmGrounding terminals capacity2x 1.5 mm2 ... 25 mm2Grounding terminals torque3.6 Nm max. | Main terminals capacity2x 1 mm2 ... 16 mm2Main terminals torque1.8 NmGrounding terminals capacity2x 1.5 mm2 ... 25 mm2Grounding terminals torque3.6 Nm max. |
| Rated insulation voltage | 690 V |
| Function | switch disconnector |
| ColorblackContact configuration4x NOSwitching configuration2 position with left OFFUsage categoryAC23: 690 V AC - 63 A AC3: 690 V AC - 63 ANumber of poles4Auxiliary contacts2x NO delayed, advanced openingAuxiliary contacts usage categoryAC15: 500 V AC - 1.5 A / 440 V AC - 3.0 A / 240 V AC - 6.0 AOperator actionengage - engageLockablein 'OFF' positionLabeling0 - I | ColorblackContact configuration4x NOSwitching configuration2 position with left OFFUsage categoryAC23: 690 V AC - 63 A AC3: 690 V AC - 63 ANumber of poles4Auxiliary contacts2x NO delayed, advanced openingAuxiliary contacts usage categoryAC15: 500 V AC - 1.5 A / 440 V AC - 3.0 A / 240 V AC - 6.0 AOperator actionengage - engageLockablein 'OFF' positionLabeling0 - I |
| Main terminals capacity | 2x 1 mm2 ... 16 mm2 |
| Main terminals torque | 1.8 Nm |
| Grounding terminals capacity | 2x 1.5 mm2 ... 25 mm2 |
| Grounding terminals torque | 3.6 Nm max. |
| Color | black |

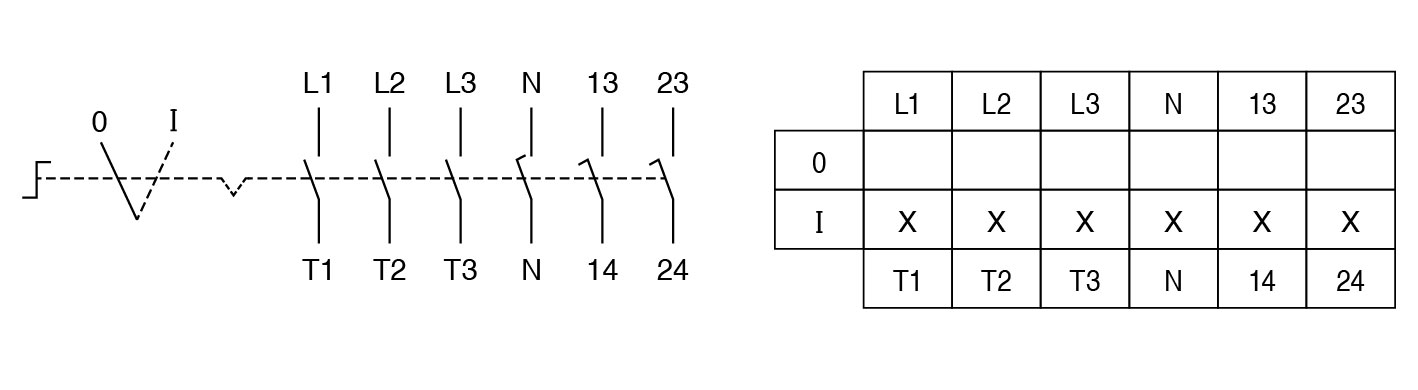

| Contact configuration | 4x NO |
| Switching configuration | 2 position with left OFF |
| Usage category | AC23: 690 V AC - 63 A AC3: 690 V AC - 63 A |
| Number of poles | 4 |
| Auxiliary contacts | 2x NO delayed, advanced opening |
| Auxiliary contacts usage category | AC15: 500 V AC - 1.5 A / 440 V AC - 3.0 A / 240 V AC - 6.0 A |
| Operator action | engage - engage |
| Lockable | in 'OFF' position |
| Labeling | 0 - I |
| Enclosure range | EJB |
| Enclosure cover | fully detachable |
| Cover fixing | stainless steel socket cap head screws |
| ScrewsM8Number10Tightening torque20 NmYield stressmin. 450 N/mm2 | ScrewsM8Number10Tightening torque20 NmYield stressmin. 450 N/mm2 |
| Degree of protection | IP66 |
| Cable entry face B | Cable entry face B |
| M20 quantity1M20 seriesStopping Plugs, Metal, Hexagon HeadM20 typeSP.MD.M20.BN.*M32 quantity2M32 seriesStopping Plugs, Metal, Hexagon HeadM32 typeSP.MD.M32.BN.* | M20 quantity1M20 seriesStopping Plugs, Metal, Hexagon HeadM20 typeSP.MD.M20.BN.*M32 quantity2M32 seriesStopping Plugs, Metal, Hexagon HeadM32 typeSP.MD.M32.BN.* |
| Defined entry area | face B |
| Material | Material |
| Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey) | Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey) |
| Mass | approx. 18.5 kg |

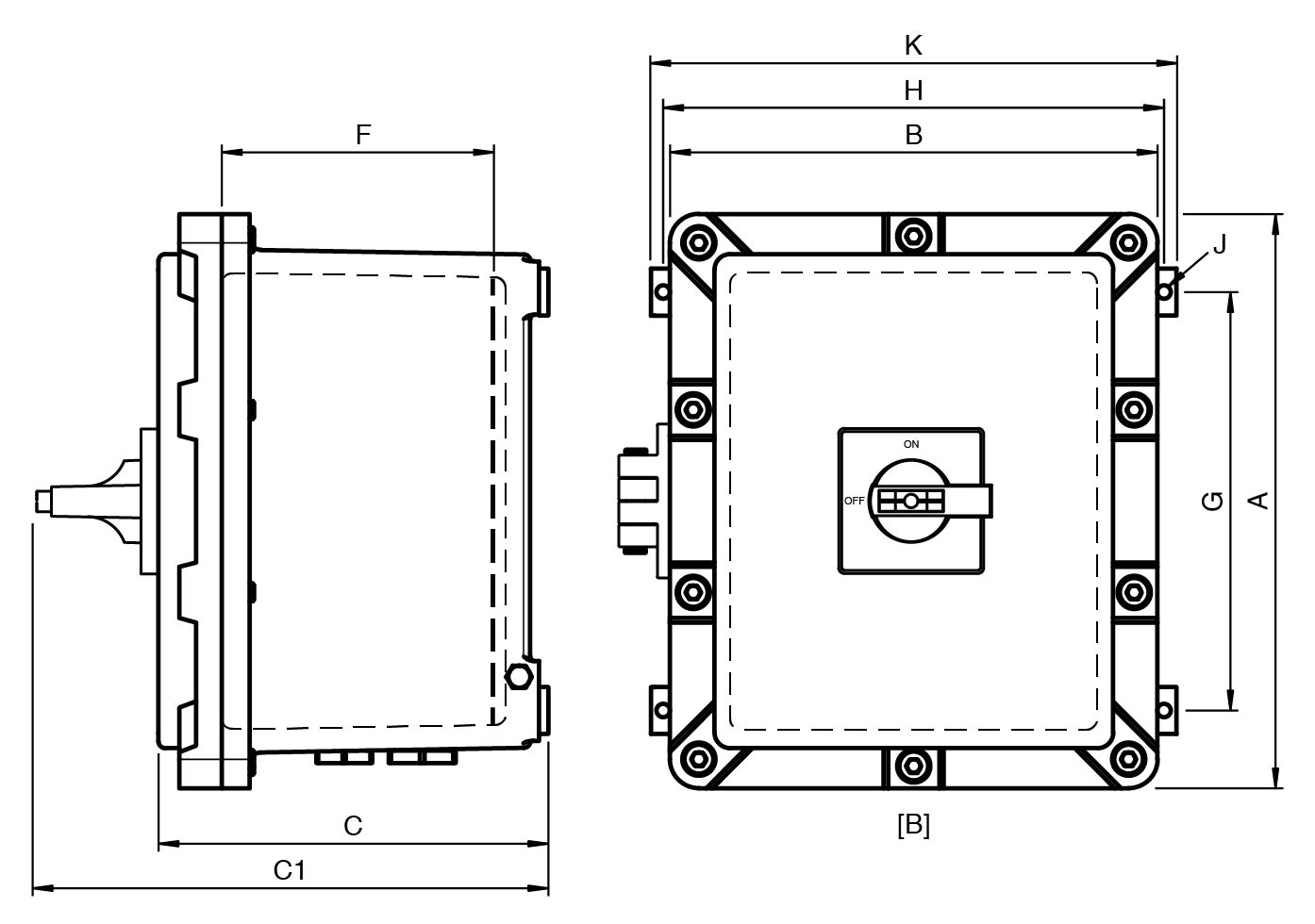

| Dimensions | values might differ slightly due to casting and manufacturing tolerances |
| External dimension (A)265 mmExternal dimension (B)225 mmExternal dimension (C)180 mmExternal dimension with operating element (C1)234.9 mmMounting holes distance (G)188 mmMounting holes distance (H)206 mmMounting holes diameter (J)8 mmMaximum external dimension (K)248 mm | External dimension (A)265 mmExternal dimension (B)225 mmExternal dimension (C)180 mmExternal dimension with operating element (C1)234.9 mmMounting holes distance (G)188 mmMounting holes distance (H)206 mmMounting holes diameter (J)8 mmMaximum external dimension (K)248 mm |
| Tightening torque | Tightening torque |
| Nut torque at enclosure (SW1)see datasheets of stopping plugs | Nut torque at enclosure (SW1)see datasheets of stopping plugs |
| Grounding | M6 external grounding points |
| Screws | M8 |
| Number | 10 |
| Tightening torque | 20 Nm |
| Yield stress | min. 450 N/mm2 |
| M20 quantity | 1 |
| M20 series | Stopping Plugs, Metal, Hexagon Head |
| M20 type | SP.MD.M20.BN.* |
| M32 quantity | 2 |
| M32 series | Stopping Plugs, Metal, Hexagon Head |
| M32 type | SP.MD.M32.BN.* |
| Enclosure | aluminum alloy |
| Finish | epoxy coated RAL 7005 (grey) |
| External dimension (A) | 265 mm |
| External dimension (B) | 225 mm |
| External dimension (C) | 180 mm |
| External dimension with operating element (C1) | 234.9 mm |
| Mounting holes distance (G) | 188 mm |
| Mounting holes distance (H) | 206 mm |
| Mounting holes diameter (J) | 8 mm |
| Maximum external dimension (K) | 248 mm |
| Nut torque at enclosure (SW1) | see datasheets of stopping plugs |
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) @ T6 |
| EU-type examination certificate | INERIS 14 ATEX 0022X |
| Marking II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db | Marking II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db |
| Marking | II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db |
| IECEx approval | IECEx INE 14.0029X |
| UKCA approval | CML 21 UKEX 1424X |
| Further approvals | further on request |
| Degree of protection | EN60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
