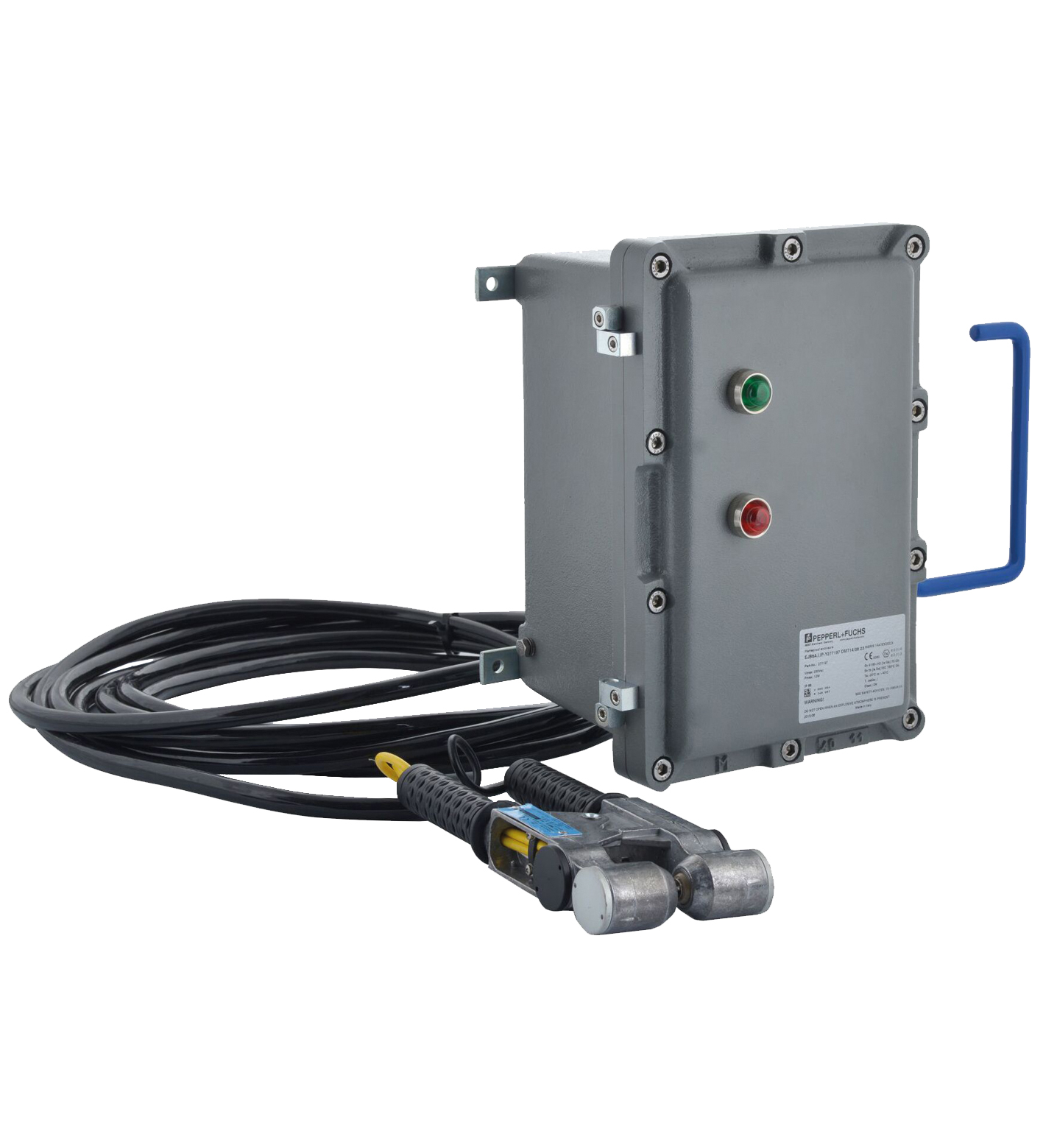

产品数据表
Datasheet
已就绪 · 可下载下载文件
TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 230 V AC , optional 110 V AC |
|---|---|
| Function | elimination of electrostatic charges |
| Lens colorred and greenOperator actionCable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles | Lens colorred and greenOperator actionCable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles |
| Lens color | red and green |
| Operator action | Cable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Enclosure cover | detachable , optional hinges |
| Cover fixing | stainless steel socket cap head screws |
| ScrewsM8Number10Tightening torque20 NmMaterial of screwsstainless steelYield stressmin. 450 N/mm2 | ScrewsM8Number10Tightening torque20 NmMaterial of screwsstainless steelYield stressmin. 450 N/mm2 |
| Cover seal | none, O-ring for IP66/67 |
| Flamepath grease | Greasil MS4 or NEVER SEEZ Marine Grade |
| Degree of protection | IP65 , Enclosure IP66 (IP66/IP67 with O-ring) |
| Cable entry | face B |
| Cable entry face B | Cable entry face B |
| M25 quantity2M25 typeNPT 3/4''M25 infoas standard, other on request | M25 quantity2M25 typeNPT 3/4''M25 infoas standard, other on request |
| Material | Material |
| Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey)O-Ringsilicone | Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey)O-Ringsilicone |
| Mass | approx. 13 kg |

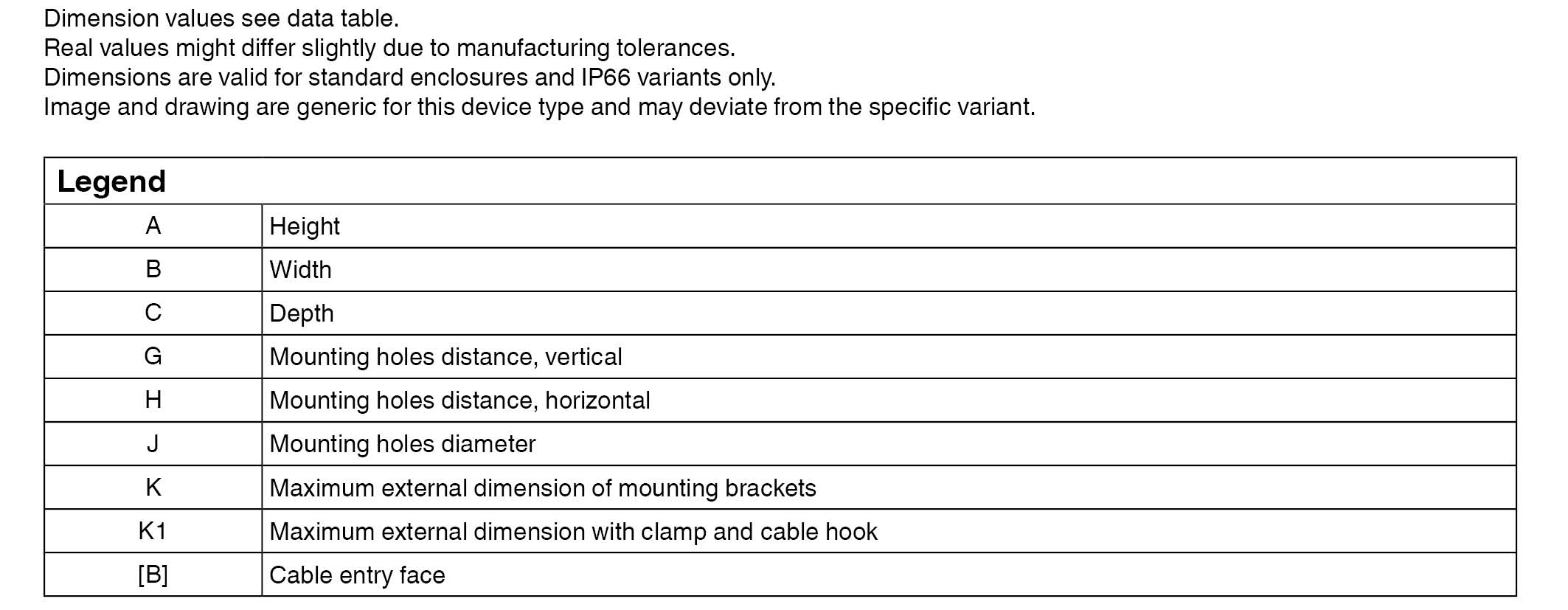

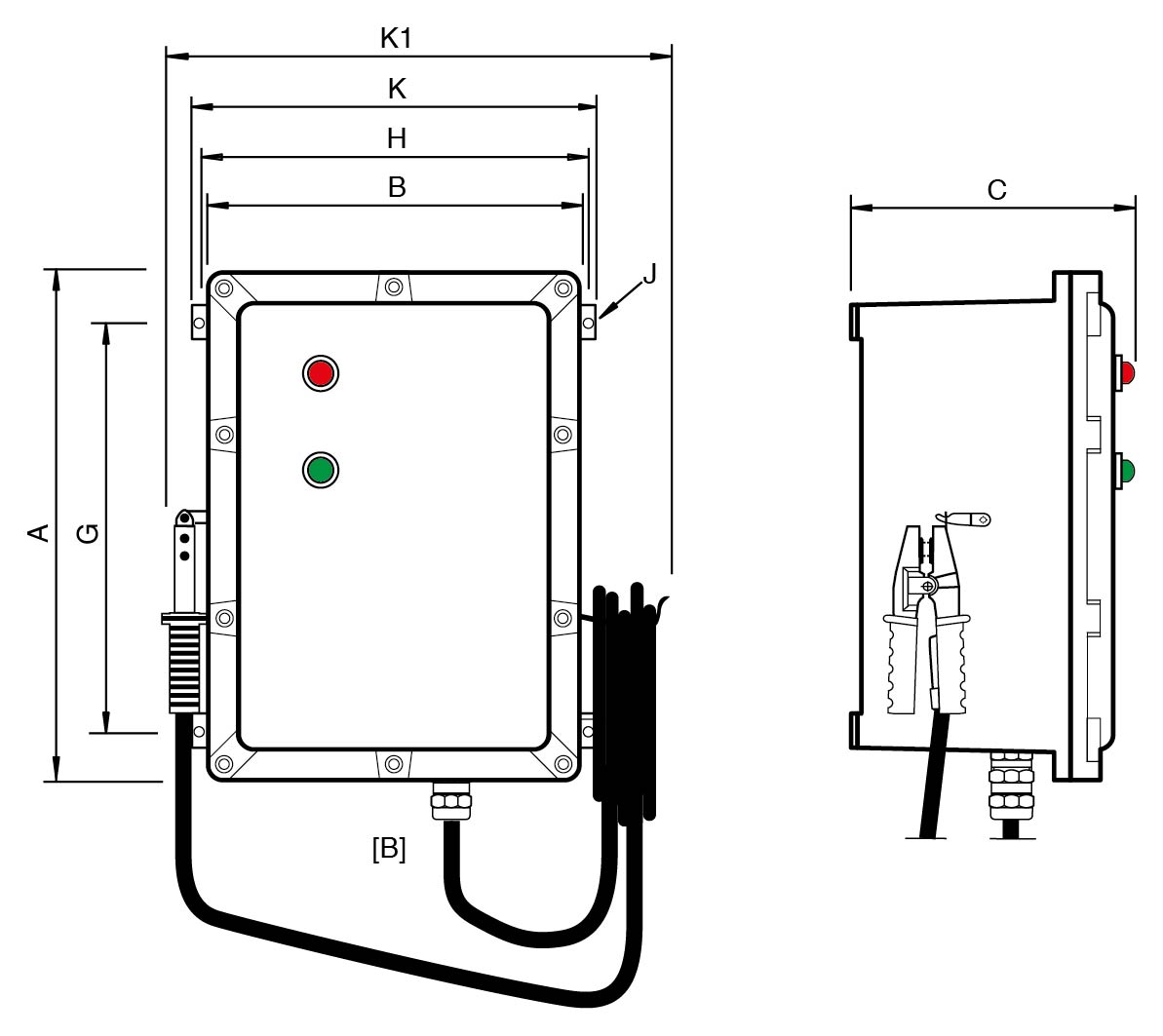

| Dimensions | values might differ slightly due to casting and manufacturing tolerances |
| External dimension (A)332 mmExternal dimension (B)232 mmExternal dimension (C)185 mmMounting holes distance (G)230 mmMounting holes distance (H)196 mmMounting holes diameter (J)8 mmMaximum external dimension (K)216 mmMaximum external dimension (K1)380 mm | External dimension (A)332 mmExternal dimension (B)232 mmExternal dimension (C)185 mmMounting holes distance (G)230 mmMounting holes distance (H)196 mmMounting holes diameter (J)8 mmMaximum external dimension (K)216 mmMaximum external dimension (K1)380 mm |
| Grounding | M6 external grounding points |
| Screws | M8 |
| Number | 10 |
| Tightening torque | 20 Nm |
| Material of screws | stainless steel |
| Yield stress | min. 450 N/mm2 |
| M25 quantity | 2 |
| M25 type | NPT 3/4'' |
| M25 info | as standard, other on request |
| Enclosure | aluminum alloy |
| Finish | epoxy coated RAL 7005 (grey) |
| O-Ring | silicone |
| External dimension (A) | 332 mm |
| External dimension (B) | 232 mm |
| External dimension (C) | 185 mm |
| Mounting holes distance (G) | 230 mm |
| Mounting holes distance (H) | 196 mm |
| Mounting holes diameter (J) | 8 mm |
| Maximum external dimension (K) | 216 mm |
| Maximum external dimension (K1) | 380 mm |
| Ambient temperature | -20 ... 40 °C (-4 ... 104 °F) |
| EU-type examination certificate | INERIS 14 ATEX 0022X |
| Marking II 2 GD Ex db [ia Ga] IIB+H2 T6 Gb, II 2 GD Ex tb [iaD] IIIB T85 °C Db | Marking II 2 GD Ex db [ia Ga] IIB+H2 T6 Gb, II 2 GD Ex tb [iaD] IIIB T85 °C Db |
| Marking | II 2 GD Ex db [ia Ga] IIB+H2 T6 Gb, II 2 GD Ex tb [iaD] IIIB T85 °C Db |
| IECEx approval | IECEx INE 14.0029X |
| UKCA approval | CML 21 UKEX 1424X |
| Degree of protection | EN 60529 |
| CE marking | 0080 or 0102, see type label |
| Order information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
