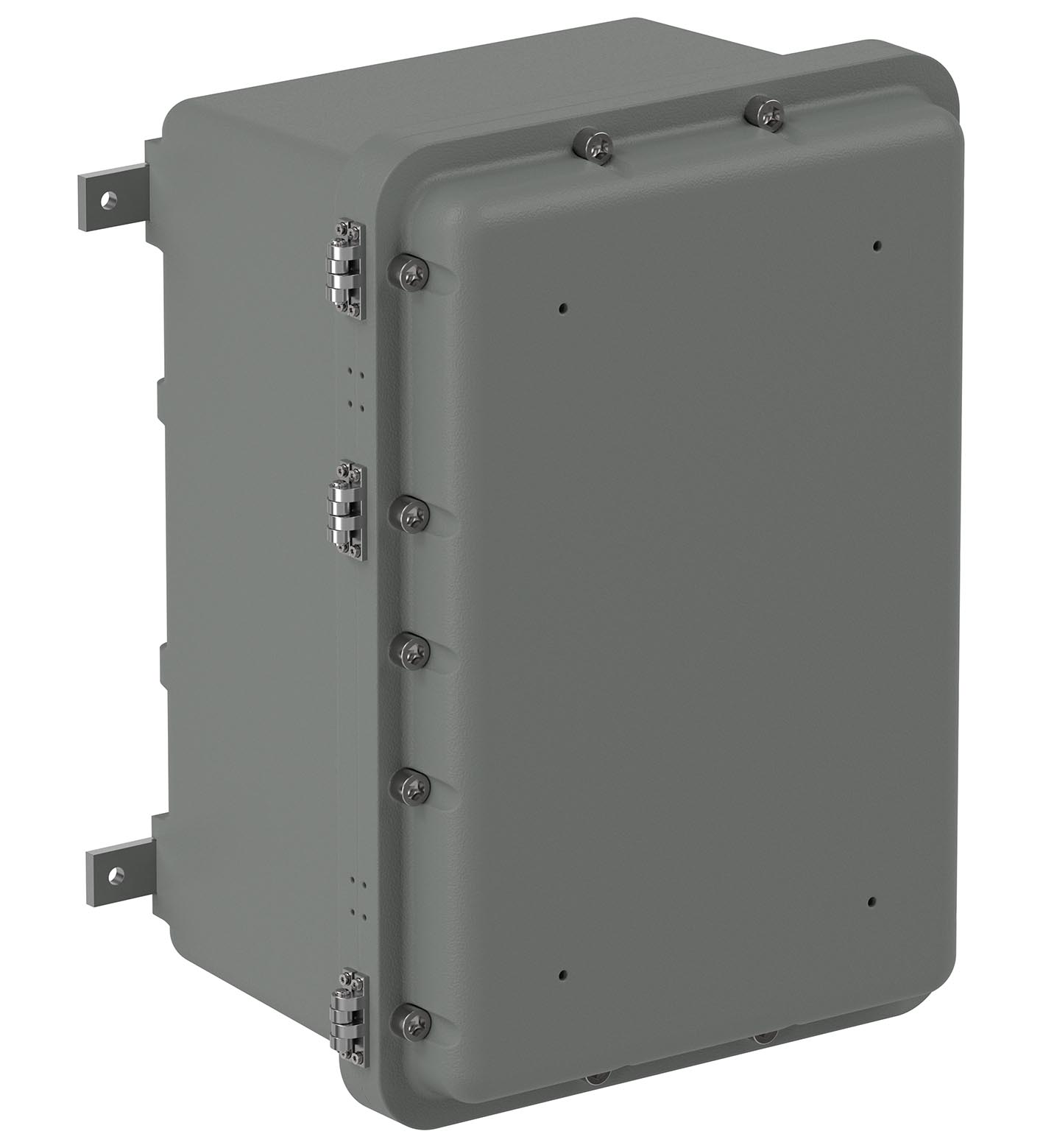

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 1500 V DC / 1000 V AC max. for ATEX / IECEx |
|---|---|
| Operating current | 1600 A max. |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Enclosure cover | detachable , optional hinges ( AISI 316 (1.4401) stainless steel ) and door stopper ( AISI 316 (1.4401) stainless steel |
| Cover fixing | stainless steel socket cap head screws |
| Screwssee data tableMaterial of screwsAISI 316 (1.4401) stainless steelYield stressmin. 600 N/mm2 for ATEX / IECEx | Screwssee data tableMaterial of screwsAISI 316 (1.4401) stainless steelYield stressmin. 600 N/mm2 for ATEX / IECEx |
| Cover seal | none |
| Degree of protection | IP66 |
| Cable entry | see data table |
| Material | Material |
| Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey) | Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey) |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |

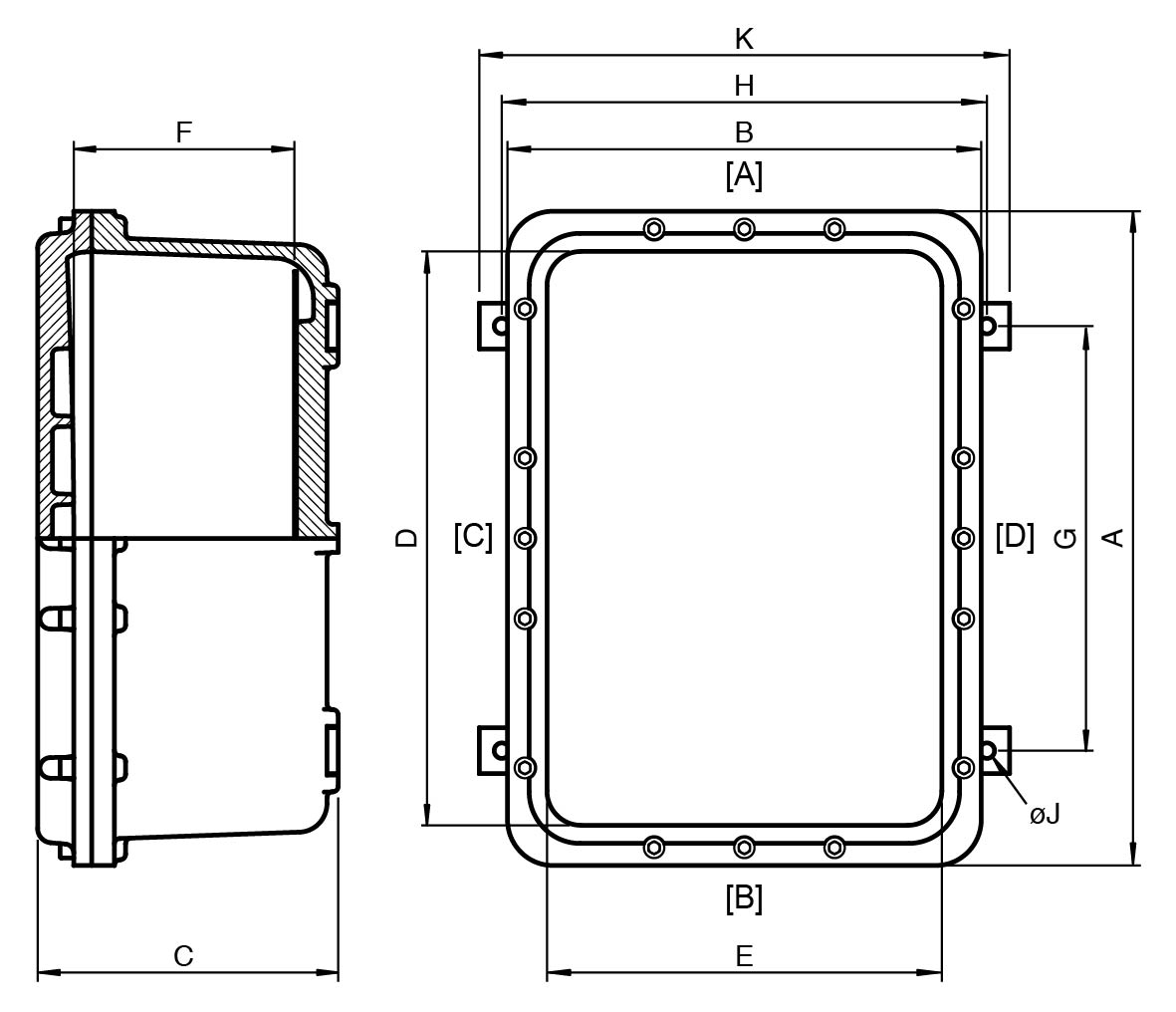

| Dimensions | see data table values might differ slightly due to casting and manufacturing tolerances dimensions are valid for standard enclosures and IP66 variants only |
| Mounting | see data table |
| Grounding | M6 external grounding points |
| Screws | see data table |
| Material of screws | AISI 316 (1.4401) stainless steel |
| Yield stress | min. 600 N/mm2 for ATEX / IECEx |
| Enclosure | aluminum alloy |
| Finish | epoxy coated RAL 7005 (grey) |
| Ambient temperature | depending on integrated components and selected enclosure size see data table |
| EU-type examination certificate | FIDITAS 26 ATEX 0002U INERIS 14 ATEX 0022X |
| Marking II 2 GD Ex db IIB+H2 T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power lossMaximum power dissipationsee data table maximum power dissipation at T4/+40 °C enclosure without window | Marking II 2 GD Ex db IIB+H2 T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power lossMaximum power dissipationsee data table maximum power dissipation at T4/+40 °C enclosure without window |
| Marking | II 2 GD Ex db IIB+H2 T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power loss |
| Maximum power dissipation | see data table maximum power dissipation at T4/+40 °C enclosure without window |
| IECEx approval | IECEx FIDI 26.0006U IECEx INE 14.0029X |
| Further approvals | available on request |
| Degree of protection | EN60529 |
| CE marking | 2829, see type label |
| Order information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
