TECHNICAL DATA
规格参数

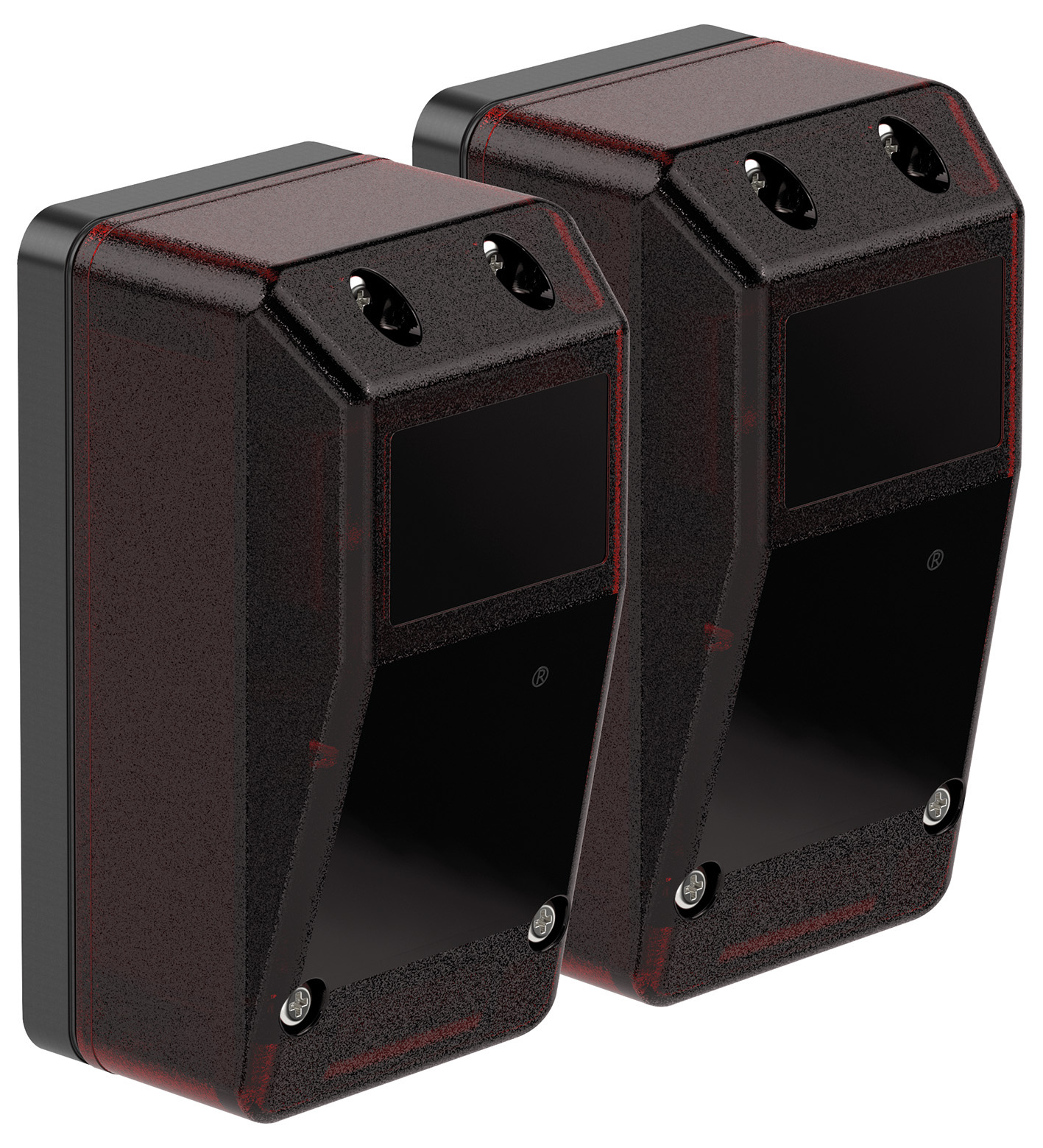

System components
| Emitter | EL25-T. |
|---|---|
| Receiver | EL25-R. |
| Effective detection range | 1.5 ... 20 m |
| Threshold detection range | 28 m |
| Number of protective field beams | 1 |
| Light source | IRED |
| Light type | modulated infrared light 950 nm |
| Marking | CE |
| Diameter of the light spot | approx. 7.3 m at a distance of 20 m |
| Opening angle | 20 ° |
| Optical face | frontal |
| Ambient light limit | 100000 Lux |
| Operation indicator | emitter LED yellow: Power on |
| Function indicator | Transmitter: flashes during test Receiver: LED red: lit when the light beam is interrupted LED yellow: lights up when light beam is free |
| Stability alarm indicator | Receiver: flashing (approx. 4 Hz) |
| Operating voltage | 24 V AC ± 25 % 10 ... 40 V DC |
| Operating current | Emitter: ≤ 25 mA Receiver: ≤ 30 mA |
| Power consumption | Emitter: ≤ 1 VA Receiver: ≤ 1.2 VA |
| Output type | relay, change-over contact |
| Switching type | light/dark on |
| Signal output | Relay, 1 alternator |
| Switching voltage | DC: max. 48 V AC: max. 50 V |
| Switching current | DC: max. 0.5 A AC: max. 0.6 A |
| Energized/De-energized delay | when the light beam is unobstructed again, the relay also switches 100 ms Delay |
| Response time | < 20 ms detection of the light beam interruption |
| Product standard | EN 61000-6-2, EN 61000-6-3 |
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -35 ... 80 °C (-31 ... 176 °F) |
| Degree of protection | IP65 according to EN 60529 |
| Connection | screw terminals for max. 1.5 mm2 |
| Material | Material |
| HousingBase: ABS GF15 Upper part: PMMA red | HousingBase: ABS GF15 Upper part: PMMA red |
| Mass | approx. 60 g |

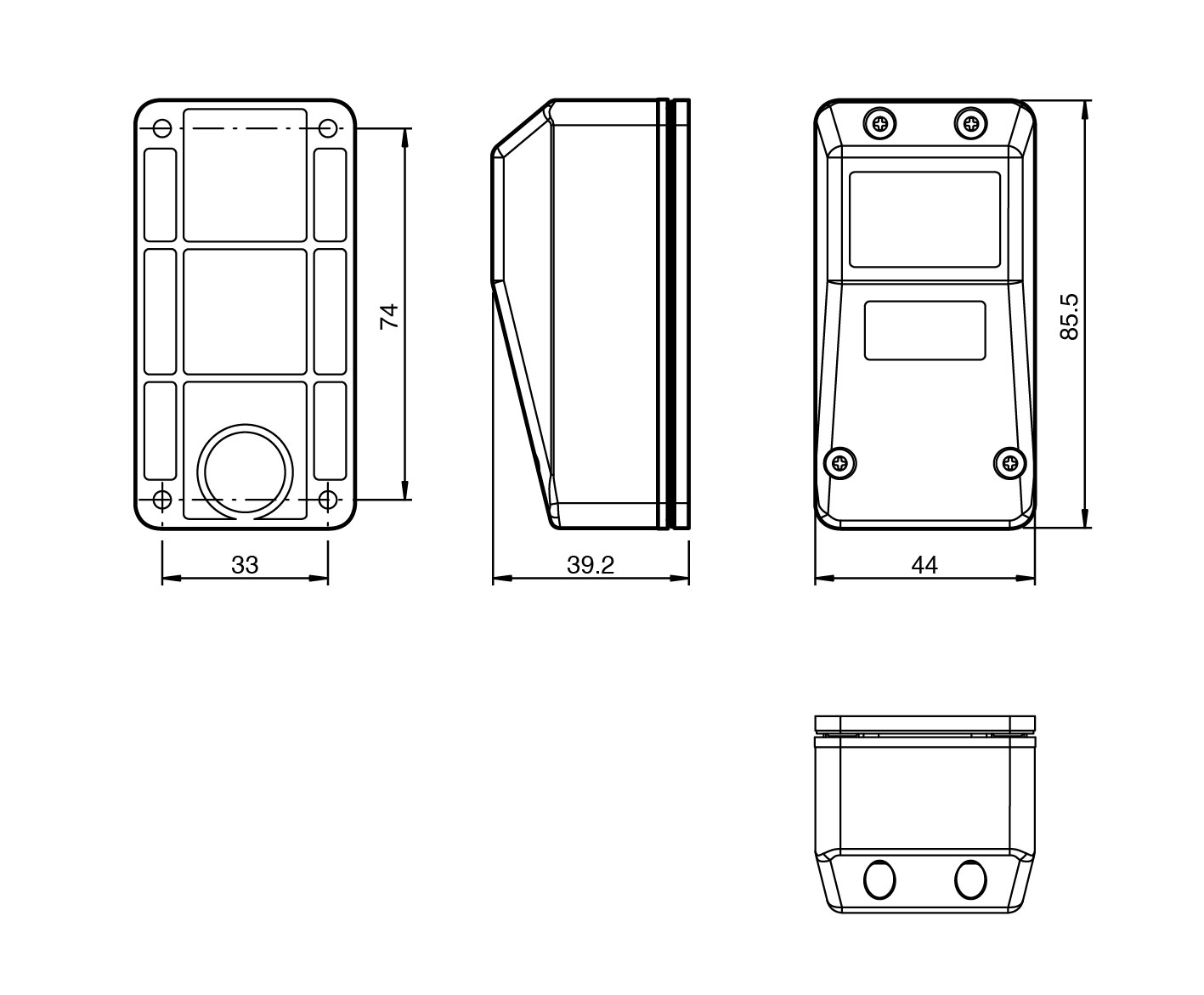

| Dimensions | Dimensions |
| Height86 mmWidth44 mmDepth39 mm | Height86 mmWidth44 mmDepth39 mm |
| Housing | Base: ABS GF15 Upper part: PMMA red |
| Height | 86 mm |
| Width | 44 mm |
| Depth | 39 mm |
