TECHNICAL DATA
规格参数

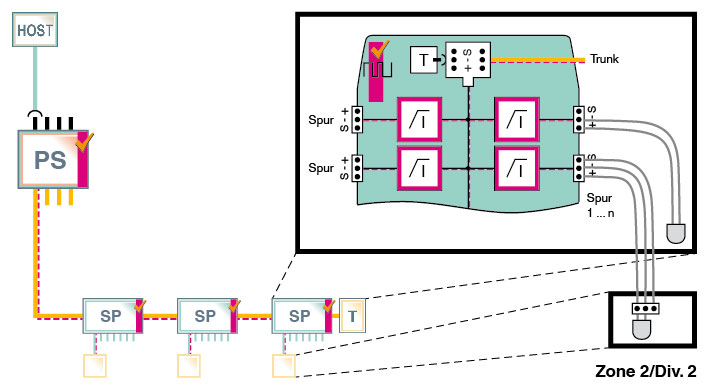

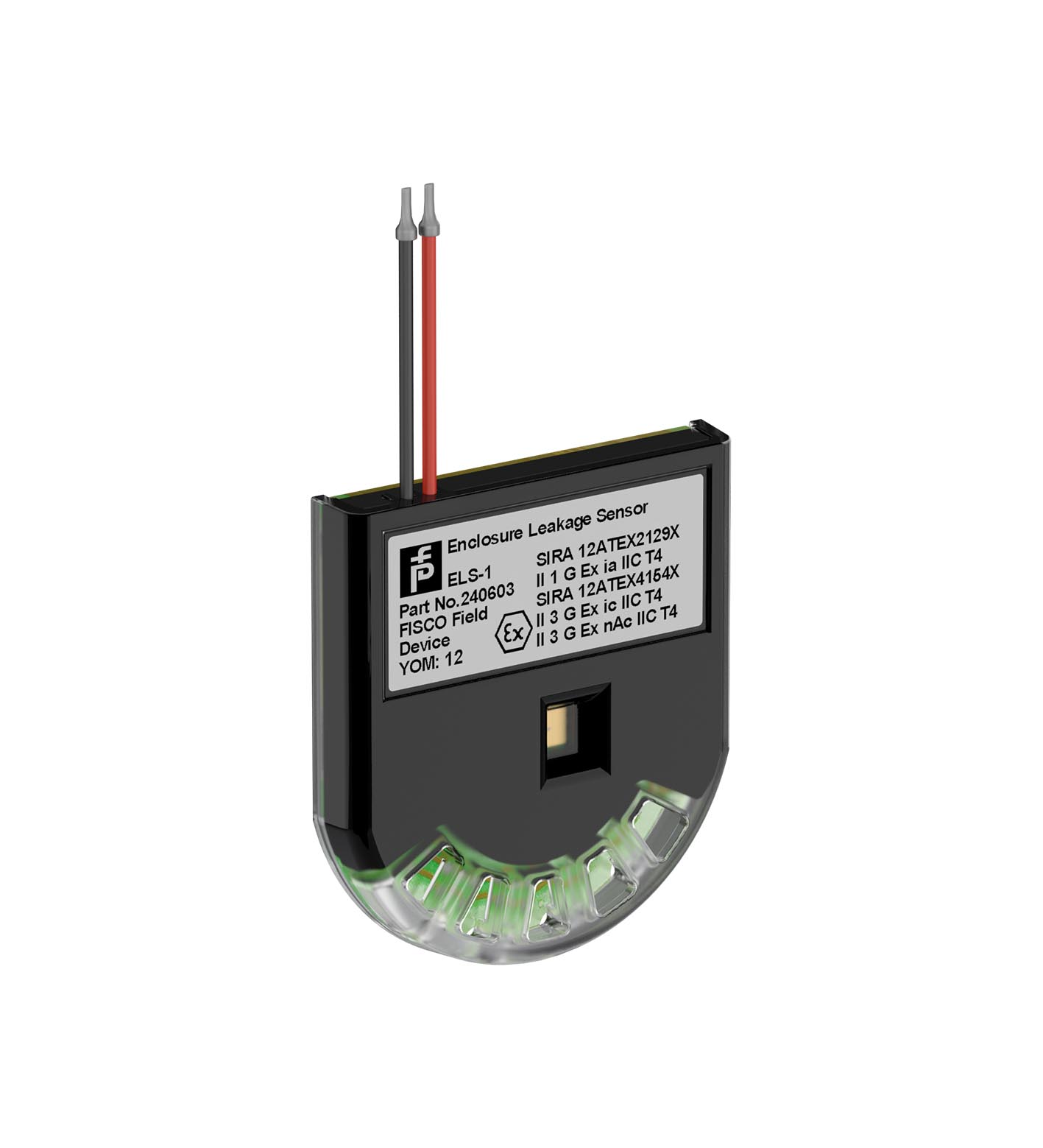

General specifications
| Design / Mounting | Cabinet installation |
|---|---|
| Installation in hazardous area | Zone 1 / Div. 1 |
| Rated voltage | 9 ... 32 V |
| Power dissipation | 670 mW |
| Self current consumption | max. 6 mA |
| LED ERR | green flashing: status OK , red flashing: maintenance required |
| Internal measurement cycle | in normal state 30 s in alarm state 300 s |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Electromagnetic compatibility | NE 21:2006 |
| Degree of protection | IEC 60529 |
| Fieldbus standard | IEC 61158-2 |
| Climatic conditions | IEC 60721 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Ambient temperature | -40 ... 80 °C (-40 ... 176 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 100 % |
| Shock resistance | 15 g 11 ms |
| Vibration resistance | 1 g , 10 ... 150 Hz |
| Life span | exposed to rain water 8760 h , exposed to sea water 1440 h |
| Connection type | two strands, length 180 mm with cable ferrules, PVC insulation |
| Core cross section | 0.25 mm2 |
| Degree of protection | IP67 |
| Mass | 10 g |
| EU-type examination certificate | SIRA 12 ATEX 2129X |
| Marking II 1G Ex ia IIC T4VoltageUi24 VInternal capacitanceCinegligible 0 nFInternal inductanceLi negligible 0 µH | Marking II 1G Ex ia IIC T4VoltageUi24 VInternal capacitanceCinegligible 0 nFInternal inductanceLi negligible 0 µH |
| Certificate | SIRA 12 ATEX 4154X |
| Marking II 3G Ex nAc IIC T4 , [exsign] II 3G Ex ic IIC T4VoltageUi33 VInternal capacitanceCinegligible 0 nF | Marking II 3G Ex nAc IIC T4 , [exsign] II 3G Ex ic IIC T4VoltageUi33 VInternal capacitanceCinegligible 0 nF |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-26:2015 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-26:2015 |
| Supplementary information | FISCO field device |
| Marking | II 1G Ex ia IIC T4 |
| Voltage | 24 V |
| Internal capacitance | negligible 0 nF |
| Internal inductance | negligible 0 µH |
| Marking | II 3G Ex nAc IIC T4 , [exsign] II 3G Ex ic IIC T4 |
| Voltage | 33 V |
| Internal capacitance | negligible 0 nF |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-26:2015 |
| UL approval | UL approval |
| Control drawing116-B028Approved forClass I, Division 1, Groups A, B, C, D, T4 ,Class I, Division 2, Groups A, B, C, D, T4cULusE326119 | Control drawing116-B028Approved forClass I, Division 1, Groups A, B, C, D, T4 ,Class I, Division 2, Groups A, B, C, D, T4cULusE326119 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx SIR 12.0052XIECEx markingEx ia IIC T4 Ex ic IIC T4 Ex nAc IIC T4 | IECEx certificateIECEx SIR 12.0052XIECEx markingEx ia IIC T4 Ex ic IIC T4 Ex nAc IIC T4 |
| Control drawing | 116-B028 |
| Approved for | Class I, Division 1, Groups A, B, C, D, T4 ,Class I, Division 2, Groups A, B, C, D, T4 |
| cULus | E326119 |
| IECEx certificate | IECEx SIR 12.0052X |
| IECEx marking | Ex ia IIC T4 Ex ic IIC T4 Ex nAc IIC T4 |
| Supplementary information | Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
