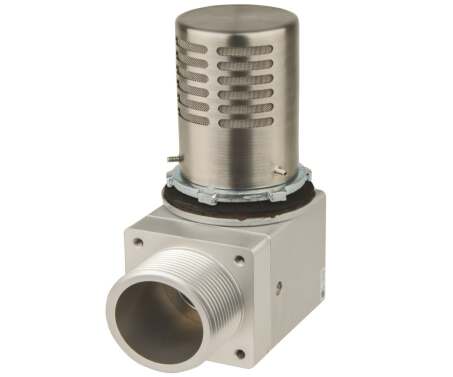

General specifications
| Series | 5500 |
|---|---|
| System | Type Z Purge ; Ex pzc Purge |
| Hazardous environment | gas or dust |
| Protective gas supply | instrument grade air or inert gas |
| Maximum pressure | depends on the integrity of the enclosure (strength) |
| Purge flow rate | See graphs |
| Flow rate for leakage compensation | EPV-5500....-01: Less than 9.9 l/min (0.35 scfm) @ 0.63 mbar (0.25 in w.c.) Less than 27.3 l/min (0.97 scfm) @ 1.9 mbar (0.75 in w.c.) EPV-5500....-02: Less than 6.6 l/min (0.23 scfm) @ 0.63 mbar (0.25 in w.c.) Less than 16.0 l/min (0.57 scfm) @ 1.9 mbar (0.75 in w.c.) EPV-5500....-03: Less than 1 l/min (0.035 scfm) @ 0.63 mbar (0.25 in w.c.)Less than 1 l/min (0.035 scfm) @ 1.9 mbar (0.75 in w.c.) |
| Breaking pressure | EPV-5500....-01: 2.0 mbar (0.8 in. w.c.)EPV-5500....-02: 3.5 mbar (1.4 in. w.c.)EPV-5500....-03: 3.8 mbar (1.5 in. w.c.) |
| Degree of protection | EN 60529 |
| Shock resistance | EN 60068-2 |
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | 5 ... 95 %, non-condensing |
| Vibration resistance | 5 ... 100 Hz , 1 g, 12 m/s2, all axes |
| Impact resistance | 30 g, 11 ms, all axes |
| Degree of protection | EPV-5500....-01/02: mounting only Type 4X / IP66 EPV-5500....-03: Type 4X / IP66 |
| Material | Material |
| HousingEPV-5500-AA... body and cap: 6061T6 aluminum EPV-5500-SS... body: 6061T6 aluminum, cap: 316L stainless steelSpark arrestorAISI 316L, (1.4404) stainless steel | HousingEPV-5500-AA... body and cap: 6061T6 aluminum EPV-5500-SS... body: 6061T6 aluminum, cap: 316L stainless steelSpark arrestorAISI 316L, (1.4404) stainless steel |
| Installation | - any orientation to enclosure- not gravity dependent- internal and external mounting possible |
| Mass | approx. 1 kg (2.2 lb) |

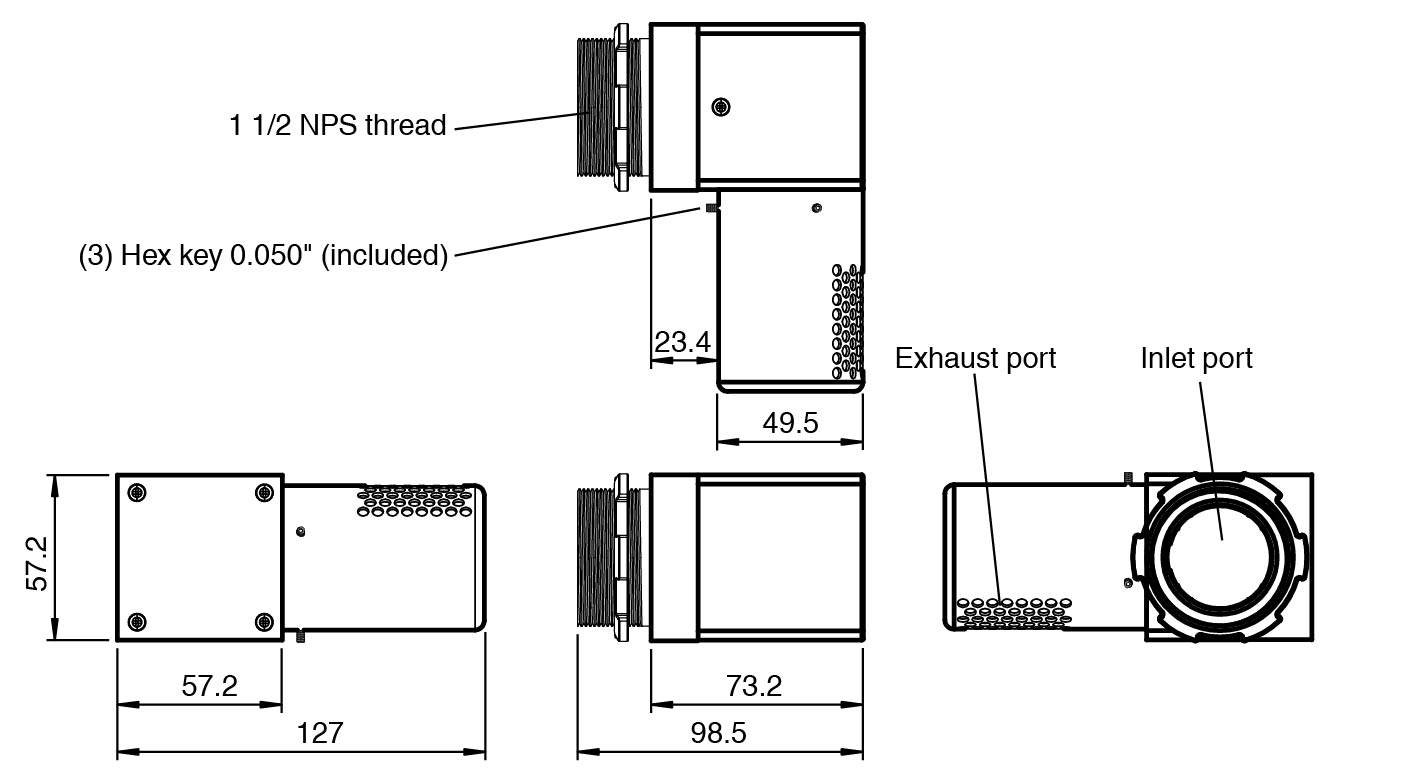

| Dimensions | see dimensions |
| Mounting | mounting hole 1.5 in NPT knockout (50.8 mm) hole sealing nut (provided) |
| Housing | EPV-5500-AA... body and cap: 6061T6 aluminum EPV-5500-SS... body: 6061T6 aluminum, cap: 316L stainless steel |
| Spark arrestor | AISI 316L, (1.4404) stainless steel |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUpart of DEMKO 14 ATEX 1282X | Directive 2014/34/EUpart of DEMKO 14 ATEX 1282X |
| Directive 2014/34/EU | part of DEMKO 14 ATEX 1282X |
| UL approval | UL approval |
| cULusUL File E184741 | cULusUL File E184741 |
| IECEx approval | part of IECEx UL 14.0019X |
| cULus | UL File E184741 |
| Supplementary information | Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
