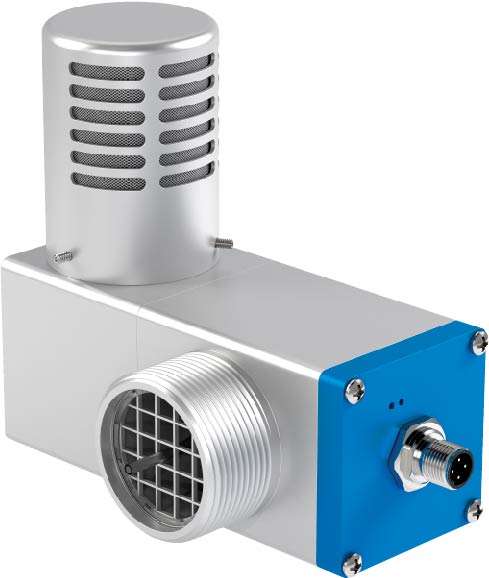

TECHNICAL DATA
规格参数
General specifications
| Series | 6000 Series |
|---|---|
| System | Type X Purge ; Ex pxb Purge |
| Number of volume exchanges | 4 to 19 |
| Hazardous environment | gas, dust, gas and dust |
| Connection | Connection |
| PowerIntrinsically Safe back to 6000 control unitSignalBUS back to 6000 control unitConnectionM12 connector, 4-pin | PowerIntrinsically Safe back to 6000 control unitSignalBUS back to 6000 control unitConnectionM12 connector, 4-pin |
| Power | Intrinsically Safe back to 6000 control unit |
| Signal | BUS back to 6000 control unit |
| Connection | M12 connector, 4-pin |
| LED indication | power: green vent number: yellow, on for second vent |
| Protective gas supply | instrument grade air or inert gas |
| Safe pressure | Gas: 0.25" wc (6.4 mm wc) (0.625 mbar) (62 Pa) Dust: 0.65" wc (16.5 mm wc) (1.6 mbar) (162 Pa) Gas and Dust: 0.65" wc (16.5 mm wc) (1.6 mbar) ( 162 Pa) |
| Enclosure pressure | 25 mbar (0 ... 9.9 in. w.c.) |
| Max. enclosure pressure | 62 mbar (25 in. w.c.) |
| Purge flow rate | Maximum flow rate measurement for enclosure size (enclosure volume:flow rate):< 20 ft3 (0.57 m3): 5, 12 SCFM (141, 340 l/min), or dynamic20 ... 30 ft3 (0.57 ... 0.85 m3): 5, 12, 20 SCFM (141, 340, 565 l/min), or dynamic> 30 ft3 (0.85 m3): 5, 12, 20, 30 SCFM (141, 340, 565, 850 l/min), or dynamic |
| Purge flow and enclosure pressure rate | With EPV-6000-xx-01, EPV-6000-xx-02141 l/min @ 3.7 mbar, (5 scfm @ 1.5 in w.c.)340 l/min @ 5.0 mbar, (12 scfm @ 2.0 in. w.c.)565 l/min @ 6.7 mbar, (20 scfm @ 2.7 in. w.c.)850 l/min @ 10.2 mbar, (30 scfm @ 4.1 in. w.c.) With EPV-6000-xx-03, EPV-6000-xx-04141 l/min @ 5.2 mbar, (5 scfm @ 2.1 in. w.c.)340 l/min @ 6.5 mbar, (12 scfm @ 2.6 in. w.c.)565 l/min @ 10.2 mbar, (20 scfm @ 4.1 in. w.c.)850 l/min @ 13.2 mbar, (30 scfm @ 5.3 in. w.c.) With EPV-6000-xx-05, 06141 l/min @ 4.1 mbar, (5 scfm @ 1.64 in. w.c.)340 l/min @ 5.5 mbar, (12 scfm @ 2.20 in. w.c.)565 l/min @ 14.9 mbar, (20 scfm @ 6.00 in. w.c.) |
| Flow rate for leakage compensation | Depends on enclosure seal.EPV-6000-xx-01, EPV-6000-xx-0210.0 l/min (0.35 scfm) @ 0.63 mbar (0.25 in. w.c.)28.0 l/min (1.0 scfm) @ 1.9 mbar (0.75 in. w.c.) EPV-6000-xx-03, EPV-6000-xx-046.2 l/min (0.22 scfm) @ 0.63 mbar (0.25 in. w.c.)16.4 l/min (0.58 scfm) @ 1.9 mbar (0.75 in. w.c.)EPV-6000-xx-05, EPV-6000-xx-06Less than 1 l/min (0.035 scfm) @ 0.63 mbar (0.25 in. w.c.)Less than 1 l/min (0.035 scfm) @1.9 mbar (0.75 in. w.c.) |
| Breaking pressure | EPV-6000-xx-01, EPV-6000-xx-02: 2.0 mbar (0.8 in. w.c.) EPV-6000-xx-03, EPV-6000-xx-04: 3.2 ... 3.5 mbar (1.3 ... 1.4 in. w.c.) EPV-6000-xx-05, EPV-6000-xx-06: 3.5 ... 3.8 mbar (1.4 ... 1.5 in. w.c.) |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013EN 61000-6-2:2005 | Directive 2014/30/EUEN 61326-1:2013EN 61000-6-2:2005 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN IEC 63000:2018 | Directive 2011/65/EU (RoHS)EN IEC 63000:2018 |
| Directive 2014/30/EU | EN 61326-1:2013EN 61000-6-2:2005 |
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -30 ... 80 °C (-22 ... 176 °F) |
| Relative humidity | 5 ... 95 %, non-condensing |
| Vibration resistance | 5 ... 100 Hz , 1 g, 12 m/s2, all axes |
| Impact resistance | 30 g, 11 ms, all axes |
| Material | EPV-6000-AA-.... Cap: marine grade 5052 anodized aluminum, marine grade 6061T6 anodized aluminum EPV-6000-SS-.... Cap: 316L (UNS S31603) stainless steel; Body: marine grade 6061T6 anodized aluminum |
| Spark arrestor304 (UNS S30400) stainless steel | Spark arrestor304 (UNS S30400) stainless steel |
| Installation | - any orientation to enclosure- not gravity dependent- internal and external mounting possible |
| Mass | approx. 1.4 kg (3.1 lb) |

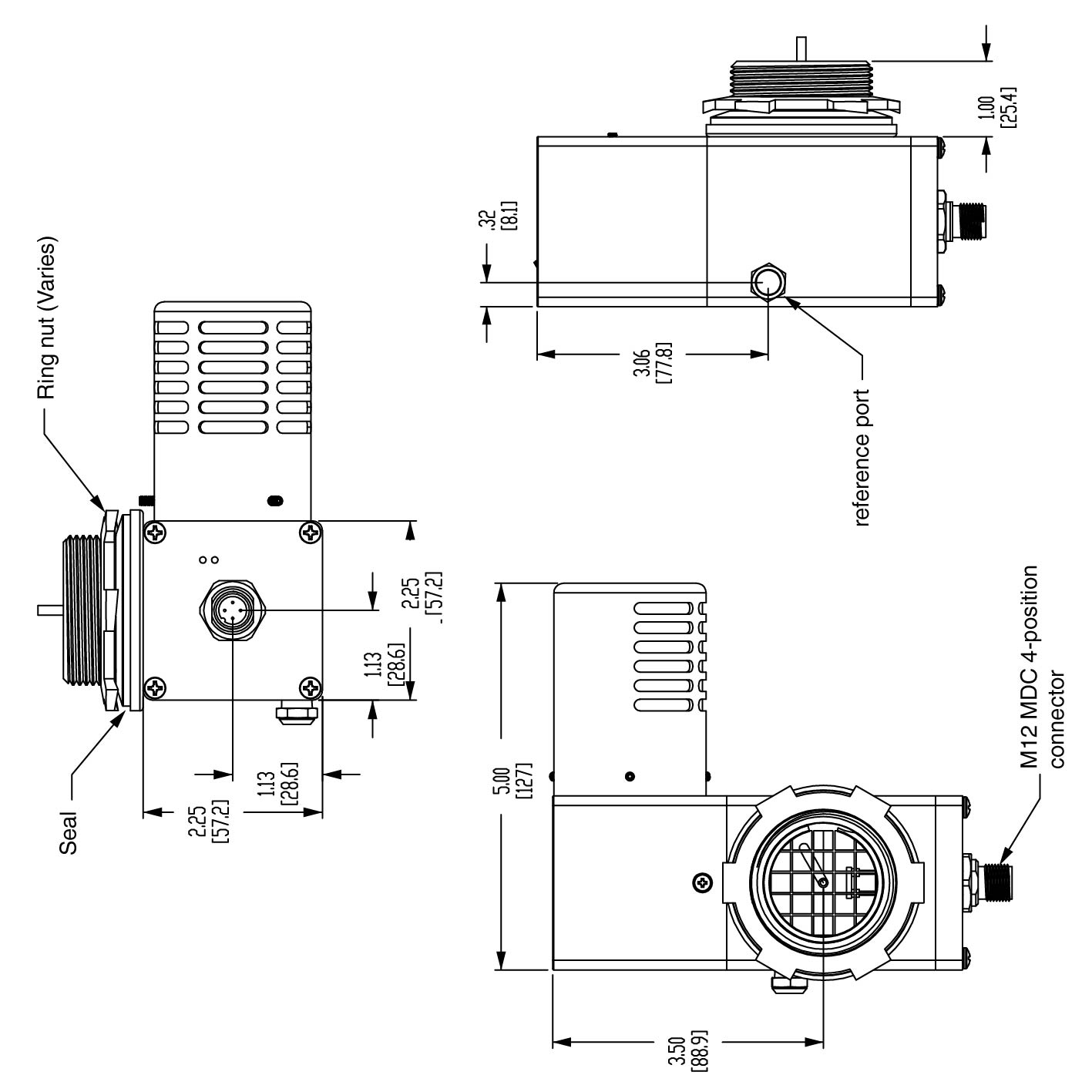

| Dimensions | 127.5 x 146 x 82.5 mm (5.05 x 5.75 x 3.25 inch) |
| Height146 mmWidth127.5 mmDepth82.5 mm | Height146 mmWidth127.5 mmDepth82.5 mm |
| Mounting | 1 1/2" NPT knockout (50.8 mm (2") hole) with sealed nut |
| Spark arrestor | 304 (UNS S30400) stainless steel |
| Height | 146 mm |
| Width | 127.5 mm |
| Depth | 82.5 mm |
| EU-type examination certificate | DEMKO 15 ATEX 1622X |
| MarkingII 2 G Ex ib [pxb Gb] IIC T4 GbII 2 D Ex ib [pxb Db] IIIC T135 °C Db-20 °C ≤ Ta ≤ 60 °C | MarkingII 2 G Ex ib [pxb Gb] IIC T4 GbII 2 D Ex ib [pxb Db] IIIC T135 °C Db-20 °C ≤ Ta ≤ 60 °C |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-2:2014 , EN 60079-11:2012 | Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-2:2014 , EN 60079-11:2012 |
| Marking | II 2 G Ex ib [pxb Gb] IIC T4 GbII 2 D Ex ib [pxb Db] IIIC T135 °C Db-20 °C ≤ Ta ≤ 60 °C |
| Directive 2014/34/EU | EN IEC 60079-0:2018 , EN 60079-2:2014 , EN 60079-11:2012 |
| UL approval | cULusClass I, Division 1, Groups A, B, C, DIP66/Type 4XClass I, Zone 1, Groups IIC, T4Class II, Division 1, Groups E, F, GClass II, Zone 21, Group IIIC T135 °C-20 °C ≤ TA ≤ 60 °CEx i intrinsically safe |
| IECEx approval | Ex ib [pxb Gb] IIC T4 GbEx ib [pxb Db] IIIC T135 °C Db-20 °C ≤ Ta ≤ 60 °CIECEx UL 15.0147X |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
