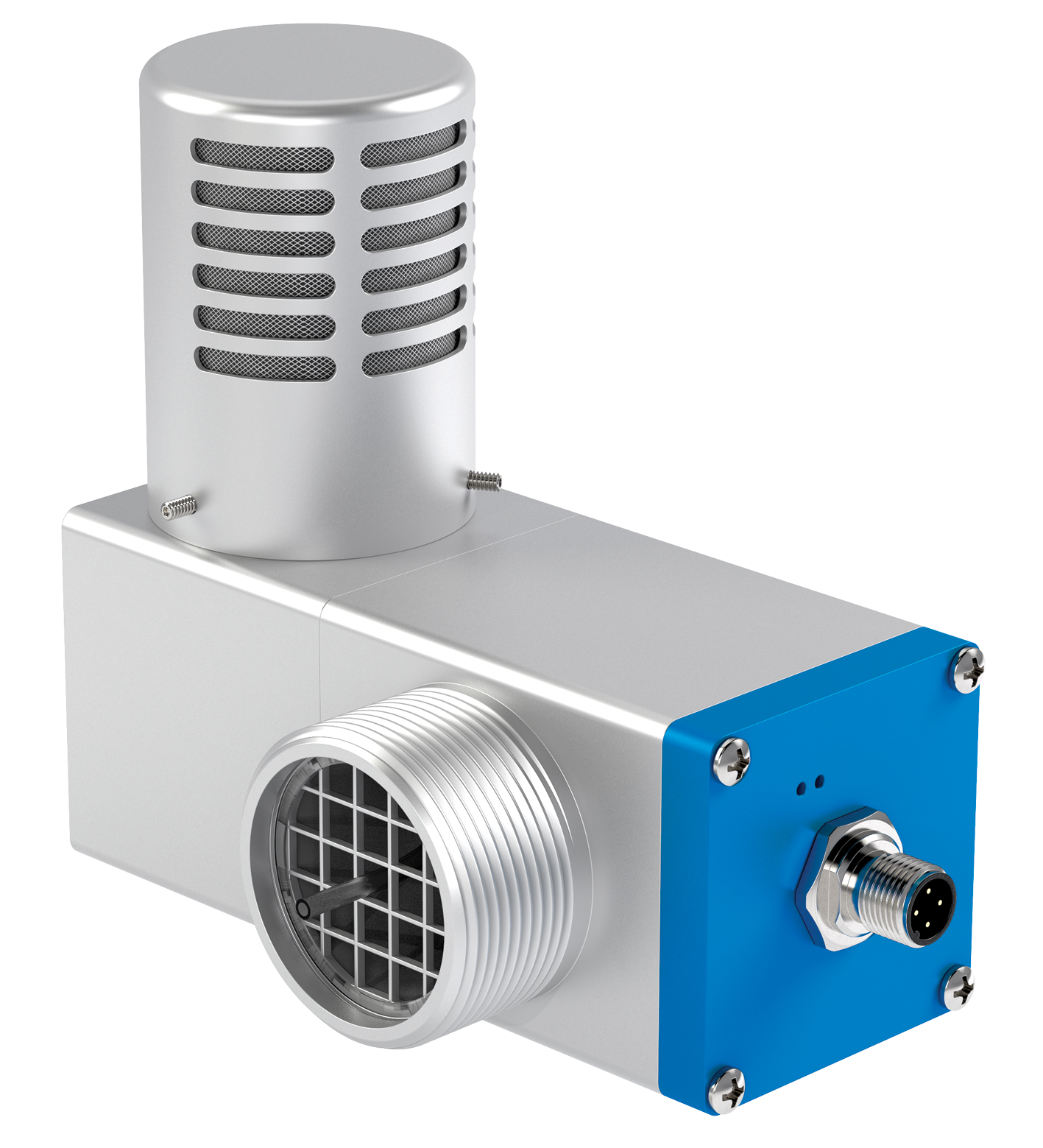

EPV-6500-*-* 6500 Series Vent

订货号: T179721
产品分类: Ex [pxb] 认证正压系统

Enclosure protection vent for 6500 series type Ex pyb Ex pxb purge and pressurization system

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Series	6500
System	Ex pxb Purge , Ex pyb Purge
Number of volume exchanges	5 to 19
Hazardous environment	gas, dust, gas and dust
Safety Integrity Level (SIL)	SIL 2
Connection	Connection
SignalBUS back to the 6500 control unit ConnectionM12 connector, 4-pin, cable length 5 meters (provided)	SignalBUS back to the 6500 control unit ConnectionM12 connector, 4-pin, cable length 5 meters (provided)
Cable length	max. 60 meters at 50 pf/ft and 0.2 µH/ft
Signal	BUS back to the 6500 control unit
Connection	M12 connector, 4-pin, cable length 5 meters (provided)
LED indication	POWER: green
Protective gas supply	instrument grade air or inert gas
Maximum pressure	depends on the integrity of the enclosure (strength) vent pressure range: 0 to 25 mbar (0 to 9.9 in. w.c.)
Safe pressure	Gas: 0.82 mbar (0.33 in. w.c.) Dust: 0.82 mbar (0.33 in. w.c.) Gas+Dust: 0.82 mbar (0.33 in. w.c.)
Purge flow rate	See graphs Readout on display is in increments of 28 l/min (1 scfm).Minimum and maximum reading depends on type of vent and supply pressure.EPV-6500-*-07, 08 will readout continuous flow.
Purge flow and enclosure pressure rate	See graphs Readout on display is in increments of 28 l/min (1 scfm).Minimum and maximum reading depends on type of vent and supply pressure.EPV-6500-*-07, 08 will readout continuous flow.
Flow rate for leakage compensation	EPV-6500....-01: Less than 9.9 l/min (0.35 scfm) @ 0.63 mbar (0.25 in. w.c.)Less than 27.3 l/min (0.97 scfh) @ 1.9 mbar (0.75 in. w.c.)EPV-6500....-03: Less than 6.6 l/min (0.23 scfm) @ 0.63 mbar (0.25 in. w.c.)Less than 16.0 l/min (0.57 scfm) @ 1.9 mbar (0.75 in. w.c.)EPV-6500....-05: Less than 1 l/min (0.035 scfm) @ 0.63 mbar (0.25 in w.c.)Less than 1 l/min (0.035 scfm) @ 1.9 mbar (0.75 in w.c.) EPV-6500....-07: n/a EPV-6500....-08: n/a
Breaking pressure	EPV-6500-...-01: 2.0 mbar (0.8 in. w.c.) EPV-6500-...-03: 3.5 mbar (1.4 in. w.c.) EPV-6500-...-05: 3.8 mbar (1.5 in. w.c.) EPV-6500-...-07: n/a EPV-6500-...-08: n/a
Degree of protection	EN 60529
Shock resistance	EN 60068-2
Ambient temperature	-20 ... 70 °C (-4 ... 158 °F)
Storage temperature	-40 ... 70 °C (-40 ... 158 °F)
Relative humidity	5 ... 90 %, non-condensing
Vibration resistance	5 ... 100 Hz , 1 g, 12 m/s2, all axes
Impact resistance	30 g, 11 ms, all axes
Degree of protection	IP66 rated sealing washer and electronics housing
Material	EPV-6500-AA-.... Cap: marine grade 5052 anodized aluminum, marine grade 6061T6 anodized aluminum EPV-6500-SS-.... Cap: 316L (UNS S31603) stainless steel; Body: marine grade 6061T6 anodized aluminum
Spark arrestor304 (UNS S30400) stainless steel	Spark arrestor304 (UNS S30400) stainless steel
Installation	- any orientation to enclosure- not gravity dependent- internal and external mounting possible
Mass	approx. 1.4 kg (3.1 lb)

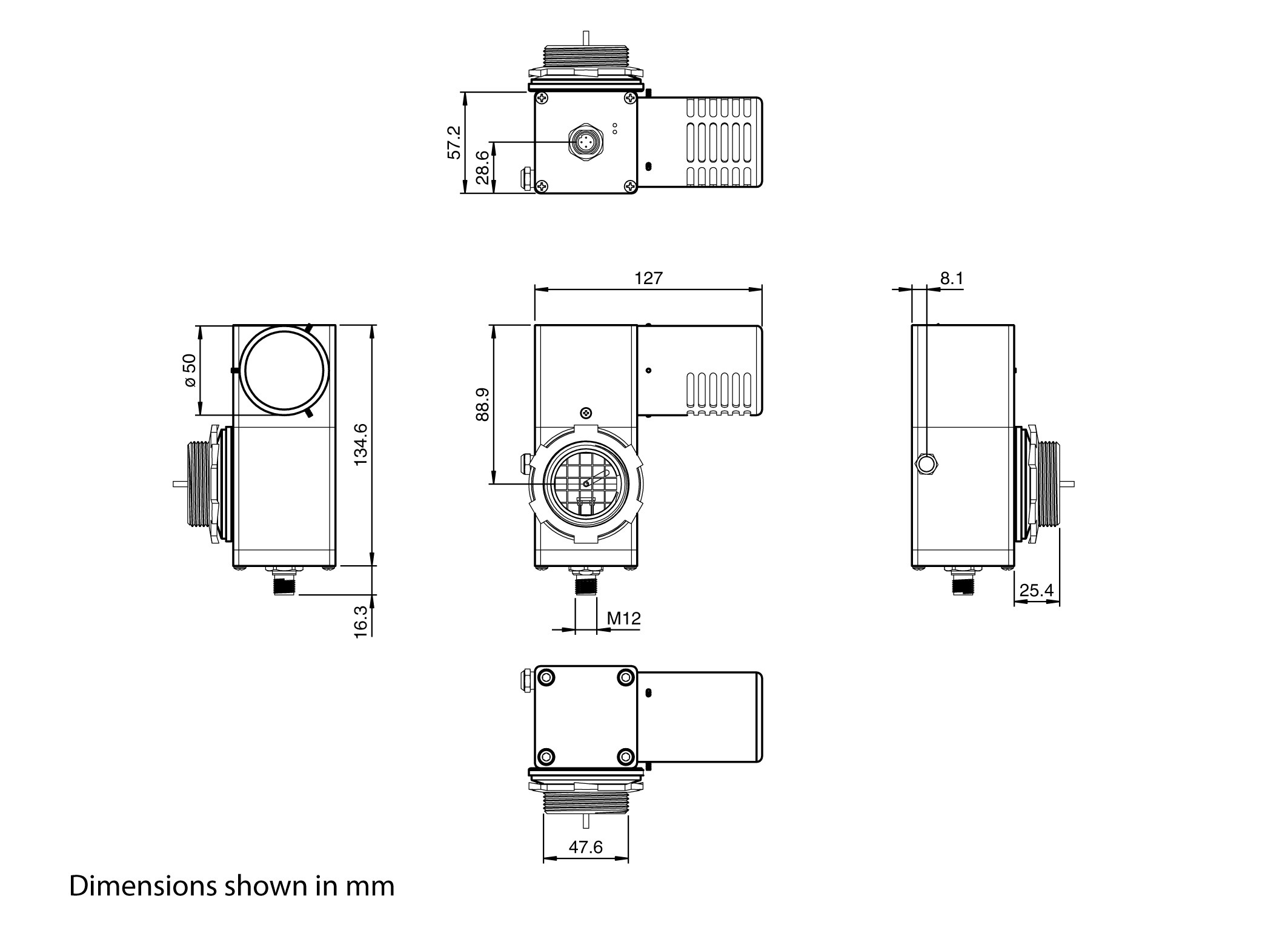

Dimensions	127 x 146 x 83 mm (5.0" x 5.8" x 3.3")
Mounting	1 ½" NPT knockout (50.8mm (2") hole) with seal nut included
Spark arrestor	304 (UNS S30400) stainless steel
EU-type examination certificate	DEMKO 15 ATEX 1622X
Marking II 2G Ex ib [pxb Gb] IIC T4 Gb [exsign] II 2D Ex ib [pxb Db] IIIC T135 °C Db [exsign] II 2G Ex ib [pyb Gb] IIC T4 Gb [exsign] II 2D Ex ib [pyb Db] IIIC T135 °C Db	Marking II 2G Ex ib [pxb Gb] IIC T4 Gb [exsign] II 2D Ex ib [pxb Db] IIIC T135 °C Db [exsign] II 2G Ex ib [pyb Gb] IIC T4 Gb [exsign] II 2D Ex ib [pyb Db] IIIC T135 °C Db
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-2:2014 , EN 60079-11:2012	Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-2:2014 , EN 60079-11:2012
Marking	II 2G Ex ib [pxb Gb] IIC T4 Gb [exsign] II 2D Ex ib [pxb Db] IIIC T135 °C Db [exsign] II 2G Ex ib [pyb Gb] IIC T4 Gb [exsign] II 2D Ex ib [pyb Db] IIIC T135 °C Db
Directive 2014/34/EU	EN IEC 60079-0:2018 , EN 60079-2:2014 , EN 60079-11:2012
IECEx approval	IECEx approval
IECEx certificateIECEx UL 15.0147XIECEx markingEx ib [pxb Gb] IIC T4 Gb Ex ib [pxb Db] IIIC T135 °C Db Ex ib [pyb Gb] IIC T4 Gb Ex ib [pyb Db] IIIC T135 °C Db EPV-6000: -20 °C ≤ Tamb ≤ 60 °C EPV-6500: -20 °C ≤ Tamb ≤ 70 °C	IECEx certificateIECEx UL 15.0147XIECEx markingEx ib [pxb Gb] IIC T4 Gb Ex ib [pxb Db] IIIC T135 °C Db Ex ib [pyb Gb] IIC T4 Gb Ex ib [pyb Db] IIIC T135 °C Db EPV-6000: -20 °C ≤ Tamb ≤ 60 °C EPV-6500: -20 °C ≤ Tamb ≤ 70 °C
IECEx certificate	IECEx UL 15.0147X
IECEx marking	Ex ib [pxb Gb] IIC T4 Gb Ex ib [pxb Db] IIIC T135 °C Db Ex ib [pyb Gb] IIC T4 Gb Ex ib [pyb Db] IIIC T135 °C Db EPV-6000: -20 °C ≤ Tamb ≤ 60 °C EPV-6500: -20 °C ≤ Tamb ≤ 70 °C
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
