EPV-7500-SS-02

EPV-7500-SS-02 7500 series vent

订货号: 516149
产品分类: UL Type Z正压系统

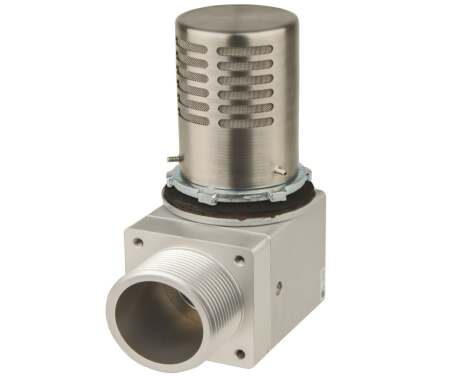

7500 series purge and pressurization system vent, aluminum body, stainless steel cap

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Equipment architecture	max. enclosure size 12.7 m3 (450 ft3)
Series	7500
System	Type Z Purge ; Ex pzc Purge
Hazardous environment	gas or dust
Protective gas supply	compressed air or inert gas, 40 µm filter, free from oil
Maximum pressure	See tables
Purge flow rate	See tables
Flow rate for leakage compensation	EPV-7500....-01: Less than 11.8 l/min (0.42 scfm) @ 0.63 mbar (0.25 in. w.c.) Less than 30.6 l/min (1.08 scfm) @ 1.9 mbar (0.75 in. w.c.) EPV-7500....-02: Less than 9.4 l/min (0.33 scfm) @ 0.63 mbar (0.25 in. w.c.) Less than 22.6 l/min (0.8 scfm) @ 1.9 mbar (0.75 in. w.c.) EPV-7500....-03 and EPV-7500-AA-04: Less than 1 l/min (0.035 scfm) @ 0.63 mbar (0.25 in w.c.)Less than 1 l/min (0.035 scfm) @ 1.9 mbar (0.75 in w.c.)
Breaking pressure	EPV-7500....-01: 2.0 mbar (0.8 in. w.c.) EPV-7500-...-02: 3.5 mbar (1.4 in. w.c.) EPV-7500-...-03: 3.8 mbar (1.5 in. w.c.) EPV-7500-AA-04: 3.5 mbar (1.4 in. w.c.)
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 , FCC CFR 47, part 15, subpart B: 2017, Class A ICES-003, Issue 6:2016, Class A ITE	Directive 2014/30/EUEN 61326-1:2013 , FCC CFR 47, part 15, subpart B: 2017, Class A ICES-003, Issue 6:2016, Class A ITE
RoHS	RoHS
Directive 2011/65/EU (RoHS)EN 50581:2012	Directive 2011/65/EU (RoHS)EN 50581:2012
Directive 2014/30/EU	EN 61326-1:2013 , FCC CFR 47, part 15, subpart B: 2017, Class A ICES-003, Issue 6:2016, Class A ITE
Directive 2011/65/EU (RoHS)	EN 50581:2012
Degree of protection	Directive conformity: see Declaration of Conformity
Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Storage temperature	-40 ... 80 °C (-40 ... 176 °F)
Relative humidity	5 ... 90 %, non-condensing
Vibration resistance	5 ... 100 Hz , 1 g, 12 m/s2, all axes
Impact resistance	30 g, 11 ms, all axes
Degree of protection	EPV-7500....-01/02/04: mounting only Type 4X / IP66 EPV-7500....-03: Mounting and unit Type 4X / IP66
Material	Material
HousingEPV-7500-AA... body and cap: 6061-T6 aluminum EPV-7500-SS... body: 6061-T6 aluminumcap: AISI 316L (1.4404) stainless steelSpark arrestor304 Stainless steel	HousingEPV-7500-AA... body and cap: 6061-T6 aluminum EPV-7500-SS... body: 6061-T6 aluminumcap: AISI 316L (1.4404) stainless steelSpark arrestor304 Stainless steel
Installation	- any orientation to enclosure- not gravity dependent- internal and external mounting possible
Mass	approx. 1000 g (2.2 lb)

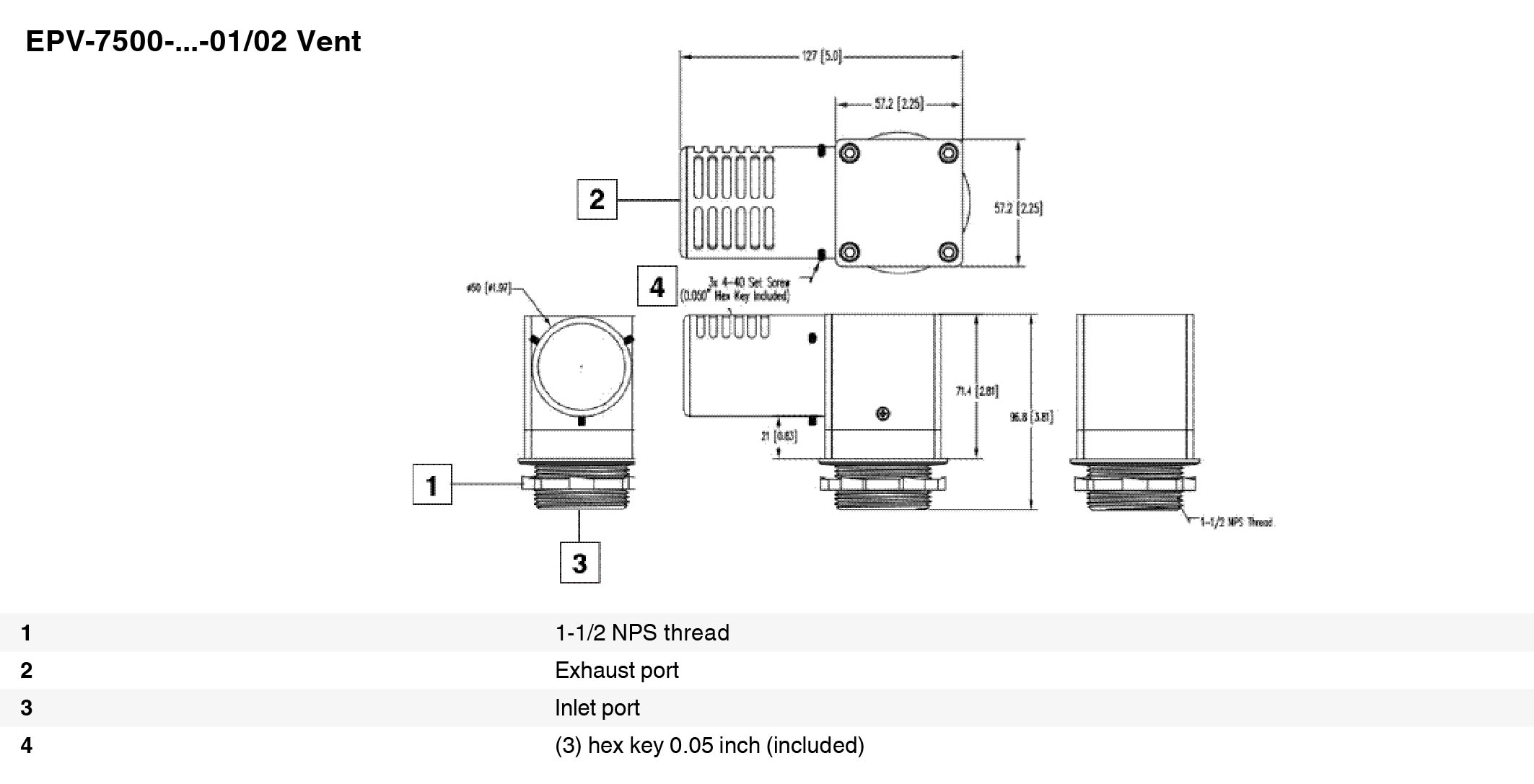

Dimensions	See "Dimensions" section.
Mounting	EPV-7500-...-01/02/03: mounting hole 1.5 in NPT knockout (50.8 mm) hole sealing nut (provided) EPV-7500-AA-04: mounting hole 37 mm with sealing nut (provided)
Housing	EPV-7500-AA... body and cap: 6061-T6 aluminum EPV-7500-SS... body: 6061-T6 aluminumcap: AISI 316L (1.4404) stainless steel
Spark arrestor	304 Stainless steel
Certificate	Certificate
Marking II 3GD (part of DEMKO 18 ATEX 2025 X)	Marking II 3GD (part of DEMKO 18 ATEX 2025 X)
Directive conformity	Directive conformity
Directive 2014/34/EUIEC/EN 60079-0 , IEC/EN 60079-2 , IEC/EN 60079-7 , IEC/EN 60079-15 , IEC/EN 60079-31 , Supplements: EN 61010-1:2010, EN 61326-3:2008, EN 61000-6-2:2005	Directive 2014/34/EUIEC/EN 60079-0 , IEC/EN 60079-2 , IEC/EN 60079-7 , IEC/EN 60079-15 , IEC/EN 60079-31 , Supplements: EN 61010-1:2010, EN 61326-3:2008, EN 61000-6-2:2005
Marking	II 3GD (part of DEMKO 18 ATEX 2025 X)
Directive 2014/34/EU	IEC/EN 60079-0 , IEC/EN 60079-2 , IEC/EN 60079-7 , IEC/EN 60079-15 , IEC/EN 60079-31 , Supplements: EN 61010-1:2010, EN 61326-3:2008, EN 61000-6-2:2005
UL approval	UL approval
cULusClass I, Division 2, Groups A, B, C, D T4 (-40 °C ≤ Ta ≤ 70 °C)Class I, Division 2, Groups A, B, C, D, T6 (-40 °C ≤ Ta ≤ 50 °C)Class II, Division 2, Groups F, G T4 (-40 °C ≤ Ta ≤ 70 °C)Class II, Division 2, Groups F, G T6 (-40 °C ≤ Ta ≤ 50 °C)	cULusClass I, Division 2, Groups A, B, C, D T4 (-40 °C ≤ Ta ≤ 70 °C)Class I, Division 2, Groups A, B, C, D, T6 (-40 °C ≤ Ta ≤ 50 °C)Class II, Division 2, Groups F, G T4 (-40 °C ≤ Ta ≤ 70 °C)Class II, Division 2, Groups F, G T6 (-40 °C ≤ Ta ≤ 50 °C)
IECEx approval	part of IECEx UL 18.0022X
cULus	Class I, Division 2, Groups A, B, C, D T4 (-40 °C ≤ Ta ≤ 70 °C)Class I, Division 2, Groups A, B, C, D, T6 (-40 °C ≤ Ta ≤ 50 °C)Class II, Division 2, Groups F, G T4 (-40 °C ≤ Ta ≤ 70 °C)Class II, Division 2, Groups F, G T6 (-40 °C ≤ Ta ≤ 50 °C)
