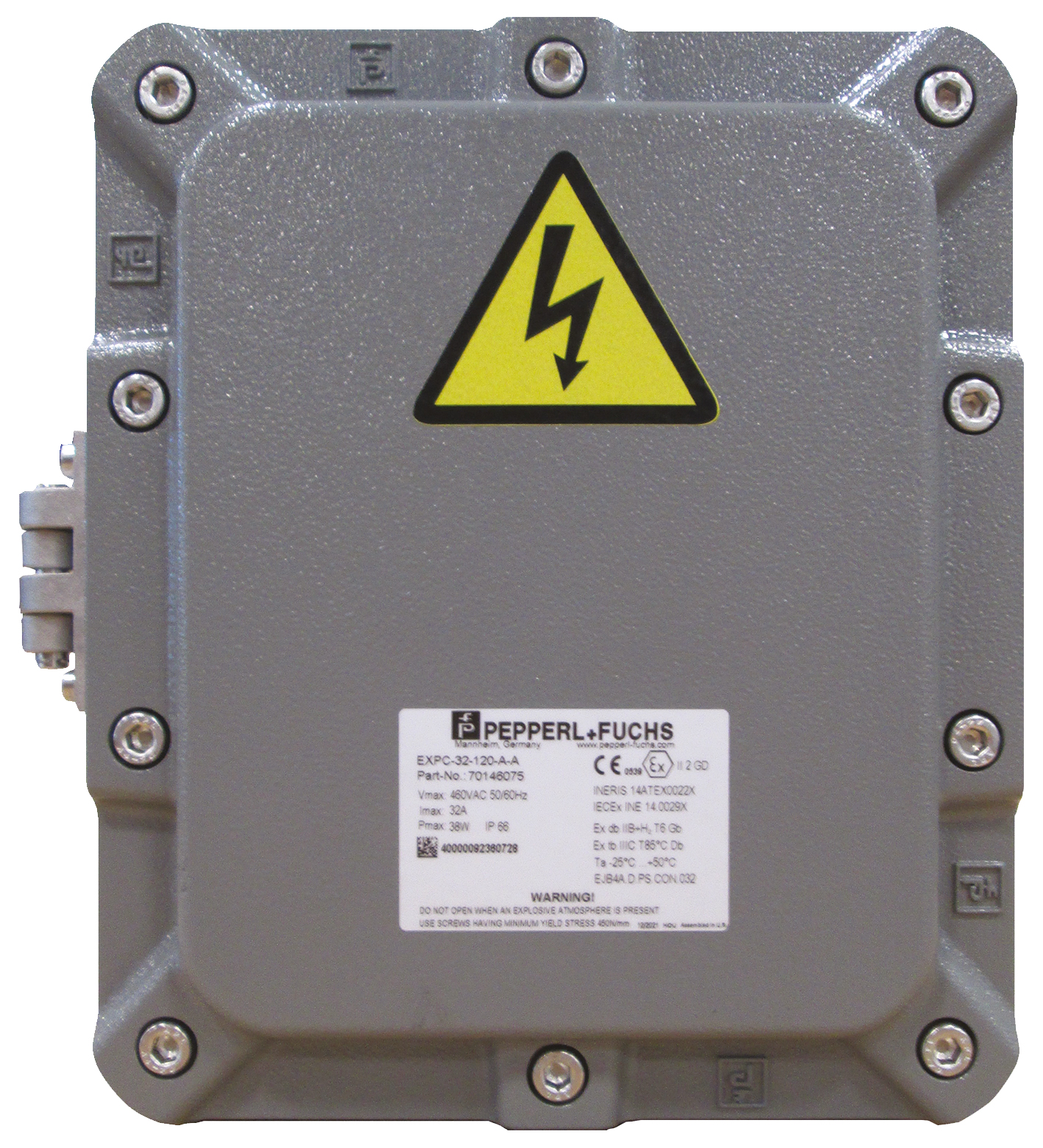

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 115 ... 460 V |
|---|---|
| Rated frequency | 50/60 Hz |
| Short circuit current limitation | see data table |
| Operating current | 18 A - 170 A |
| Rated insulation voltage | 690 V |
| Function | Power control |
| Contact configurationsee data tableUsage categorysee data tableNumber of polessee data tableAuxiliary contactsOne (1) normally open contactAuxiliary contacts usage categorysee data table | Contact configurationsee data tableUsage categorysee data tableNumber of polessee data tableAuxiliary contactsOne (1) normally open contactAuxiliary contacts usage categorysee data table |
| Contact configuration | see data table |
| Usage category | see data table |
| Number of poles | see data table |
| Auxiliary contacts | One (1) normally open contact |
| Auxiliary contacts usage category | see data table |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Enclosure range | EJB |
| Enclosure cover | fully detachable |
| Cover fixing | stainless steel socket cap head screws |
| Screwssee data tableYield stressmin. 450 N/mm2 | Screwssee data tableYield stressmin. 450 N/mm2 |
| Cover seal | none |
| Flamepath grease | Greasil MS4 or NEVER SEEZ Marine Grade |
| Degree of protection | Type 4, 4X, 7, 9 / IP66 |
| Cable entry | see data table |
| Defined entry area | face B |
| Material | Material |
| EnclosureCopper-free aluminum alloy or 316L stainless steelFinishFor aluminum: epoxy coated RAL 7005 (grey) | EnclosureCopper-free aluminum alloy or 316L stainless steelFinishFor aluminum: epoxy coated RAL 7005 (grey) |
| Mass | see data table |
| Dimensions | see data table values might differ slightly due to casting and manufacturing tolerances |
| Tightening torque | Tightening torque |
| Nut torque at enclosure (SW1)see datasheets of stopping plugs | Nut torque at enclosure (SW1)see datasheets of stopping plugs |
| Mounting | see data table |
| Grounding | M6 external grounding points |
| Screws | see data table |
| Yield stress | min. 450 N/mm2 |
| Enclosure | Copper-free aluminum alloy or 316L stainless steel |
| Finish | For aluminum: epoxy coated RAL 7005 (grey) |
| Nut torque at enclosure (SW1) | see datasheets of stopping plugs |
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) @ T6 |
| EU-type examination certificate | INERIS 14 ATEX 0022X |
| Marking II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db | Marking II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db |
| Marking | II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db |
| UL approval | Enclosure only |
| cULusClass I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G | cULusClass I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G |
| IECEx approval | IECEx INE 14.0029X |
| cULus | Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G |
| Degree of protection | EN60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0539 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
