EXTA4-*1-**-K8* (2024 Generation)

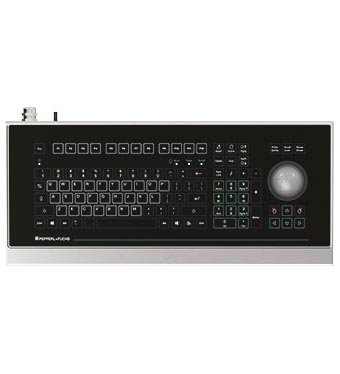

EXTA4-*1-**-K8* (2024 Generation) Ex i keyboard with optical trackball

订货号: T221631
产品分类: 外围设备

Ex i keyboard with optical trackball

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Type	Keyboard with optical trackball
Suitable components	SK-PC-Z1D1-UU1-10-HS and SK-PC-D2-UU1-10-HS
Rated voltage	Ex i, via data line
Keyboard	105 short stroke keys Keyboard layout: US international, German, French
Trackball	Trackball
Diameter50 mmMaterialPROX resin (metallic grey)	Diameter50 mmMaterialPROX resin (metallic grey)
Diameter	50 mm
Material	PROX resin (metallic grey)
Interface type	USB
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2021 (Ind loc)EN 61000-6-4:2007+A1:2011EN 55011:2016+A11:2020 (Class B)	Directive 2014/30/EUEN 61326-1:2021 (Ind loc)EN 61000-6-4:2007+A1:2011EN 55011:2016+A11:2020 (Class B)
Explosion protection	Explosion protection
Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-11:2012	Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-11:2012
RoHS	RoHS
Directive 2011/65/EU (RoHS)EN IEC 63000:2018-12	Directive 2011/65/EU (RoHS)EN IEC 63000:2018-12
Directive 2014/30/EU	EN 61326-1:2021 (Ind loc)EN 61000-6-4:2007+A1:2011EN 55011:2016+A11:2020 (Class B)
Directive 2014/34/EU	EN IEC 60079-0:2018 EN 60079-11:2012
Directive 2011/65/EU (RoHS)	EN IEC 63000:2018-12
Degree of protection	IP66 in full operation (dynamic) (with housing)
Ambient temperature	0 ... 50 °C (32 ... 122 °F)
Storage temperature	-20 ... 70 °C (-4 ... 158 °F)
Relative humidity	max. 85 % , non-condensing
Material	anodized aluminum , stainless steel (F1- Mounting Option), Polyester foil
Mass	1.2 kg (without housing)
Dimensions	502 mm x 222 mm x 66 mm
Cut out dimensions	450 mm x 152 mm
Cable length	5 m / 2 m / 1 m
EU-type examination certificate	Zone 1/21BVS 07 ATEX E 163 X Zone 2/22BVS 21 ATEX E 009 X
MarkingZone 1/21 II 2G Ex ib IIC T4 Gb[exsign] II 2D Ex ib IIIB T135°C Db Zone 2/22[exsign] II 3G Ex ic IIC T4 Gc[exsign] II 3D Ex ic IIIB T135°C Dc	MarkingZone 1/21 II 2G Ex ib IIC T4 Gb[exsign] II 2D Ex ib IIIB T135°C Db Zone 2/22[exsign] II 3G Ex ic IIC T4 Gc[exsign] II 3D Ex ic IIIB T135°C Dc
Marking	Zone 1/21 II 2G Ex ib IIC T4 Gb[exsign] II 2D Ex ib IIIB T135°C Db Zone 2/22[exsign] II 3G Ex ic IIC T4 Gc[exsign] II 3D Ex ic IIIB T135°C Dc
UL approval	UL approval
Control drawing116-0357EApproved forClass I Div 2, Gr A, B, C, D; T5Class II, Div 2; Gr F, G; T5Class III Class I, Zone 2; Gr IIC; T5Class II, Zone 22; Gr IIIB; T85°CClass III, Zone 22; Gr IIIA; T85°C	Control drawing116-0357EApproved forClass I Div 2, Gr A, B, C, D; T5Class II, Div 2; Gr F, G; T5Class III Class I, Zone 2; Gr IIC; T5Class II, Zone 22; Gr IIIB; T85°CClass III, Zone 22; Gr IIIA; T85°C
IECEx approval	IECEx approval
IECEx certificateZone 1/21IECEx BVS 08.0022X Zone 2/22IECEx BVS 08.0022XIECEx markingZone 1/21Ex ib IIC T4 GbEx ib IIIB T135°C Db Zone 2/22Ex ic IIC T4 GcEx ic IIIB T135°C Dc	IECEx certificateZone 1/21IECEx BVS 08.0022X Zone 2/22IECEx BVS 08.0022XIECEx markingZone 1/21Ex ib IIC T4 GbEx ib IIIB T135°C Db Zone 2/22Ex ic IIC T4 GcEx ic IIIB T135°C Dc
Control drawing	116-0357E
Approved for	Class I Div 2, Gr A, B, C, D; T5Class II, Div 2; Gr F, G; T5Class III Class I, Zone 2; Gr IIC; T5Class II, Zone 22; Gr IIIB; T85°CClass III, Zone 22; Gr IIIA; T85°C
IECEx certificate	Zone 1/21IECEx BVS 08.0022X Zone 2/22IECEx BVS 08.0022X
IECEx marking	Zone 1/21Ex ib IIC T4 GbEx ib IIIB T135°C Db Zone 2/22Ex ic IIC T4 GcEx ic IIIB T135°C Dc

DOCUMENTS & DOWNLOADS

资料与附件

产品数据表 Datasheet

语言：en

已就绪 · 可下载下载文件

STP 三维图纸 3-D model Cabinet / horizontal installation on vertical housing (wall mounting)

已就绪 · 可下载下载文件

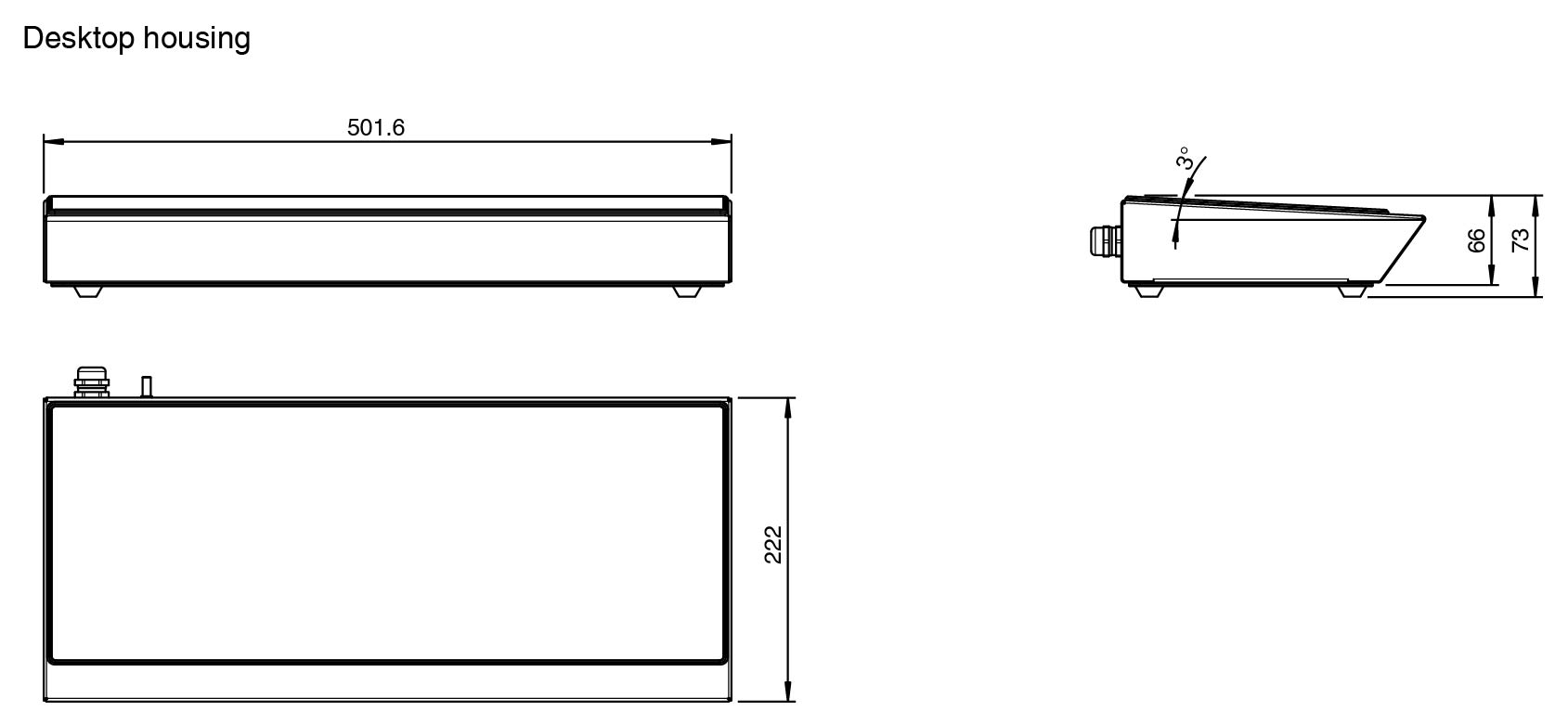

STP 三维图纸 3-D model Desktop housing

已就绪 · 可下载下载文件

STP 三维图纸 3-D model Hinged version for VisuNet FLX

已就绪 · 可下载下载文件

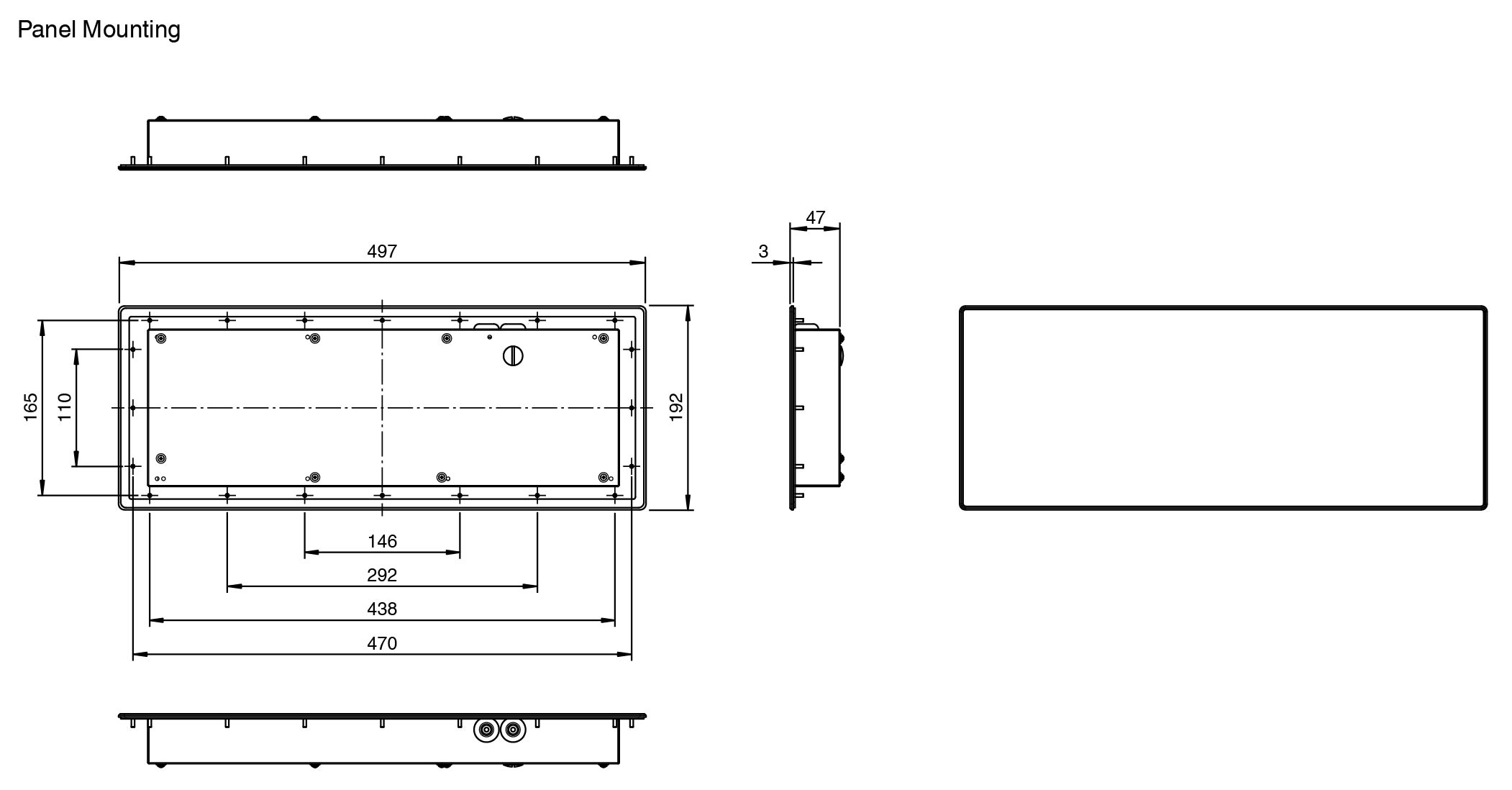

STP 三维图纸 3-D model Panel mounting

已就绪 · 可下载下载文件

STP 三维图纸 3-D model VisuNet GXP Double-Arm installation to AG1-Housing

已就绪 · 可下载下载文件

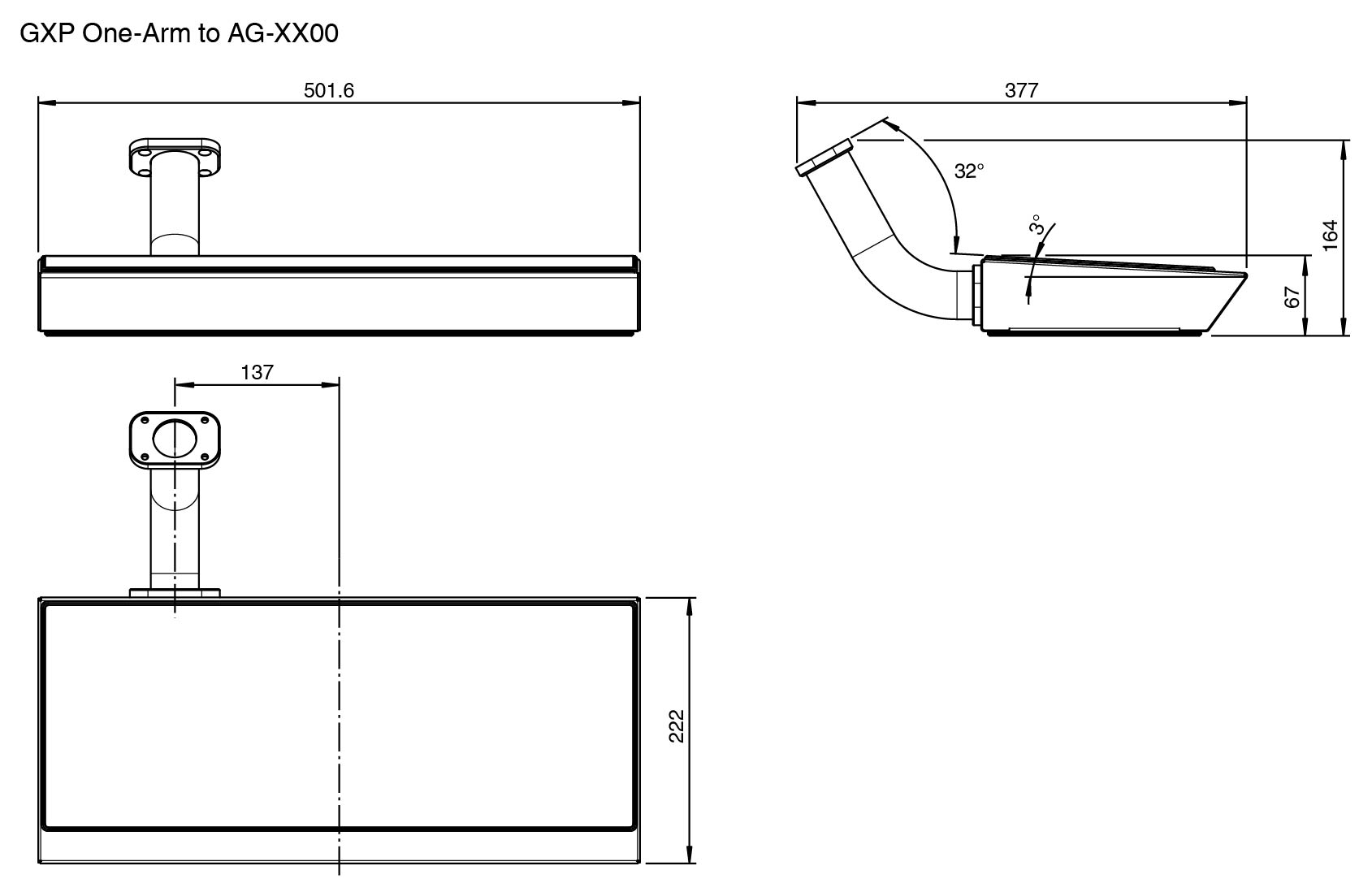

STP 三维图纸 3-D model VisuNet GXP One-Arm installation to AG-XX00 -Housing

已就绪 · 可下载下载文件
