TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | application-specific |
|---|---|
| Operating current | application-specific |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Enclosure cover | detachable , optional hinges |
| Cover fixing | stainless steel socket cap head screws |
| Screwssee data table | Screwssee data table |
| Cover seal | chloroprene |
| Flamepath grease | Fluid film grade AR |
| Degree of protection | IP66 |
| Cable entry | see data table |
| Material | Material |
| Enclosurealuminum alloyGlassthermo-resistant tempered glassFinishepoxy coated RAL 7032 | Enclosurealuminum alloyGlassthermo-resistant tempered glassFinishepoxy coated RAL 7032 |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |

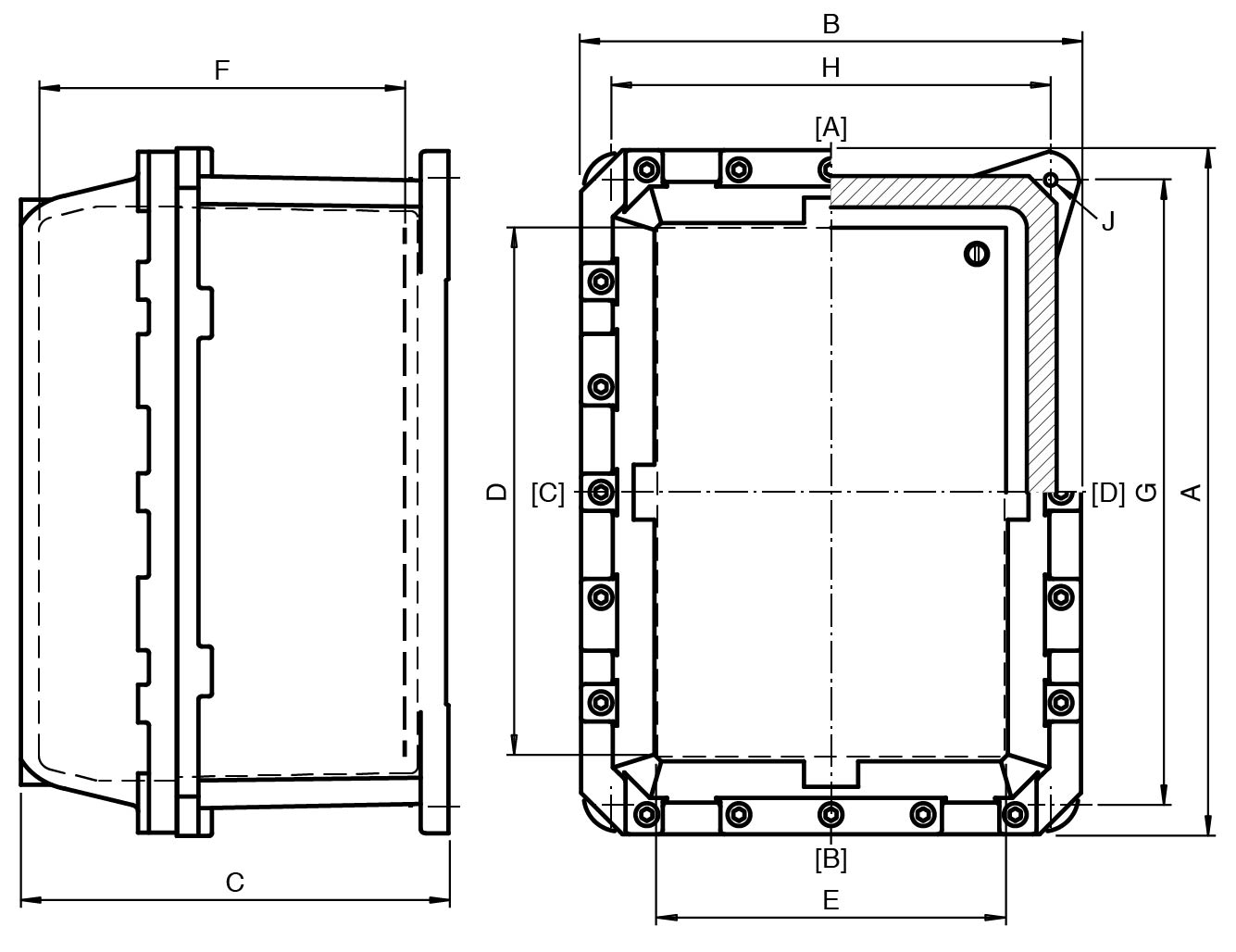

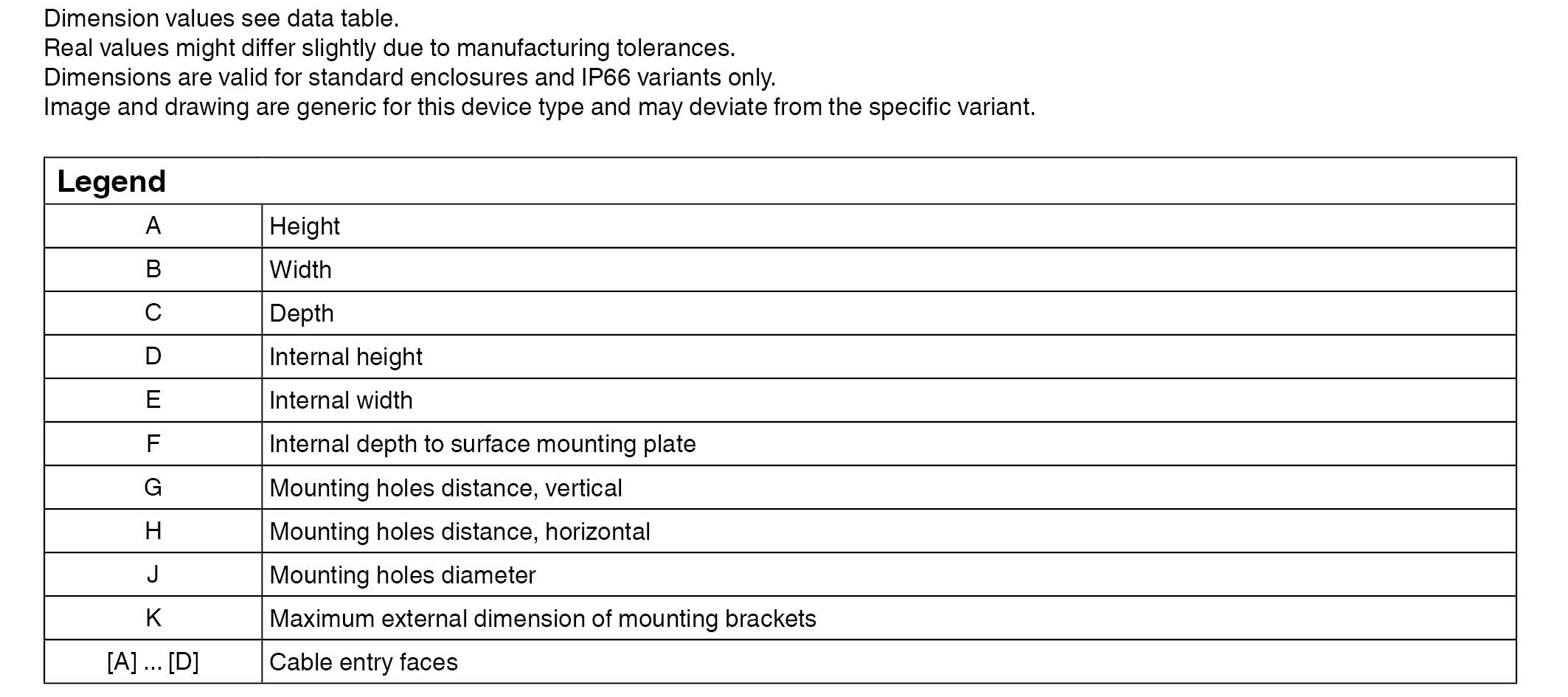

| Dimensions | see data table values might differ slightly due to casting and manufacturing tolerances |
| Mounting | see data table |
| Grounding | M6 external grounding points |
| Screws | see data table |
| Enclosure | aluminum alloy |
| Glass | thermo-resistant tempered glass |
| Finish | epoxy coated RAL 7032 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) depending on integrated components |
| EU-type examination certificate | see data table |
| Markingsee data tableMaximum power dissipationsee data table maximum power dissipation at T4/+40 °C enclosure without window | Markingsee data tableMaximum power dissipationsee data table maximum power dissipation at T4/+40 °C enclosure without window |
| Marking | see data table |
| Maximum power dissipation | see data table maximum power dissipation at T4/+40 °C enclosure without window |
| IECEx approval | see data table |
| Degree of protection | EN60529 |
| CE marking | 0102 |
| Order information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
