TECHNICAL DATA
规格参数
General specifications

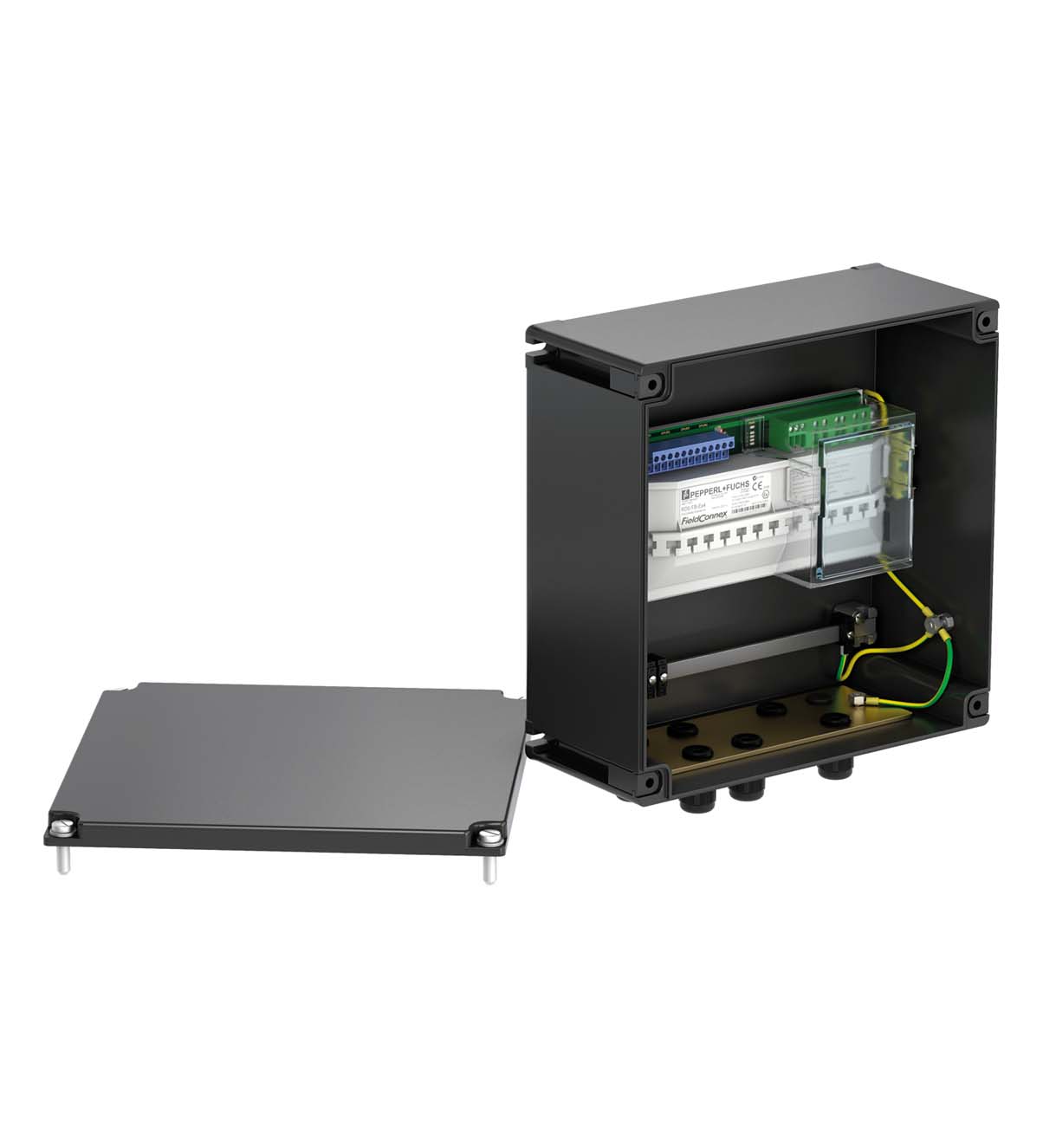

| Design / Mounting | Outside installation |
|---|---|

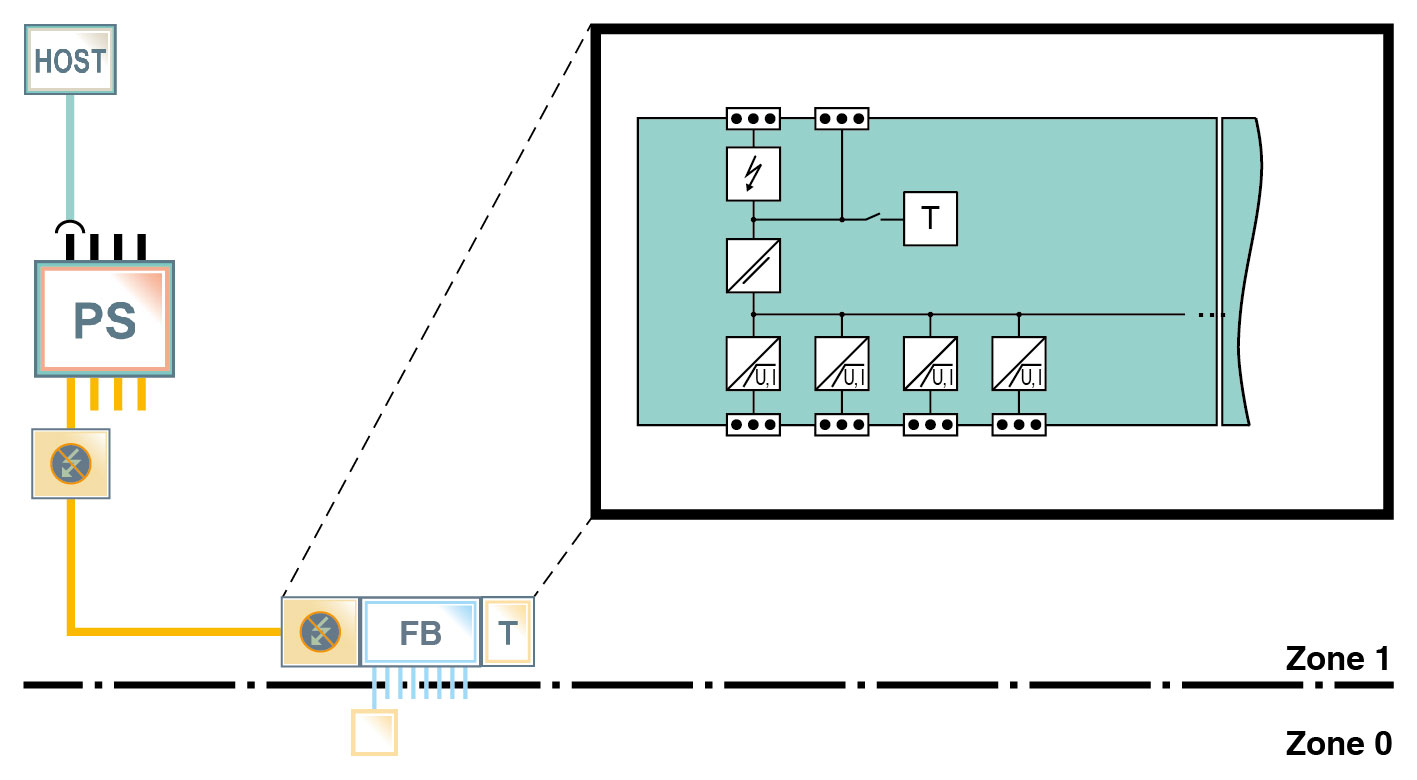

| Installed components | FieldBarrier RD0-FB-Ex4.COM For technical data on installed electronic component see datasheet. |
| Degree of protection | EN 60529 |
| Impact resistance | EN 60079-0 |
| Ambient temperature | -30 ... 55 °C (-22 ... 131 °F) , (extended temperature range available on request) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation |
| Impact resistance | 7J |
| Enclosure cover | detachable cover with retaining screws |
| Degree of protection | IP66 |
| Cable entry | cable gland and stopping plug options see separate table |
| Material | Material |
| Housingpolyester , impact resistant, glass fiber reinforcedSurfaceblack molded finish (RAL 9005)Surface resistance< 109 ΩWater absorption< 6 %Sealsilicone , one-pieceGrounding platebrassMaterial thicknessgrounding plate: 3 mm | Housingpolyester , impact resistant, glass fiber reinforcedSurfaceblack molded finish (RAL 9005)Surface resistance< 109 ΩWater absorption< 6 %Sealsilicone , one-pieceGrounding platebrassMaterial thicknessgrounding plate: 3 mm |
| Dimensions | (W x H x D) 271 x 271 x 136 mm (1 x RD0-FB-Ex4.COM)544 x 271 x 136 mm (2 x RD0-FB-Ex4.COM)544 x 544 x 136 mm (3 x RD0-FB-Ex4.COM) |
| Mounting | thru-holes Ø6.5 mm |
| Grounding | grounding bolt M6 , Stainless steel |
| Housing | polyester , impact resistant, glass fiber reinforced |
| Surface | black molded finish (RAL 9005) |
| Surface resistance | < 109 Ω |
| Water absorption | < 6 % |
| Seal | silicone , one-piece |
| Grounding plate | brass |
| Material thickness | grounding plate: 3 mm |
| EU-type examination certificate | PTB 07 ATEX 1061 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com |
| Marking II 2(1)G Ex db eb mb [ia] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db Note: The marking is based on the maximum value and can be reduced depending on the selected options accordingly. | Marking II 2(1)G Ex db eb mb [ia] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db Note: The marking is based on the maximum value and can be reduced depending on the selected options accordingly. |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012 , EN 60079-1:2014 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-18:2009 , EN 60079-31:2014 | Directive 2014/34/EUEN 60079-0:2012 , EN 60079-1:2014 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-18:2009 , EN 60079-31:2014 |
| Marking | II 2(1)G Ex db eb mb [ia] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db Note: The marking is based on the maximum value and can be reduced depending on the selected options accordingly. |
| Directive 2014/34/EU | EN 60079-0:2012 , EN 60079-1:2014 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-18:2009 , EN 60079-31:2014 |
| IECEx approval | IECEx PTB 07.0036 X , suitable Junction Box on request |
| INMETRO approval | TÜV 13.1143 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
