TECHNICAL DATA
规格参数
General specifications

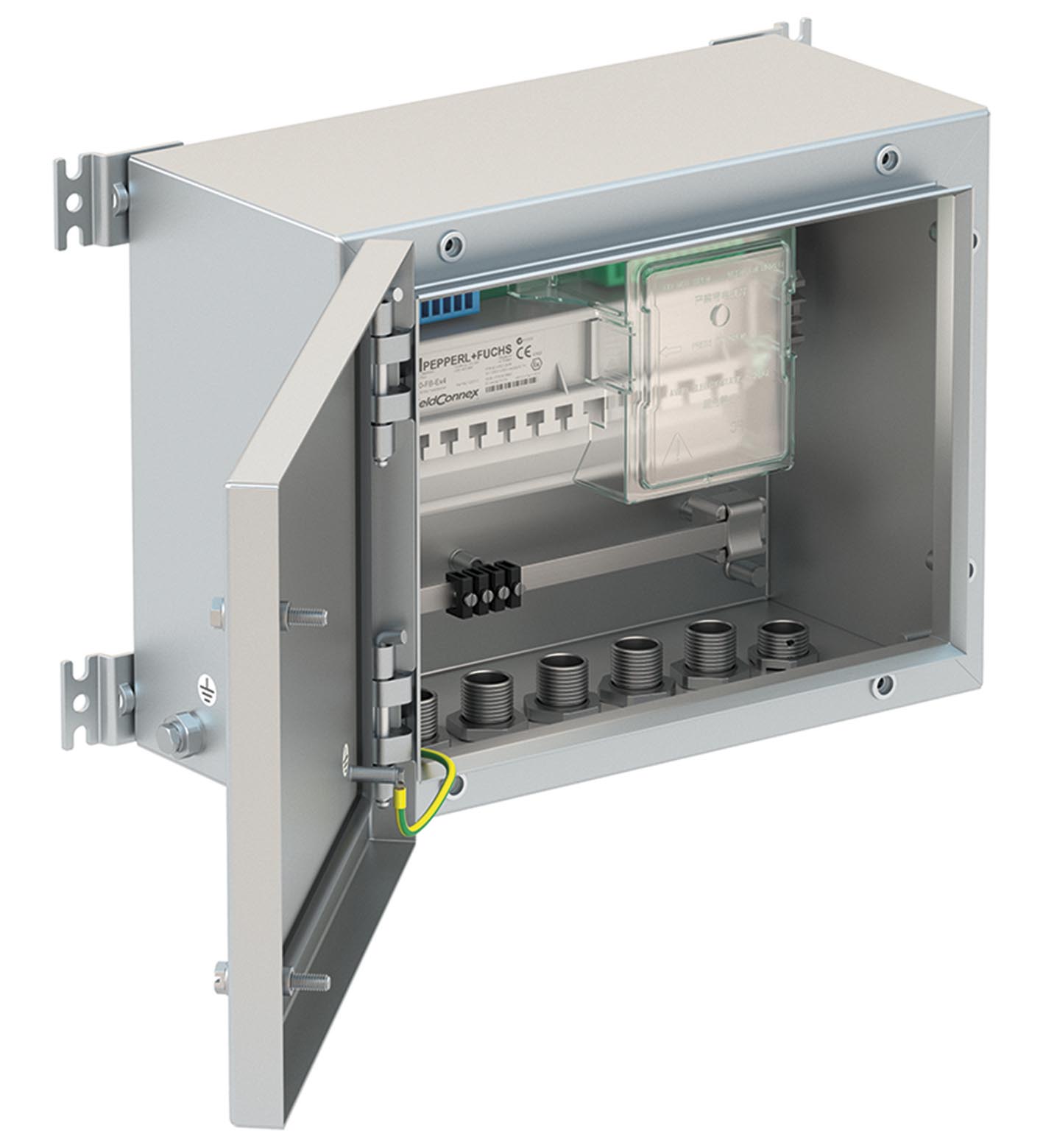

| Design / Mounting | Outside installation |
|---|---|

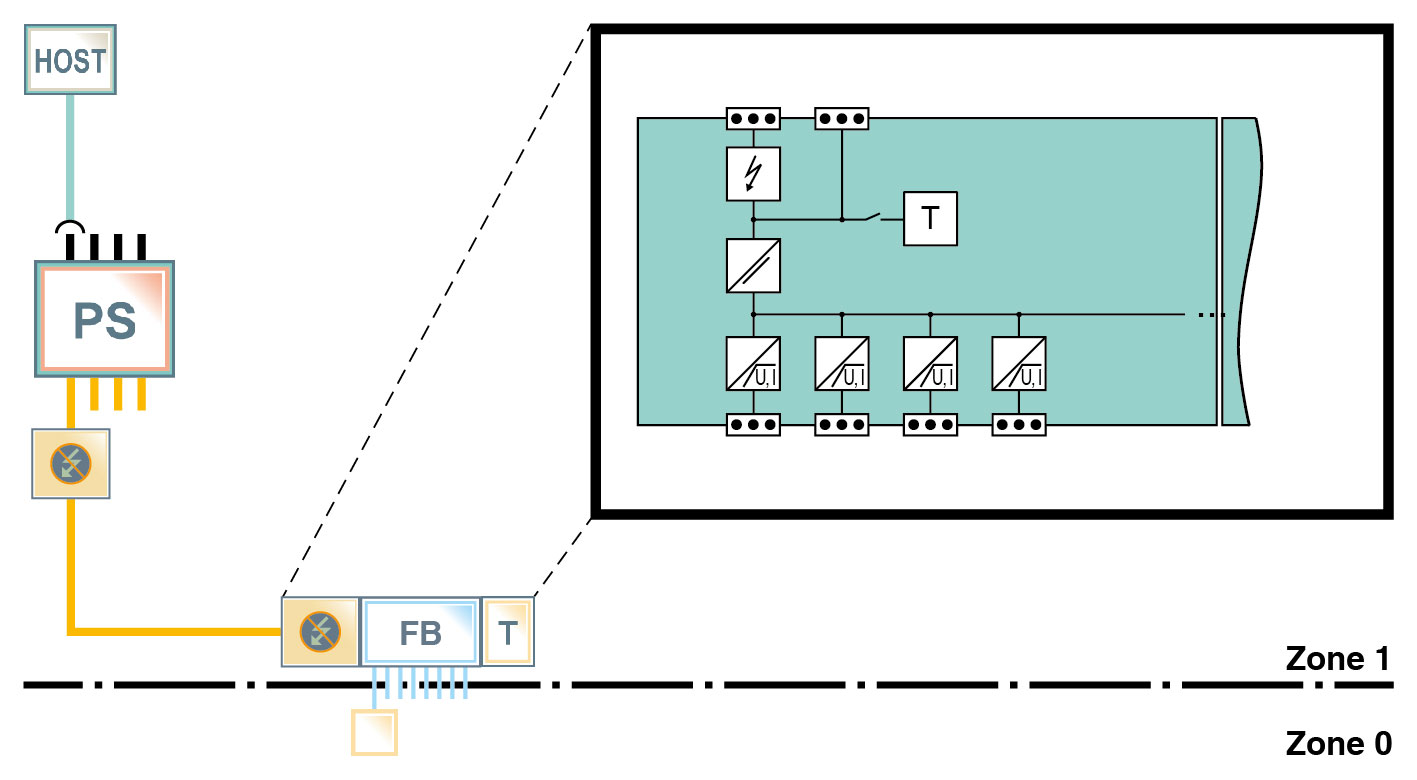

| Installed components | FieldBarrier RD0-FB-Ex4.COM For technical data on installed electronic component see data sheet. |
| Degree of protection | EN 60529 |
| Impact resistance | EN 60079-0 |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation |
| Impact resistance | 7J |
| Enclosure cover | Hinged door with captive retaining screws |
| Degree of protection | IP66 |
| Cable entry | cable gland and stopping plug options see separate table |
| Material | Material |
| HousingStainless steel 1.4404 / AISI 316LSurfacebrushedSealSilicone, fire-resistant, one piece, foamedMaterial thicknessenclosure body, enclosure cover, mounting plate: 1.5 mm | HousingStainless steel 1.4404 / AISI 316LSurfacebrushedSealSilicone, fire-resistant, one piece, foamedMaterial thicknessenclosure body, enclosure cover, mounting plate: 1.5 mm |
| Dimensions | (W x H x D) 300 x 230 x 160 mm (1 x RD0-FB-Ex4.COM)380 x 380 x 220 mm (2 x RD0-FB-Ex4.COM)480 x 380 x 220 mm (3 x RD0-FB-Ex4.COM) |
| Mounting | thru-holes Ø 7 mm |
| Grounding | grounding bolt M6 , brass, nickel-plated |
| Housing | Stainless steel 1.4404 / AISI 316L |
| Surface | brushed |
| Seal | Silicone, fire-resistant, one piece, foamed |
| Material thickness | enclosure body, enclosure cover, mounting plate: 1.5 mm |
| EU-type examination certificate | PTB 07 ATEX 1061 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com |
| Marking II 2(1)G Ex db eb mb [ia] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db Note: The marking is based on the maximum value and can be reduced depending on the selected options accordingly. | Marking II 2(1)G Ex db eb mb [ia] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db Note: The marking is based on the maximum value and can be reduced depending on the selected options accordingly. |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014+AC:2018 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+Cor.2018 , EN 60079-31:2014 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014+AC:2018 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+Cor.2018 , EN 60079-31:2014 |
| Marking | II 2(1)G Ex db eb mb [ia] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db Note: The marking is based on the maximum value and can be reduced depending on the selected options accordingly. |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014+AC:2018 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+Cor.2018 , EN 60079-31:2014 |
| IECEx approval | IECEx PTB 07.0036 X , suitable Junction Box on request |
| INMETRO approval | TÜV 13.1143 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
