TECHNICAL DATA
规格参数
General specifications
| Design / Mounting | Outside installation |
|---|---|

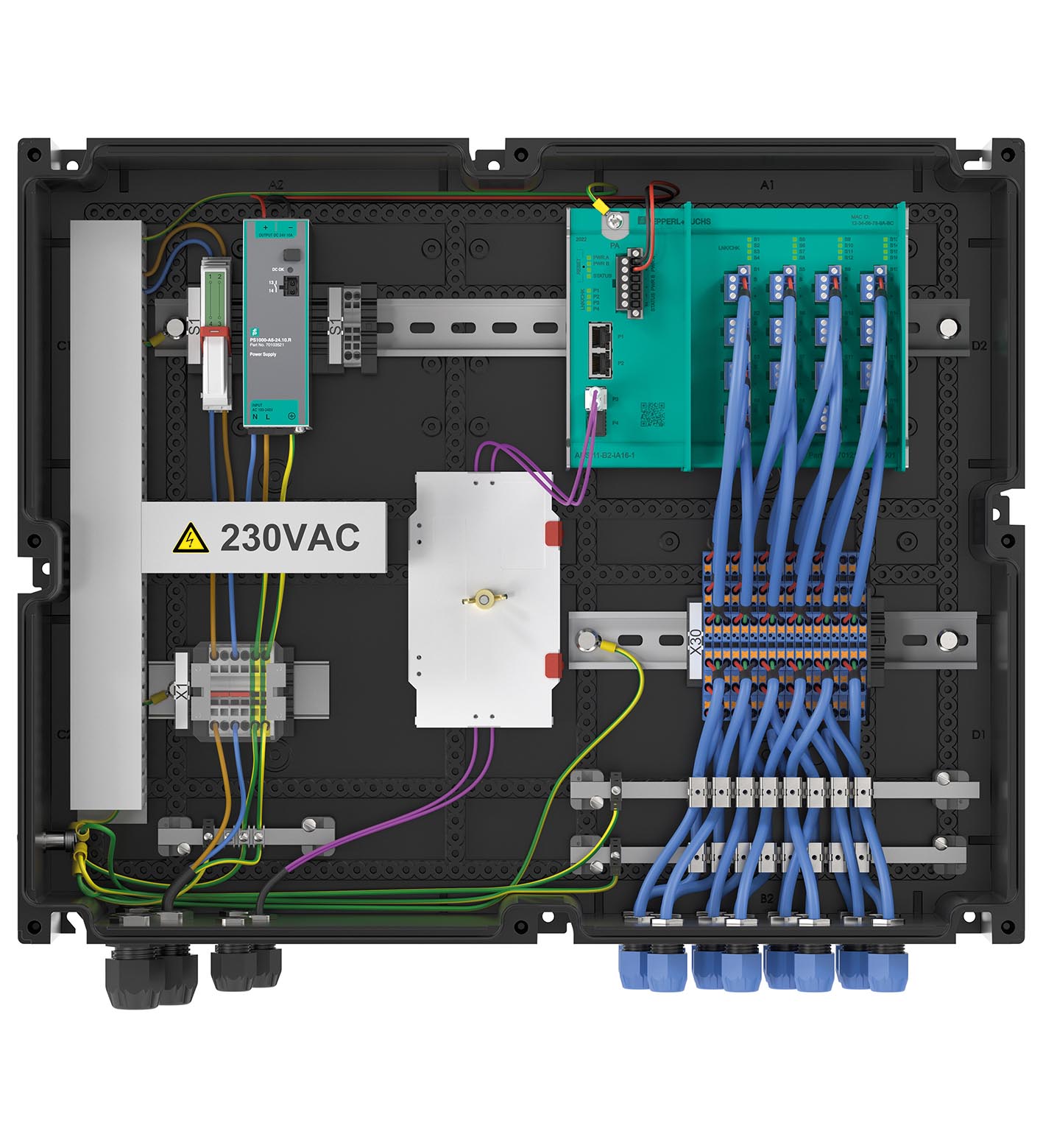

| Installed components | Ethernet-APL rail field switch ARS1*-B2-I**-** , For technical data on installed electronic component see datasheets. |
| Fieldbus support | PROFIBUS PA (optional) |
| Degree of protection | EN 60529 |
| Impact resistance | EN 60079-0 |
| Ambient temperature | -40 ... 50 °C (-40 ... 122 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation |
| Impact resistance | 7J |
| Enclosure cover | Hinged door with captive retaining screws |
| Degree of protection | IP66 |
| Cable entry | cable gland and stopping plug options see separate table |
| Material | Material |
| Housingpolyester , impact resistant, glass fiber reinforcedSurfaceblack molded finish (RAL 9005)Surface resistance< 109 ΩWater absorption< 6 %Sealsilicone , one-pieceMaterial thicknessenclosure body, enclosure cover, mounting plate: 1.5 mm | Housingpolyester , impact resistant, glass fiber reinforcedSurfaceblack molded finish (RAL 9005)Surface resistance< 109 ΩWater absorption< 6 %Sealsilicone , one-pieceMaterial thicknessenclosure body, enclosure cover, mounting plate: 1.5 mm |
| Dimensions | (W x H x D) 599 x 479 x 242 mm |
| Mounting | thru-holes Ø 7 mm |
| Grounding | grounding bolt M6 , brass, nickel-plated |
| Housing | polyester , impact resistant, glass fiber reinforced |
| Surface | black molded finish (RAL 9005) |
| Surface resistance | < 109 Ω |
| Water absorption | < 6 % |
| Seal | silicone , one-piece |
| Material thickness | enclosure body, enclosure cover, mounting plate: 1.5 mm |
| Certificate | PTB 17 ATEX 1011 X |
| Marking II 3(1) G Ex ic [ia Ga] IIC T4 Gc [exsign] II 3(1)G Ex ec [ia Ga] IIC T4 Gc [exsign] II 3(1)D Ex tc [ia Da] IIIC T135°C Dc | Marking II 3(1) G Ex ic [ia Ga] IIC T4 Gc [exsign] II 3(1)G Ex ec [ia Ga] IIC T4 Gc [exsign] II 3(1)D Ex tc [ia Da] IIIC T135°C Dc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014+AC:2018 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+Cor.2018 , EN 60079-31:2014 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014+AC:2018 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+Cor.2018 , EN 60079-31:2014 |
| Marking | II 3(1) G Ex ic [ia Ga] IIC T4 Gc [exsign] II 3(1)G Ex ec [ia Ga] IIC T4 Gc [exsign] II 3(1)D Ex tc [ia Da] IIIC T135°C Dc |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014+AC:2018 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+Cor.2018 , EN 60079-31:2014 |
| IECEx approval | IECEx PTB 07.0036 X , Zone 1 , suitable Junction Box on request IECEx PTB 09.0016 X , Zone 2 , suitable Junction Box on request |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
