F*-FT-Ex1

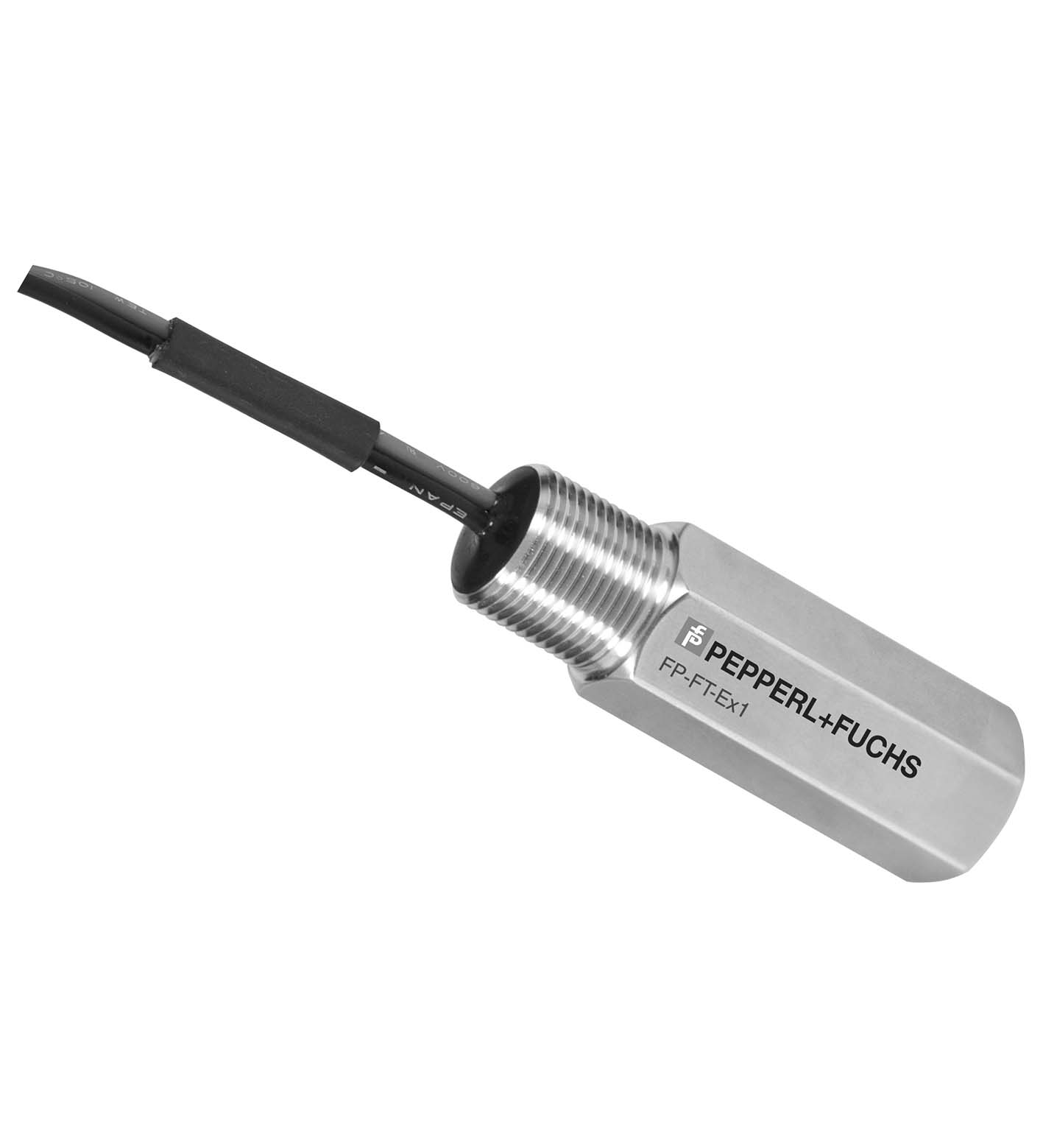

F*-FT-Ex1 Fieldbus TerminatorFieldConnex® Fieldbus

订货号: T181581
产品分类: 附件

Fieldbus terminator, threaded, for installation via threaded inlet in field housing (Ex ia / Ex d), IP67

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Design / Mounting	Outside installation
Installation in hazardous area	Zone 1 / Div. 1

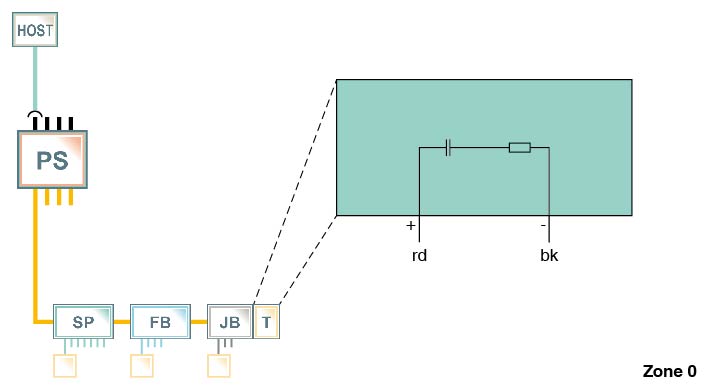

Connection	2-wire cable, red+, black-
Rated voltage	max. 32 V DC
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Electromagnetic compatibility	NE 21:2011
Degree of protection	IEC/EN 60529
Fieldbus standard	IEC 61158-2
Ambient temperature	-50 ... 85 °C (-58 ... 185 °F)
Storage temperature	-50 ... 85 °C (-58 ... 185 °F)
Core cross section	0.75 mm2
Housing	77 mm x 22 mm
Housing material	Stainless steel 1.4401/316
Degree of protection	IP67
Mass	100 g
Mounting	20 mm ISO thread PG13.5 thread 1/2 NPT thread
EU-type examination certificate	DMT 01 ATEX 104 X
Marking II 1G Ex ia IIC T6 ... T4 Ga , [exsign] II 2G Ex db ia IIC T6 ... T4 Gb , [exsign] II 2G Ex db mb IIC T6 ... T4 Gb , max. permissible explosion (reference) pressure of the Ex d enclosure: 20 barTemperature classT6 for ambient temperature ≤ 60 °CT5 for ambient temperature ≤ 75 °CT4 for ambient temperature ≤ 85 °C	Marking II 1G Ex ia IIC T6 ... T4 Ga , [exsign] II 2G Ex db ia IIC T6 ... T4 Gb , [exsign] II 2G Ex db mb IIC T6 ... T4 Gb , max. permissible explosion (reference) pressure of the Ex d enclosure: 20 barTemperature classT6 for ambient temperature ≤ 60 °CT5 for ambient temperature ≤ 75 °CT4 for ambient temperature ≤ 85 °C
Maximum values	acc. to FISCO
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012 , EN 60079-1:2014 , EN 60079-11:2012 , EN 60079-18:2015	Directive 2014/34/EUEN 60079-0:2012 , EN 60079-1:2014 , EN 60079-11:2012 , EN 60079-18:2015
Marking	II 1G Ex ia IIC T6 ... T4 Ga , [exsign] II 2G Ex db ia IIC T6 ... T4 Gb , [exsign] II 2G Ex db mb IIC T6 ... T4 Gb , max. permissible explosion (reference) pressure of the Ex d enclosure: 20 bar
Temperature class	T6 for ambient temperature ≤ 60 °CT5 for ambient temperature ≤ 75 °CT4 for ambient temperature ≤ 85 °C
Directive 2014/34/EU	EN 60079-0:2012 , EN 60079-1:2014 , EN 60079-11:2012 , EN 60079-18:2015
IECEx approval	IECEx BVS 10.0022X
Approved forEx ia IIC T6 ... T4 Ga , Ex db ia IIC T6 ... T4 Gb , Ex db mb IIC T6 ... T4 Gb	Approved forEx ia IIC T6 ... T4 Ga , Ex db ia IIC T6 ... T4 Gb , Ex db mb IIC T6 ... T4 Gb
Approved for	Ex ia IIC T6 ... T4 Ga , Ex db ia IIC T6 ... T4 Gb , Ex db mb IIC T6 ... T4 Gb
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
