F*-LBF-D1.32

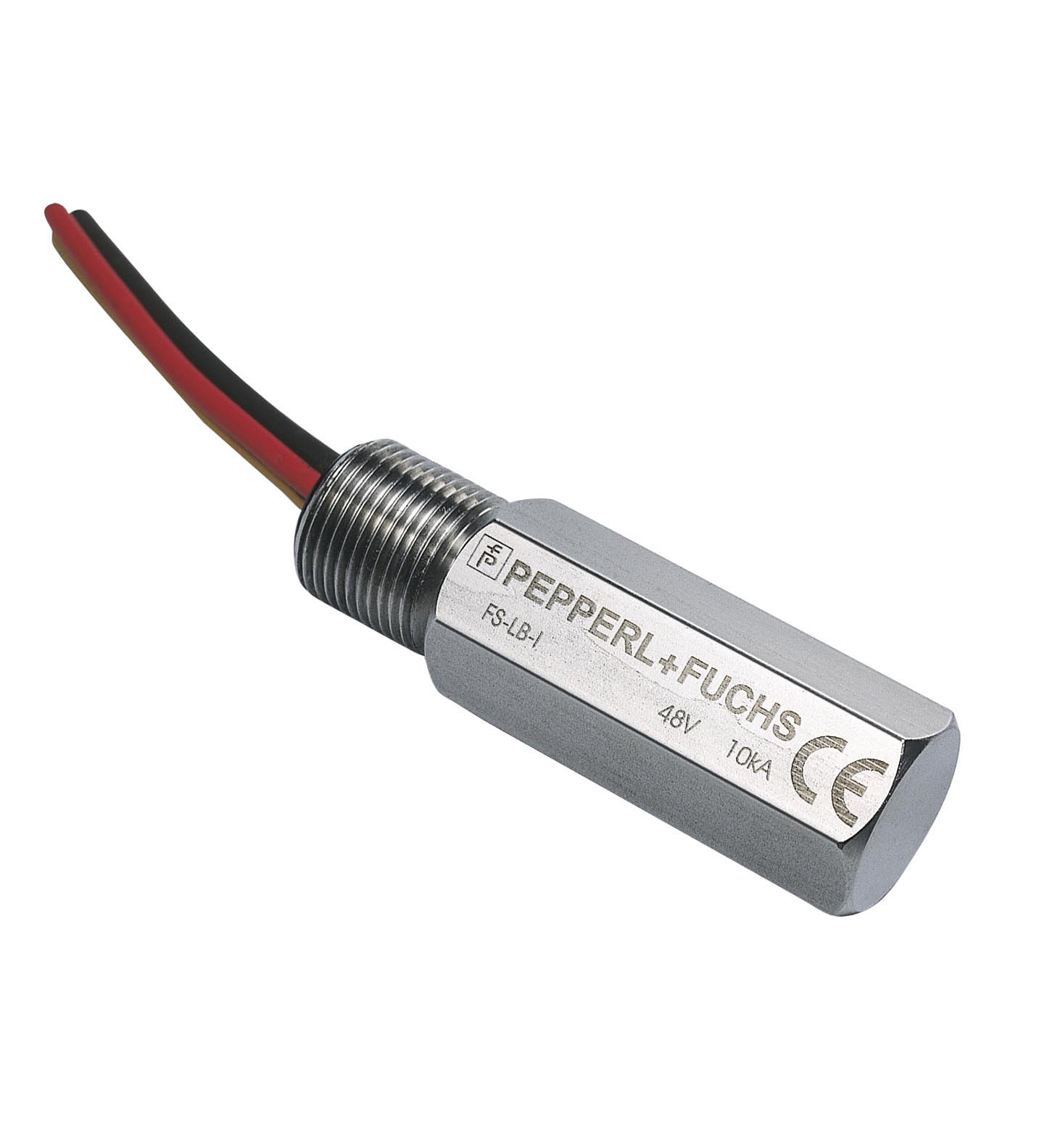

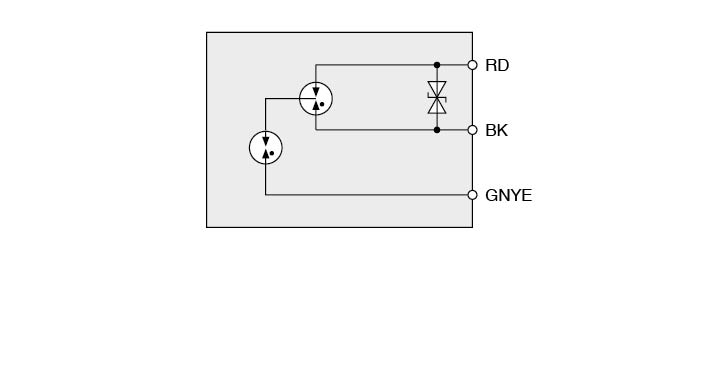

F*-LBF-D1.32 Surge ProtectorFieldConnex® Fieldbus

订货号: T20907
产品分类: Fieldbus Protection

Surge protector, threaded, for installation via threaded inlet in field housing (Ex d), IP67

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Design / Mounting	Outside installation
Installation in hazardous area	Zone 1
Rated voltage	32 V
Nominal discharge current (8/20 µs)	In
per line10 kAtotal10 kA	per line10 kAtotal10 kA
Max. surge current (8/20 µs)	10 kA
Voltage protection level at max. rated current	Voltage protection level at max. rated current
Line/Line58 VLine/Earth1700 V	Line/Line58 VLine/Earth1700 V
Voltage protection level at 1 kV/µsec	Voltage protection level at 1 kV/µsec
Line/Line50 VLine/Earth1.2 kV	Line/Line50 VLine/Earth1.2 kV
Reaction time	tA
Line/Linemax. 1 nsLine/Earthmax. 100 ns	Line/Linemax. 1 nsLine/Earthmax. 100 ns
Capacitance	Capacitance
Line/Line25 pFLine/Earth15 pF	Line/Line25 pFLine/Earth15 pF
per line	10 kA
total	10 kA
Line/Line	58 V
Line/Earth	1700 V
Line/Line	50 V
Line/Earth	1.2 kV
Line/Line	max. 1 ns
Line/Earth	max. 100 ns
Line/Line	25 pF
Line/Earth	15 pF
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Electromagnetic compatibility	NE 21:2006
Degree of protection	IEC/EN 60529
Fieldbus standard	IEC 61158-2
Surge protection	IEC 61643-21
Ambient temperature	-50 ... 80 °C (-58 ... 176 °F)
Storage temperature	-50 ... 85 °C (-58 ... 185 °F)
Core cross section	1.3 mm2
Housing material	Stainless steel 1.4401/316
Degree of protection	IP00/IP67 if correctly installed
Mass	160 g
Mounting	screw mounting
EU-type examination certificate	KEMA 04 ATEX 2318 X
Marking II 2G Ex db IIC T6...T5 Gb	Marking II 2G Ex db IIC T6...T5 Gb
Maximum values	Maximum values
Rated voltage32 V	Rated voltage32 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014
Marking	II 2G Ex db IIC T6...T5 Gb
Rated voltage	32 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014
IECEx approval	IECEx approval
IECEx certificateIECEx KEM 09.0067XIECEx markingEx db IIC T6...T5 Gb	IECEx certificateIECEx KEM 09.0067XIECEx markingEx db IIC T6...T5 Gb
IECEx certificate	IECEx KEM 09.0067X
IECEx marking	Ex db IIC T6...T5 Gb
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
