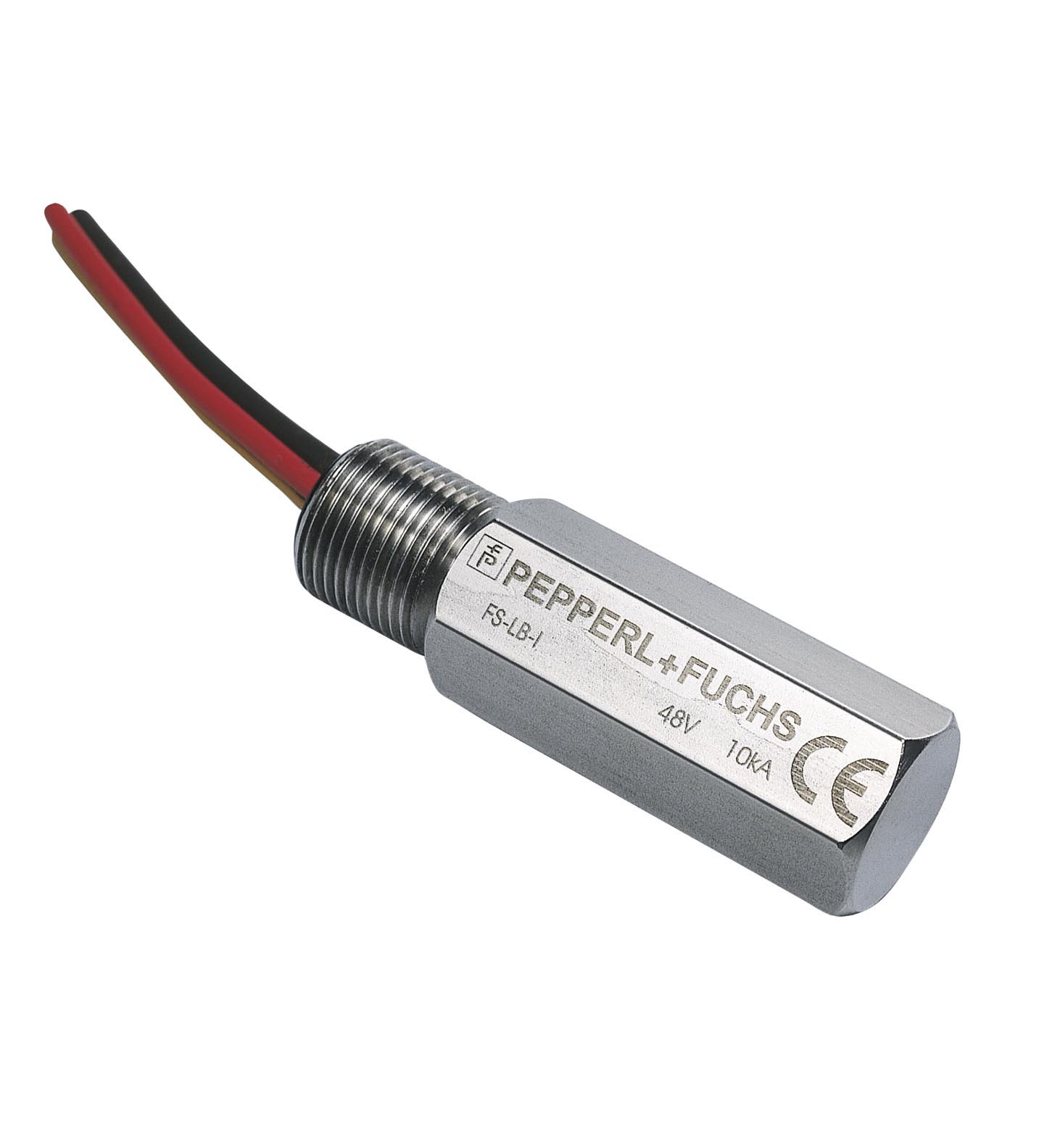

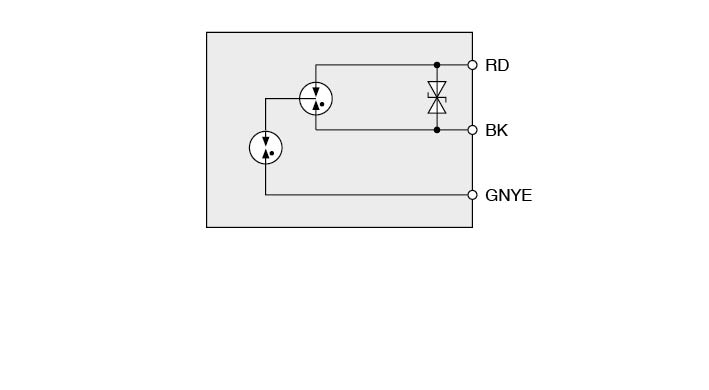

F*-LBF-I1.32 Surge ProtectorFieldConnex® Fieldbus

订货号: T20906
产品分类: Fieldbus Protection

Surge protector, threaded, for installation via threaded inlet in field housing (Ex ia), IP67

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Design / Mounting	Outside installation
Installation in hazardous area	Zone 1
Rated voltage	32 V
Rated current	550 mA
Nominal discharge current (8/20 µs)	In
per line10 kAtotal10 kA	per line10 kAtotal10 kA
Max. surge current (8/20 µs)	10 kA
Voltage protection level at max. rated current	Voltage protection level at max. rated current
Line/Line58 VLine/Earth1700 V	Line/Line58 VLine/Earth1700 V
Voltage protection level at 1 kV/µsec	Voltage protection level at 1 kV/µsec
Line/Line50 VLine/Earth1.2 kV	Line/Line50 VLine/Earth1.2 kV
Reaction time	tA
Line/Linemax. 1 nsLine/Earthmax. 100 ns	Line/Linemax. 1 nsLine/Earthmax. 100 ns
Capacitance	Capacitance
Line/Line25 pFLine/Earth15 pF	Line/Line25 pFLine/Earth15 pF
per line	10 kA
total	10 kA
Line/Line	58 V
Line/Earth	1700 V
Line/Line	50 V
Line/Earth	1.2 kV
Line/Line	max. 1 ns
Line/Earth	max. 100 ns
Line/Line	25 pF
Line/Earth	15 pF
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Electromagnetic compatibility	NE 21:2006
Degree of protection	IEC/EN 60529
Fieldbus standard	IEC 61158-2
Surge protection	IEC 61643-21
Ambient temperature	-50 ... 80 °C (-58 ... 176 °F)
Storage temperature	-50 ... 85 °C (-58 ... 185 °F)
Core cross section	1.3 mm2
Housing material	Stainless steel 1.4401/316
Degree of protection	IP00/IP67 if correctly installed
Mass	160 g
Mounting	screw mounting
EU-type examination certificate	KEMA 04 ATEX 1317 X
Marking II 2(1)G Ex ia [ia Ga] IIC T6...T5 GbVoltageUiEntity 30 V , FISCO 17.5 VCurrentIiEntity 550 mA , FISCO 380 mAPowerPiEntity 3 W , FISCO 5.32 WInternal capacitanceCinegligible 0 nFInternal inductanceLi negligible 0 µH	Marking II 2(1)G Ex ia [ia Ga] IIC T6...T5 GbVoltageUiEntity 30 V , FISCO 17.5 VCurrentIiEntity 550 mA , FISCO 380 mAPowerPiEntity 3 W , FISCO 5.32 WInternal capacitanceCinegligible 0 nFInternal inductanceLi negligible 0 µH
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012
Marking	II 2(1)G Ex ia [ia Ga] IIC T6...T5 Gb
Voltage	Entity 30 V , FISCO 17.5 V
Current	Entity 550 mA , FISCO 380 mA
Power	Entity 3 W , FISCO 5.32 W
Internal capacitance	negligible 0 nF
Internal inductance	negligible 0 µH
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012
IECEx approval	IECEx approval
IECEx certificateIECEx KEM 09.0081XIECEx markingEx ia [ia Ga] IIC T6...T5 Gb	IECEx certificateIECEx KEM 09.0081XIECEx markingEx ia [ia Ga] IIC T6...T5 Gb
IECEx certificate	IECEx KEM 09.0081X
IECEx marking	Ex ia [ia Ga] IIC T6...T5 Gb
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
