TECHNICAL DATA
规格参数
Supply
| Rated voltage | max. 30 V DC |
|---|---|

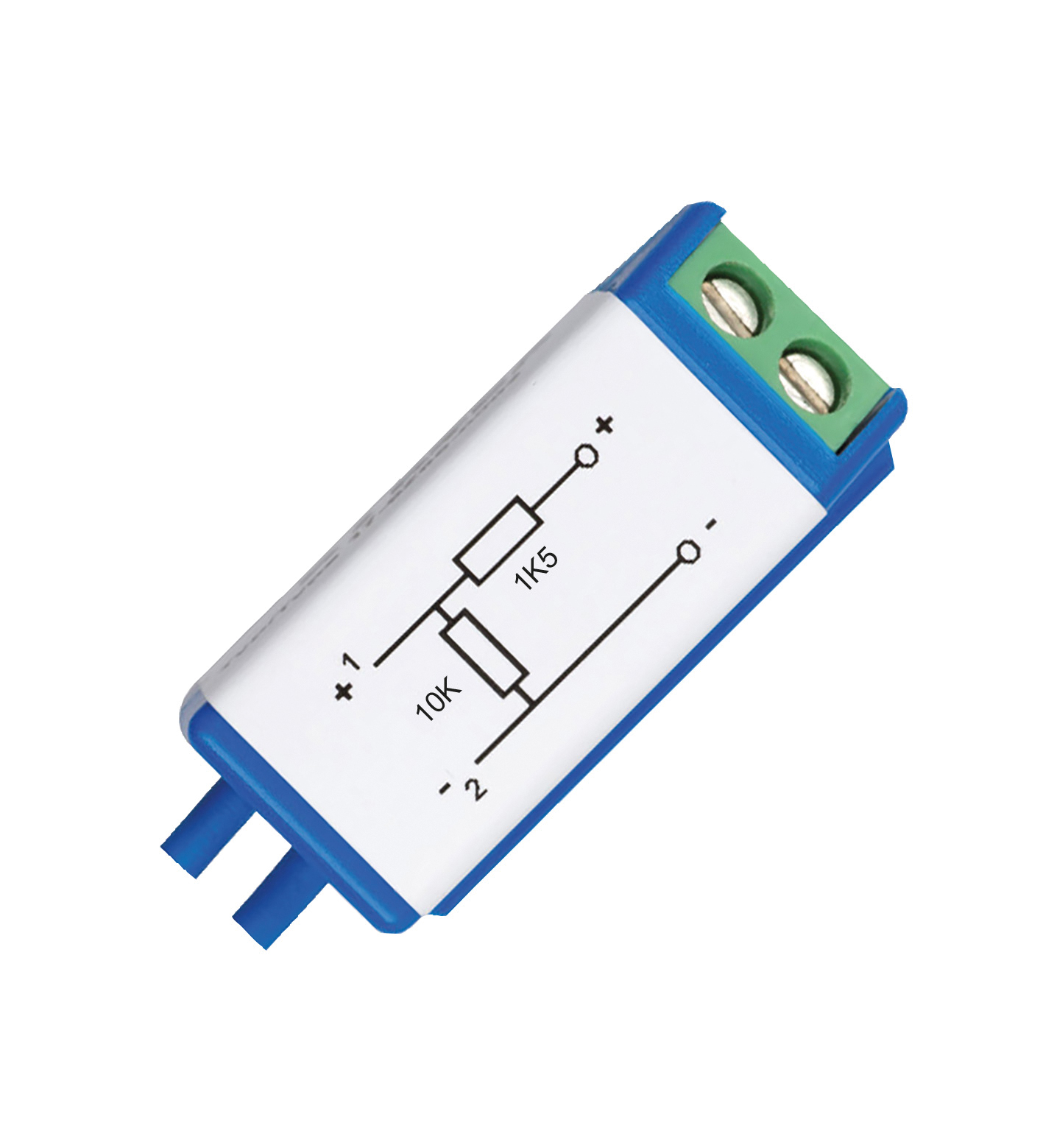

| Resistor | 1.5 kΩ/0.5 W10 kΩ/0.5 W |
| Suitable field devices | Suitable field devices |
| Field devicevolt-free contact | Field devicevolt-free contact |
| Error detection | lead breakage, short circuit, open switch, closed switch |
| Field device | volt-free contact |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Core cross section | 0.5 ... 1.5 mm2 , rigid or flexible |
| Cable | 0.5 mm2 x 150 mm |
| Mass | approx. 10 g |

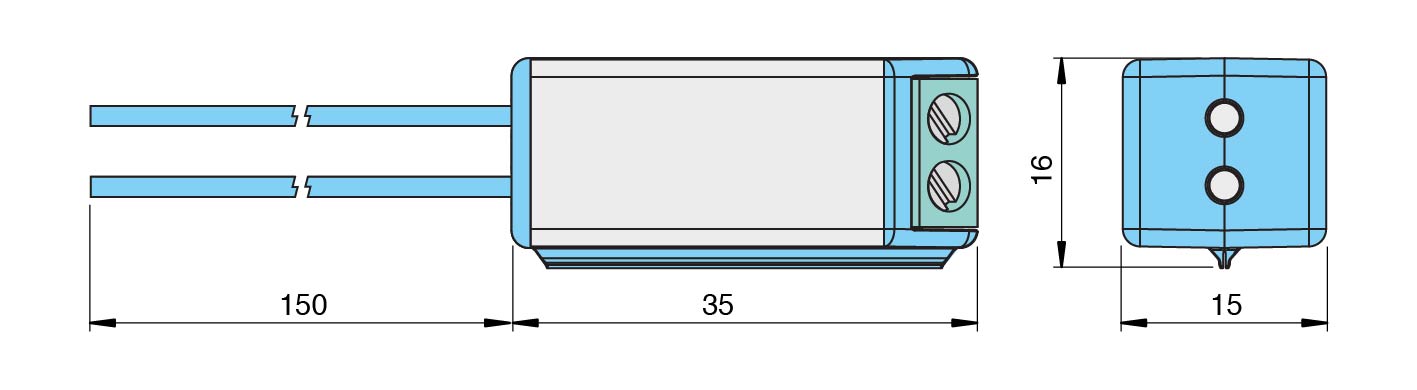

| Dimensions | 35 x 16 x 15 mm (1.38 x 0.63 x 0.59 inch) |
| Width16 mmDepth15 mmLength35 mm | Width16 mmDepth15 mmLength35 mm |
| Tightening torque | 0.5 ... 0.6 Nm |
| Width | 16 mm |
| Depth | 15 mm |
| Length | 35 mm |
| Certificate | see EU Declaration of Conformity |
| Temperature classT5 / T6VoltageUi30 VPowerPi0.5 W (T5) / 0.2 W (T6 up to 50 °C) / 0.1 W (T6 up to 60 °C)Ambient temperaturemax. 60 °C (max. 140 °F)Internal capacitanceCinegligibly smallInternal inductanceLi negligibly small | Temperature classT5 / T6VoltageUi30 VPowerPi0.5 W (T5) / 0.2 W (T6 up to 50 °C) / 0.1 W (T6 up to 60 °C)Ambient temperaturemax. 60 °C (max. 140 °F)Internal capacitanceCinegligibly smallInternal inductanceLi negligibly small |
| Temperature class | T5 / T6 |
| Voltage | 30 V |
| Power | 0.5 W (T5) / 0.2 W (T6 up to 50 °C) / 0.1 W (T6 up to 60 °C) |
| Ambient temperature | max. 60 °C (max. 140 °F) |
| Internal capacitance | negligibly small |
| Internal inductance | negligibly small |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
