TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | see data table |
|---|---|
| Rated impulse withstand voltage | 6 kV |
| Rated frequency | 50Hz |
| Short circuit current limitation | see data table |
| Operating current | see data table |
| Terminal capacity | see data table |
| Rated insulation voltage | 690 V |

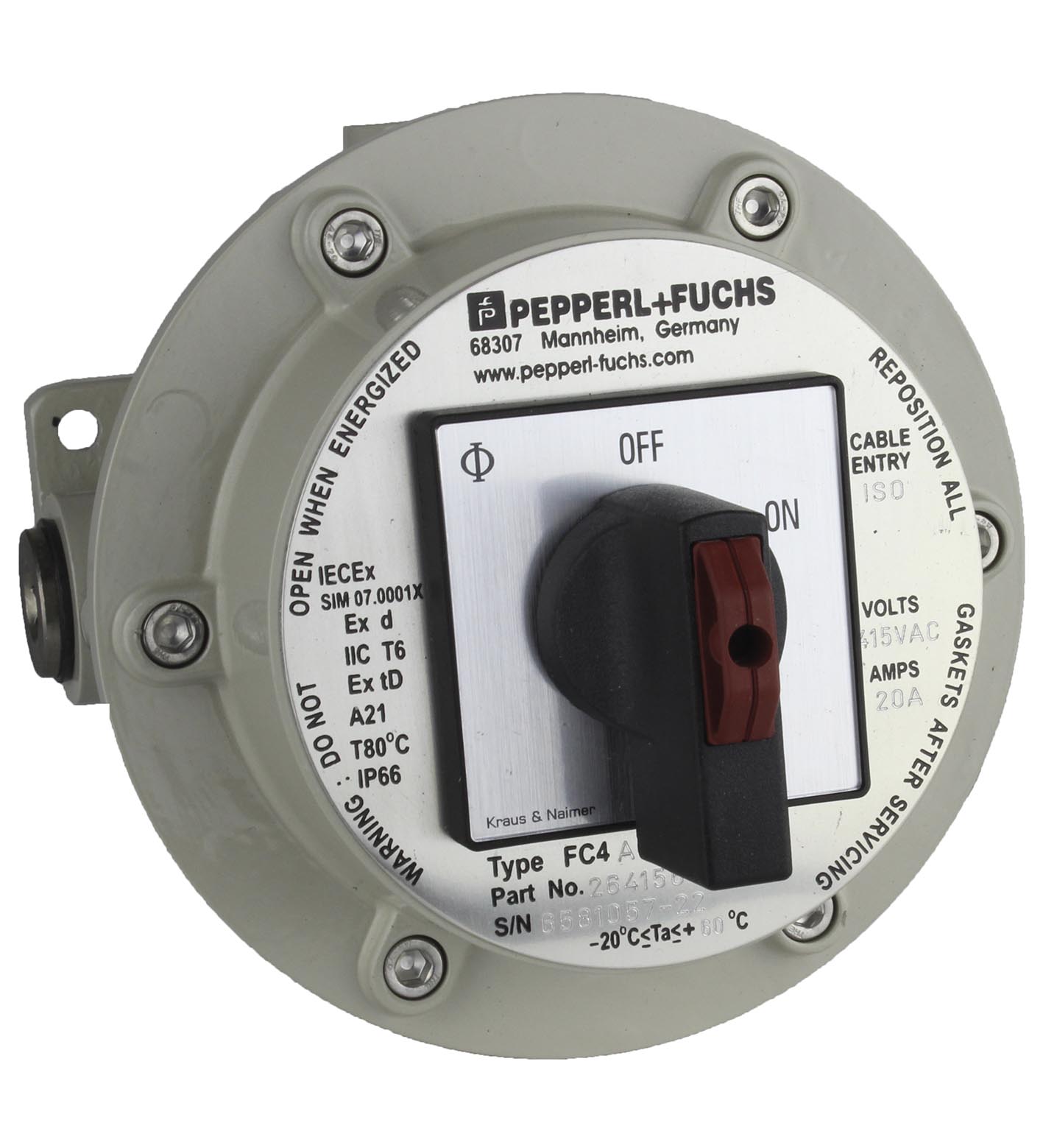

| Function | switch disconnector |
| ColorblackContact configurationsee data tableSwitching configuration2 position with left OFFUsage categorysee data tableNumber of polessee data tableOperator actionengage - engageLockablein 'OFF' positionLabelingOFF - ON | ColorblackContact configurationsee data tableSwitching configuration2 position with left OFFUsage categorysee data tableNumber of polessee data tableOperator actionengage - engageLockablein 'OFF' positionLabelingOFF - ON |
| Color | black |
| Contact configuration | see data table |
| Switching configuration | 2 position with left OFF |
| Usage category | see data table |
| Number of poles | see data table |
| Operator action | engage - engage |
| Lockable | in 'OFF' position |
| Labeling | OFF - ON |
| Thread type | metric ISO pitch 1.5 mm |
| Enclosure cover | detachable |
| Cover fixing | stainless steel socket cap head screws |
| ScrewsM6Numbersee data tableTightening torque3 NmMaterial of screwsstainless steelYield stressmin. 450 N/mm2 | ScrewsM6Numbersee data tableTightening torque3 NmMaterial of screwsstainless steelYield stressmin. 450 N/mm2 |
| Cover seal | chloroprene |
| Flamepath grease | Fluid film grade AR |
| Degree of protection | IP66 |
| Cable entry | see data table |
| Material | Material |
| Enclosurealuminum alloyFinishepoxy coated RAL 7032 | Enclosurealuminum alloyFinishepoxy coated RAL 7032 |
| Mass | see data table |

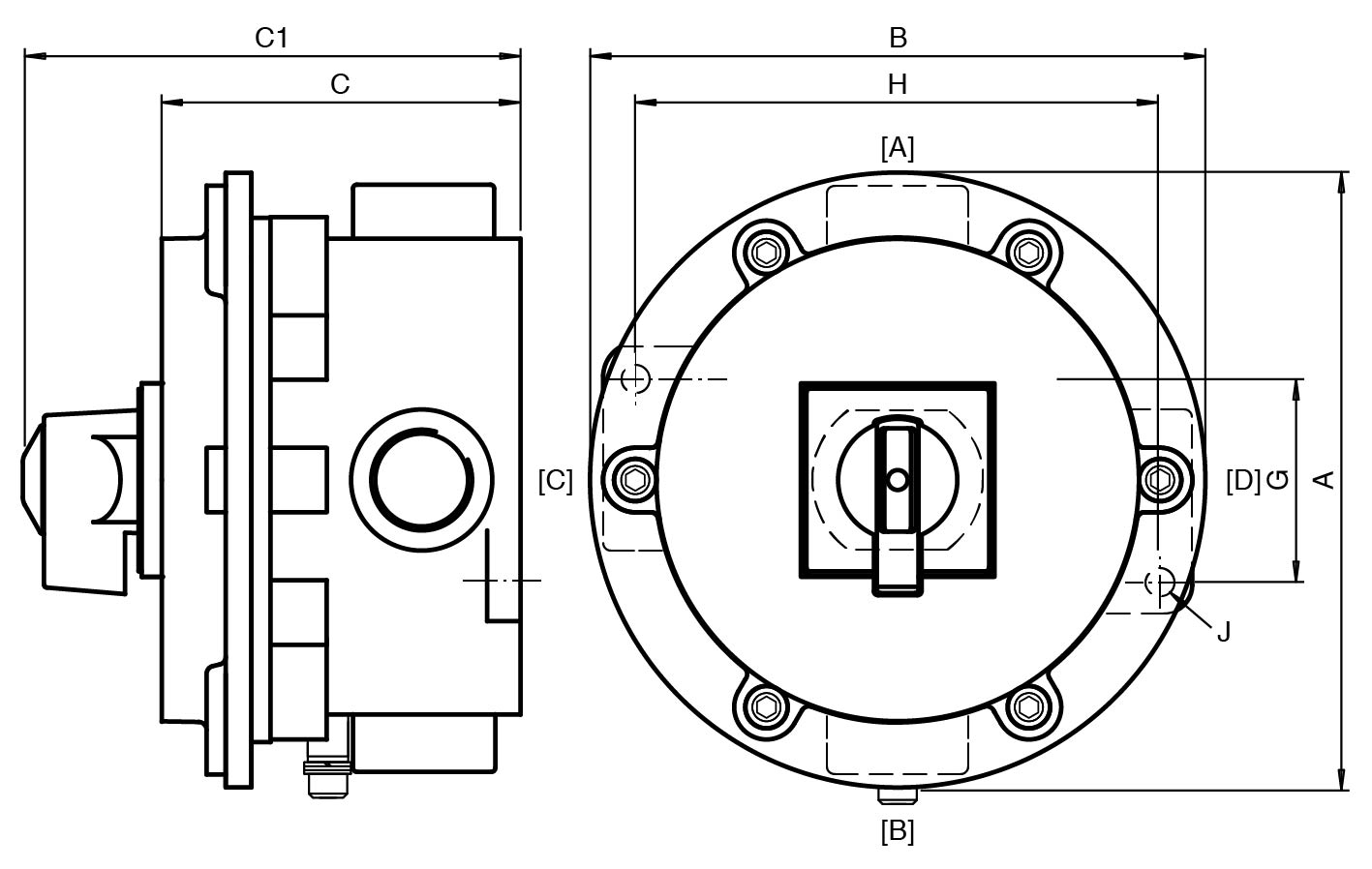

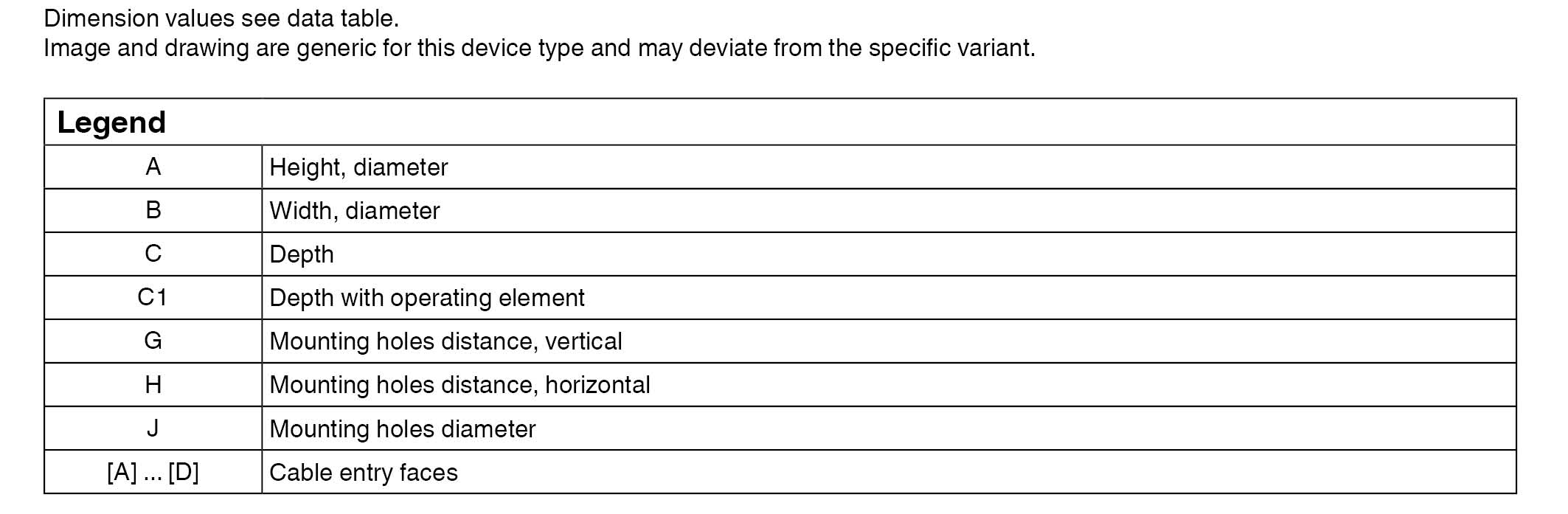

| Dimensions | see data table |
| Mounting | see data table |
| Grounding | M6 external grounding points |
| Screws | M6 |
| Number | see data table |
| Tightening torque | 3 Nm |
| Material of screws | stainless steel |
| Yield stress | min. 450 N/mm2 |
| Enclosure | aluminum alloy |
| Finish | epoxy coated RAL 7032 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| EU-type examination certificate | see data table |
| IECEx approval | see data table |
| Degree of protection | EN60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0102 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
