TECHNICAL DATA
规格参数

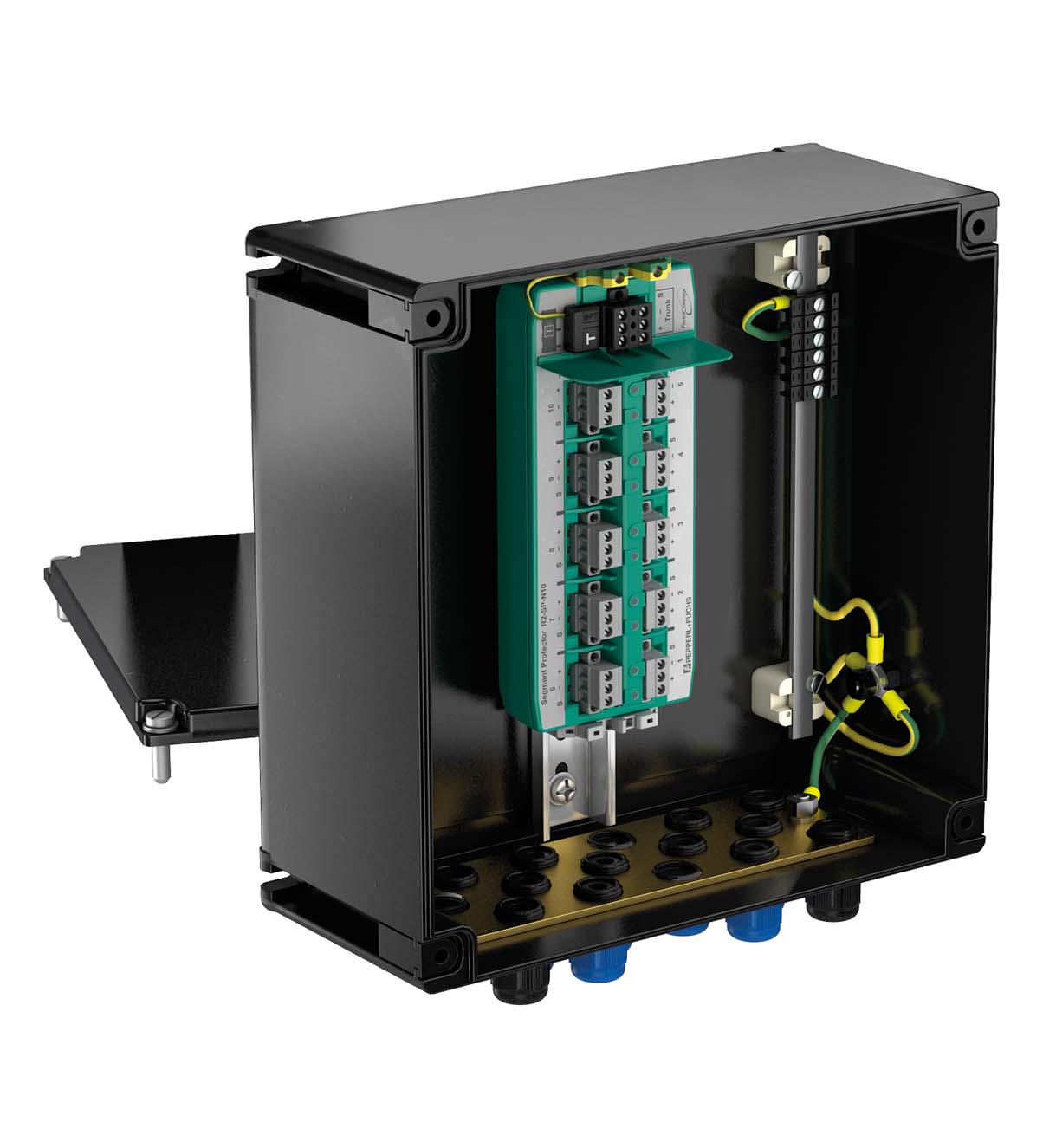

General specifications

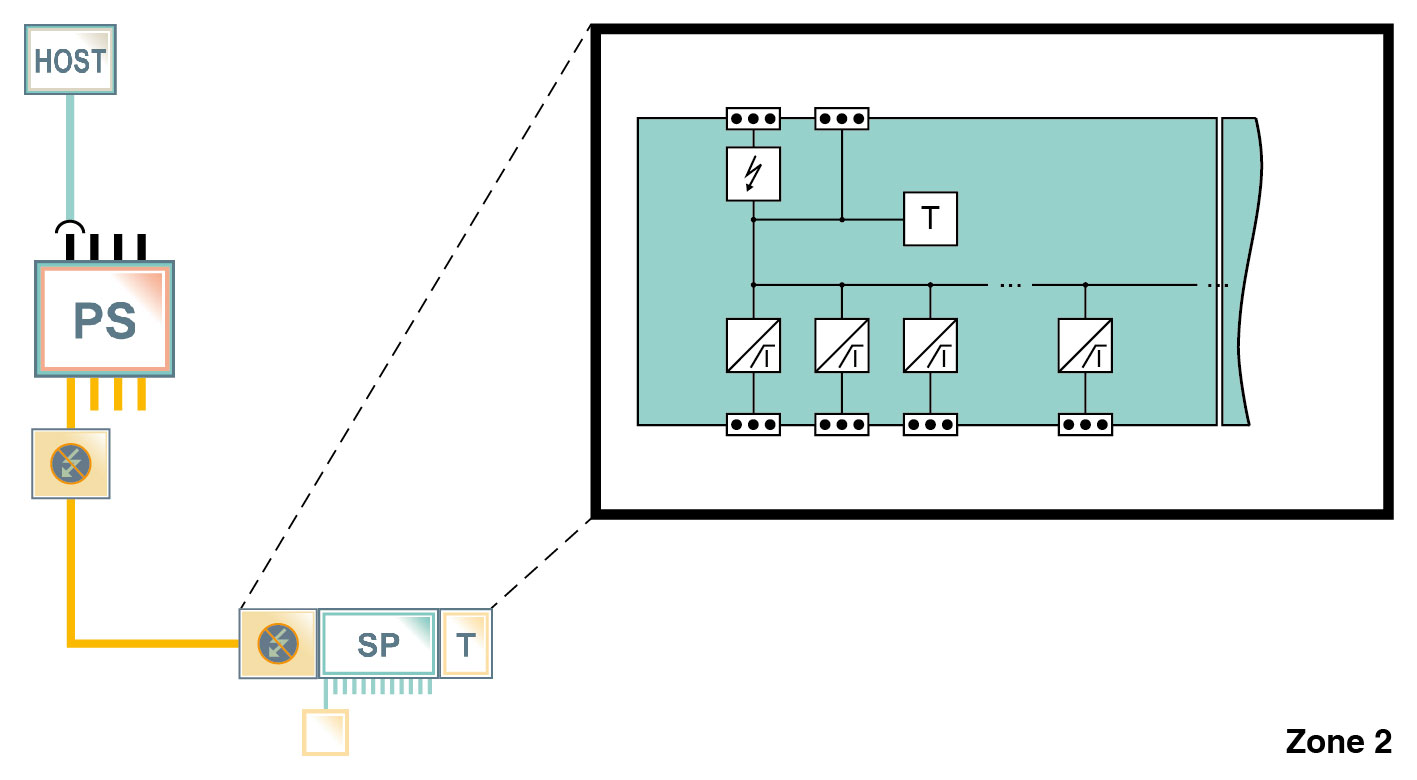

| Design / Mounting | Outside installation |
|---|---|
| Installed components | Segment Protector R2-SP-IC* For technical data on installed electronic component see data sheet. |
| Degree of protection | EN 60529 |
| Ambient temperature | -30 ... 55 °C (-22 ... 131 °F) , (extended temperature range available on request) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation |
| Degree of protection | IP66 |
| Dimensions | Dimensions |
| W x H x D271 mm x 271 mm x 136 mm (1 x R2-SP-IC*) , 544 mm x 271 mm x 136 mm (2 x R2-SP-IC*) | W x H x D271 mm x 271 mm x 136 mm (1 x R2-SP-IC*) , 544 mm x 271 mm x 136 mm (2 x R2-SP-IC*) |
| Mounting | thru-holes Ø6.5 mm |
| W x H x D | 271 mm x 271 mm x 136 mm (1 x R2-SP-IC*) , 544 mm x 271 mm x 136 mm (2 x R2-SP-IC*) |
| Certificate | PF 16 CERT 3134 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com |
| Marking II 3G Ex nA [ic] IIC T4 Gc [exsign] II 3D Ex tc [ic] IIIC T135°C Dc | Marking II 3G Ex nA [ic] IIC T4 Gc [exsign] II 3D Ex tc [ic] IIIC T135°C Dc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012 , EN 60079-15:2010 , EN 60079-31:2014 | Directive 2014/34/EUEN 60079-0:2012 , EN 60079-15:2010 , EN 60079-31:2014 |
| Marking | II 3G Ex nA [ic] IIC T4 Gc [exsign] II 3D Ex tc [ic] IIIC T135°C Dc |
| Directive 2014/34/EU | EN 60079-0:2012 , EN 60079-15:2010 , EN 60079-31:2014 |
| IECEx approval | IECEx PTB 09.0016 , suitable Junction Box on request |
