TECHNICAL DATA
规格参数
General specifications
| Design / Mounting | Outside installation |
|---|---|

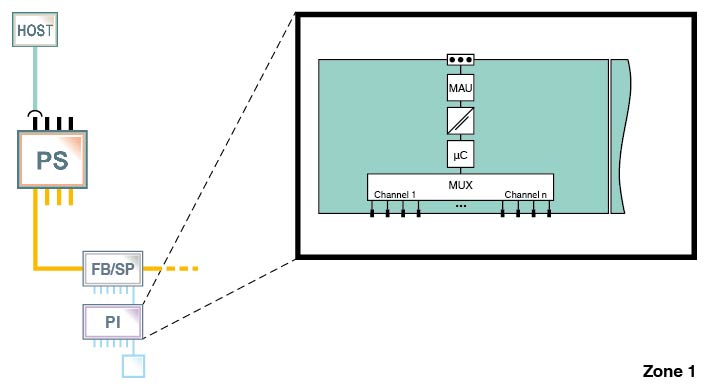

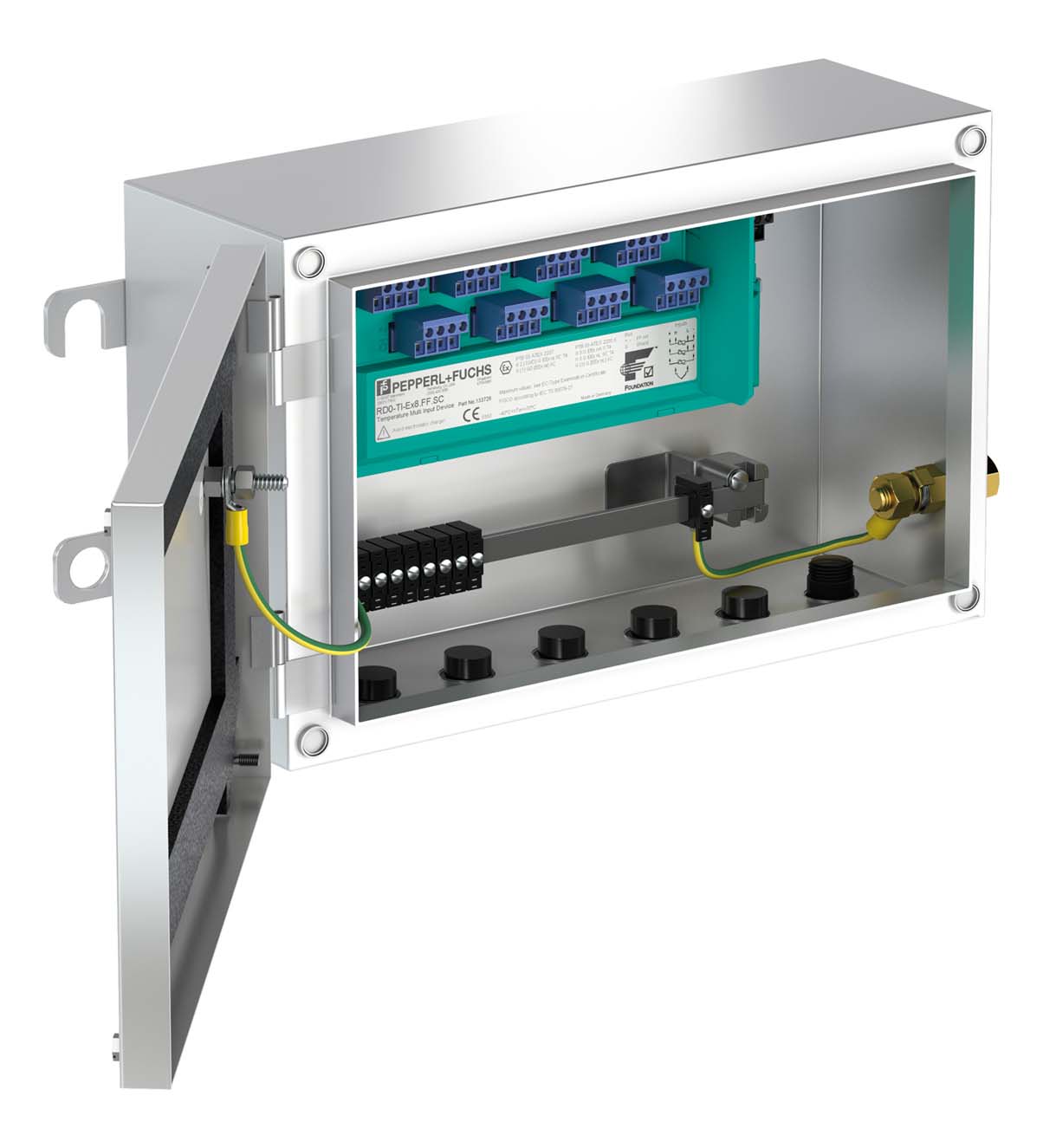

| Installed components | Temperature Multi-Input Device RD0-TI-Ex8.FF.ST For technical data on installed electronic component see data sheet. |
| Degree of protection | EN 60529 |
| Impact resistance | EN 60079-0 |
| Ambient temperature | -30 ... 55 °C (-22 ... 131 °F) , (extended temperature range available on request) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation |
| Impact resistance | 7J |
| Enclosure cover | detachable hinged door with captive retaining screws |
| Degree of protection | IP66 |
| Cable entry | cable gland and stopping plug options see separate table |
| Material | Material |
| Housingstainless steel 1.4404 / AISI 316LSurfaceelectropolishedSealNeoprene, fire-resistant, one pieceMaterial thicknessenclosure body, enclosure cover, mounting plate: 1.5 mm gland plate: 3.0 mm | Housingstainless steel 1.4404 / AISI 316LSurfaceelectropolishedSealNeoprene, fire-resistant, one pieceMaterial thicknessenclosure body, enclosure cover, mounting plate: 1.5 mm gland plate: 3.0 mm |
| Dimensions | (W x H x D) 300 x 200 x 120 mm (1 x RD0-TI-Ex8.FF.ST) |
| Mounting | thru-holes Ø10 mm |
| Grounding | grounding bolt M10 , brass |
| Housing | stainless steel 1.4404 / AISI 316L |
| Surface | electropolished |
| Seal | Neoprene, fire-resistant, one piece |
| Material thickness | enclosure body, enclosure cover, mounting plate: 1.5 mm gland plate: 3.0 mm |
| EU-Type Examination Certificate | PTB 07 ATEX 1061 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com |
| Marking II 2(1)G Ex ia [ia Ga] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db | Marking II 2(1)G Ex ia [ia Ga] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db |
| Certificate | PTB 17 ATEX 1011 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com |
| Marking II 3G Ex ic IIC T4 Gc [exsign] II 3G Ex nA IIC T4 Gc [exsign] II 3D Ex tc IIIC T135°C Dc | Marking II 3G Ex ic IIC T4 Gc [exsign] II 3G Ex nA IIC T4 Gc [exsign] II 3D Ex tc IIIC T135°C Dc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014 | Directive 2014/34/EUEN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014 |
| Marking | II 2(1)G Ex ia [ia Ga] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db |
| Marking | II 3G Ex ic IIC T4 Gc [exsign] II 3G Ex nA IIC T4 Gc [exsign] II 3D Ex tc IIIC T135°C Dc |
| Directive 2014/34/EU | EN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014 |
| IECEx approval | IECEx PTB 07.0036 X , Zone 1 , suitable Junction Box on request IECEx PTB 09.0016 X , Zone 2 , suitable Junction Box on request |
| INMETRO | TÜV 13.1143 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
