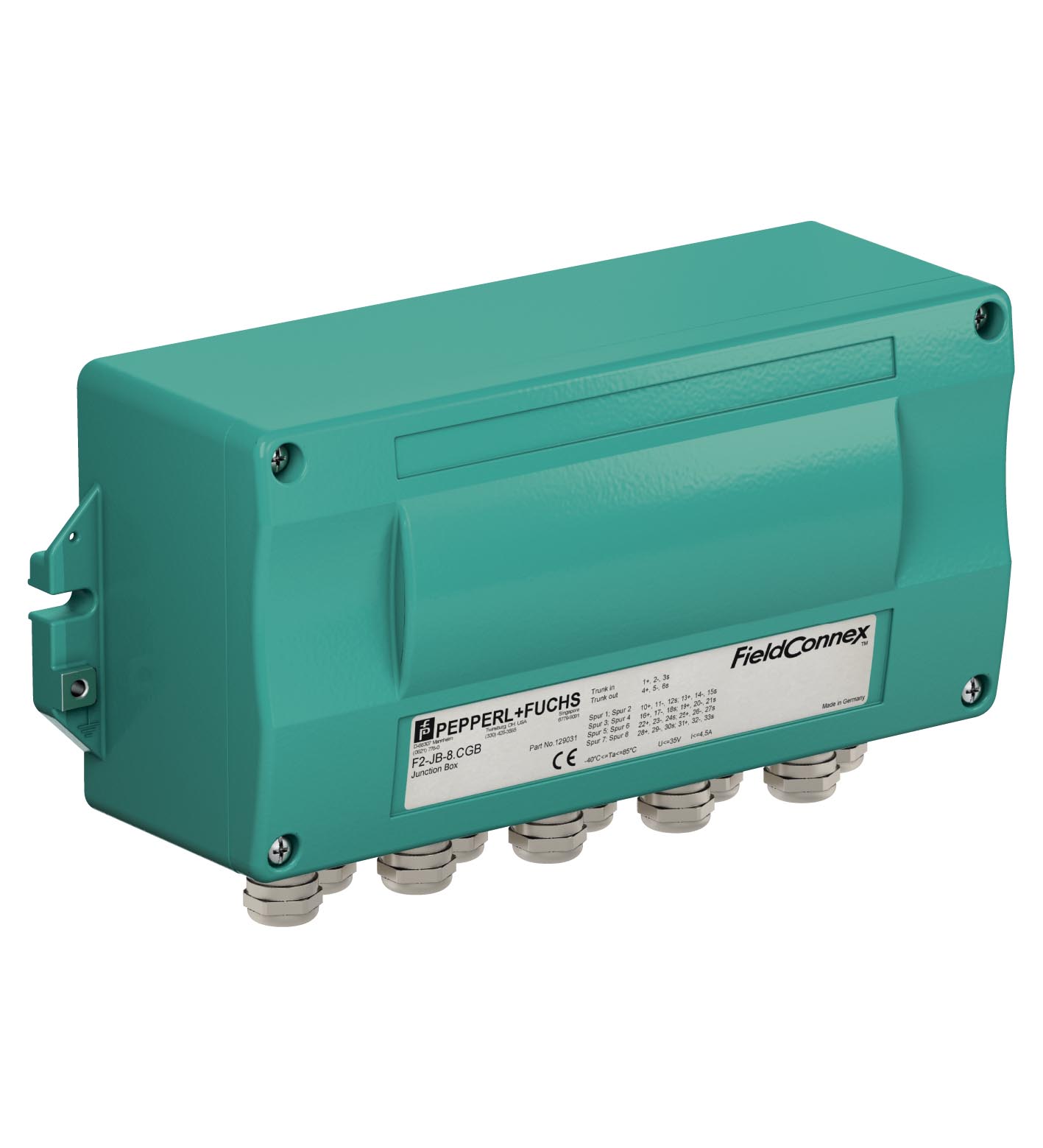

TECHNICAL DATA
规格参数
General specifications
| Design / Mounting | Outside installation |
|---|---|
| Main cable (Trunk) | Main cable (Trunk) |
| Cable entry typeCable glandConnectioninput (Trunk IN): terminals 1+, 2-, 3soutput (Trunk OUT): terminals 4+, 5-, 6sRated voltagemax. 35 V DCRated current3 A DC at 70°C, reduction 0.1A/K | Cable entry typeCable glandConnectioninput (Trunk IN): terminals 1+, 2-, 3soutput (Trunk OUT): terminals 4+, 5-, 6sRated voltagemax. 35 V DCRated current3 A DC at 70°C, reduction 0.1A/K |
| Outputs | Outputs |
| Number of outputssee table "Technical data depending on model"Cable entry typeCable glandConnectionSpur 1: terminals 10+, 11-, 12sSpur 2: terminals 13+, 14-, 15sSpur 3: terminals 16+, 17-, 18sSpur 4: terminals 19+, 20-, 21sSpur 5: terminals 22+, 23-, 24sSpur 6: terminals 25+, 26-, 27sSpur 7: terminals 28+, 29-, 30sSpur 8: terminals 31+, 32-, 33sCable lengthRated voltagesee main cableRated currentsee main cable | Number of outputssee table "Technical data depending on model"Cable entry typeCable glandConnectionSpur 1: terminals 10+, 11-, 12sSpur 2: terminals 13+, 14-, 15sSpur 3: terminals 16+, 17-, 18sSpur 4: terminals 19+, 20-, 21sSpur 5: terminals 22+, 23-, 24sSpur 6: terminals 25+, 26-, 27sSpur 7: terminals 28+, 29-, 30sSpur 8: terminals 31+, 32-, 33sCable lengthRated voltagesee main cableRated currentsee main cable |
| Cable entry type | Cable gland |

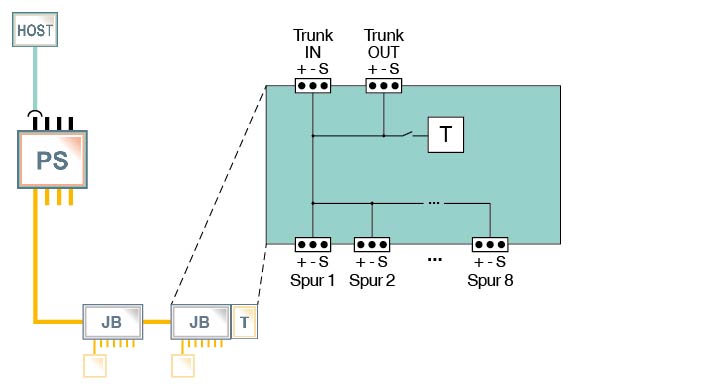

| Connection | input (Trunk IN): terminals 1+, 2-, 3soutput (Trunk OUT): terminals 4+, 5-, 6s |
| Rated voltage | max. 35 V DC |
| Rated current | 3 A DC at 70°C, reduction 0.1A/K |
| Number of outputs | see table "Technical data depending on model" |
| Cable entry type | Cable gland |
| Connection | Spur 1: terminals 10+, 11-, 12sSpur 2: terminals 13+, 14-, 15sSpur 3: terminals 16+, 17-, 18sSpur 4: terminals 19+, 20-, 21sSpur 5: terminals 22+, 23-, 24sSpur 6: terminals 25+, 26-, 27sSpur 7: terminals 28+, 29-, 30sSpur 8: terminals 31+, 32-, 33s |
| Cable length | Cable length |
| Rated voltage | see main cable |
| Rated current | see main cable |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2004/108/ECEN 61326-1:2006 | Directive 2004/108/ECEN 61326-1:2006 |
| Directive 2004/108/EC | EN 61326-1:2006 |
| Electromagnetic compatibility | NAMUR NE 21 |
| Degree of protection | IEC/EN 60529 |
| Fieldbus standard | IEC 61158-2 |
| Climatic conditions | DIN IEC 721 |
| Ambient temperature | see table |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | screw terminal , fixed |
| Core cross section | up to 2.5 mm2 |
| Housing | 258 mm x 114 mm x 84 mm (without cable glands) |
| Housing material | Aluminum |
| Degree of protection | IP67 |
| Mass | 1800 g |
| Mounting | wall mounting |
