F2D0-TI-Ex8.FF.*

F2D0-TI-Ex8.FF.* Temperature Multi-InputFieldConnex® Fieldbus

订货号: T158062
产品分类: 用于 FOUNDATION 现场总线 H1 的过程接口

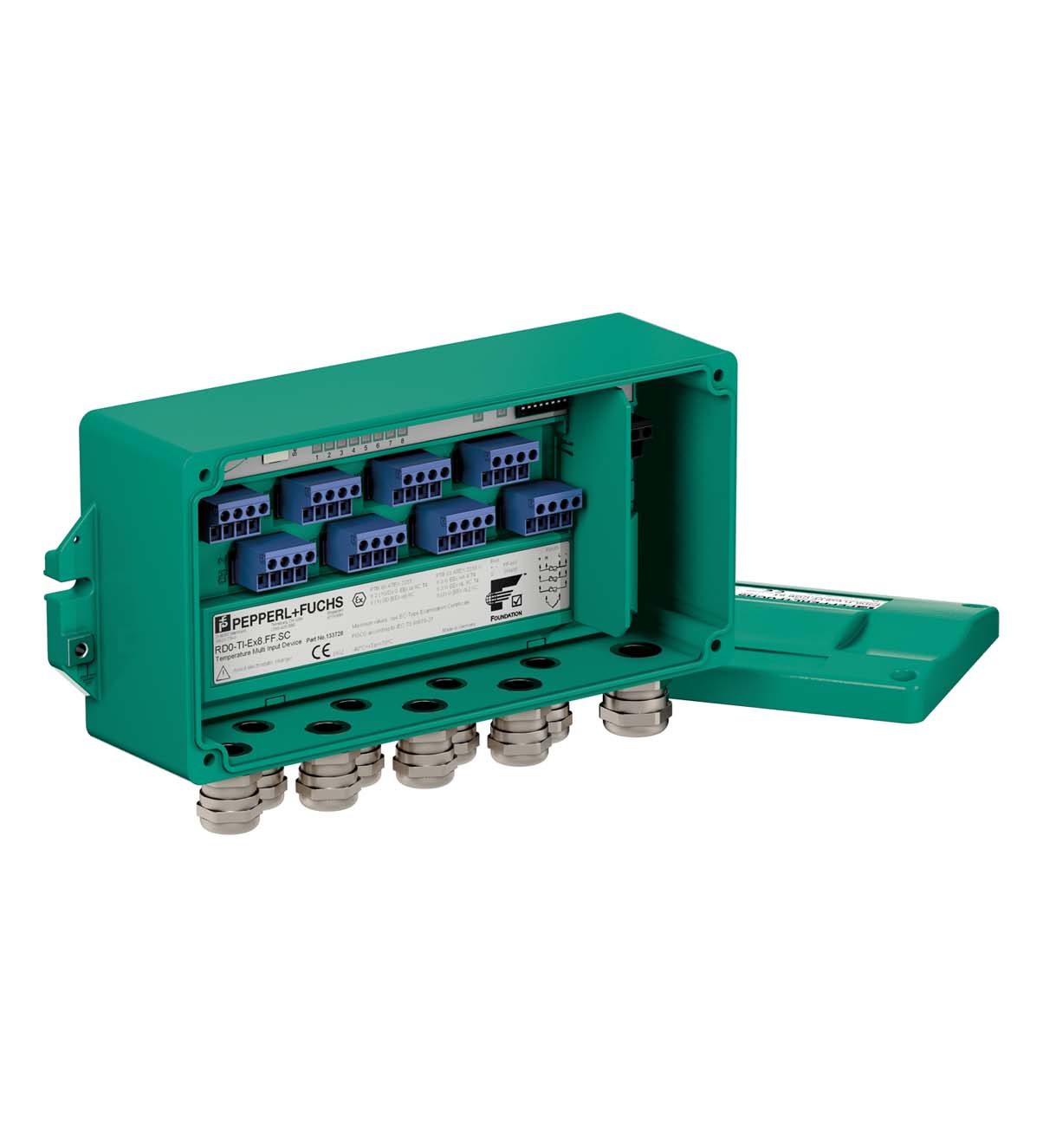

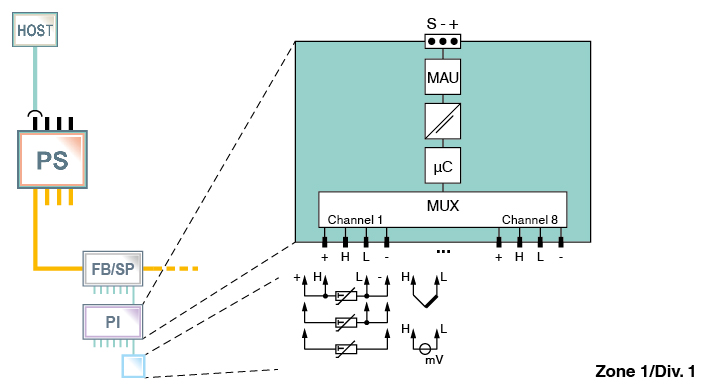

Temperature multi-input, stand-alone device with aluminum housing for field installation

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Design / Mounting	Outside installation
Installation in hazardous area	Zone 1 / Div. 1
Electronic component	Temperature Multi-Input Device RD0-TI-Ex8.FF* For technical data on installed electronic component see datasheet.
Fieldbus type	FOUNDATION Fieldbus
Number	8
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Galvanic isolation	EN 60079-11
Electromagnetic compatibility	NE 21:2011
Degree of protection	IEC 60529
Fieldbus standard	IEC 61158-2
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Ambient temperature	see table 1
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	≤ 95 % non-condensing
Shock resistance	15 g , 11 ms
Vibration resistance	10 g , 10 ... 150 Hz
Corrosion resistance	acc. to ISA-S71.04-1985, severity level G3
Connection type	plug-in terminals , spring terminal and screw terminal
Core cross section	Core cross section
Busup to 2.5 mm2Inputsup to 2.5 mm2	Busup to 2.5 mm2Inputsup to 2.5 mm2
Cable diameter	see table 2
Cable gland	sensor inputs M16, fieldbus M20
Housing material	Aluminum
Degree of protection	IP67
Mass	1800 g
Mounting	wall mounting
Bus	up to 2.5 mm2
Inputs	up to 2.5 mm2
EU-type examination certificate	PTB 03 ATEX 2237
Marking II 2 (1) G Ex ia [ia Ga] IIC T4 Gb , [exsign] II (1) G [Ex ia Ga] IIC , [exsign] II (1) D [Ex ia Da] IIIC , [exsign] II 3 G Ex ic IIC T4 Gc	Marking II 2 (1) G Ex ia [ia Ga] IIC T4 Gb , [exsign] II (1) G [Ex ia Ga] IIC , [exsign] II (1) D [Ex ia Da] IIIC , [exsign] II 3 G Ex ic IIC T4 Gc
Bus	FISCO see EC-Type Examination Certificate
Inputs	see EC-Type Examination Certificate
Certificate	PTB 03 ATEX 2238 X
Marking II 3 G Ex nA IIC T4 Gc	Marking II 3 G Ex nA IIC T4 Gc
Galvanic isolation	Galvanic isolation
Bussee Statement of ConformityInputsee EC-Type Examination Certificate	Bussee Statement of ConformityInputsee EC-Type Examination Certificate
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
Marking	II 2 (1) G Ex ia [ia Ga] IIC T4 Gb , [exsign] II (1) G [Ex ia Ga] IIC , [exsign] II (1) D [Ex ia Da] IIIC , [exsign] II 3 G Ex ic IIC T4 Gc
Marking	II 3 G Ex nA IIC T4 Gc
Bus	see Statement of Conformity
Input	see EC-Type Examination Certificate
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
FM approval	FM approval
FM certificateFM18US0054X , FM18CA0027XControl drawing16-473FM-12A	FM certificateFM18US0054X , FM18CA0027XControl drawing16-473FM-12A
IECEx approval	IECEx approval
IECEx certificateIECEx PTB 05.0001 IECEx PTB 05.0002XIECEx markingEx ia [ia Ga] IIC T4 Gb [Ex ia Ga] IIC [Ex ia Da] IIIC Ex ic IIC T4 Gc Ex nA IIC T4 Gc	IECEx certificateIECEx PTB 05.0001 IECEx PTB 05.0002XIECEx markingEx ia [ia Ga] IIC T4 Gb [Ex ia Ga] IIC [Ex ia Da] IIIC Ex ic IIC T4 Gc Ex nA IIC T4 Gc
FM certificate	FM18US0054X , FM18CA0027X
Control drawing	16-473FM-12A
IECEx certificate	IECEx PTB 05.0001 IECEx PTB 05.0002X
IECEx marking	Ex ia [ia Ga] IIC T4 Gb [Ex ia Ga] IIC [Ex ia Da] IIIC Ex ic IIC T4 Gc Ex nA IIC T4 Gc
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
