TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 415 V |
|---|---|
| Operating current | see data table |
| Terminal capacity | Terminal capacity |
| Main terminals capacity4 mm2Main terminals torque1.7 NmGrounding terminals capacityM6 grounding bolt | Main terminals capacity4 mm2Main terminals torque1.7 NmGrounding terminals capacityM6 grounding bolt |
| Contactor rating | see data table |
| Overload relay | see data table |
| Phases | 3 |

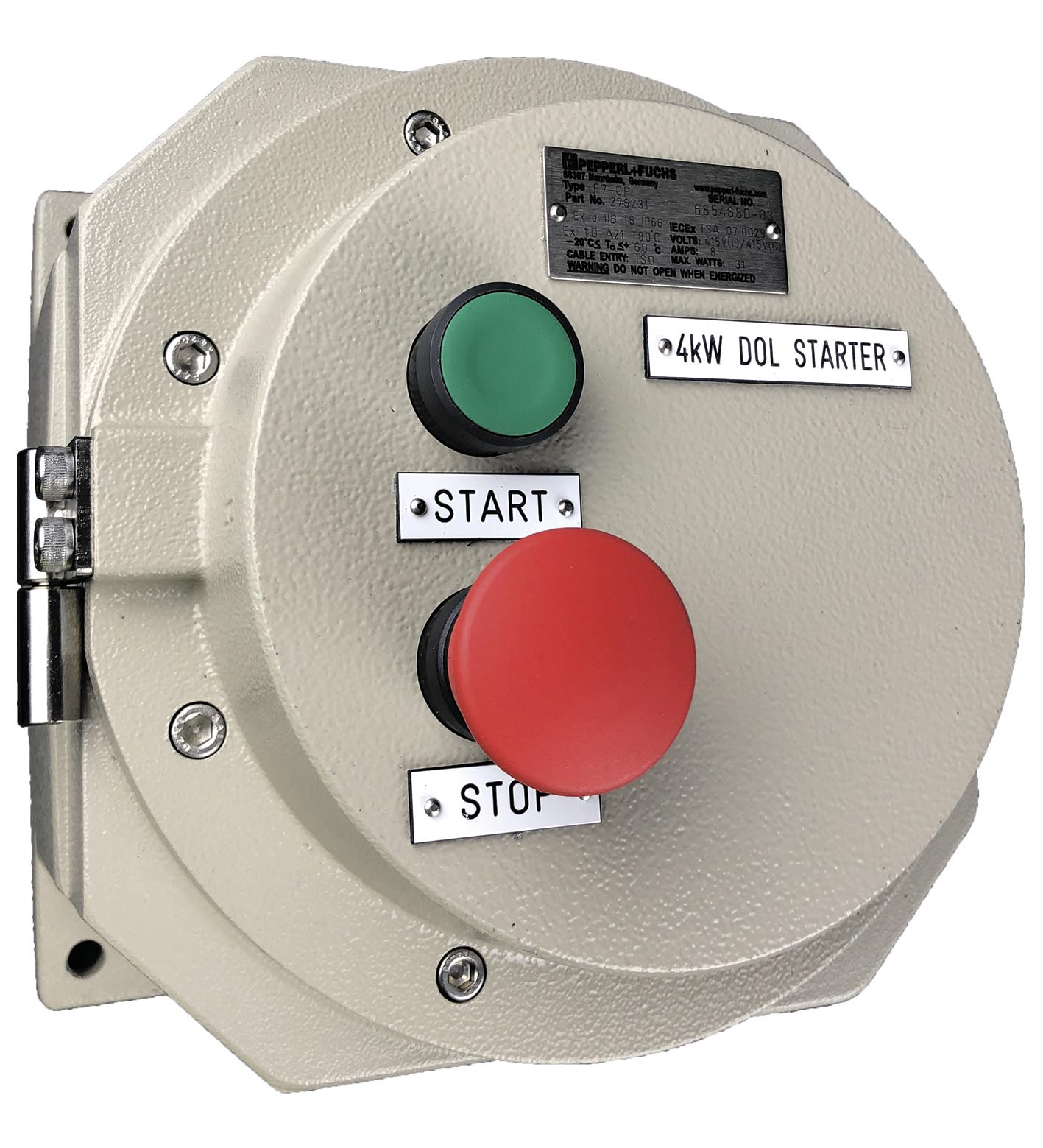

| Function | direct online starter |
| Main terminals capacity | 4 mm2 |
| Main terminals torque | 1.7 Nm |
| Grounding terminals capacity | M6 grounding bolt |
| Thread type | metric ISO pitch 1.5 mm |
| Enclosure range | F7 |
| Enclosure cover | detachable , hinged |
| Cover fixing | stainless steel socket cap head screws |
| ScrewsM6Number8Tightening torque3 NmMaterial of screwsstainless steelYield stressmin. 450 N/mm2 | ScrewsM6Number8Tightening torque3 NmMaterial of screwsstainless steelYield stressmin. 450 N/mm2 |
| Cover seal | chloroprene |
| Flamepath grease | Fluid film grade AR |
| Degree of protection | IP66 |
| Cable entry face A | Cable entry face A |
| M20 quantity2M20 typeStopping Plugs | M20 quantity2M20 typeStopping Plugs |
| Cable entry face B | Cable entry face B |
| M20 quantity2 | M20 quantity2 |
| Material | Material |
| Enclosurealuminum alloyFinishepoxy coated RAL 7032 | Enclosurealuminum alloyFinishepoxy coated RAL 7032 |
| Mass | approx. 5 kg |

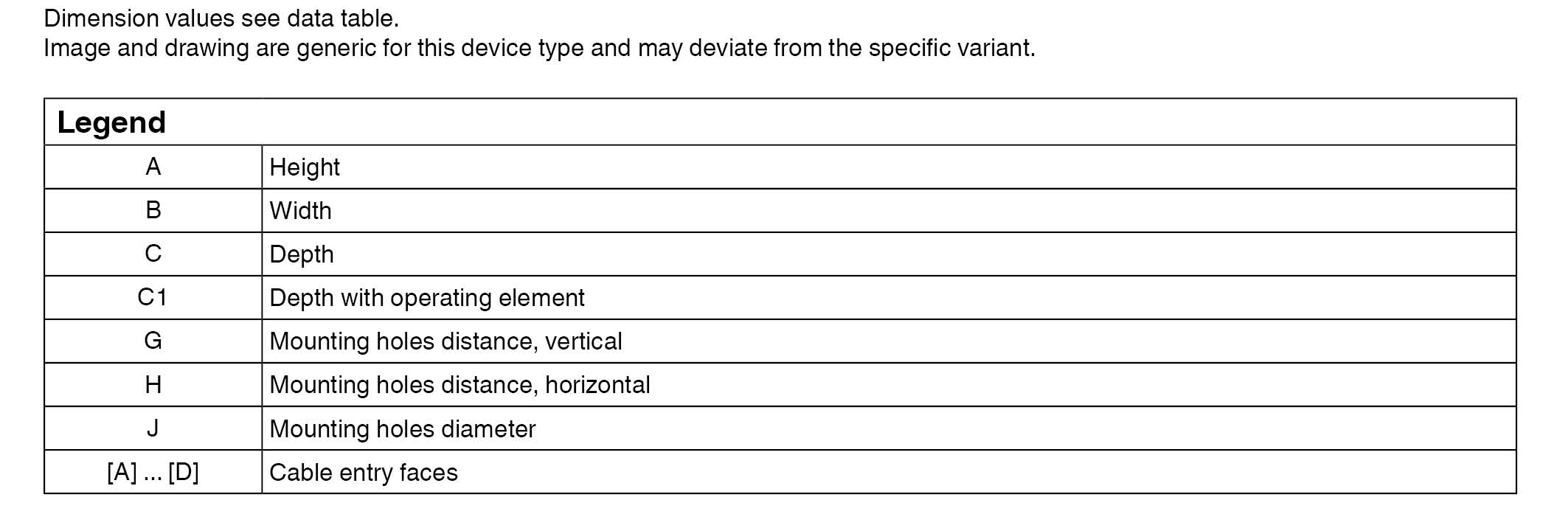

| Dimensions | Dimensions |
| External dimension (A)210 mmExternal dimension (B)210 mmExternal dimension (C)158 mmExternal dimension with operating element (C1)199 mmMounting holes distance (G)187 mmMounting holes distance (H)187 mmMounting holes diameter (J)9 mm | External dimension (A)210 mmExternal dimension (B)210 mmExternal dimension (C)158 mmExternal dimension with operating element (C1)199 mmMounting holes distance (G)187 mmMounting holes distance (H)187 mmMounting holes diameter (J)9 mm |
| Tightening torque | Tightening torque |
| Nut torque at enclosure (SW1)see datasheets of stopping plugs | Nut torque at enclosure (SW1)see datasheets of stopping plugs |
| Mounting | see data table |
| Grounding | M6 external grounding points |
| Screws | M6 |
| Number | 8 |
| Tightening torque | 3 Nm |
| Material of screws | stainless steel |
| Yield stress | min. 450 N/mm2 |
| M20 quantity | 2 |
| M20 type | Stopping Plugs |
| M20 quantity | 2 |
| Enclosure | aluminum alloy |
| Finish | epoxy coated RAL 7032 |

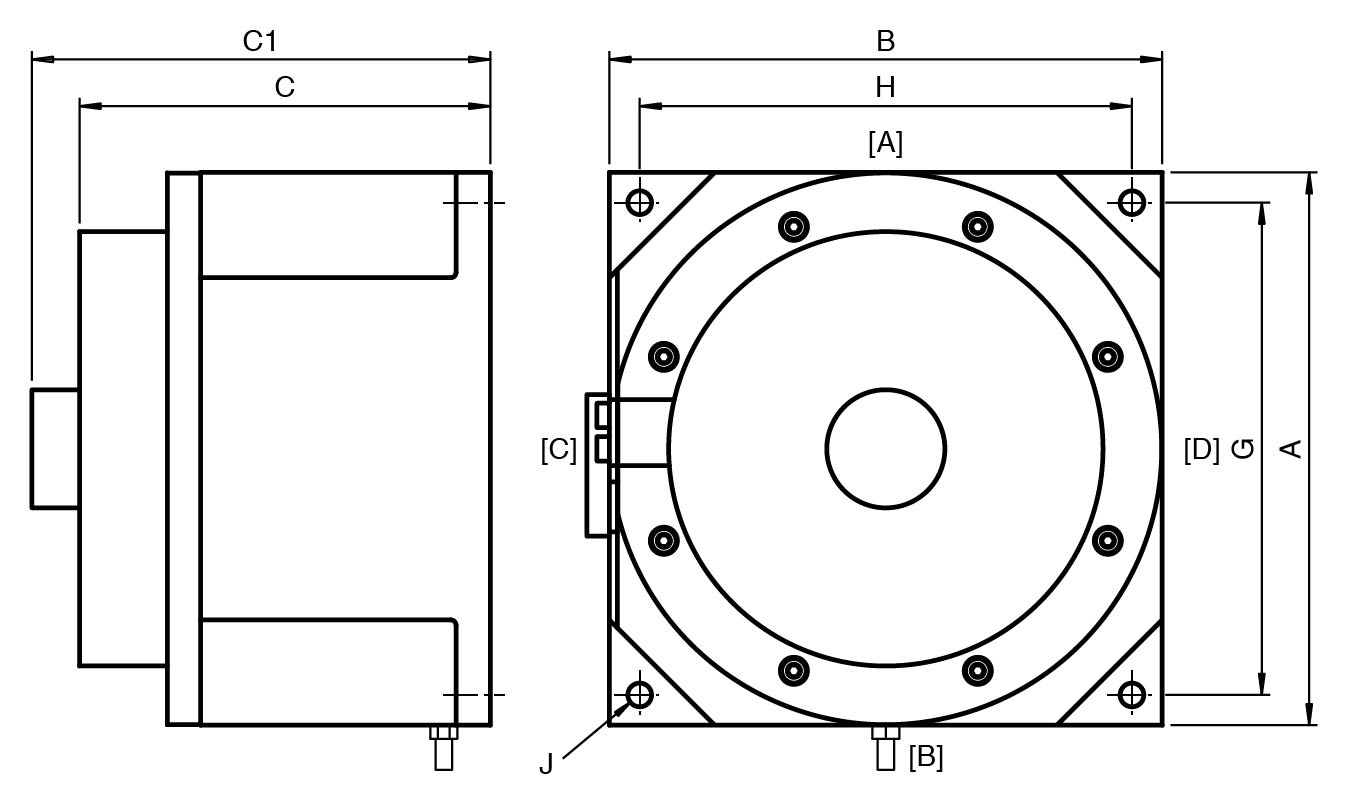

| External dimension (A) | 210 mm |
| External dimension (B) | 210 mm |
| External dimension (C) | 158 mm |
| External dimension with operating element (C1) | 199 mm |
| Mounting holes distance (G) | 187 mm |
| Mounting holes distance (H) | 187 mm |
| Mounting holes diameter (J) | 9 mm |
| Nut torque at enclosure (SW1) | see datasheets of stopping plugs |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| EU-type examination certificate | SIRA 07 ATEX 1134 |
| Marking II 2 GD Ex d IIB T* Ex tD A21 T6/T80 °C @ Ta +60 °CMaximum power dissipation31 W | Marking II 2 GD Ex d IIB T* Ex tD A21 T6/T80 °C @ Ta +60 °CMaximum power dissipation31 W |
| Marking | II 2 GD Ex d IIB T* Ex tD A21 T6/T80 °C @ Ta +60 °C |
| Maximum power dissipation | 31 W |
| IECEx approval | IECEx TSA 07.0029 |
| Degree of protection | EN60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0102 |
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
