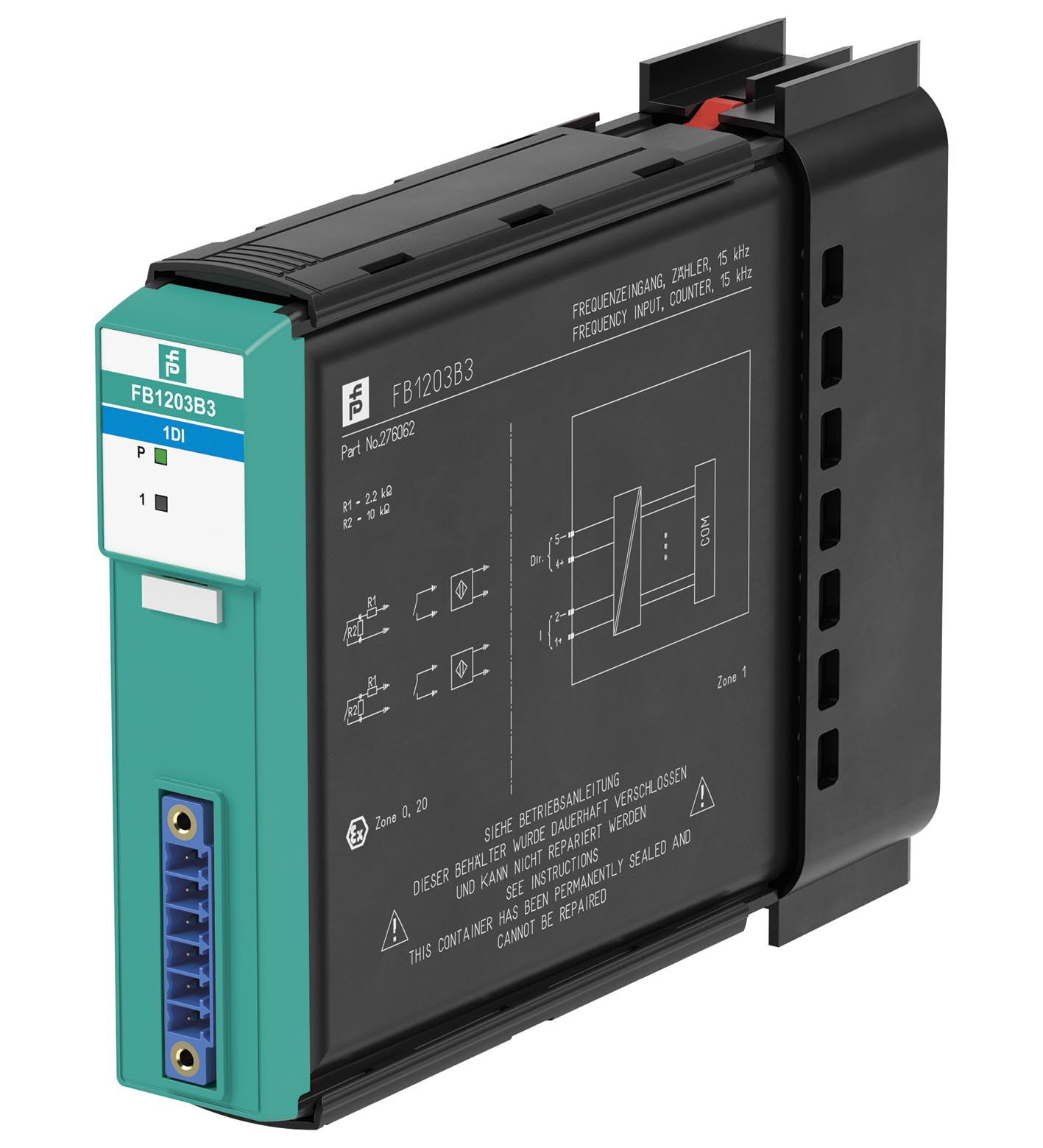

TECHNICAL DATA
规格参数
Slots
| Occupied slots | 1 |
|---|---|
| Connection | backplane bus |
| Rated voltage | 12 V DC , only in connection with the power supplies FB92** |
| Power dissipation | 0.65 W |
| Power consumption | 0.65 W |
| Connection | backplane bus |
| Interface | manufacturer-specific bus to standard com unit |
| Number of channels | 1 |
| Function | Function |
| FunctionCounter Function [2]frequencyFunction [3]direction of rotation | FunctionCounter Function [2]frequencyFunction [3]direction of rotation |
| Sensor interface | Sensor interface |
| ConnectionNAMUR sensorConnection [2]volt-free contact | ConnectionNAMUR sensorConnection [2]volt-free contact |

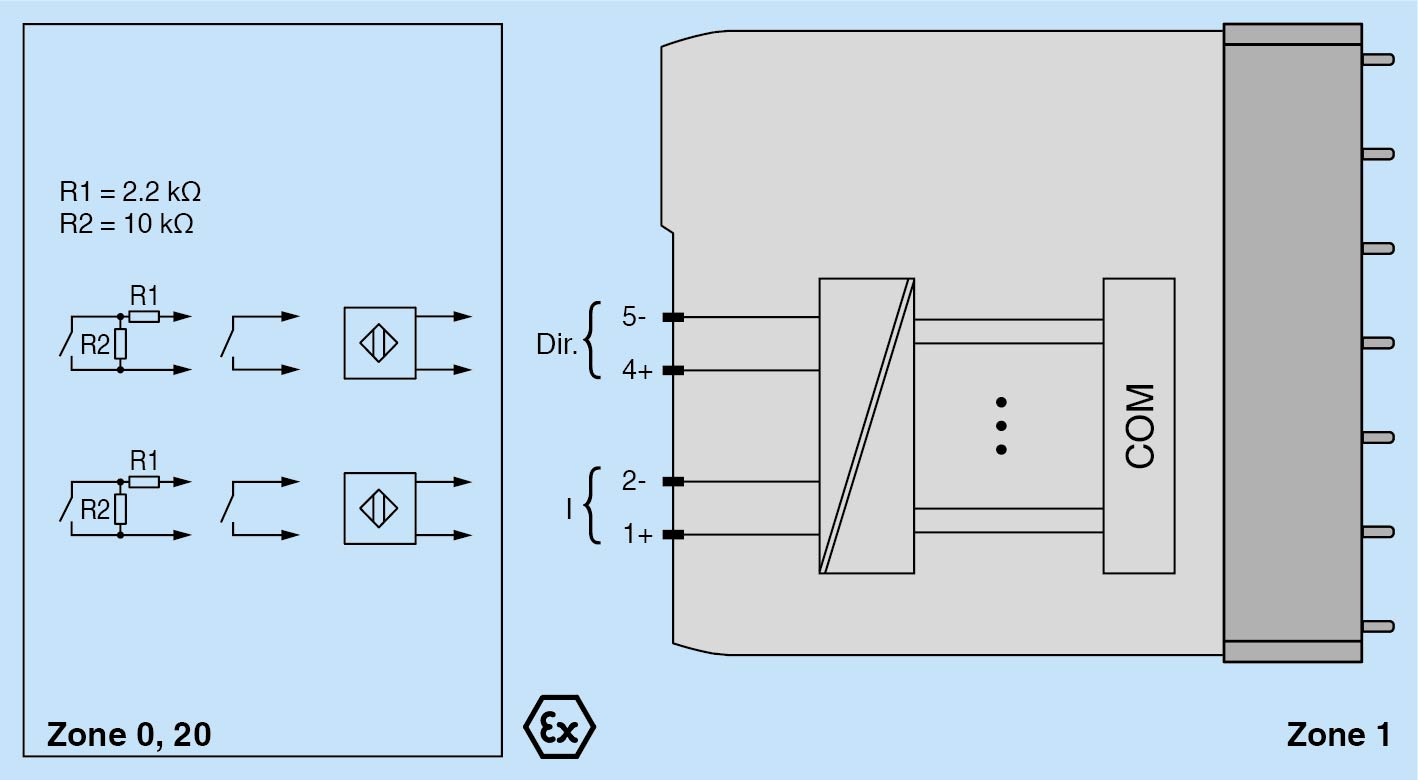

| Connection | channel I: 1+, 2/3-; direction: 4+, 5/6- |
| Rated values | acc. to EN 60947-5-6 (NAMUR) |
| Switching point/switching hysteresis | 1.2 ... 2.1 mA / ± 0.2 mA |
| Internal resistor | 1 kΩ |
| Line fault detection | can be switched on/off for each channel via configuration tool |
| Connectionmechanical switch with additional resistors (see connection diagram) proximity sensors without additional wiringShort-circuit< 360 ΩOpen-circuit< 0.35 mA | Connectionmechanical switch with additional resistors (see connection diagram) proximity sensors without additional wiringShort-circuit< 360 ΩOpen-circuit< 0.35 mA |
| Minimum pulse duration | 20 ms |
| Operating frequency | 0 ... 15 kHz ; in frequency + counter mode ... 40 Hz |
| Function | Counter |
| Function [2] | frequency |
| Function [3] | direction of rotation |
| Connection | NAMUR sensor |
| Connection [2] | volt-free contact |
| Connection | mechanical switch with additional resistors (see connection diagram) proximity sensors without additional wiring |
| Short-circuit | < 360 Ω |
| Open-circuit | < 0.35 mA |
| LED indication | LED green: supply LED red: line fault |
| Coding | optional mechanical coding via front socket |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Electromagnetic compatibility | NE 21 |
| Degree of protection | IEC 60529 |
| Environmental test | EN 60068-2-14 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Damaging gas | EN 60068-2-42 |
| Relative humidity | EN 60068-2-78 |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 (module) , a separate housing is required acc. to the system description |
| Connection | removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2) |
| Mass | approx. 420 g |
| Dimensions | Dimensions |
| Height107 mmWidth28 mmDepth132 mm | Height107 mmWidth28 mmDepth132 mm |
| Height | 107 mm |
| Width | 28 mm |
| Depth | 132 mm |
| EU-type examination certificate | Presafe 19 ATEX 14058U |
| Marking II 2(1)G Ex db eb q [ia Ga] IIC Gb II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I | Marking II 2(1)G Ex db eb q [ia Ga] IIC Gb II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I |
| Input | Input |
| VoltageUo10.5 VCurrentIo23.34 mAPowerPo61.27 mW (linear characteristic) | VoltageUo10.5 VCurrentIo23.34 mAPowerPo61.27 mW (linear characteristic) |
| Galvanic isolation | Galvanic isolation |
| Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V | Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012 |
| Marking | II 2(1)G Ex db eb q [ia Ga] IIC Gb II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I |
| Voltage | 10.5 V |
| Current | 23.34 mA |
| Power | 61.27 mW (linear characteristic) |
| Input/power supply, internal bus | safe electrical isolation acc. to EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012 |
| ATEX approval | Presafe 19 ATEX 14058U |
| IECEx approval | IECEx PRE 19.0013U |
| Approved forEx db eb q [ia Ga] IIC Gb [Ex ia Da] IIIC [Ex ia Ma] I | Approved forEx db eb q [ia Ga] IIC Gb [Ex ia Da] IIIC [Ex ia Ma] I |
| Approved for | Ex db eb q [ia Ga] IIC Gb [Ex ia Da] IIIC [Ex ia Ma] I |
| System information | The module has to be mounted in appropriate backplanes and housings (FB92**) in Zone 1, 2, 21, 22 or outside hazardous areas (gas or dust). Here, observe the corresponding EC-type examination certificate. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
