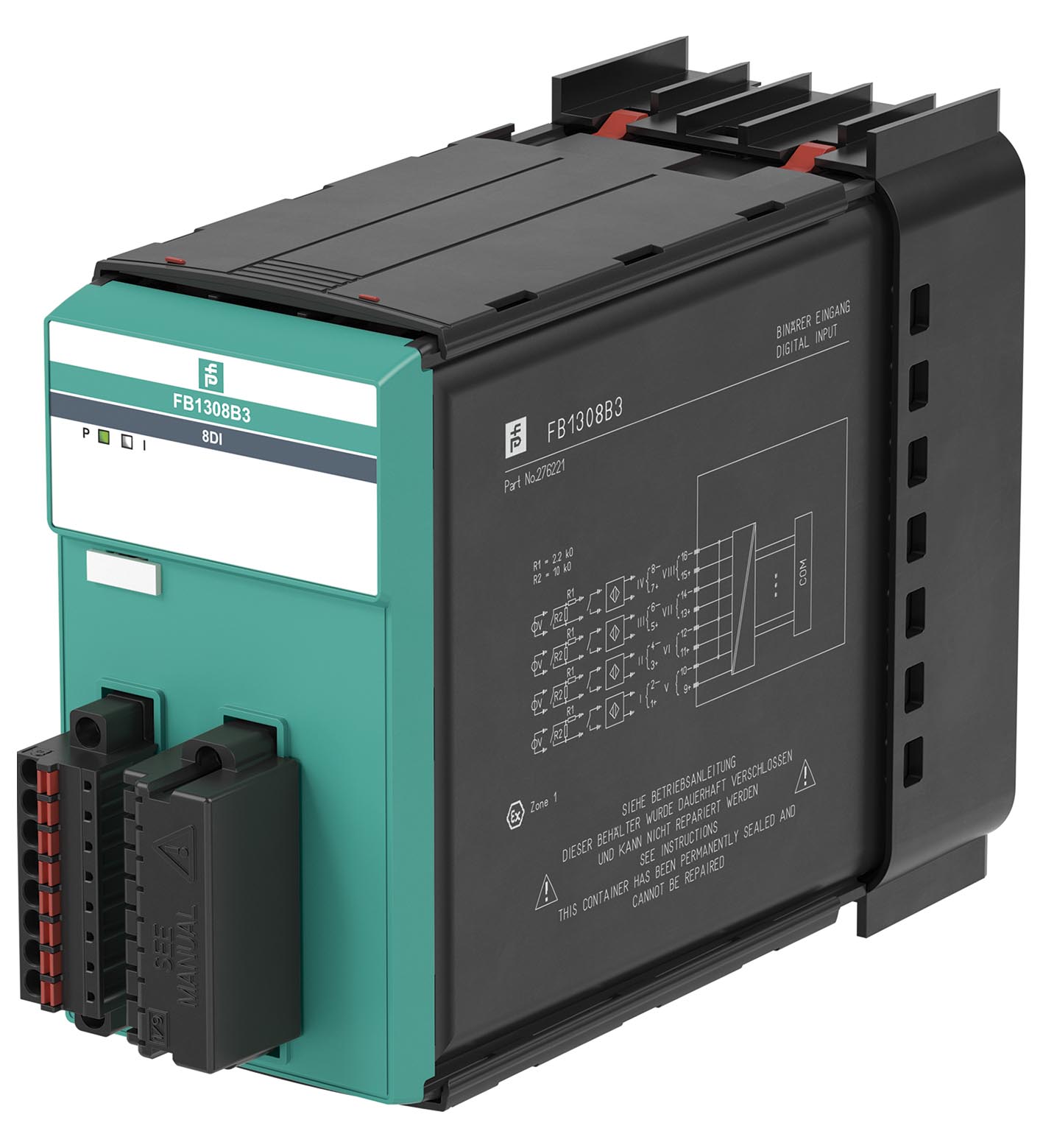

TECHNICAL DATA
| Occupied slots | 2 |
|---|---|
| Connection | backplane bus |
| Rated voltage | 12 V DC , only in connection with the power supplies FB92** |
| Power dissipation | 0.95 W |
| Power consumption | 0.95 W |
| Connection | backplane bus |
| Interface | manufacturer-specific bus to standard com unit |
| Number of channels | 8 |
| Sensor interface | Sensor interface |
| ConnectionNAMUR sensorConnection [2]volt-free contactConnection [3]active binary signal 24 V DC | ConnectionNAMUR sensorConnection [2]volt-free contactConnection [3]active binary signal 24 V DC |
| Connection | channel I: 1+, 2-; channel II: 3+, 4-; channel III: 5+, 6-; channel IV: 7+, 8-; channel V: 9+, 10-; channel VI: 11+, 12-; channel VII: 13+, 14-; channel VIII: 15+, 16- |
| Rated values | acc. to EN 60947-5-6 (NAMUR) |
| Switching point/switching hysteresis | 1.2 ... 2.1 mA / ± 0.2 mA |
| Internal resistor | 1 kΩ |
| Line fault detection | can be switched on/off for each channel via configuration tool , active signals (24 V, 5 V) without line fault detection |
| Connectionmechanical switch with additional resistors (see connection diagram) proximity sensors without additional wiringShort-circuit< 360 ΩOpen-circuit< 0.35 mA | Connectionmechanical switch with additional resistors (see connection diagram) proximity sensors without additional wiringShort-circuit< 360 ΩOpen-circuit< 0.35 mA |
| Digital signals (active) | configurable 24 V 5 V |
| Switching point: ON> 8 V > 2.7 VSwitching point: OFF< 3 V < 2.3 V | Switching point: ON> 8 V > 2.7 VSwitching point: OFF< 3 V < 2.3 V |
| Minimum pulse duration | 1 ms |
| Connection | NAMUR sensor |
| Connection [2] | volt-free contact |
| Connection [3] | active binary signal 24 V DC |

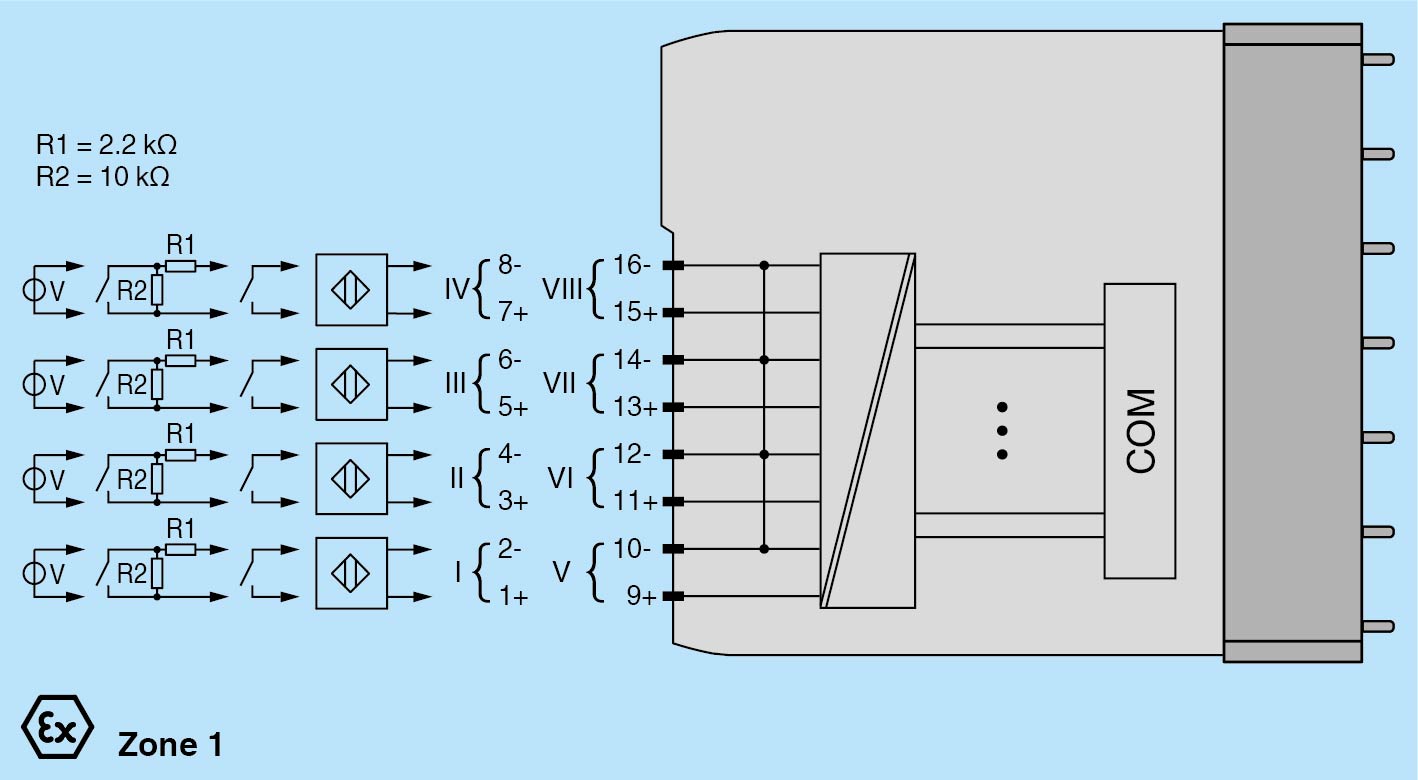

| Connection | mechanical switch with additional resistors (see connection diagram) proximity sensors without additional wiring |
| Short-circuit | < 360 Ω |
| Open-circuit | < 0.35 mA |
| Switching point: ON | > 8 V > 2.7 V |
| Switching point: OFF | < 3 V < 2.3 V |
| LED indication | LED green: supply LED red: line fault , red flashing: communication error |
| Coding | optional mechanical coding via front socket |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Degree of protection | IEC 60529:2000 |
| Environmental test | EN 60068-2-14:2009 |
| Shock resistance | EN 60068-2-27:2009 |
| Vibration resistance | EN 60068-2-6:2008 |
| Damaging gas | EN 60068-2-42:2003 |
| Relative humidity | EN 60068-2-78:2001 |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 (module) , a separate housing is required acc. to the system description |
| Connection | Ex e spring terminal with protective cover |
| Mass | approx. 750 g |
| Dimensions | Dimensions |
| Height107 mmWidth57 mmDepth132 mm | Height107 mmWidth57 mmDepth132 mm |
| Height | 107 mm |
| Width | 57 mm |
| Depth | 132 mm |
| EU-type examination certificate | FIDI 21 ATEX 0012 U |
| Marking II 2G Ex db eb q IIC Gb | Marking II 2G Ex db eb q IIC Gb |
| Galvanic isolation | Galvanic isolation |
| Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11:2007 , voltage peak value 375 V | Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11:2007 , voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2018 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 | Directive 2014/34/EUEN 60079-0:2018 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 |
| Marking | II 2G Ex db eb q IIC Gb |
| Input/power supply, internal bus | safe electrical isolation acc. to EN 60079-11:2007 , voltage peak value 375 V |
| Directive 2014/34/EU | EN 60079-0:2018 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 |
| ATEX approval | FIDI 21 ATEX 0012 U |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx FIDI 21.0002UIECEx markingEx db eb q IIC Gb | IECEx certificateIECEx FIDI 21.0002UIECEx markingEx db eb q IIC Gb |
| IECEx certificate | IECEx FIDI 21.0002U |
| IECEx marking | Ex db eb q IIC Gb |
| System information | The module has to be mounted in appropriate backplanes (FB92**) in Zone 1, 2, or outside hazardous areas. Observe the corresponding EC-type examination certificate. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
