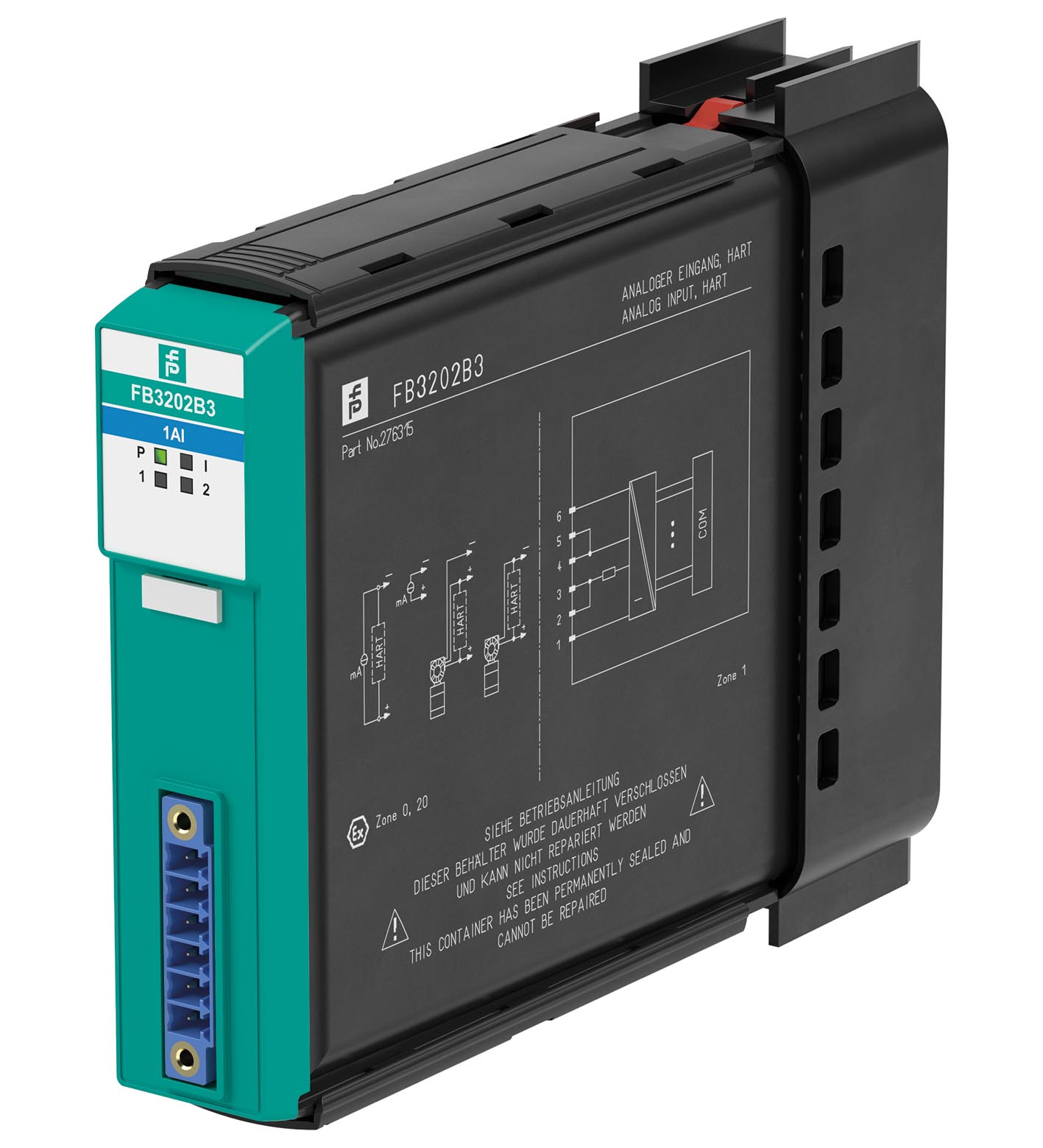

TECHNICAL DATA
规格参数
Slots
| Occupied slots | 1 |
|---|---|
| Connection | backplane bus |
| Rated voltage | 12 V DC , only in connection with the power supplies FB92** |
| Input voltage range | U |
| Power dissipation | 0.75 W |
| Power consumption | 1.1 W |
| Connection | backplane bus |
| Interface | manufacturer-specific bus to standard com unit |
| Number of channels | 1 |
| Suitable field devices | Suitable field devices |
| Field devicepressure converterField device [2]flow converterField device [3]level converterField device [4]Temperature Converter | Field devicepressure converterField device [2]flow converterField device [3]level converterField device [4]Temperature Converter |
| Field device interface | Field device interface |
| Connection2-wire transmitterConnection [2]3-wire transmitterConnection [3]4-wire transmitter | Connection2-wire transmitterConnection [2]3-wire transmitterConnection [3]4-wire transmitter |
| Connection | 2-wire transmitter (HART):supply circuit: 2/3+, 4/5-3-wire transmitter (HART):supply circuit: 2/3+, 6-measuring circuit: 4/5+, 6-4-wire transmitter (separately powered):measuring circuit: 4/5+, 6-HART measuring circuit: 1+, 6- |
| Transmitter supply voltage | min. 15 V at 20 mA ; 21.5 V at 4 mA |
| Input resistance | 15 Ω (terminals 5, 6) 236 Ω (terminals 1, 6) HART |
| Line fault detection | can be switched on/off for each channel via configuration tool , configurable via configuration tool |
| Short-circuitfactory setting: > 22 mA configurable between 0 ... 26 mAOpen-circuitfactory setting: < 1 mA configurable between 0 ... 26 mA | Short-circuitfactory setting: > 22 mA configurable between 0 ... 26 mAOpen-circuitfactory setting: < 1 mA configurable between 0 ... 26 mA |
| HART communication | yes |
| HART secondary variable | yes |
| Field device | pressure converter |
| Field device [2] | flow converter |
| Field device [3] | level converter |
| Field device [4] | Temperature Converter |
| Connection | 2-wire transmitter |
| Connection [2] | 3-wire transmitter |
| Connection [3] | 4-wire transmitter |
| Short-circuit | factory setting: > 22 mA configurable between 0 ... 26 mA |
| Open-circuit | factory setting: < 1 mA configurable between 0 ... 26 mA |
| Deviation | Deviation |
| After calibration0.1 % of the signal range at 20 °C (68 °F)Influence of ambient temperature0.1 %/10 K of the signal range | After calibration0.1 % of the signal range at 20 °C (68 °F)Influence of ambient temperature0.1 %/10 K of the signal range |
| Resolution | 12 Bit (0 ... 26 mA) |
| Refresh time | 100 ms |
| After calibration | 0.1 % of the signal range at 20 °C (68 °F) |
| Influence of ambient temperature | 0.1 %/10 K of the signal range |
| LED indication | Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: communication error , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1) red: line fault (lead breakage or short circuit) Status LED (2) yellow: Live Zero monitoring |
| Coding | optional mechanical coding via front socket |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2006 | Directive 2014/30/EUEN 61326-1:2006 |
| Directive 2014/30/EU | EN 61326-1:2006 |
| Electromagnetic compatibility | NE 21:2007 |
| Degree of protection | IEC 60529:2000 |
| Environmental test | EN 60068-2-14:2009 |
| Shock resistance | EN 60068-2-27:2009 |
| Vibration resistance | EN 60068-2-6:2008 |
| Damaging gas | EN 60068-2-42:2003 |
| Relative humidity | EN 60068-2-78:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 (module) , a separate housing is required acc. to the system description |
| Connection | removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2) |
| Mass | approx. 350 g |
| Dimensions | 28 x 107 x 132 mm (1.1 x 4.2 x 5.2 inch) |
| EU-type examination certificate | FIDI 24 ATEX 0082U |
| Marking II 2(1)G Ex db q [ia Ga] IIC Gb [exsign] II (1)D [Ex ia Da] IIIC | Marking II 2(1)G Ex db q [ia Ga] IIC Gb [exsign] II (1)D [Ex ia Da] IIIC |
| Supply | Supply |
| VoltageUo27 VCurrentIo92 mAPowerPo619 mW (linear characteristic) | VoltageUo27 VCurrentIo92 mAPowerPo619 mW (linear characteristic) |
| Connection 1 to 6 | Connection 1 to 6 |
| Voltage8.9 VCurrent4 mAPower24 mW (trapezoid characteristic curve) | Voltage8.9 VCurrent4 mAPower24 mW (trapezoid characteristic curve) |
| Input | Input |
| VoltageUo0.7 VCurrentIo7 mAPowerPo5 mW (trapezoid characteristic curve)Internal capacitanceCi242 nFInternal inductanceLi0 mH | VoltageUo0.7 VCurrentIo7 mAPowerPo5 mW (trapezoid characteristic curve)Internal capacitanceCi242 nFInternal inductanceLi0 mH |
| Galvanic isolation | Galvanic isolation |
| Input/power supply, internal bussafe electrical isolation acc. to EN IEC 60079-11:2024 , voltage peak value 375 V | Input/power supply, internal bussafe electrical isolation acc. to EN IEC 60079-11:2024 , voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-5:2015/A1:2024 EN 60079-11:2012 EN IEC 60079-11:2024 | Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-5:2015/A1:2024 EN 60079-11:2012 EN IEC 60079-11:2024 |
| Marking | II 2(1)G Ex db q [ia Ga] IIC Gb [exsign] II (1)D [Ex ia Da] IIIC |
| Voltage | 27 V |
| Current | 92 mA |
| Power | 619 mW (linear characteristic) |
| Voltage | 8.9 V |
| Current | 4 mA |
| Power | 24 mW (trapezoid characteristic curve) |
| Voltage | 0.7 V |
| Current | 7 mA |
| Power | 5 mW (trapezoid characteristic curve) |
| Internal capacitance | 242 nF |
| Internal inductance | 0 mH |
| Input/power supply, internal bus | safe electrical isolation acc. to EN IEC 60079-11:2024 , voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-5:2015/A1:2024 EN 60079-11:2012 EN IEC 60079-11:2024 |
| ATEX approval | FIDI 24 ATEX 0082U |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx FIDI 24.0018UIECEx markingEx db q [ia Ga] IIC Gb [Ex ia Da] IIIC | IECEx certificateIECEx FIDI 24.0018UIECEx markingEx db q [ia Ga] IIC Gb [Ex ia Da] IIIC |
| IECEx certificate | IECEx FIDI 24.0018U |
| IECEx marking | Ex db q [ia Ga] IIC Gb [Ex ia Da] IIIC |
| System information | The module has to be mounted in appropriate backplanes and housings (FB92**) in Zone 1, 2, 21, 22 or outside hazardous areas (gas or dust). Here, observe the corresponding EC-type examination certificate. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
