倍加福

FB4205B3

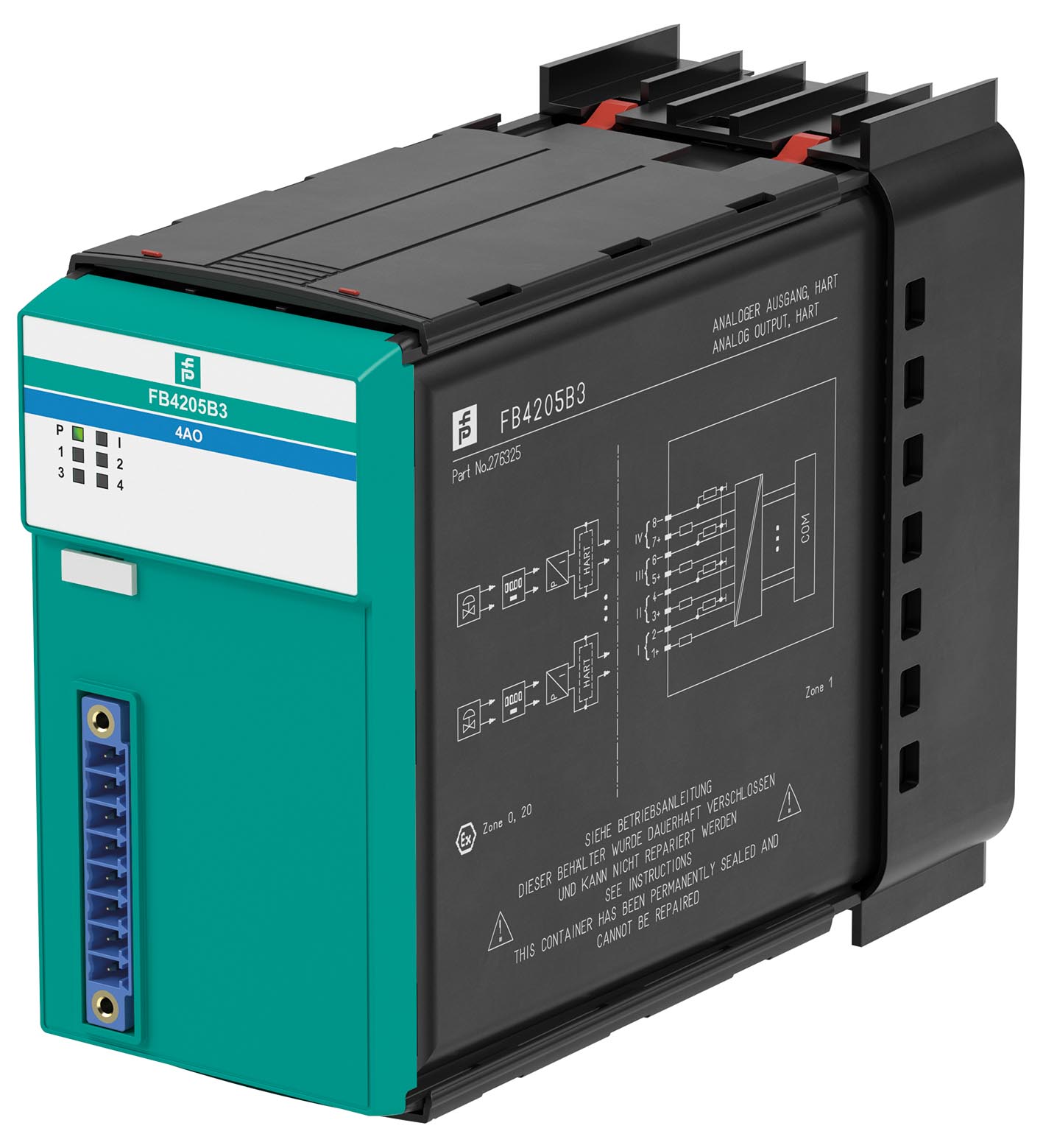

FB4205B3 HART Output Isolator

订货号: 276325
产品分类: FB系列

HART Output Isolator

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Slots

Occupied slots	2
Connection	backplane bus
Rated voltage	12 V DC , only in connection with the power supplies FB92**
Power dissipation	1.5 W
Power consumption	3 W
Connection	backplane bus
Interface	manufacturer-specific bus to standard com unit
HART communication	yes
HART secondary variable	no
Number of channels	4
Suitable field devices	Suitable field devices
Field deviceProportional ValveField device [2]I/P convertersField device [3]on-site display	Field deviceProportional ValveField device [2]I/P convertersField device [3]on-site display

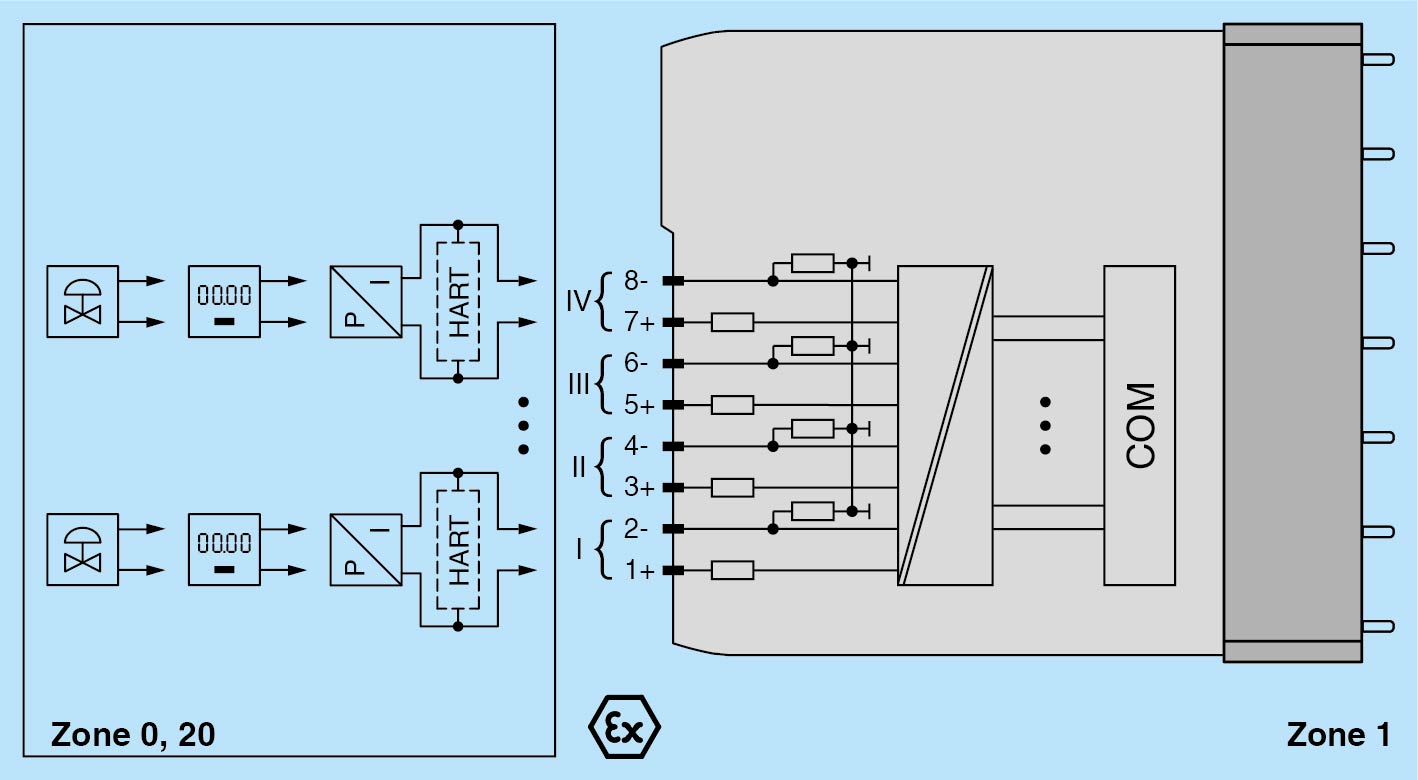

Connection	terminals 1+, 2-; 3+, 4-; 5+, 6-; 7+, 8-
Current	0 ... 20 mA short-circuit protected
Line fault detection	can be switched on/off for each channel via configuration tool , configurable via configuration tool
Short-circuitNoOpen-circuitdeviation of preset output value > 0.5 mA	Short-circuitNoOpen-circuitdeviation of preset output value > 0.5 mA
Load	max. 750 Ω at 20 mA
HART communication	yes
HART secondary variable	yes
Watchdog	within 0.5 s the device goes in safe state, e.g. after loss of communication
Field device	Proportional Valve
Field device [2]	I/P converters
Field device [3]	on-site display
Short-circuit	No
Open-circuit	deviation of preset output value > 0.5 mA
Deviation	Deviation
After calibration0.1 % of the signal range at 20 °C (68 °F)Influence of ambient temperature0.1 %/10 K of the signal range	After calibration0.1 % of the signal range at 20 °C (68 °F)Influence of ambient temperature0.1 %/10 K of the signal range
Resolution	12 Bit (0 ... 26 mA)
Refresh time	approx. 100 ms (4 channels)
After calibration	0.1 % of the signal range at 20 °C (68 °F)
Influence of ambient temperature	0.1 %/10 K of the signal range
LED indication	Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: communication error , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1-4) red: line fault (lead breakage or short circuit)
Coding	optional mechanical coding via front socket
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Electromagnetic compatibility	NE 21:2007
Degree of protection	IEC 60529:2000
Environmental test	EN 60068-2-14:2009
Shock resistance	EN 60068-2-27:2009
Vibration resistance	EN 60068-2-6:2008
Damaging gas	EN 60068-2-42:2003
Relative humidity	EN 60068-2-78:2001
Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % non-condensing
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20 (module) , a separate housing is required acc. to the system description
Connection	removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2)
Mass	approx. 750 g
Dimensions	Dimensions
Height107 mmWidth57 mmDepth132 mm	Height107 mmWidth57 mmDepth132 mm
Height	107 mm
Width	57 mm
Depth	132 mm
EU-type examination certificate	Presafe 19 ATEX 14057U
Marking II 2(1)G Ex db eb q [ia Ga] IIC Gb II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I	Marking II 2(1)G Ex db eb q [ia Ga] IIC Gb II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I
Supply	Supply
VoltageUo27 VCurrentIo87 mAPowerPo575 mW (linear characteristic)	VoltageUo27 VCurrentIo87 mAPowerPo575 mW (linear characteristic)
Input	Ex ia
Output	Ex ia
VoltageUo27 VCurrentIo87 mAPowerPo575 mW (linear characteristic)	VoltageUo27 VCurrentIo87 mAPowerPo575 mW (linear characteristic)
Galvanic isolation	Galvanic isolation
Output/power supply, internal bussafe electrical isolation acc. to EN 60079-11:2007 , voltage peak value 375 V	Output/power supply, internal bussafe electrical isolation acc. to EN 60079-11:2007 , voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012
Marking	II 2(1)G Ex db eb q [ia Ga] IIC Gb II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I
Voltage	27 V
Current	87 mA
Power	575 mW (linear characteristic)
Voltage	27 V
Current	87 mA
Power	575 mW (linear characteristic)
Output/power supply, internal bus	safe electrical isolation acc. to EN 60079-11:2007 , voltage peak value 375 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012
ATEX approval	Presafe 19 ATEX 14057U
IECEx approval	IECEx PRE 19.0012U
Approved forEx db eb q [ia Ga] IIC Gb [Ex ia Da] IIIC [Ex ia Ma] I	Approved forEx db eb q [ia Ga] IIC Gb [Ex ia Da] IIIC [Ex ia Ma] I
Approved for	Ex db eb q [ia Ga] IIC Gb [Ex ia Da] IIIC [Ex ia Ma] I
System information	The module has to be mounted in appropriate backplanes and housings (FB92**) in Zone 1, 2, 21, 22 or outside hazardous areas (gas or dust). Here, observe the corresponding EC-type examination certificate.
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
