FB5204B3

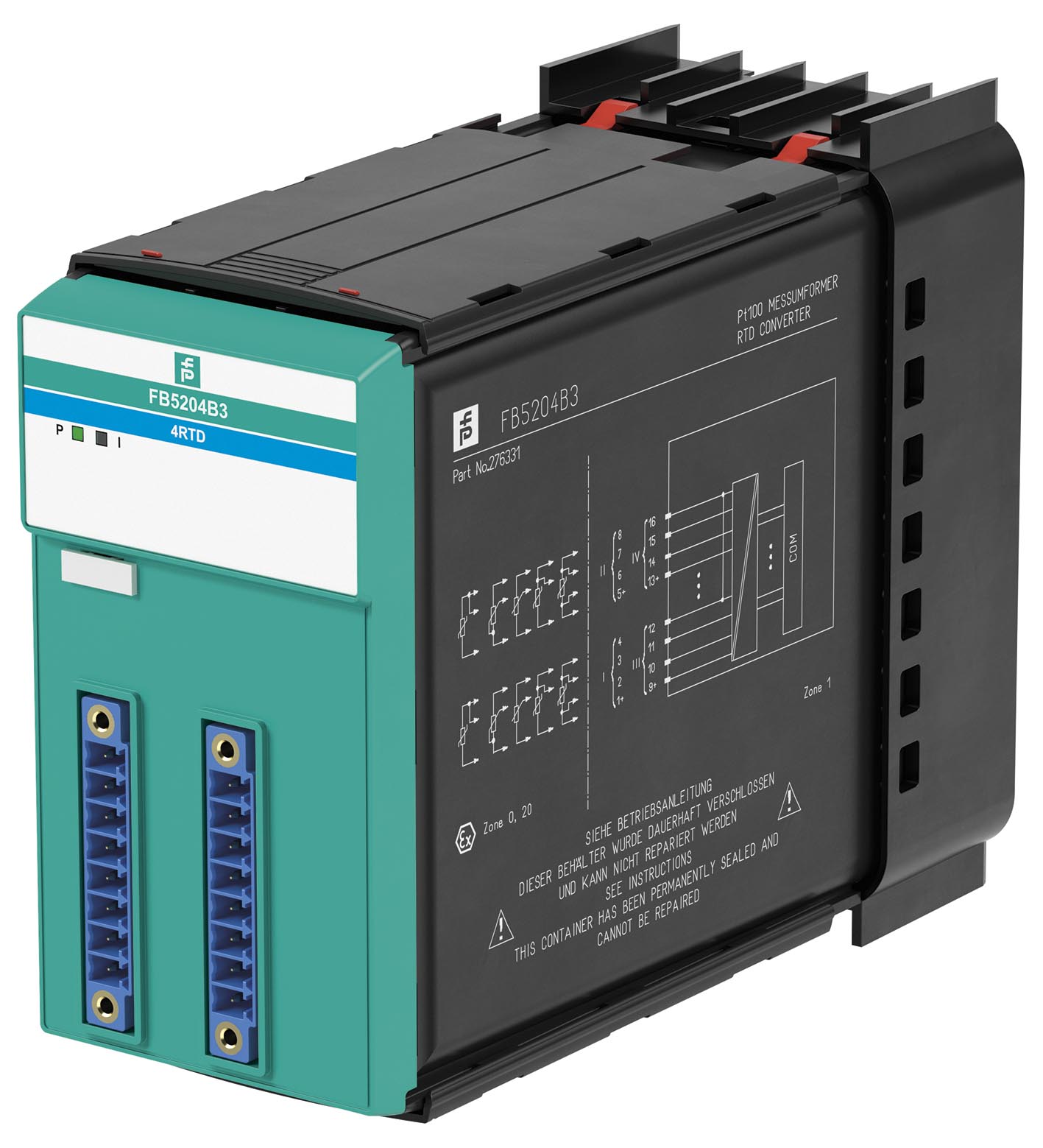

FB5204B3 RTD Converter

订货号: 276331
产品分类: FB系列

RTD Converter

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Slots

Occupied slots	2
Connection	backplane bus
Rated voltage	12 V DC , only in connection with the power supplies FB92**
Power dissipation	0.35 W
Power consumption	0.35 W
Connection	backplane bus
Interface	manufacturer-specific bus to standard com unit
Number of channels	4
Suitable field devices	Suitable field devices
Field deviceresistance thermometerField device [2]slide-wire sensorsField device [3]potentiometer	Field deviceresistance thermometerField device [2]slide-wire sensorsField device [3]potentiometer
Field device interface	Field device interface
Connection2-wire sensorConnection [2]3-wire sensorConnection [3]4-wire sensor	Connection2-wire sensorConnection [2]3-wire sensorConnection [3]4-wire sensor

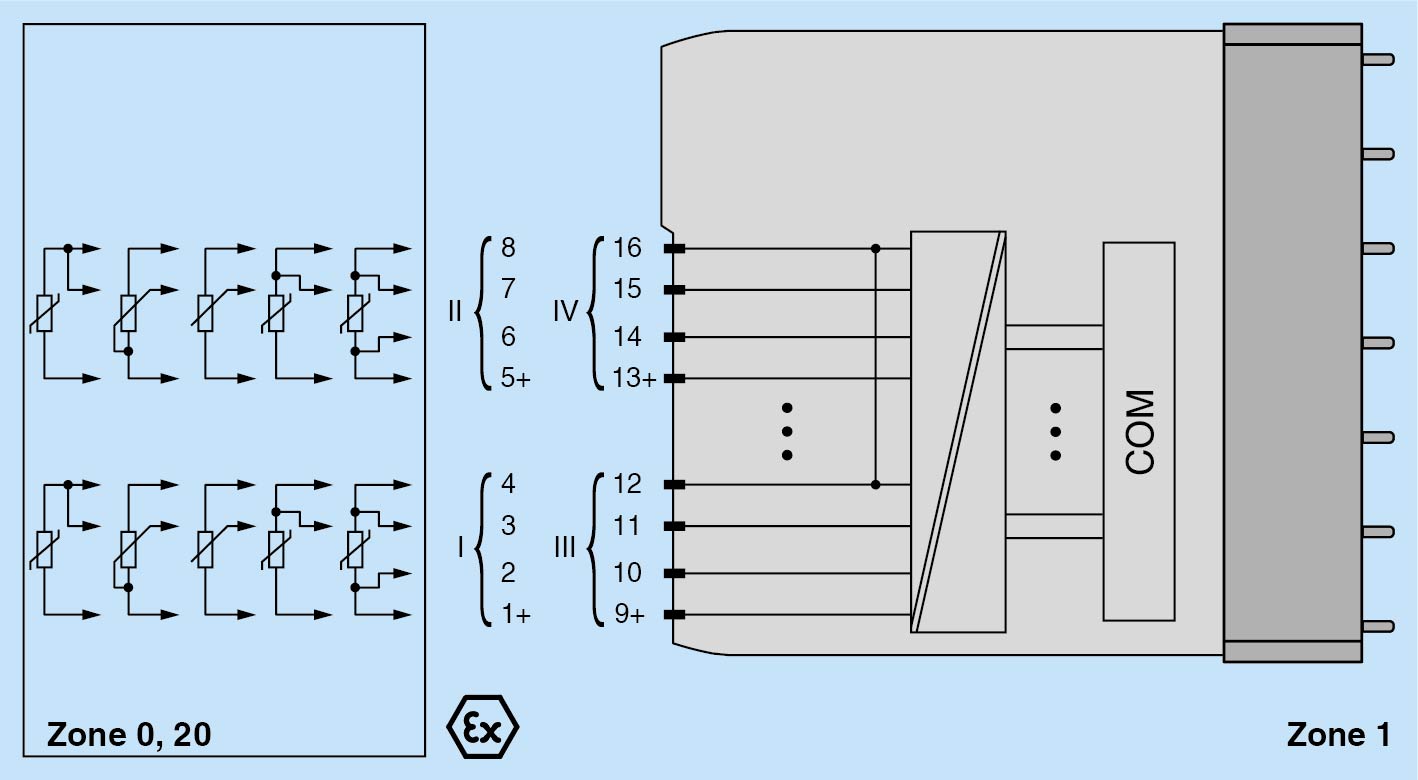

Connection	channel I: resistance/potentiometer input 1 ... 4channel II: resistance/potentiometer input 5 ... 8channel III: resistance/potentiometer input 9 ... 12channel IV: resistance/potentiometer input 13 ... 16
Measuring range	Pt100 (18-390 Ω) (500 Ω incl. line resistance)Pt200 (37-780 Ω)Pt500 (92-1952 Ω)Pt1000 (185-3905 Ω)Ni100 (69-270 Ω)Ni500 (345-1350 Ω)Ni1000 (690-2700 Ω)
Slide-wire sensor	0 ... 10 kΩ
Measuring current	200 µA
Smallest span	50 Ω for 0.1 % accuracy
Linearity error	0.1 %
Conversion time	max. 500 ms (4 channels) max. 1 s (for 4x 3-wire Pt100)
Busy after download	5 ... 15 s
Lead resistance	max. 50 Ω per strand
Line fault detection	can be switched on/off for each channel via configuration tool
Short-circuit< 10 ΩOpen-circuit> 1 kΩ	Short-circuit< 10 ΩOpen-circuit> 1 kΩ
Field device	resistance thermometer
Field device [2]	slide-wire sensors
Field device [3]	potentiometer
Connection	2-wire sensor
Connection [2]	3-wire sensor
Connection [3]	4-wire sensor
Short-circuit	< 10 Ω
Open-circuit	> 1 kΩ
Deviation	Deviation
Influence of ambient temperaturemax. 0,1 %/10 K	Influence of ambient temperaturemax. 0,1 %/10 K
Influence of ambient temperature	max. 0,1 %/10 K
LED indication	LED green: supply LED red: line fault, collective alarm , flashing: communication error
Coding	optional mechanical coding via front socket
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Electromagnetic compatibility	NE 21
Degree of protection	IEC 60529
Environmental test	EN 60068-2-14
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Damaging gas	EN 60068-2-42
Relative humidity	EN 60068-2-78
Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % non-condensing
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20 (module) , a separate housing is required acc. to the system description
Connection	removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2)
Mass	approx. 950 g
Dimensions	Dimensions
Height107 mmWidth57 mmDepth132 mm	Height107 mmWidth57 mmDepth132 mm
Height	107 mm
Width	57 mm
Depth	132 mm
EU-type examination certificate	Presafe 19 ATEX 14058U
Marking II 2(1)G Ex db eb q [ia Ga] IIC Gb II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I	Marking II 2(1)G Ex db eb q [ia Ga] IIC Gb II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I
Input	Input
VoltageUo7.14 VCurrentIo70 mAPowerPo123 mW (linear characteristic)	VoltageUo7.14 VCurrentIo70 mAPowerPo123 mW (linear characteristic)
Galvanic isolation	Galvanic isolation
Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V	Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012
Marking	II 2(1)G Ex db eb q [ia Ga] IIC Gb II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I
Voltage	7.14 V
Current	70 mA
Power	123 mW (linear characteristic)
Input/power supply, internal bus	safe electrical isolation acc. to EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012
ATEX approval	Presafe 19 ATEX 14058U
IECEx approval	IECEx approval
IECEx certificateIECEx PRE 19.0013UIECEx markingEx db eb q [ia Ga] IIC Gb [Ex ia Da] IIIC [Ex ia Ma] I	IECEx certificateIECEx PRE 19.0013UIECEx markingEx db eb q [ia Ga] IIC Gb [Ex ia Da] IIIC [Ex ia Ma] I
IECEx certificate	IECEx PRE 19.0013U
IECEx marking	Ex db eb q [ia Ga] IIC Gb [Ex ia Da] IIIC [Ex ia Ma] I
System information	The module has to be mounted in appropriate backplanes and housings (FB92**) in Zone 1, 2, 21, 22 or outside hazardous areas (gas or dust). Here, observe the corresponding EC-type examination certificate.
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
