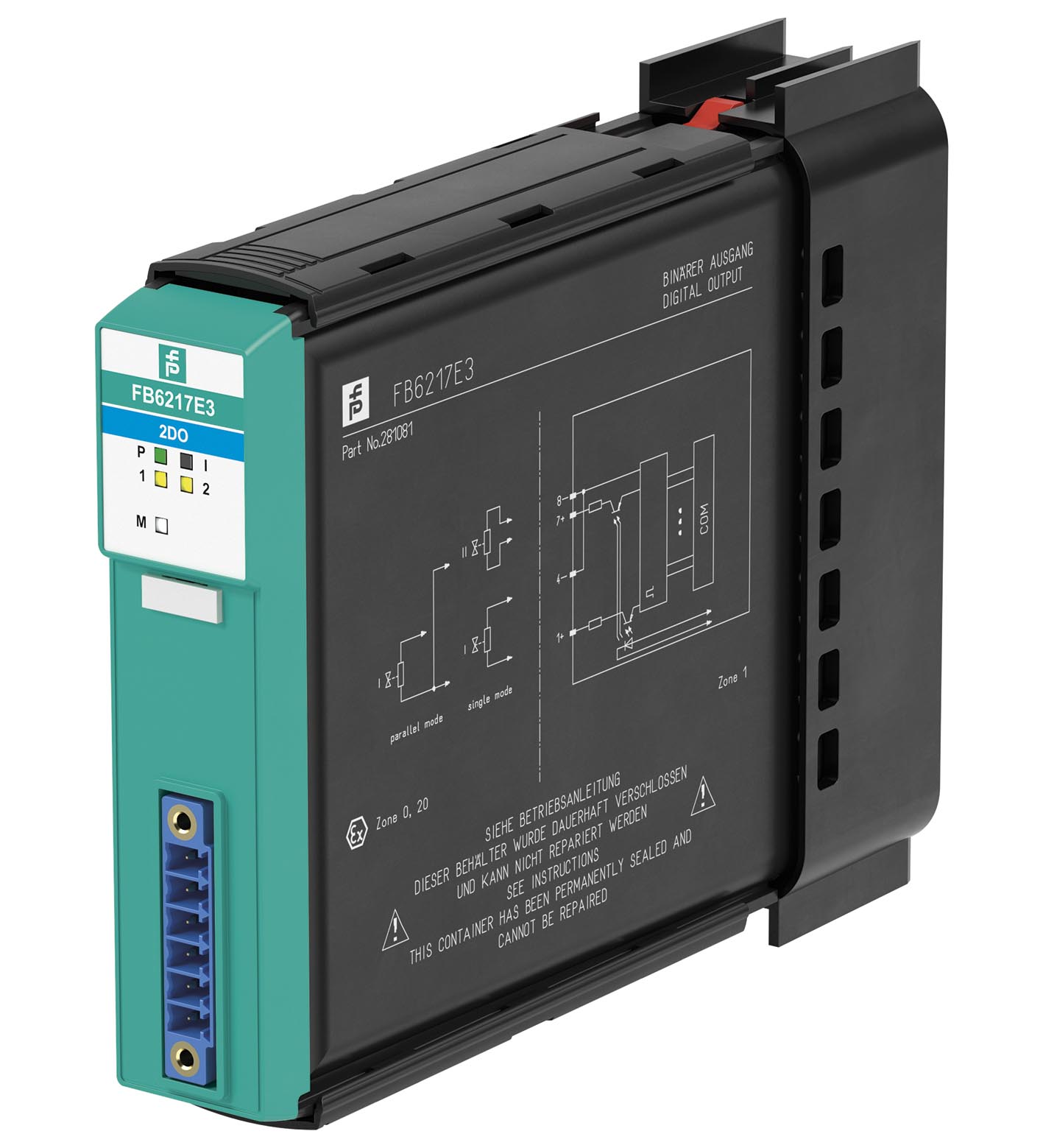

TECHNICAL DATA
| Connection | backplane bus / booster terminals |
|---|---|
| Rated voltage | 12 V DC , only in connection with the power supplies FB92** |
| Power dissipation | 1.7 W |
| Power consumption | 2.7 W |
| Connection | backplane bus |
| Interface | manufacturer-specific bus to standard com unit |
| Number of channels | 2 |
| Suitable field devices | Suitable field devices |
| Field deviceSolenoid ValveField device [2]audible alarmField device [3]visual alarm | Field deviceSolenoid ValveField device [2]audible alarmField device [3]visual alarm |

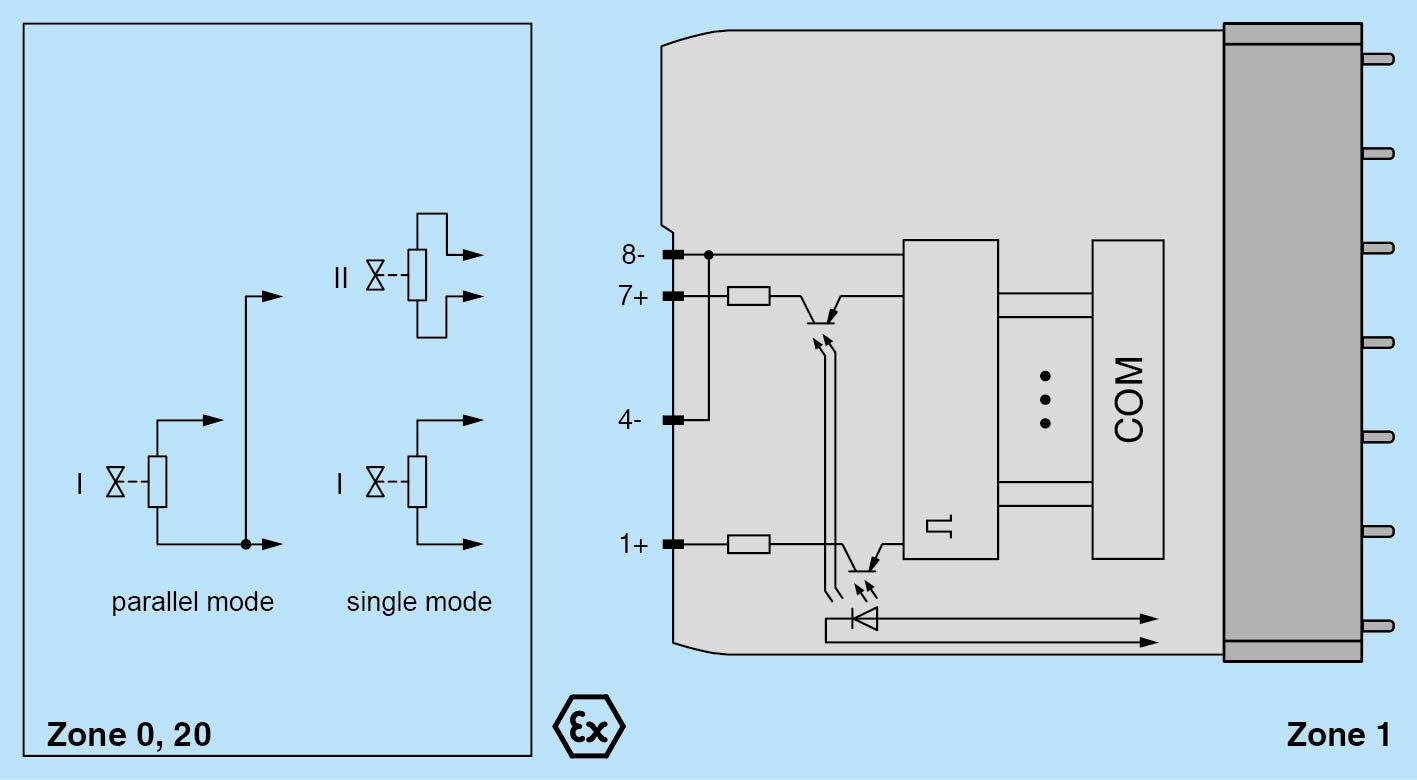

| Connection | channel I: 1+, 4/5/6/8-; channel II: 7+, 4/5/6/8- |
| Internal resistor | 131 Ω , both channels parallel 66 Ω |
| Current limit | 50 mA both channels parallel 100 mA |
| Open loop voltage | 16.5 V , both channels parallel 16.5 V |
| Line fault detection | can be switched on/off for each channel via configuration tool also when turned off (every 2.5 s the valve is turned on for 2 ms) |
| Short-circuit< 50 ΩOpen-circuit> 10 kΩ | Short-circuit< 50 ΩOpen-circuit> 10 kΩ |
| Response time | 10 ms (depending on bus cycle time) |
| Watchdog | within 0.5 s the device goes in safe state, e.g. after loss of communication |
| Field device | Solenoid Valve |
| Field device [2] | audible alarm |
| Field device [3] | visual alarm |
| Short-circuit | < 50 Ω |
| Open-circuit | > 10 kΩ |
| LED indication | Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: communication error , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1, 2) red: line fault (lead breakage or short circuit) , yellow: state of digital I/O (0/1) Mode LED (M) white: Parallel operation of outputs |
| Coding | optional mechanical coding via front socket |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Electromagnetic compatibility | NE 21 |
| Degree of protection | IEC 60529 |
| Environmental test | EN 60068-2-14 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Damaging gas | EN 60068-2-42 |
| Relative humidity | EN 60068-2-78 |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 (module) , a separate housing is required acc. to the system description |
| Connection | removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2) |
| Mass | approx. 420 g |
| Dimensions | Dimensions |
| Height107 mmWidth28 mmDepth132 mm | Height107 mmWidth28 mmDepth132 mm |
| Height | 107 mm |
| Width | 28 mm |
| Depth | 132 mm |
| EU-type examination certificate | Presafe 19 ATEX 14054U |
| Marking II 2(1)G Ex db eb q [ia Ga] IIC Gb II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I | Marking II 2(1)G Ex db eb q [ia Ga] IIC Gb II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I |
| Output | Ex ia |
| VoltageUo17.8 VCurrentIo162 mAPowerPo721 mWInternal capacitanceCi12 nFInternal inductanceLi0 mH | VoltageUo17.8 VCurrentIo162 mAPowerPo721 mWInternal capacitanceCi12 nFInternal inductanceLi0 mH |
| Output (both channels parallel) | Output (both channels parallel) |
| VoltageUo17.8 VCurrentIo324 mAPowerPo1442 mWInternal capacitanceCi24 nFInternal inductanceLi0 mH | VoltageUo17.8 VCurrentIo324 mAPowerPo1442 mWInternal capacitanceCi24 nFInternal inductanceLi0 mH |
| Galvanic isolation | Galvanic isolation |
| Output/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V | Output/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012 | Directive 2014/34/EUEN 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012 |
| Marking | II 2(1)G Ex db eb q [ia Ga] IIC Gb II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I |
| Voltage | 17.8 V |
| Current | 162 mA |
| Power | 721 mW |
| Internal capacitance | 12 nF |
| Internal inductance | 0 mH |
| Voltage | 17.8 V |
| Current | 324 mA |
| Power | 1442 mW |
| Internal capacitance | 24 nF |
| Internal inductance | 0 mH |
| Output/power supply, internal bus | safe electrical isolation acc. to EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012 |
| ATEX approval | Presafe 19 ATEX 14054U |
| IECEx approval | IECEx PRE 19.0009U |
| Approved forEx db eb q [ia Ga] IIC Gb [Ex ia Da] IIIC [Ex ia Ma] I | Approved forEx db eb q [ia Ga] IIC Gb [Ex ia Da] IIIC [Ex ia Ma] I |
| Approved for | Ex db eb q [ia Ga] IIC Gb [Ex ia Da] IIIC [Ex ia Ma] I |
| System information | The module has to be mounted in appropriate backplanes and housings (FB92**) in Zone 1, 2, 21, 22 or outside hazardous areas (gas or dust). Here, observe the corresponding EC-type examination certificate. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
