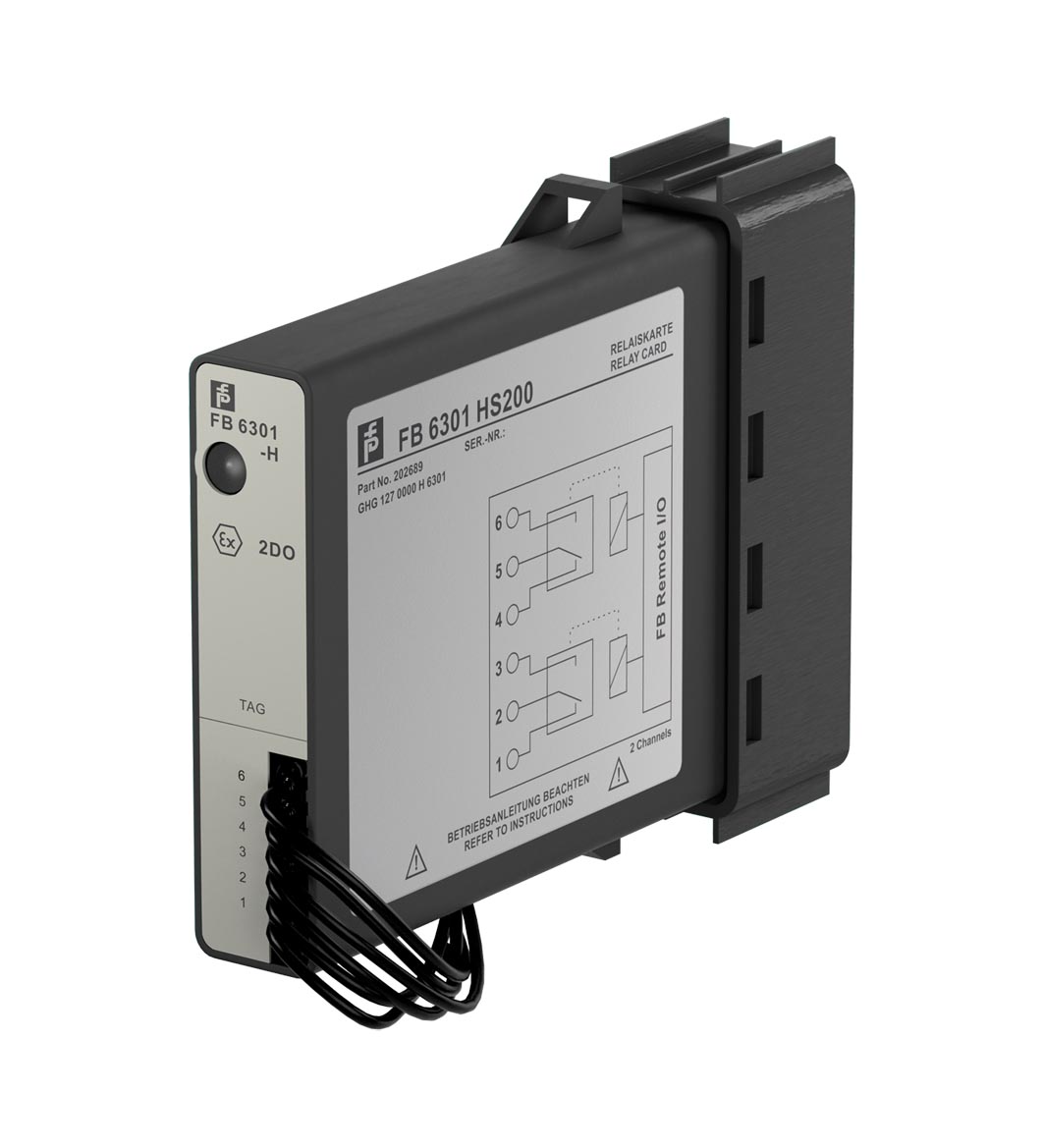

TECHNICAL DATA
规格参数
Supply
| Connection | backplane bus |
|---|---|
| Rated voltage | 12 V DC , only in connection with the power supplies FB92** |
| Power consumption | 0.65 W |
| Connection | backplane bus |
| Interface | manufacturer-specific bus to standard com unit |
| Number of channels | 2 |

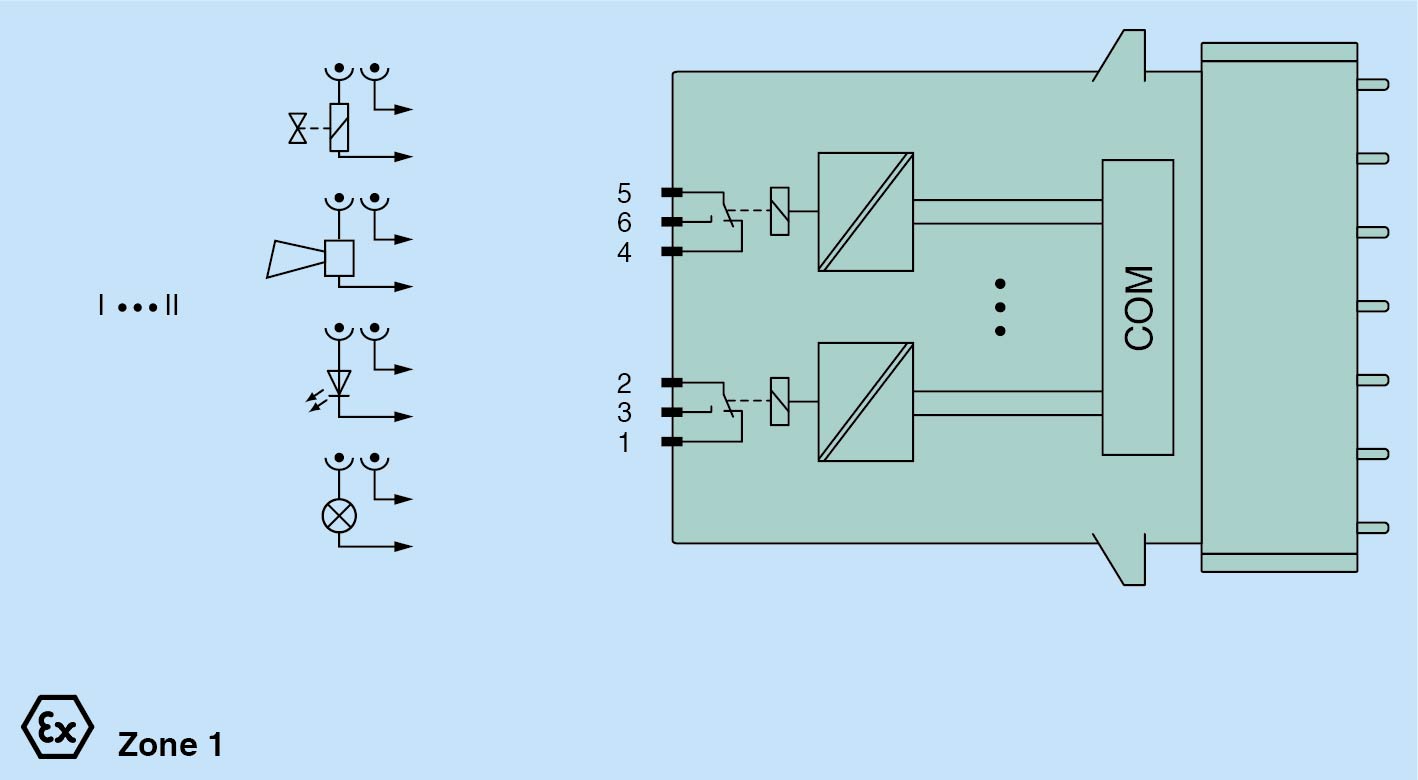

| Connection | wire ends 1 (white), 2 (brown), 3 (green), 4 (yellow), 5 (grey), 6 (pink) |
| Minimum load | 1 V , 1 mA |
| Relay | Relay |
| Switching voltage24 V DC / 230 V ACSwitching current1 A DC / AC resistive loadSwitching power30 W , 230 VA resistive loadElectrical life0.5 Mio. cycles | Switching voltage24 V DC / 230 V ACSwitching current1 A DC / AC resistive loadSwitching power30 W , 230 VA resistive loadElectrical life0.5 Mio. cycles |
| Response time | 20 ms (depending on bus cycle time) |
| Contact Material | AgPd gold plated |
| Watchdog | within 0.5 s the device goes in safe state, e.g. after loss of communication |
| Switching voltage | 24 V DC / 230 V AC |
| Switching current | 1 A DC / AC resistive load |
| Switching power | 30 W , 230 VA resistive load |
| Electrical life | 0.5 Mio. cycles |
| LED indicator | LED green: supply LED yellow: signal (status) |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1 | Directive 2014/30/EUEN 61326-1 |
| Low voltage | Low voltage |
| Directive 2006/95/ECEN 61010-1 | Directive 2006/95/ECEN 61010-1 |
| Directive 2014/30/EU | EN 61326-1 |
| Directive 2006/95/EC | EN 61010-1 |
| Electromagnetic compatibility | NE 21 |
| Degree of protection | IEC 60529 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 50 m/s2, number of shock directions 6, number of shocks per direction 100 |
| Vibration resistance | frequency range 5 ... 500 Hz, amplitude 5 ... 13.2 Hz ± 1.5 mm, 13.2 ... 100 Hz 1g, sweep rate 1 octave/min, duration 10 sweeps 5 Hz - 100 Hz - 5 Hz |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 (module) , a separate housing is required acc. to the system description |
| Connection | wire ends or shielded cable tailwiring connection: separately covered Ex e terminals required |
| Mass | approx. 350 g |
| Dimensions | 28 x 107 x 132 mm (1.1 x 4.2 x 5.2 inch) |
| EC-Type Examination Certificate | PTB 97 ATEX 1074 U |
| Group, category, type of protection II 2 G Ex d IIC Gb | Group, category, type of protection II 2 G Ex d IIC Gb |
| Galvanic isolation | Galvanic isolation |
| Output/power supply, internal bussafe electrical isolation acc. to EN 61010-1 | Output/power supply, internal bussafe electrical isolation acc. to EN 61010-1 |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2009 EN 60079-1:2007 EN 60079-11:2007 EN 60079-26:2007 EN 61241-11:2006 | Directive 2014/34/EUEN 60079-0:2009 EN 60079-1:2007 EN 60079-11:2007 EN 60079-26:2007 EN 61241-11:2006 |
| Group, category, type of protection | II 2 G Ex d IIC Gb |
| Output/power supply, internal bus | safe electrical isolation acc. to EN 61010-1 |
| Directive 2014/34/EU | EN 60079-0:2009 EN 60079-1:2007 EN 60079-11:2007 EN 60079-26:2007 EN 61241-11:2006 |
| ATEX approval | BVS 11 ATEX E 093X |
| EAC approval | Russia: RU C-IT.MIII06.B.00129 |
| Marine approval | Marine approval |
| Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV | Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV |
| Lloyd Register | 15/20021 |
| DNV GL Marine | TAA0000034 |
| American Bureau of Shipping | T1450280/UN |
| Bureau Veritas Marine | 22449/B0 BV |
