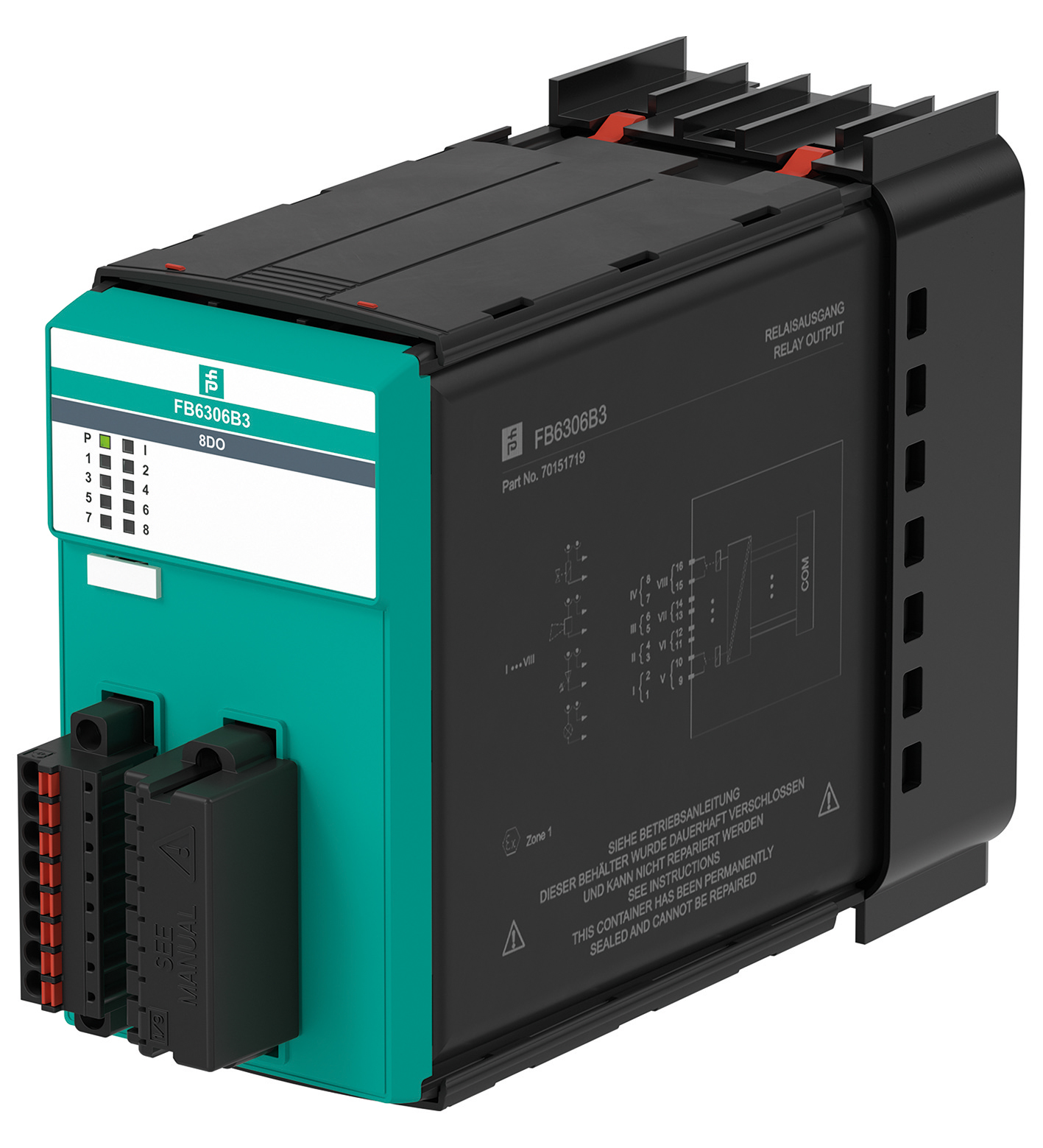

TECHNICAL DATA
规格参数
Slots
| Occupied slots | 2 |
|---|---|
| Connection | backplane bus |
| Rated voltage | 12 V DC +4/-2 % , only in connection with the power supplies FB92** |
| Power dissipation | 1.9 W |
| Power consumption | 1.4 W |
| Connection | backplane bus |
| Interface | manufacturer-specific bus to standard com unit |
| Number of channels | 8 |
| Field device interface | Field device interface |
| ConnectionRelay output | ConnectionRelay output |

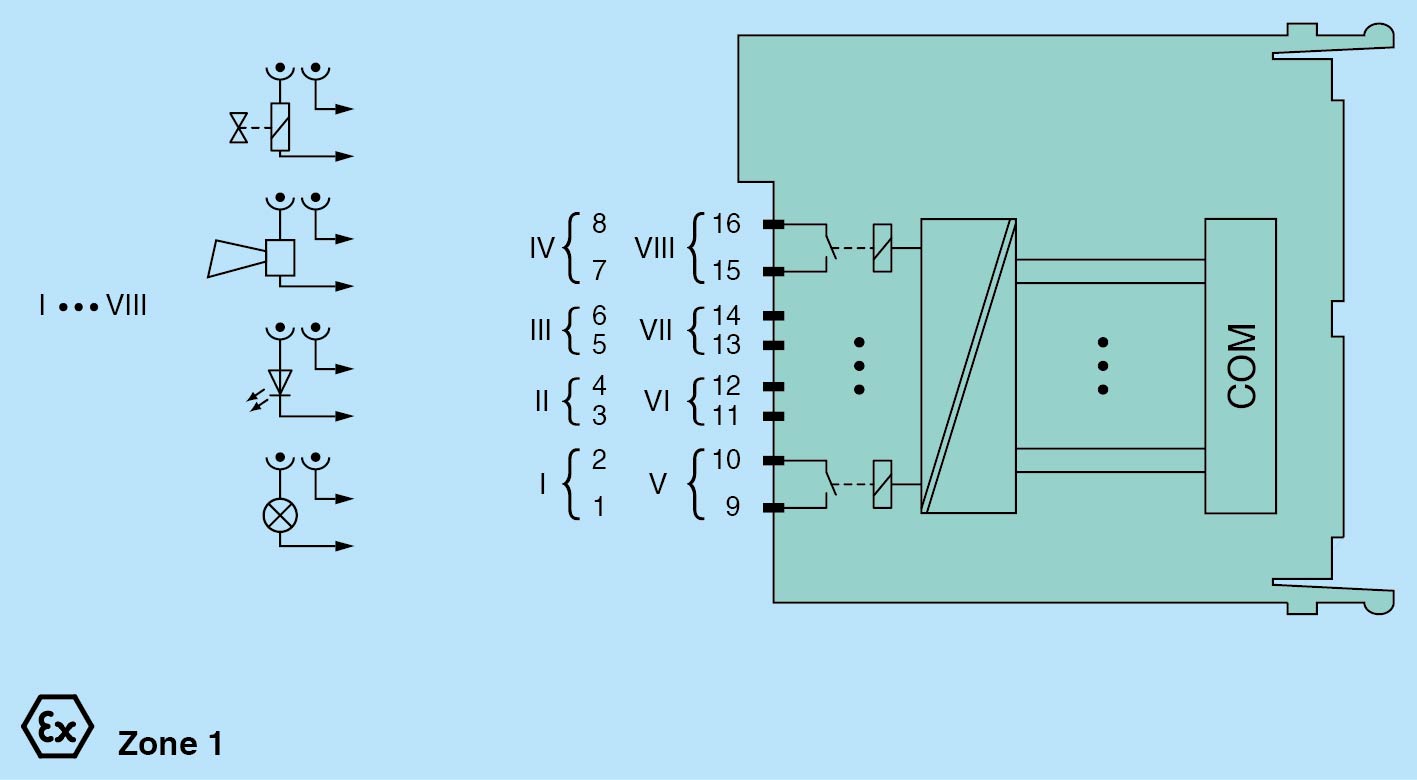

| Connection | channel I: 1-2 NO; channel II: 3-4 NO; channel III: 5-6 NO; channel IV: 7-8 NO; channel V: 9-10 NO; channel VI: 11-12 NO; channel VII: 13-14 NO; channel VIII: 15-16 NO |
| Relay | Relay |
| Switching voltage30 V DCSwitching current1 A DCSwitch power30 WMinimum load5 V 10 mAElectrical life0.1 million switching cycles at maximum load and temperatureContact MaterialAgPd gold plated | Switching voltage30 V DCSwitching current1 A DCSwitch power30 WMinimum load5 V 10 mAElectrical life0.1 million switching cycles at maximum load and temperatureContact MaterialAgPd gold plated |
| Response time | 20 ms (depending on bus cycle time) |
| Watchdog | within 0.5 s the device goes in safe state, e.g. after loss of communication |
| Connection | Relay output |
| Switching voltage | 30 V DC |
| Switching current | 1 A DC |
| Switch power | 30 W |
| Minimum load | 5 V 10 mA |
| Electrical life | 0.1 million switching cycles at maximum load and temperature |
| Contact Material | AgPd gold plated |
| LED indication | Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: Communication error or active safety shutdown , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1-8) yellow: Channel status |
| Coding | optional mechanical coding via front socket |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1 | Directive 2014/30/EUEN 61326-1 |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61010-1 , EN 60664-1 | Directive 2014/35/EUEN 61010-1 , EN 60664-1 |
| Directive 2014/30/EU | EN 61326-1 |
| Directive 2014/35/EU | EN 61010-1 , EN 60664-1 |
| Degree of protection | IEC 60529 |
| Environmental test | EN 60068-2-14 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Relative humidity | EN 60068-2-78 |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Altitude | max. 2000 m |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles |
| Degree of protection | IP20 (module) , a separate housing is required acc. to the system description |
| Connection | Ex e spring terminal with protective cover |
| Mass | approx. 945 g |
| Dimensions | Dimensions |
| Height107 mmWidth57 mmDepth132 mm | Height107 mmWidth57 mmDepth132 mm |
| Height | 107 mm |
| Width | 57 mm |
| Depth | 132 mm |
| EU-type examination certificate | FIDI 23 ATEX 0077 U |
| Marking II 2G Ex db eb q IIC Gb | Marking II 2G Ex db eb q IIC Gb |
| Galvanic isolation | Galvanic isolation |
| Output/power supply, internal busbasic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC | Output/power supply, internal busbasic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0 EN 60079-1 EN 60079-5 EN 60079-7 | Directive 2014/34/EUEN IEC 60079-0 EN 60079-1 EN 60079-5 EN 60079-7 |
| Marking | II 2G Ex db eb q IIC Gb |
| Output/power supply, internal bus | basic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC |
| Directive 2014/34/EU | EN IEC 60079-0 EN 60079-1 EN 60079-5 EN 60079-7 |
| ATEX approval | FIDI 23 ATEX 0077 U |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx FIDI 23.0009UIECEx markingEx db eb q IIC Gb | IECEx certificateIECEx FIDI 23.0009UIECEx markingEx db eb q IIC Gb |
| IECEx certificate | IECEx FIDI 23.0009U |
| IECEx marking | Ex db eb q IIC Gb |
| System information | The module has to be mounted in appropriate backplanes (FB92**) in Zone 1, 2, or outside hazardous areas. Observe the corresponding EC-type examination certificate. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
