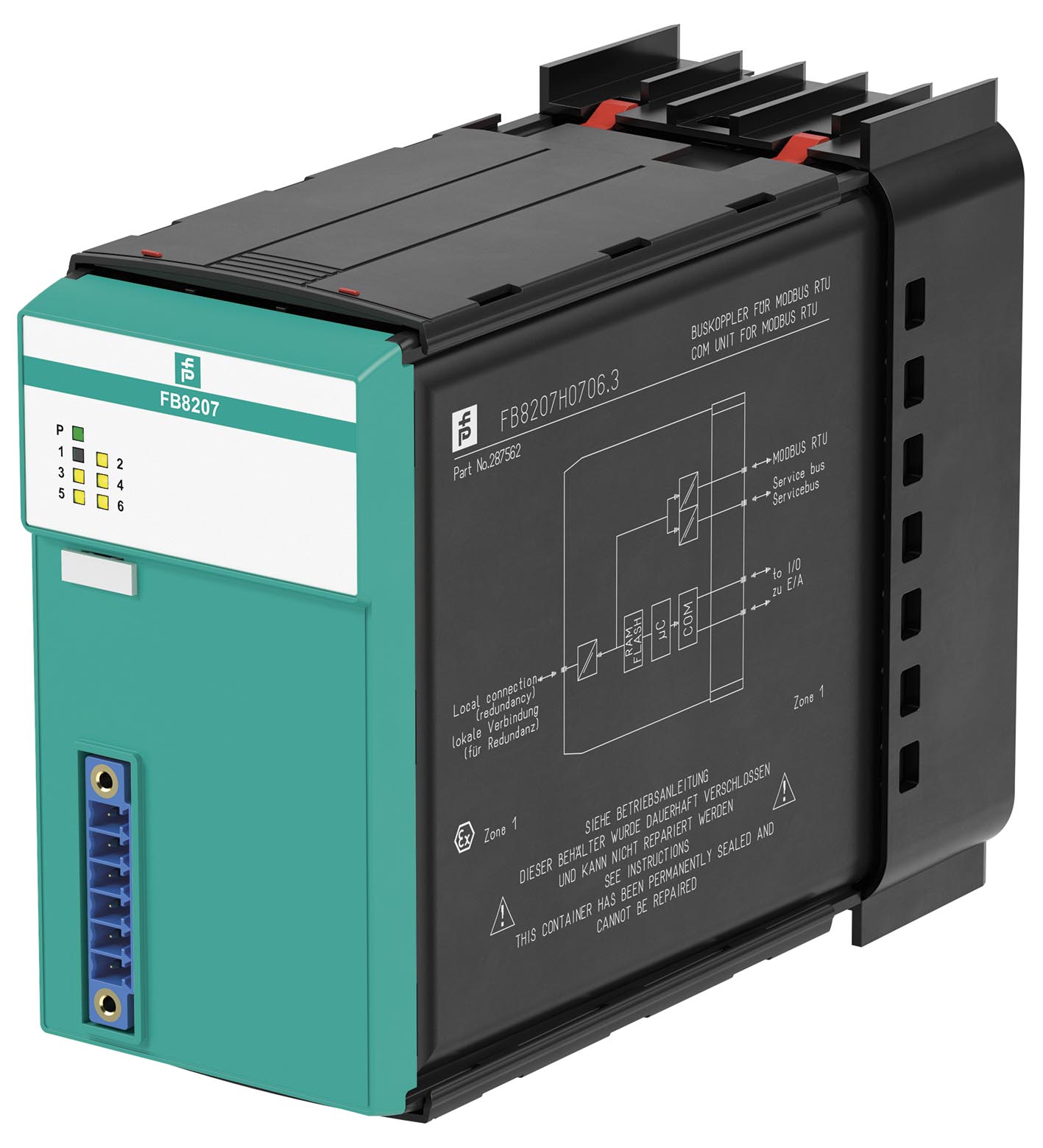

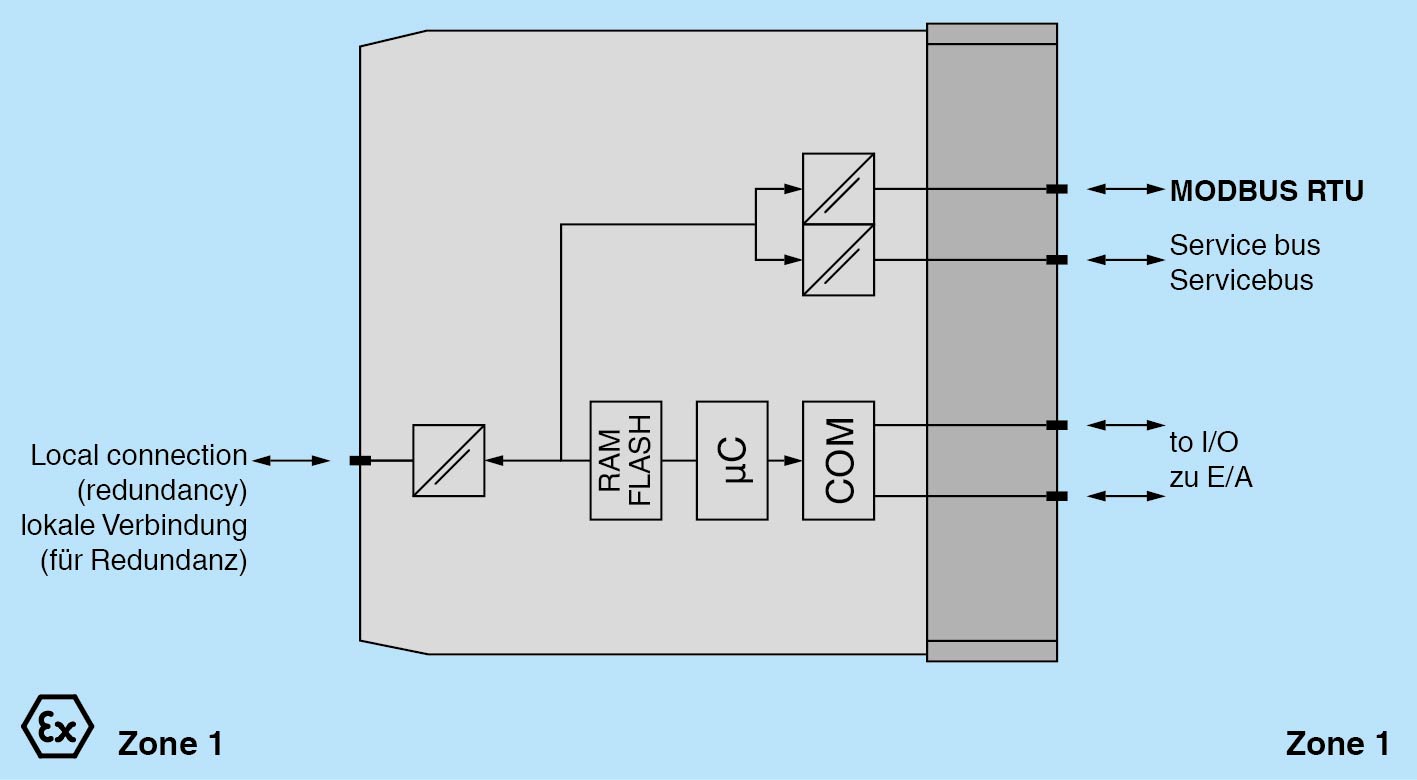

TECHNICAL DATA
规格参数
Slots
| Occupied slots | 2 |
|---|---|
| Connection | backplane bus |
| Rated voltage | 5 V DC , only in connection with the power supplies FB92** |
| Power dissipation | 1.8 W |
| Power consumption | 1.8 W |
| Fieldbus type | MODBUS RTU |
| MODBUS RTU | MODBUS RTU |
| Connectionwired to Ex e terminals via backplaneBaud ratemax. 38.4 kBit/s | Connectionwired to Ex e terminals via backplaneBaud ratemax. 38.4 kBit/s |
| Number of stations per bus line | max. 245 (MODBUS), max. 119 (service bus) |
| Number of channels per station | max. 80 analog, max. 184 digital (standard configuration) |
| Number of stations per bus segment | max. 31 (RS-485 standard) |
| Number of repeaters between Master and Slave | max. 3 |
| Supported I/O modules | all FB remote I/O modules |
| Bus length | max. 1200 m (FOL, 38.4 kBd), max. 1200 m (copper cable, 38.4 kBd) |
| FOL (fiber optic link) | additional hardware required |
| Addressing | via configuration software |
| MODBUS address | standard compliant (factory standard setting: 126) |
| Service bus address | max. 119 , redundancy address = base + 128 (automatic) |
| HART communication | via service bus |
| Redundancy | system dependent |
| Connection | wired to Ex e terminals via backplane |
| Baud rate | max. 38.4 kBit/s |
| Connection | backplane bus |
| Redundancy | via front connector |
| LED indication | LED green (power supply): On = operating, fast flash = cold start LED red (collective alarm): On = internal fault, flashing = no Modbus RTU connection LED yellow (operating mode): flashing 1 (1:1 ratio) = active, normal operation; flashing 2 (7:1 ratio) = active, simulation |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Electromagnetic compatibility | NE 21 |
| Degree of protection | IEC 60529 |
| Fieldbus standard | IEC 61158-2 |
| Environmental test | EN 60068-2-14 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Damaging gas | EN 60068-2-42 |
| Relative humidity | EN 60068-2-78 |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 (module) , a separate housing is required acc. to the system description |
| Connection | via backplane |
| Mass | approx. 750 g |
| Dimensions | Dimensions |
| Height107 mmWidth57 mmDepth132 mm | Height107 mmWidth57 mmDepth132 mm |
| Height | 107 mm |
| Width | 57 mm |
| Depth | 132 mm |
| EU-type examination certificate | Presafe 19 ATEX 14058U |
| MarkingEx db eb q [ib] IIC Gb | MarkingEx db eb q [ib] IIC Gb |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012 |
| Marking | Ex db eb q [ib] IIC Gb |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018 EN 60079-11:2012 |
| ATEX approval | Presafe 19 ATEX 14058U |
| IECEx approval | IECEx PRE 19.0013U |
| Approved forEx db eb q [ib] IIC Gb | Approved forEx db eb q [ib] IIC Gb |
| Approved for | Ex db eb q [ib] IIC Gb |
| System information | The module has to be mounted in appropriate backplanes (FB92**) in Zone 1, 2, or outside hazardous areas. Observe the corresponding EC-type examination certificate. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
