FB8222B.1.EL

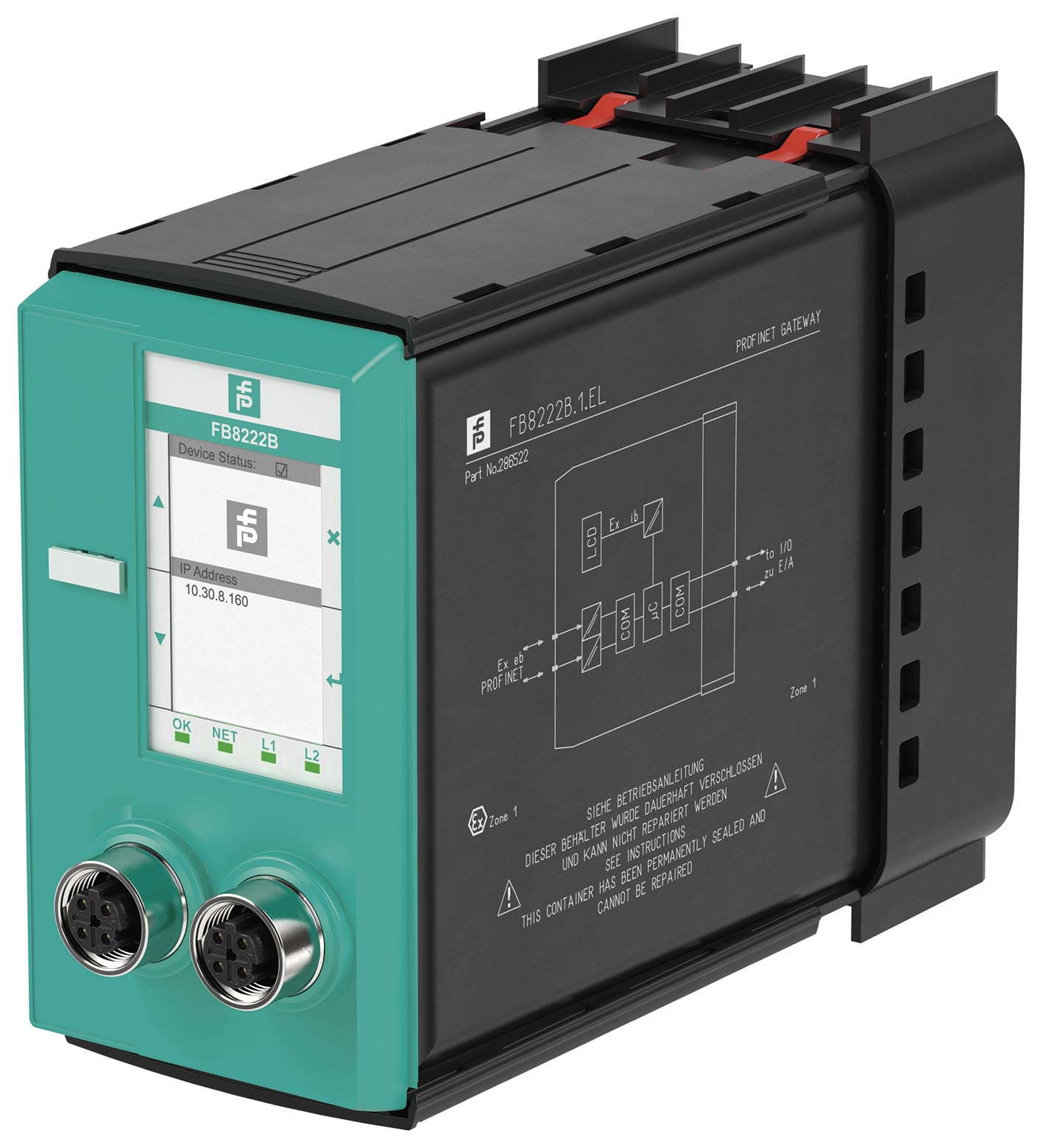

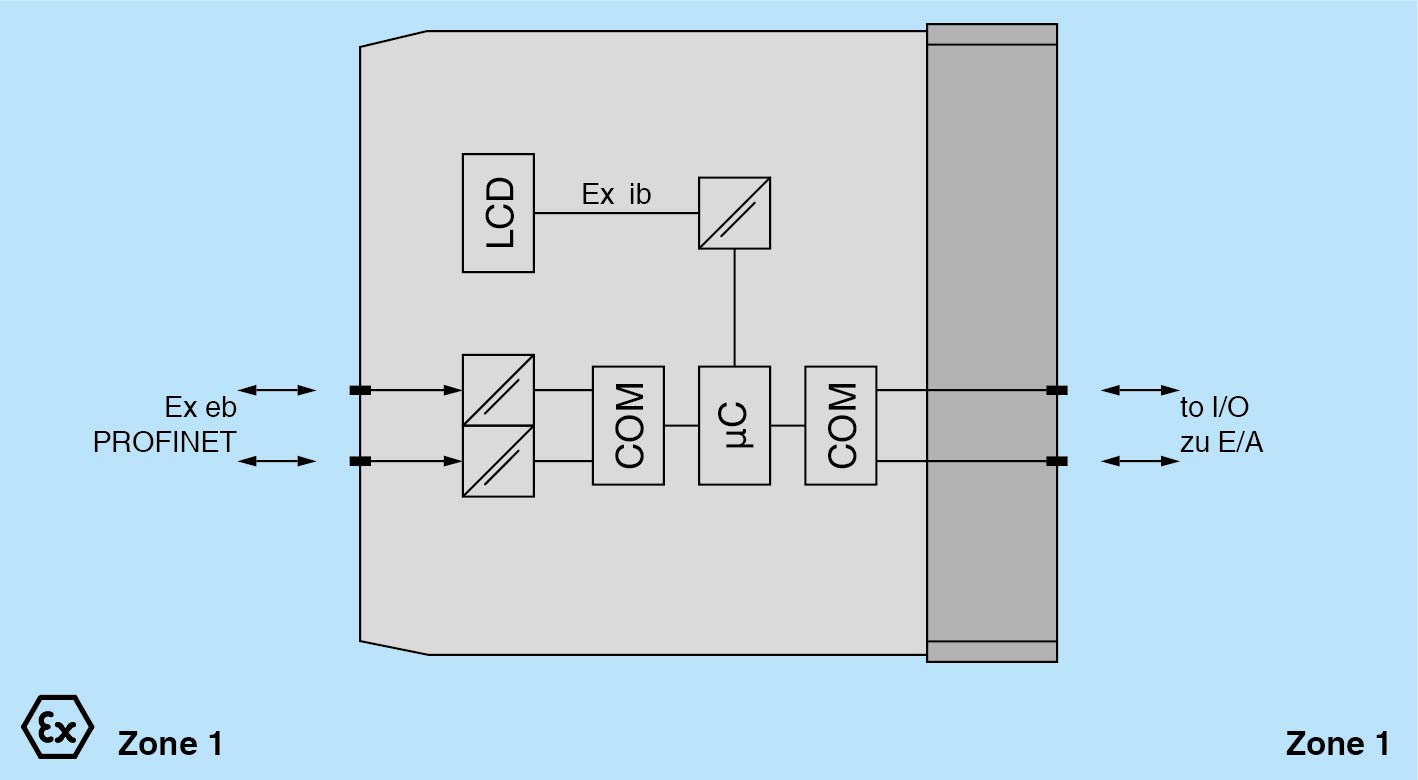

FB8222B.1.EL Gateway for PROFINET

订货号: 70138965
产品分类: FB系列

Gateway for PROFINET

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Supply

Connection	backplane bus
Nominal voltage	12 V DC , only in connection with the power supplies FB92**
Power dissipation	4.24 W
Power consumption	4.24 W
Fieldbus type	PROFINET
Connection type	M12 , via front connector
Transfer rate	10BASE-T, 100BASE-TX 100 MBit/s
Station connection	directly to PCS or PLC or via hubs or switches
Cable type	SFTP in accordance with ISO/IEC 11801 for Cat 5e or better
Bus length	max. 100 m per link
Addressing	DHCP or fixed IP address
Ethernet address	IP V4 address (factory standard setting: 0.0.0.0, auto IP, DHCP)
Supported I/O modules	FB1x01…FB1x03, FB1x08, FB1x09, FB2x01...FB2x17, FB3x01…FB3x06, FB4x01, FB4x02, FB4x04…FB4x06, FB5x01, FB5x02, FB5x04…FB5x06, FB6x01, FB6x05, FB6x06, FB6x08, FB6x10…FB6x17, FB7x04
PROFINET conformance class	CC B
Connection	backplane bus
Ethernet/other circuits	basic insulation according to IEC/EN 61010-1, rated insulation voltage 32 V DC (SELV/PELV)
RS 485 interface/other circuits	basic insulation according to IEC/EN 61010-1, rated insulation voltage 50 V DC
Insulation voltage	1500 V AC acc. to IEEE 802.3u
Power supply, internal bus/other circuits	basic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC
LED indication	See below in the front view
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Electromagnetic compatibility	NE 21
Degree of protection	IEC 60529
Environmental test	EN 60068-2-14
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Damaging gas	EN 60068-2-42
Relative humidity	EN 60068-2-78
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature	-25 ... 85 °C (-13 ... 185 °F)
Relative humidity	95 % non-condensing
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20 (module) , a separate housing is required acc. to the system description
Connection	via backplane
Mass	approx. 965 g
Dimensions	Dimensions
Height107 mmWidth57 mmDepth151 mm	Height107 mmWidth57 mmDepth151 mm
Height	107 mm
Width	57 mm
Depth	151 mm
EU-type examination certificate	PTB 19 ATEX 2007 U
Marking II 2G Ex db eb ib q IIC Gb	Marking II 2G Ex db eb ib q IIC Gb
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015 EN 60079-11:2012	Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015 EN 60079-11:2012
Marking	II 2G Ex db eb ib q IIC Gb
Directive 2014/34/EU	EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015 EN 60079-11:2012
ATEX approval	PTB 19 ATEX 2007 U
IECEx approval	IECEx approval
IECEx certificateIECEx PTB 19.0025UIECEx markingEx db eb ib q IIC Gb	IECEx certificateIECEx PTB 19.0025UIECEx markingEx db eb ib q IIC Gb
IECEx certificate	IECEx PTB 19.0025U
IECEx marking	Ex db eb ib q IIC Gb
System information	The module may be installed only in the associated backplanes FB9262BP*.2 in Zone 1, Zone 2, or outside the hazardous area. Observe the corresponding EC-type examination certificate.
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
