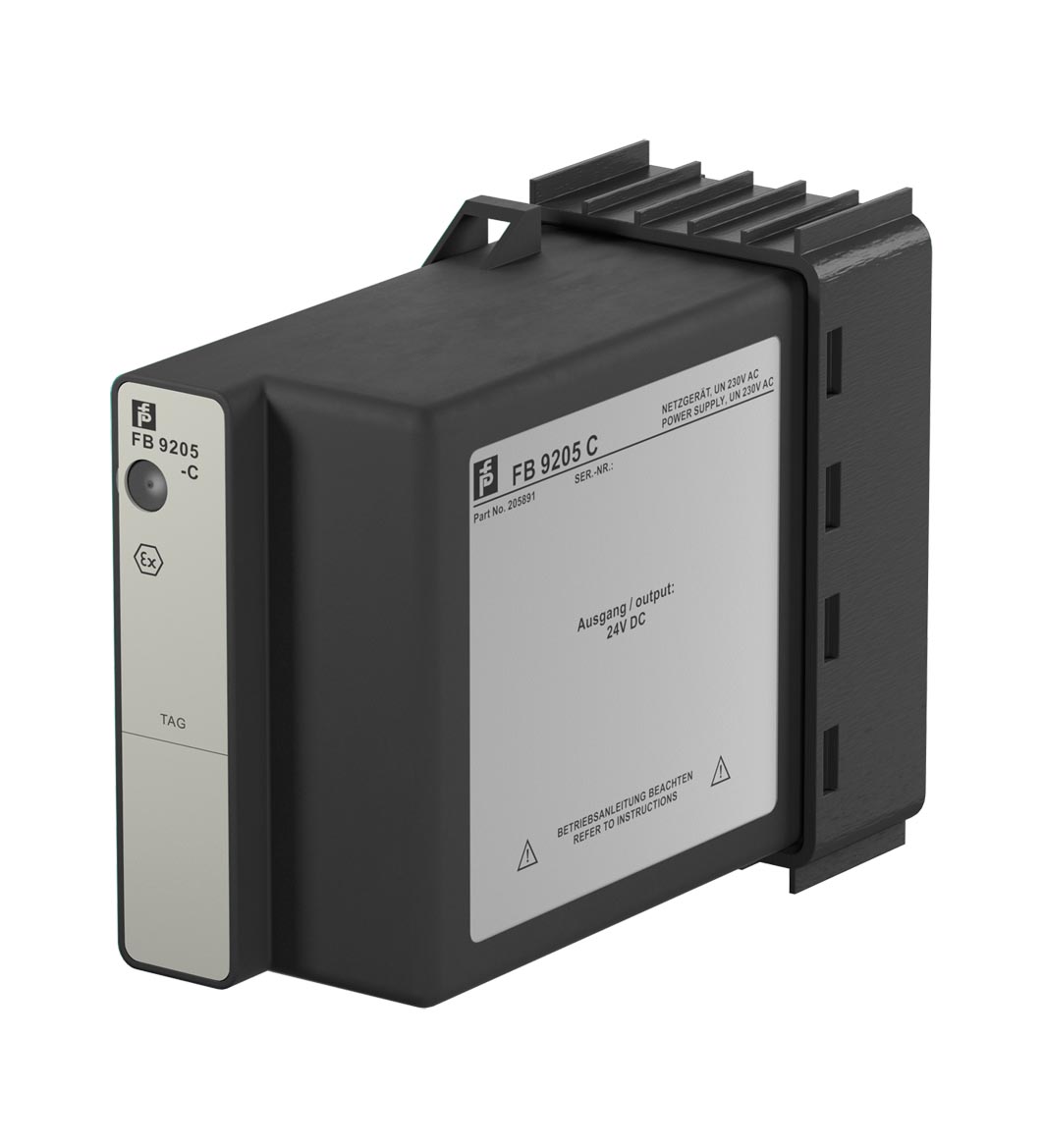

TECHNICAL DATA
规格参数
Supply
| Connection | wired to Ex e terminals |
|---|---|
| Input voltage range | 90 ... 253 V AC |
| Power dissipation | 7.9 W |
| Power consumption | max. 45 VA |
| Inrush current | 3.4 A (10 ms) |
| Input frequency | 50 ... 60 Hz |

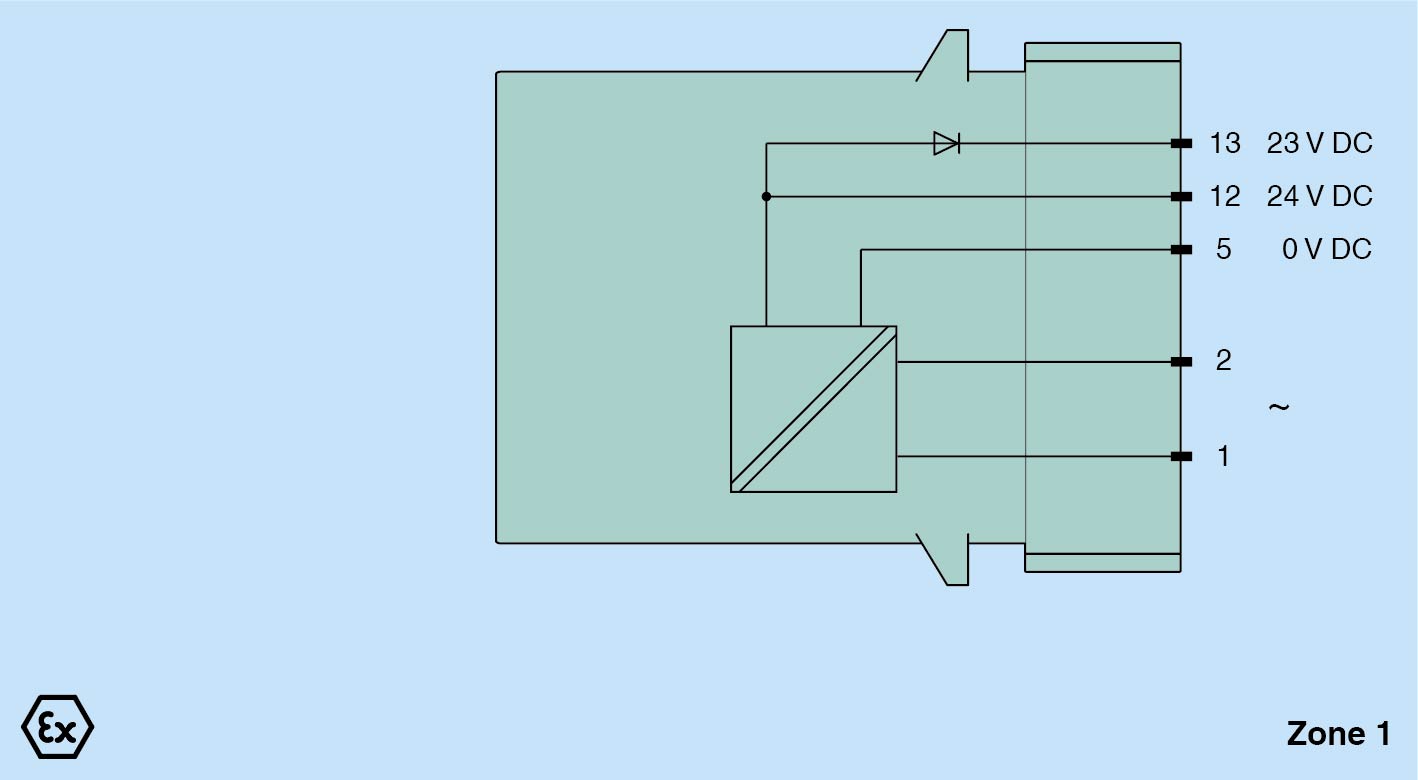

| Voltage | 24 V DC +/- 3% (Connectors 5, 12) 23 V DC +/- 3% decoupled via diode (Connectors 5, 13) |
| Current | 1.2 A |
| LED indication | LED green: supply |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61010-1 | Directive 2014/35/EUEN 61010-1 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Directive 2014/35/EU | EN 61010-1 |
| Electromagnetic compatibility | NE 21 |
| Degree of protection | IEC 60529 |
| Environmental test | EN 60068-2-14 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Damaging gas | EN 60068-2-42 |
| Relative humidity | EN 60068-2-78 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 (module) , a separate housing is required acc. to the system description |
| Mass | approx. 890 g |
| Dimensions | Dimensions |
| Height107 mmWidth57 mmDepth132 mm | Height107 mmWidth57 mmDepth132 mm |
| Height | 107 mm |
| Width | 57 mm |
| Depth | 132 mm |
| EU-type examination certificate | PTB 97 ATEX 1074 U |
| Marking II 2 G Ex d IIC Gb | Marking II 2 G Ex d IIC Gb |
| Galvanic isolation | Galvanic isolation |
| Output/power supplyEN 60950-1 (safety requirement < 60 V) | Output/power supplyEN 60950-1 (safety requirement < 60 V) |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 |
| Marking | II 2 G Ex d IIC Gb |
| Output/power supply | EN 60950-1 (safety requirement < 60 V) |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 |
| ATEX approval | PTB 97 ATEX 1074 U |
| System information | The module has to be mounted in appropriate backplanes (FB92**) in Zone 1, 2, or outside hazardous areas. Observe the corresponding EC-type examination certificate. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
