FB9206D3

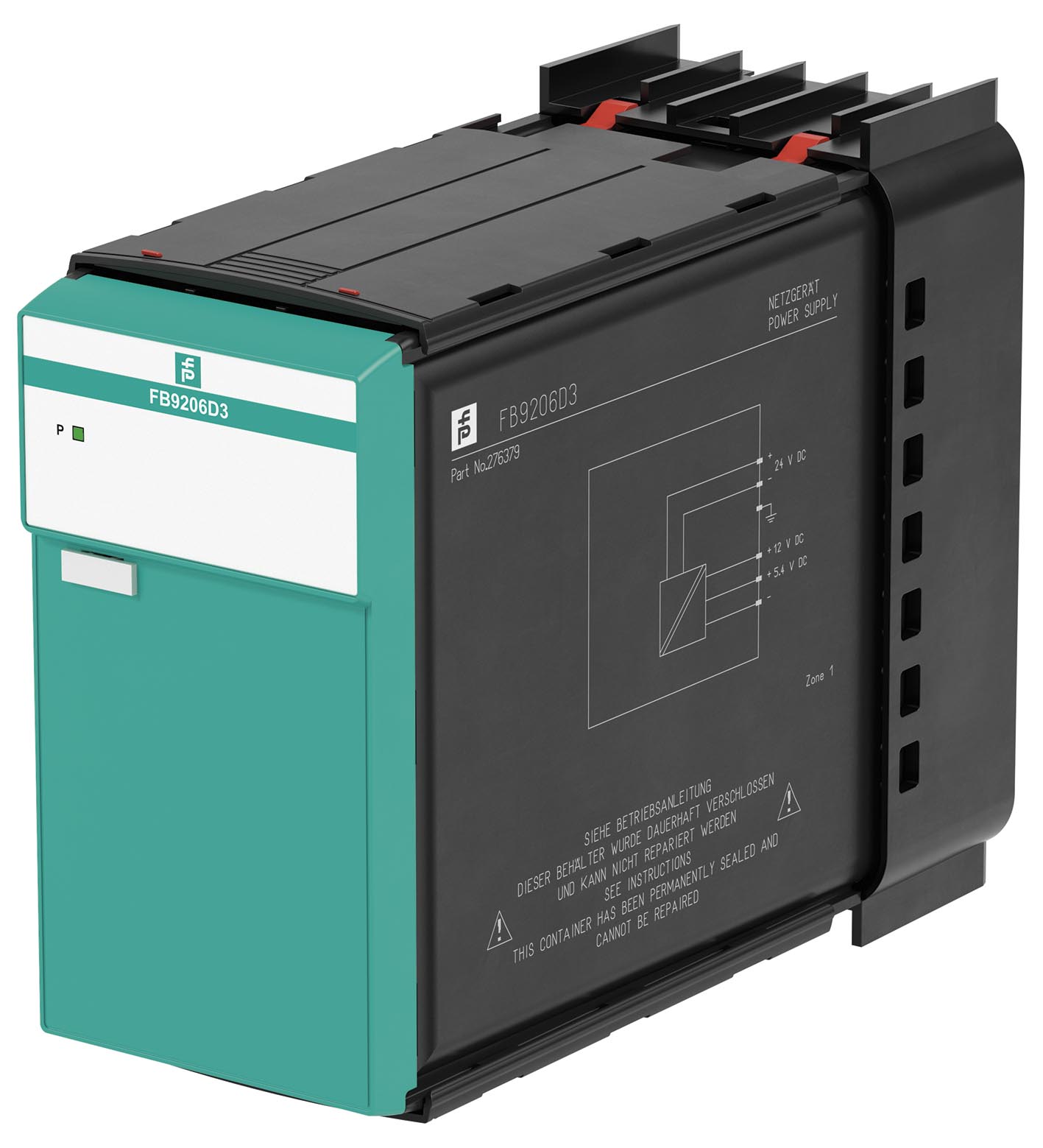

FB9206D3 Power supply

订货号: 276379
产品分类: FB系列

Power supply

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Slots

Occupied slots	2

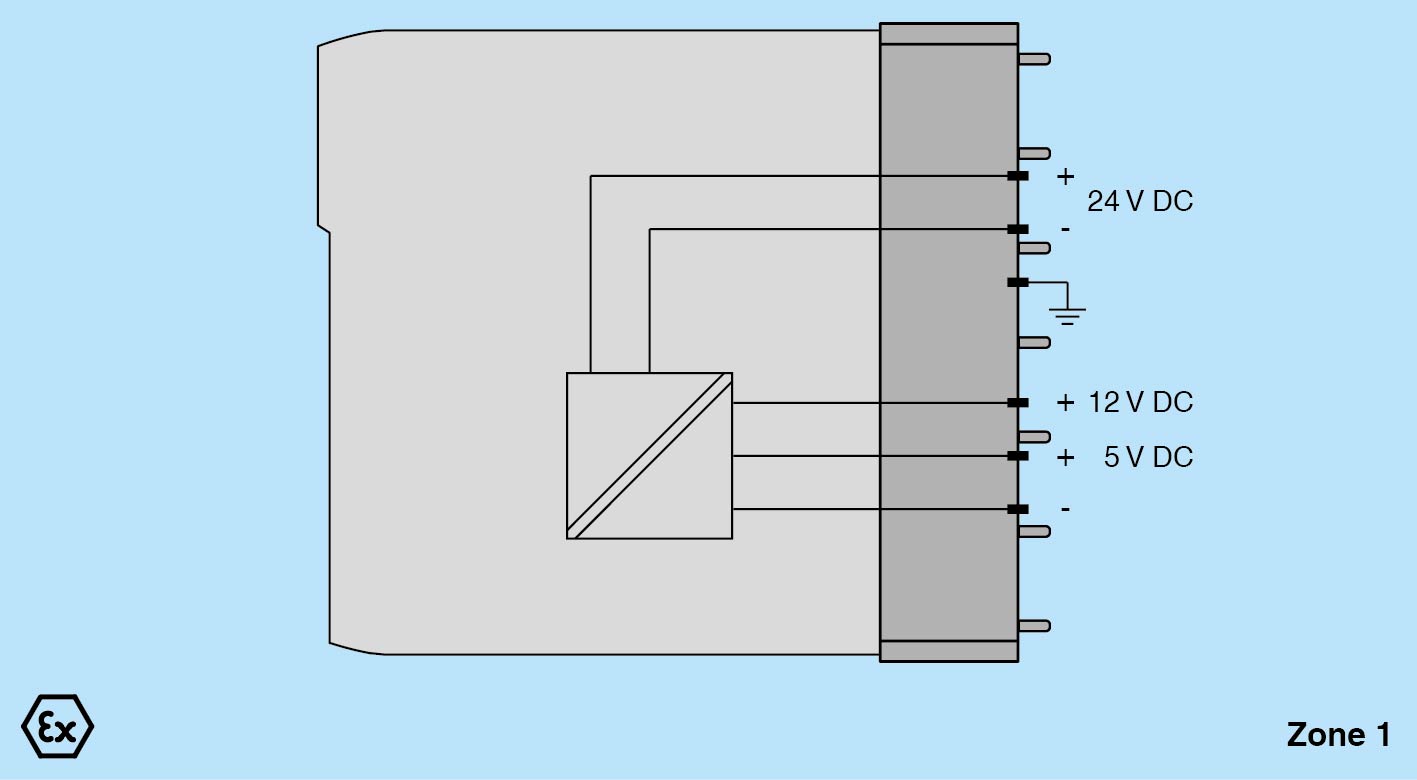

Connection	wired to Ex e terminals via backplane
Maximum safe voltage Um	60 V DC (SELV/PELV) common mode
Input voltage range	18 ... 32 V DC (SELV/PELV)
Power dissipation	4.7 W at 100 % load 3.8 W at 50 % load
Power consumption	max. 44 W
Inrush current	6 A (30 ms) 15 A (20 µs)
Voltage	5.4 V DC +/- 5% , 12 V DC + 4/- 2%
Power	P5V ≤ 5.4 W, P12V ≤ 39 W - P5V
Power supply/Output	basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff
LED indication	LED green: OFF in case of loss of 24V or 12V or 5V
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Galvanic isolation	EN 61010-1:2010
Degree of protection	IEC 60529
Environmental test	EN 60068-2-14
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Damaging gas	EN 60068-2-42
Relative humidity	EN 60068-2-78
Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % non-condensing
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20 (module) , a separate housing is required acc. to the system description
Mass	approx. 970 g
Dimensions	Dimensions
Height107 mmWidth57 mmDepth132 mm	Height107 mmWidth57 mmDepth132 mm
Height	107 mm
Width	57 mm
Depth	132 mm
EU-type examination certificate	Presafe 19 ATEX 14059U
Marking II 2G Ex db eb q IIC Gb	Marking II 2G Ex db eb q IIC Gb
Wait time	wait time before removing the device: 7 min For further information see instruction manual.
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018
Marking	II 2G Ex db eb q IIC Gb
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015+A1:2018
ATEX approval	Presafe 19 ATEX 14059U
IECEx approval	IECEx approval
IECEx certificateIECEx PRE 19.0014UIECEx markingEx db eb q IIC Gb	IECEx certificateIECEx PRE 19.0014UIECEx markingEx db eb q IIC Gb
IECEx certificate	IECEx PRE 19.0014U
IECEx marking	Ex db eb q IIC Gb
System information	The module has to be mounted in appropriate backplanes (FB92**) in Zone 1, 2, or outside hazardous areas. Observe the corresponding EC-type examination certificate.
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
