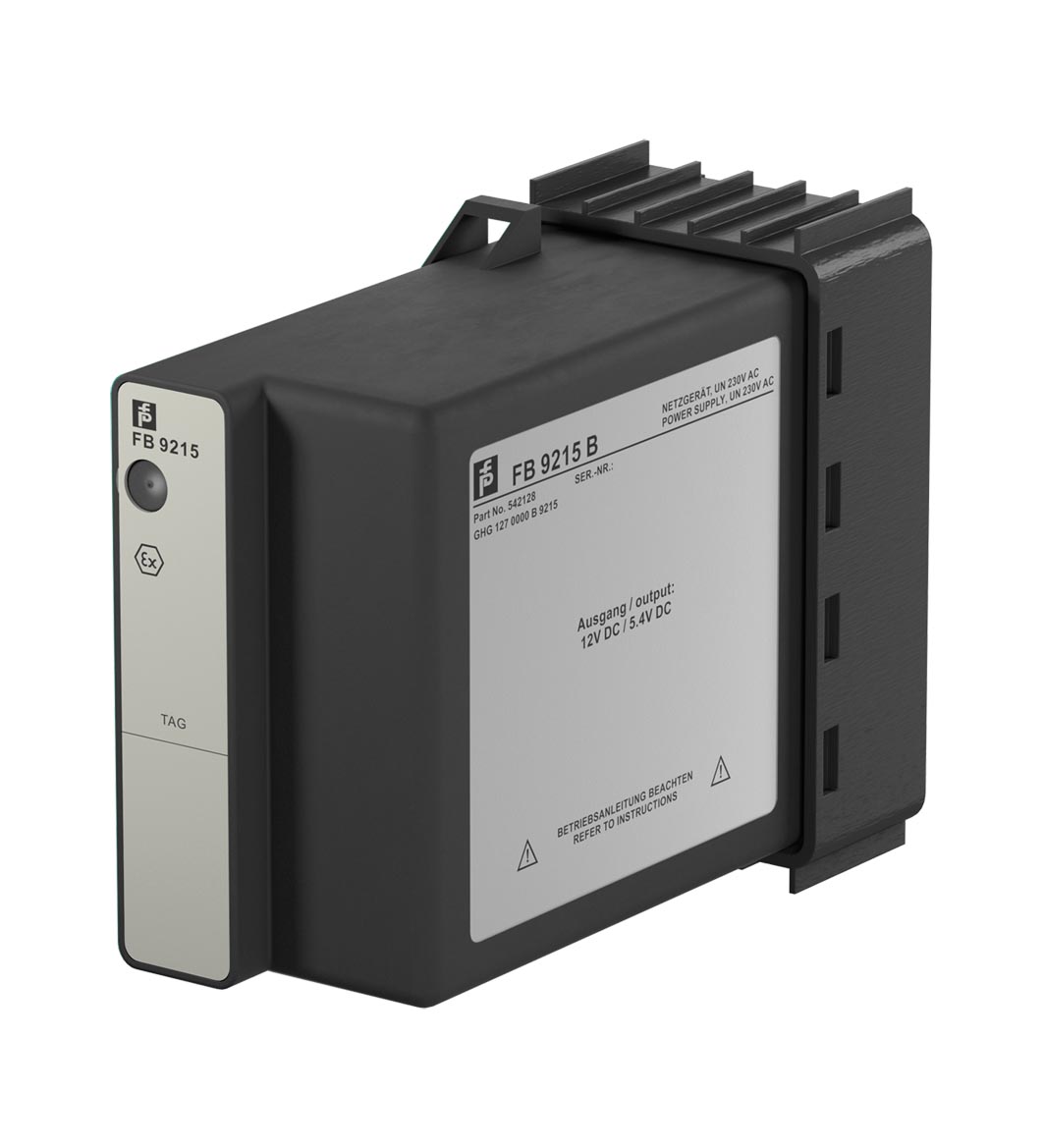

TECHNICAL DATA
规格参数
Slots
| Bus coupler | 2 |
|---|---|
| I/O modules | >12, depending on the type |
| Connection | wired to Ex e terminals via backplane |
| Maximum safe voltage Um | 253 V AC |

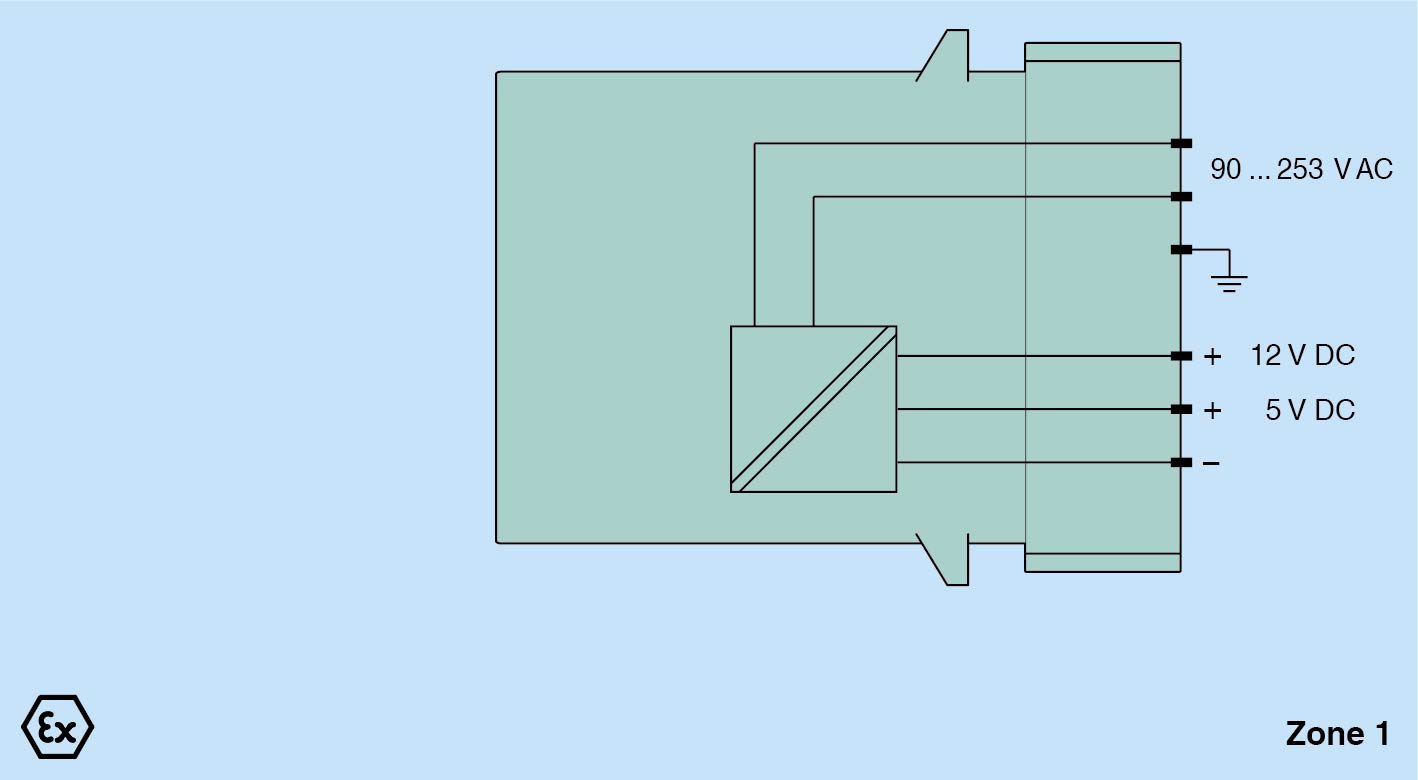

| Input voltage range | 90 ... 253 V AC |
| Input frequency | 50 ... 60 Hz |
| Inrush current (< 2 ms) | 30 A max. (115 V AC) 50 A max. (230 V AC) |
| Current consumption | 0.95 A (115 V AC) 0.6 A (230 V AC) |
| Voltage | 5.4 V DC +/- 5% , 12 V DC +/- 3% |
| Power | P5V ≤ 5.4 W, P12V ≤ 39 W - P5V |
| Power dissipation | approx. 18 % of power consumption |
| LED indication | LED green: OFF in case of loss of main power or internal voltages (12 V, 5.4 V) |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61010-1 | Directive 2014/35/EUEN 61010-1 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Directive 2014/35/EU | EN 61010-1 |
| Electromagnetic compatibility | NE 21:2007 |
| Degree of protection | IEC 60529:2000 |
| Environmental test | EN 60068-2-14:2009 |
| Shock resistance | EN 60068-2-27:2009 |
| Vibration resistance | EN 60068-2-6:2008 |
| Damaging gas | EN 60068-2-42:2003 |
| Relative humidity | EN 60068-2-78:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 (module) , a separate housing is required acc. to the system description |
| Mass | approx. 890 g |
| Dimensions | Dimensions |
| Height107 mmWidth57 mmDepth132 mm | Height107 mmWidth57 mmDepth132 mm |
| Height | 107 mm |
| Width | 57 mm |
| Depth | 132 mm |
| EU-type examination certificate | PTB 97 ATEX 1074 U |
| Marking II 2 G Ex d IIC Gb | Marking II 2 G Ex d IIC Gb |
| Galvanic isolation | Galvanic isolation |
| Output/power supplyEN 60950-1 (safety requirement < 60 V, external power supply SELV/PELV) | Output/power supplyEN 60950-1 (safety requirement < 60 V, external power supply SELV/PELV) |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 |
| Marking | II 2 G Ex d IIC Gb |
| Output/power supply | EN 60950-1 (safety requirement < 60 V, external power supply SELV/PELV) |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 |
| ATEX approval | PTB 97 ATEX 1074 U |
| IECEx approval | IECEx approval |
| IECEx marking | IECEx marking |
| IECEx marking | IECEx marking |
| System information | The module has to be mounted in appropriate backplanes (FB92**) in Zone 1, 2, or outside hazardous areas. Observe the corresponding EC-type examination certificate. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
