FB9262BP20220.2

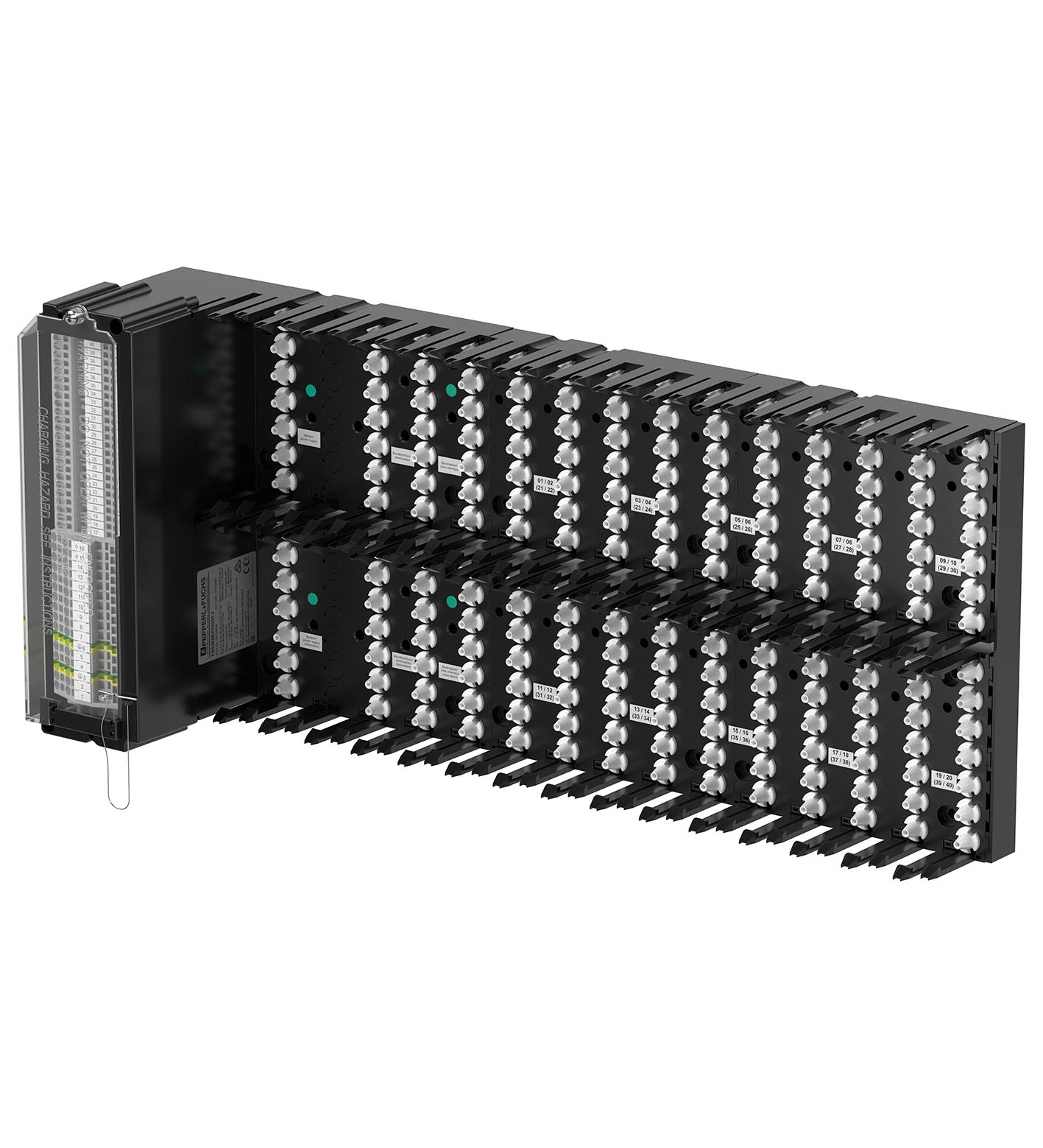

FB9262BP20220.2 Universal Backplane

订货号: 70119395
产品分类: FB系列

Universal Backplane

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Slots

Bus coupler	2
Bus termination	2
Supply	2
I/O modules (single width)	max. 20
I/O modules (dual width)	max. 10
Maximum safe voltage Um	60 V DC (SELV/PELV) / 253 V AC, depending on power supply
Input voltage range	18 ... 32 V DC (SELV/PELV) / 95 ... 253 V AC; depends on power supply
Redundancy	yes
Fieldbus type	PROFIBUS, PROFINET, MODBUS RTU or MODBUS TCP
Redundancy	yes
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Degree of protection	EN 60529
Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Degree of protection	IP30
Mass	approx. 2133 g , without modules

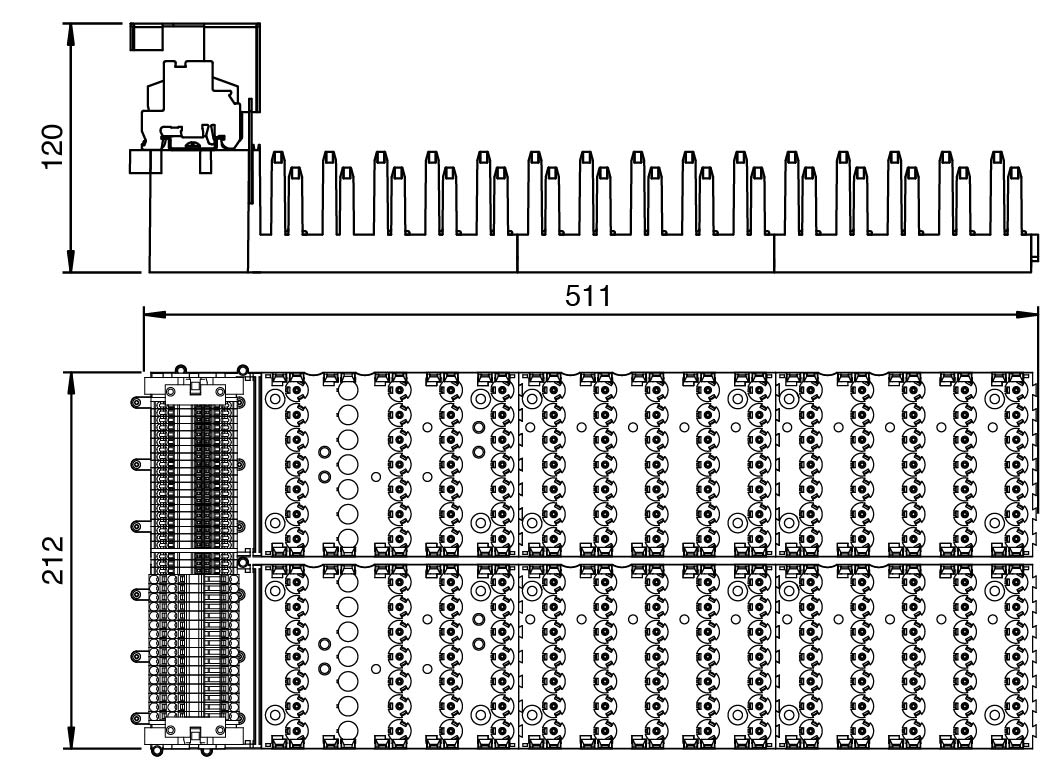

Dimensions	(W x H x D) 511 x 212 x 120 mm , without modules
Height211.8 mmWidth510.7 mmDepth120 mm	Height211.8 mmWidth510.7 mmDepth120 mm
Height	211.8 mm
Width	510.7 mm
Depth	120 mm
EU-type examination certificate	BVS 11 ATEX E 041 X
MarkingMarking II 2 G Ex d e m IIC T4	MarkingMarking II 2 G Ex d e m IIC T4
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-7:2015+A1:2018 EN 60079-18:2015+A1:2017	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-7:2015+A1:2018 EN 60079-18:2015+A1:2017
Marking	Marking
Marking	II 2 G Ex d e m IIC T4
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-7:2015+A1:2018 EN 60079-18:2015+A1:2017
ATEX approval	BVS 11 ATEX E 041 X
IECEx approval	IECEx approval
IECEx certificateIECEx BVS 11.0019XIECEx markingEx db eb mb IIC T4 Gb Ex db eb IIC T4 Gb	IECEx certificateIECEx BVS 11.0019XIECEx markingEx db eb mb IIC T4 Gb Ex db eb IIC T4 Gb
IECEx certificate	IECEx BVS 11.0019X
IECEx marking	Ex db eb mb IIC T4 Gb Ex db eb IIC T4 Gb
Supplementary information	Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
