TECHNICAL DATA
规格参数
General specifications

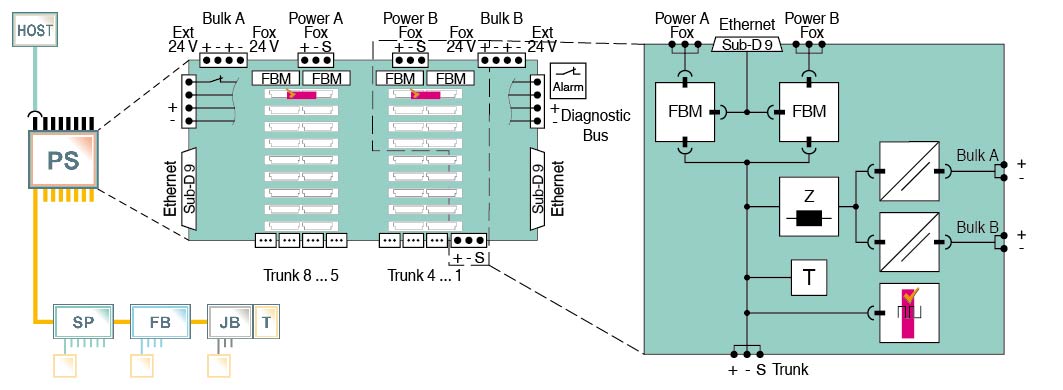

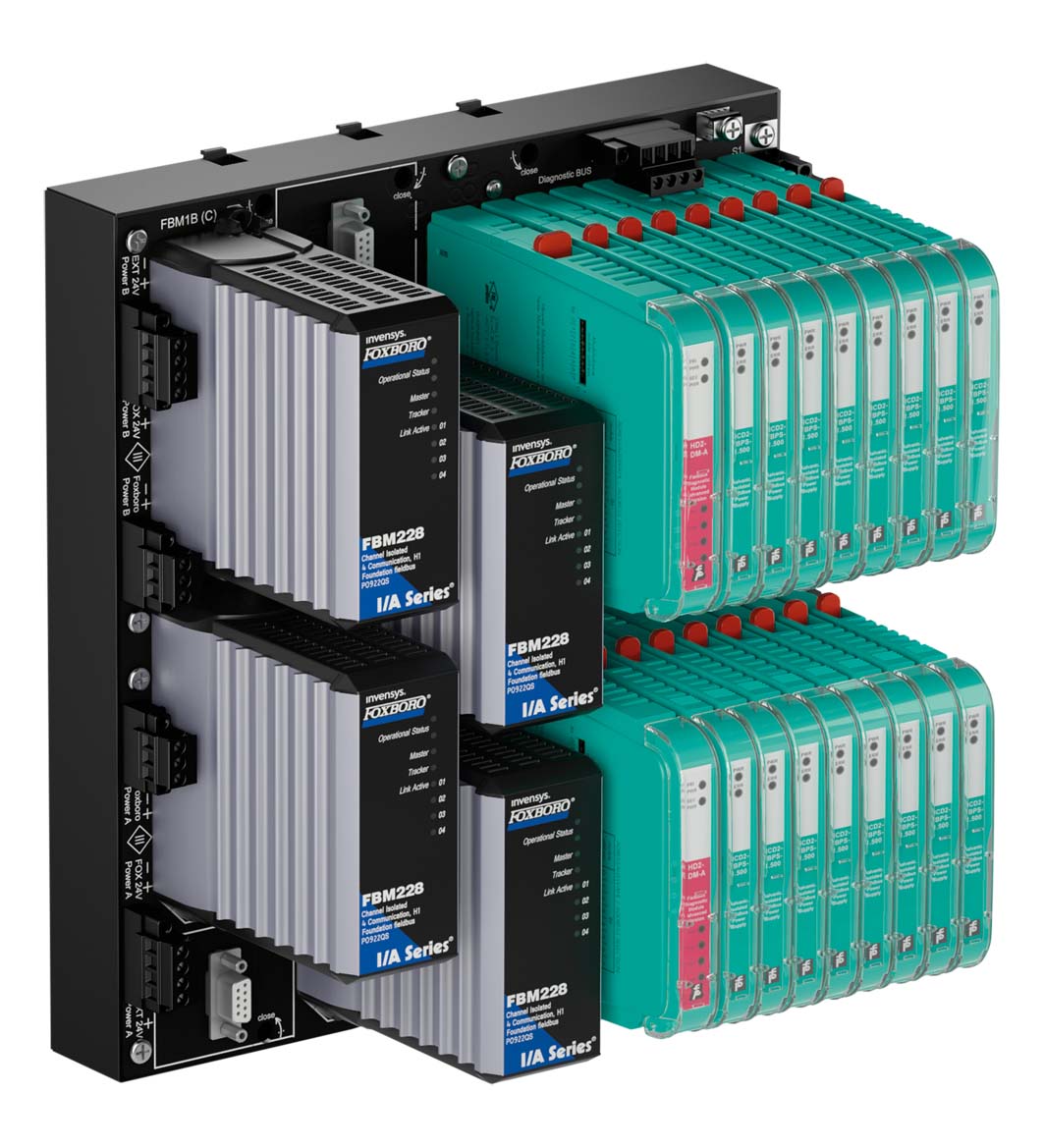

| Design / Mounting | Motherboard based |
|---|---|
| Connection | redundant |
| Rated voltage | 21.6 ... 25.2 V Input for Power Hub selectable:Option 1: from regular Foxboro power suppliesOption 2: one or two external bulk power supplies |
| Rated current | 16 A |
| Power dissipation | typ. 0.4 W per segment |
| Number of segments | 8 Redundant Power Supply |
| Host-side | redundant Invensys FBM 228 |
| Main cable (Trunk) | Main cable (Trunk) |
| Rated currentmax. 500 mA per segment | Rated currentmax. 500 mA per segment |
| Terminating resistor | 100 Ω integrated |
| Rated current | max. 500 mA per segment |
| Fault signal | VFC alarm output via connectors |
| Fieldbus segment/Fieldbus segment | functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff |
| Fieldbus segment/Supply | functional insulation acc. to IEC 62103, rated insulation voltage 250 Veff |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2004/108/ECEN 61326-1:2006 | Directive 2004/108/ECEN 61326-1:2006 |
| Directive 2004/108/EC | EN 61326-1:2006 |
| Electromagnetic compatibility | NE 21:2006 |
| Degree of protection | IEC 60529 |
| Fieldbus standard | IEC 61158-2 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | < 95 % non-condensing |
| Shock resistance | 10 g , 11 ms |
| Vibration resistance | 1 g , 10 ... 150 Hz |
| Connection type | screw terminal , pluggable |
| Housing material | Steel, coated |
| Degree of protection | IP20 |
| Mass | 3200 g |
| Dimensions | Dimensions |
| Height253 mmWidth278 mmDepth69 mm | Height253 mmWidth278 mmDepth69 mm |
| Mounting | DIN rail mounting |
| Height | 253 mm |
| Width | 278 mm |
| Depth | 69 mm |
| FM approval | FM approval |
| FM certificateFM 19 US 0015 X and FM 19 CA 0011 XFM markingAEx/Ex ec IIC T4 | FM certificateFM 19 US 0015 X and FM 19 CA 0011 XFM markingAEx/Ex ec IIC T4 |
| FM certificate | FM 19 US 0015 X and FM 19 CA 0011 X |
| FM marking | AEx/Ex ec IIC T4 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
