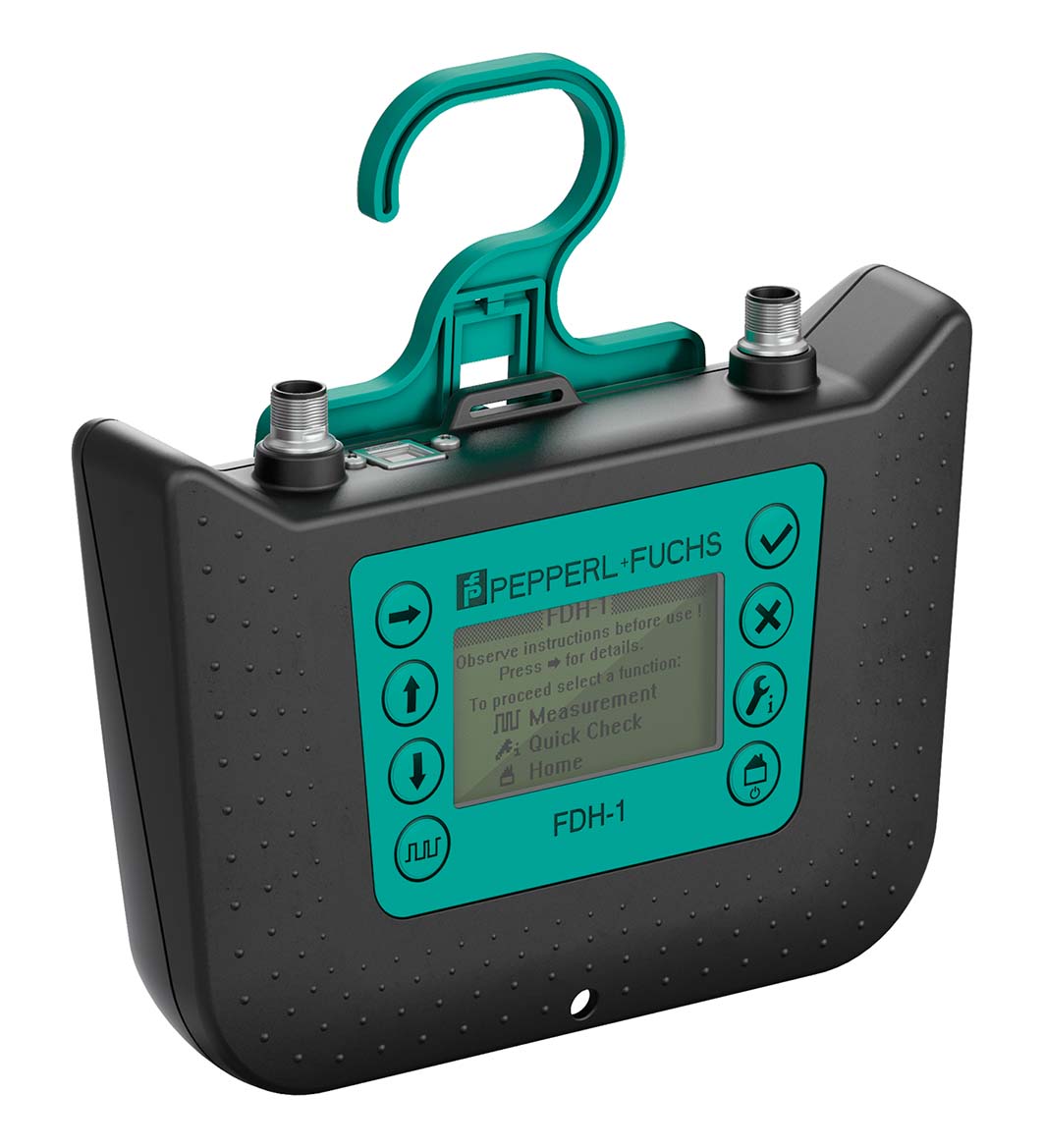

TECHNICAL DATA
规格参数
General specifications

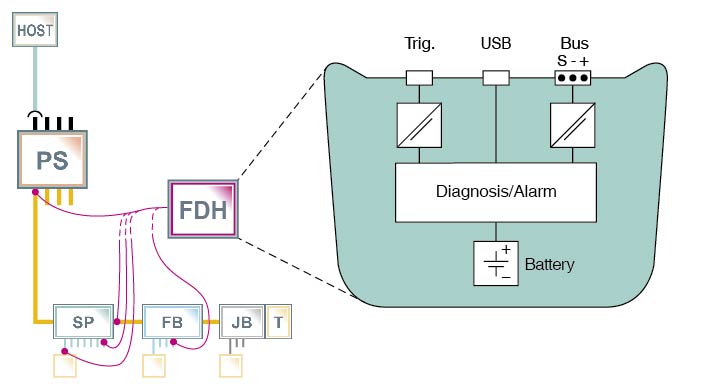

| Design / Mounting | Handheld/mobile |
|---|---|
| Installation in hazardous area | Zone 1 / Div. 1 |
| Connection | Fieldbus , Battery , 9V 6LR61 block, type alkaline, carbon-zinc, lithium iron disulfide, nickel-cadmium, nickel-metal hydride, or rechargeable lithium , USB |
| Fieldbus type | FOUNDATION Fieldbus/PROFIBUS PA |
| Rated voltage | 8.5 ... 35 V |
| Rated current | ... 10 mA , if bus powered |
| Display | LC display |
| Keypad | Membrane 8 keys |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Electromagnetic compatibility | NE 21:2011 |
| Degree of protection | IEC 60529 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Languages | English (default), German (optional), Portuguese (optional), |
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Relative humidity | < 95 % non-condensing |
| Shock resistance | 15 g , 11 ms |
| Vibration resistance | 1 g , 10 ... 150 Hz |
| Connection type | Fieldbus: Cable with test clips and cable with test plugs, 2.5 mm Trigger output: Cable with 2 banana plugs USB: Square type B socket |
| Degree of protection | IP44 |
| Mass | 500 g |
| EU-type examination certificate | ZELM 14 ATEX 0531 |
| Marking II 2(1) G Ex ib [ia Ga] IIC T4 Gb ,[exsign] II 3(1) G Ex ic [ia Ga] IIC T4 Gc ,[exsign] II 3 G Ex ic IIC T4 Gc ,[exsign] II (1) D [Ex ia IIIC Da] ,[exsign] II (3) D [Ex ic IIIC Dc] | Marking II 2(1) G Ex ib [ia Ga] IIC T4 Gb ,[exsign] II 3(1) G Ex ic [ia Ga] IIC T4 Gc ,[exsign] II 3 G Ex ic IIC T4 Gc ,[exsign] II (1) D [Ex ia IIIC Da] ,[exsign] II (3) D [Ex ic IIIC Dc] |
| Bus | Bus |
| TypeFieldbusType of protectionia, ibInternal capacitanceCi< 1.8 nFInternal inductanceLi< 1.5 µHVoltage Ui30 V | TypeFieldbusType of protectionia, ibInternal capacitanceCi< 1.8 nFInternal inductanceLi< 1.5 µHVoltage Ui30 V |
| Bus | Bus |
| TypeFieldbusType of protectionicInternal capacitance< 1.8 FInternal inductance< 1.5 µHVoltage Ui35 V | TypeFieldbusType of protectionicInternal capacitance< 1.8 FInternal inductance< 1.5 µHVoltage Ui35 V |
| Outputs | Outputs |
| TypeTrigger outputMaximum safe voltageUm140 V | TypeTrigger outputMaximum safe voltageUm140 V |
| Interface | Interface |
| TypeUSB interfaceMaximum safe voltageUm253 VVoltage Ui6 V | TypeUSB interfaceMaximum safe voltageUm253 VVoltage Ui6 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 |
| Marking | II 2(1) G Ex ib [ia Ga] IIC T4 Gb ,[exsign] II 3(1) G Ex ic [ia Ga] IIC T4 Gc ,[exsign] II 3 G Ex ic IIC T4 Gc ,[exsign] II (1) D [Ex ia IIIC Da] ,[exsign] II (3) D [Ex ic IIIC Dc] |
| Type | Fieldbus |
| Type of protection | ia, ib |
| Internal capacitance | < 1.8 nF |
| Internal inductance | < 1.5 µH |
| Voltage Ui | 30 V |
| Type | Fieldbus |
| Type of protection | ic |
| Internal capacitance | < 1.8 F |
| Internal inductance | < 1.5 µH |
| Voltage Ui | 35 V |
| Type | Trigger output |
| Maximum safe voltage | 140 V |
| Type | USB interface |
| Maximum safe voltage | 253 V |
| Voltage Ui | 6 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 |
| CSA approval | CSA 16.70029275 |
| Approved forClass I, Division 2, Groups A, B, C, D, T4Associated equipment for Class I, Division 1, Groups A, B, C, DAssociated equipment for Class II, Division 1, Groups E, F, GAssociated equipment for Class III, Division 1 | Approved forClass I, Division 2, Groups A, B, C, D, T4Associated equipment for Class I, Division 1, Groups A, B, C, DAssociated equipment for Class II, Division 1, Groups E, F, GAssociated equipment for Class III, Division 1 |
| IECEx approval | IECEx ZLM 14.0012 |
| Approved forEx ib [ia Ga] IIC T4 Gb ,Ex ic [ia Ga] IIC T4 Gc ,Ex ic IIC T4 Gc ,[Ex ia IIIC Da] ,[Ex ic IIIC Dc] | Approved forEx ib [ia Ga] IIC T4 Gb ,Ex ic [ia Ga] IIC T4 Gc ,Ex ic IIC T4 Gc ,[Ex ia IIIC Da] ,[Ex ic IIIC Dc] |
| Approved for | Class I, Division 2, Groups A, B, C, D, T4Associated equipment for Class I, Division 1, Groups A, B, C, DAssociated equipment for Class II, Division 1, Groups E, F, GAssociated equipment for Class III, Division 1 |
| Approved for | Ex ib [ia Ga] IIC T4 Gb ,Ex ic [ia Ga] IIC T4 Gc ,Ex ic IIC T4 Gc ,[Ex ia IIIC Da] ,[Ex ic IIIC Dc] |
| Scope of delivery | FDH-1 incl. carrying case, fieldbus connection cable, USB 2.0 cable, FDH-1 Manager software |
| Supplementary information | Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
