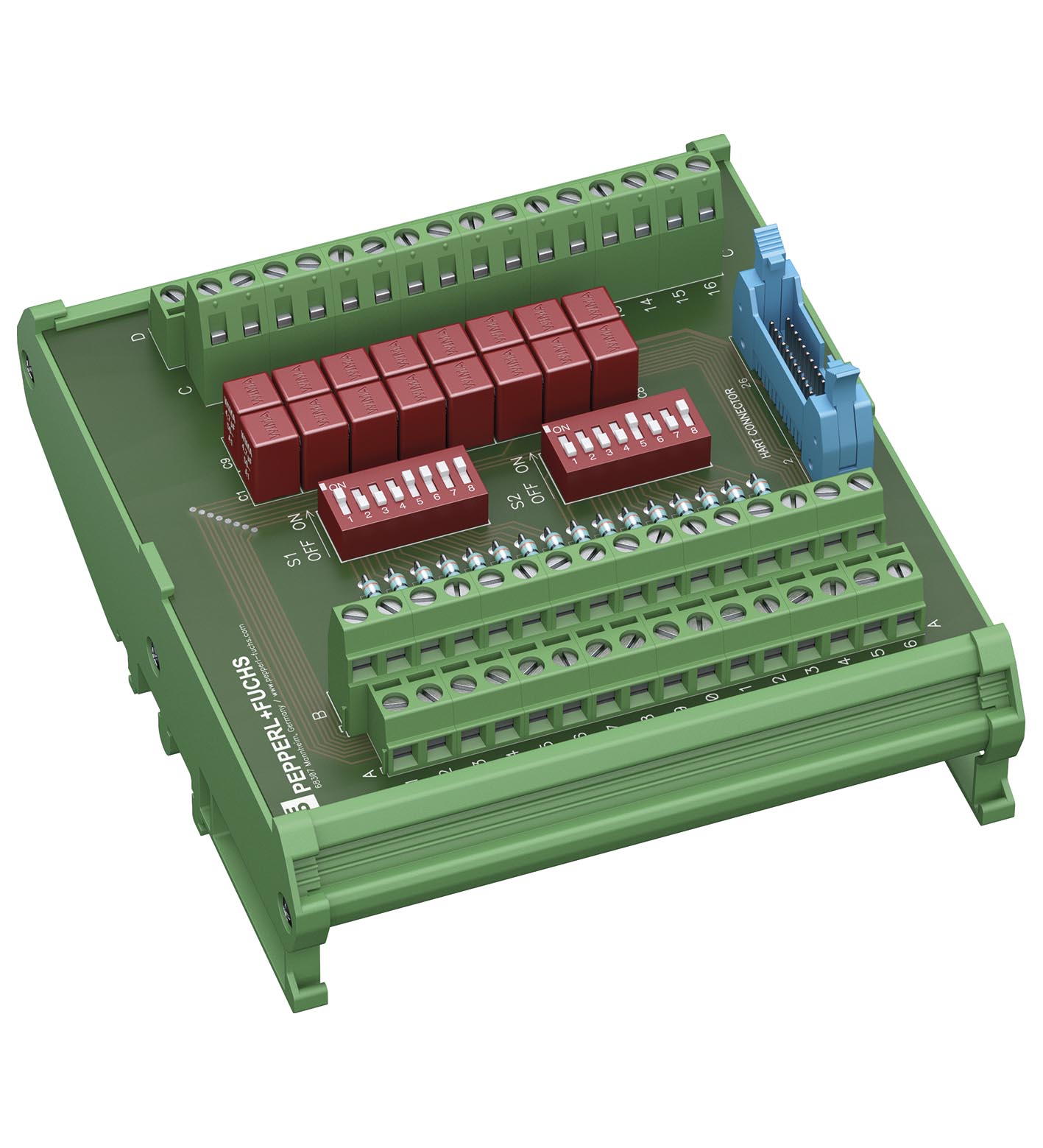

TECHNICAL DATA
规格参数
HART signal channels (non-intrinsically safe)
| Load resistor | 220 Ω , switchable on |
|---|---|
| Type | multiplexer connection : IDC plug, 26-pin |
| Rated current | max. 30 mA per channel |
| Control elements | DIP switch |
| DIP switch | selection of operating mode:- ON: without load resistor- OFF: with load resistor |
| Factory setting | DIP switches S1 and S2: ON |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2017For further information see system description. |
| Degree of protection | IEC 60529:2001 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
| Storage temperature | -15 ... 50 °C (5 ... 122 °F) |
| Relative humidity | ≤ 93 % non-condensing |
| Shock resistance | 15 g , 11 ms |
| Vibration resistance | 1 g , 10 ... 150 Hz |
| Degree of protection | IP20 |
| Connection | Connection |
| Field sidescrew terminals , greenControl sidescrew terminals , green HART : 1 x IDC plug, 26-pin | Field sidescrew terminals , greenControl sidescrew terminals , green HART : 1 x IDC plug, 26-pin |
| Core cross section | 0.25 ... 1.5 mm2 (24 ... 16 AWG) |
| Material | Material |
| HousingPVC | HousingPVC |
| Mass | approx. 210 g |
| Dimensions | 110 x 125 x 61 mm (4.3 x 4.9 x 2.4 inch) (W x H x D) |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Field side | screw terminals , green |
| Control side | screw terminals , green HART : 1 x IDC plug, 26-pin |
| Housing | PVC |
| Certificate | PF 11 CERT 1930 X |
| Marking II 3G Ex nA IIC T4 Gc | Marking II 3G Ex nA IIC T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010 |
| Marking | II 3G Ex nA IIC T4 Gc |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
