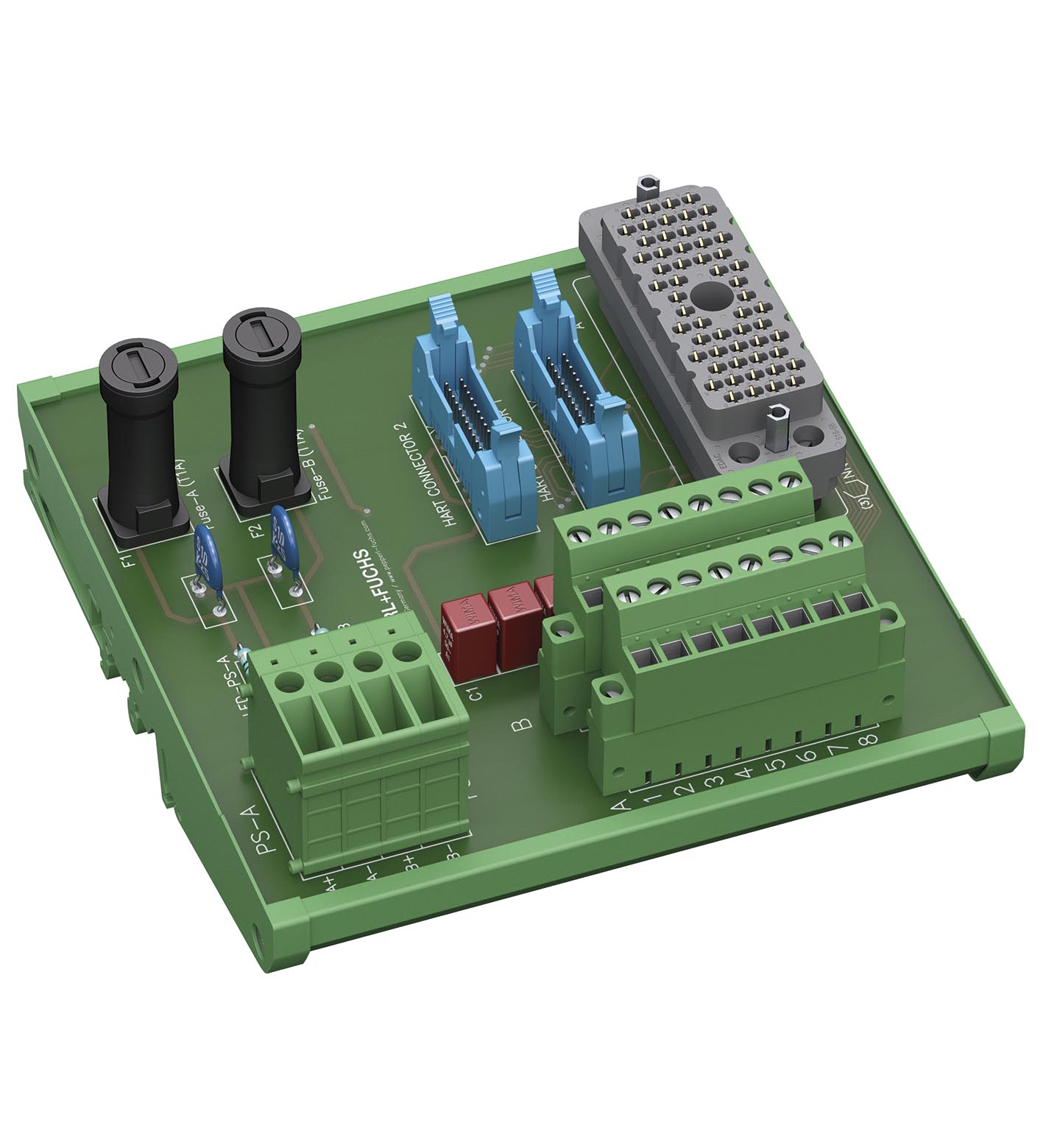

TECHNICAL DATA
规格参数
Supply
| Rated voltage | 25 ... 28 V DC SELV/PELV |
|---|---|
| Ripple | max. 10 % |
| Fusing | 1 A |
| Power dissipation | ≤ 500 mW |
| Type | multiplexer connection : IDC plug, 26-pin |
| Supply | Redundancy available. The supply is monitored and fused. |
| Rated current | max. 30 mA per channel |
| Display elements | - LED PS-A (Termination Board power supply), green LED- LED PS-B (Termination Board power supply), green LED |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2017For further information see system description. |
| Degree of protection | IEC 60529:2001 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
| Storage temperature | -15 ... 50 °C (5 ... 122 °F) |
| Relative humidity | ≤ 93 % non-condensing |
| Shock resistance | 15 g , 11 ms |
| Vibration resistance | 1 g , 10 ... 150 Hz |
| Degree of protection | IP20 |
| Connection | Connection |
| Field sidepluggable screw terminals , greenControl sideELCO socket, 56-pin HART : 2 x IDC plug, 26-pinSupplyscrew terminals , green | Field sidepluggable screw terminals , greenControl sideELCO socket, 56-pin HART : 2 x IDC plug, 26-pinSupplyscrew terminals , green |
| Core cross section | 0.5 ... 2.5 mm2 (20 ... 12 AWG) |
| Material | Material |
| HousingPVC | HousingPVC |
| Mass | approx. 300 g |
| Dimensions | 126 x 123 x 59 mm (5.0 x 4.9 x 2.3 inch) (W x H x D) |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Field side | pluggable screw terminals , green |
| Control side | ELCO socket, 56-pin HART : 2 x IDC plug, 26-pin |
| Supply | screw terminals , green |
| Housing | PVC |
| Certificate | PF 11 CERT 1933 X |
| Marking II 3G Ex nA IIC T4 Gc | Marking II 3G Ex nA IIC T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010 |
| Marking | II 3G Ex nA IIC T4 Gc |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
