FN-LB-I

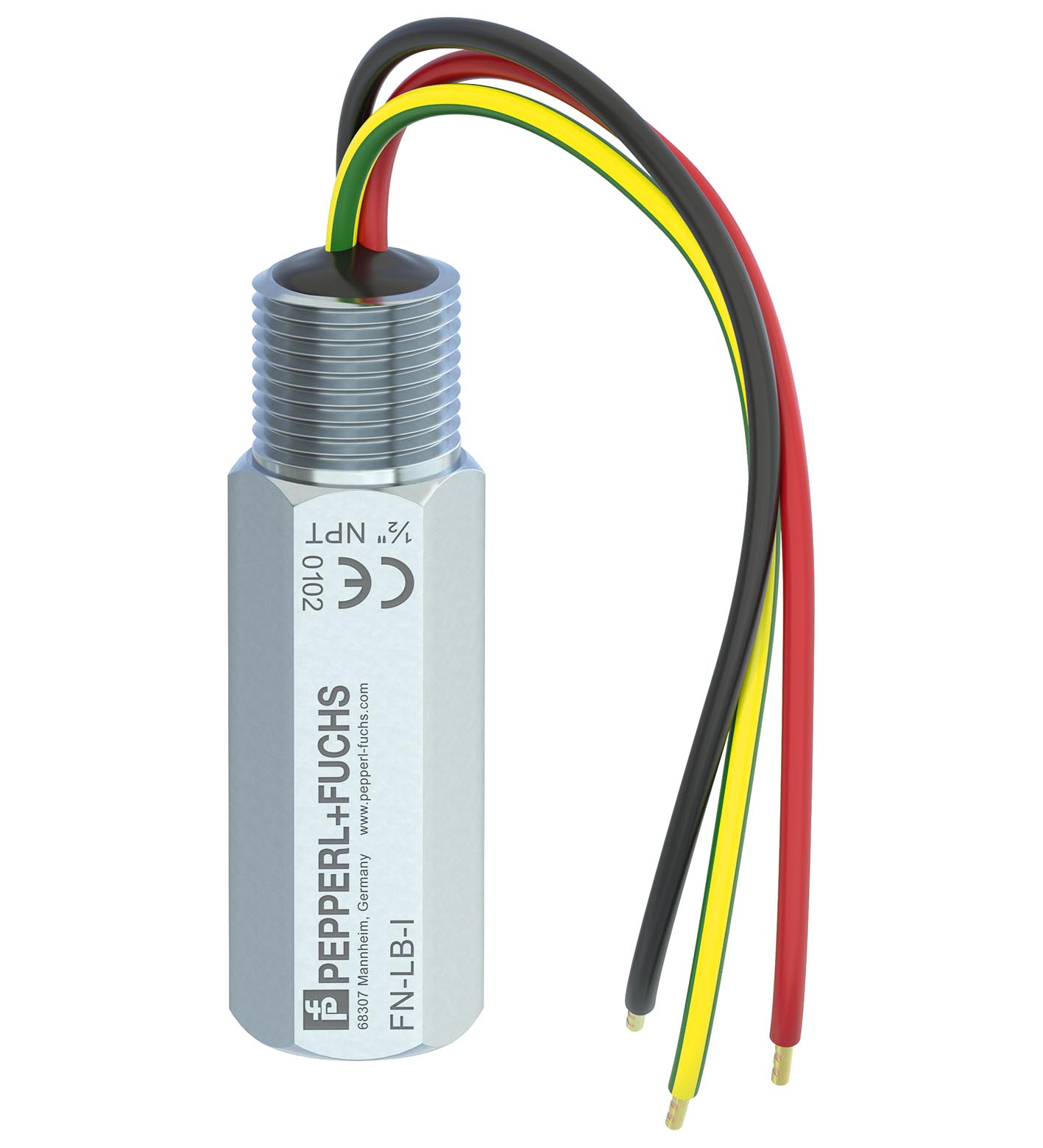

FN-LB-I Surge Protection Barrier

订货号: 098918
产品分类: Signal Line Protection

Surge Protection Barrier

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Number of protected signal lines	1
Safety Integrity Level (SIL)	SIL 3
Rated voltage	≤ 48 V
Rated current	≤ 250 mA
Leakage current	≤ 5 µA
On-state voltage	≤ 85 V
Ground insulation	≥ 500 V breakdown voltage
Total discharge current (8/20 µs)	20 kA
Degree of protection	IEC 60529:2001
Ambient temperature	-30 ... 60 °C (-22 ... 140 °F) For usage in hazardous area observe the EC-type examination certificate.
Housing material	Stainless steel 1.4401 (AISI 316)surface all over polished
Degree of protection	IP67
Cable	Cable
LengthL0.3 m	LengthL0.3 m
Mass	approx. 200 g
Dimensions	AF22 x 77 mm (0.9 x 3 inch)
Width across flats22	Width across flats22
Mounting	NPT1/2 thread
Length	0.3 m
Width across flats	22
EU-type examination certificate	PTB 00 ATEX 2175
Marking II 2G EEx ia IIC T6VoltageUi50 V	Marking II 2G EEx ia IIC T6VoltageUi50 V
Maximum leakage current	10 kA line to ground (common), 5 kA line to line (differential) in accordance to IEC 60-2
Nominal response time	Nominal response time
Symmetrical1 nsAsymmetric100 ns	Symmetrical1 nsAsymmetric100 ns
Bandwidth	≥ 40 kHz
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012
Marking	II 2G EEx ia IIC T6
Voltage	50 V
Symmetrical	1 ns
Asymmetric	100 ns
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-11:2012
CSA approval	CSA approval
Control drawing116-0187 (cCSAus)	Control drawing116-0187 (cCSAus)
Control drawing	116-0187 (cCSAus)
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
